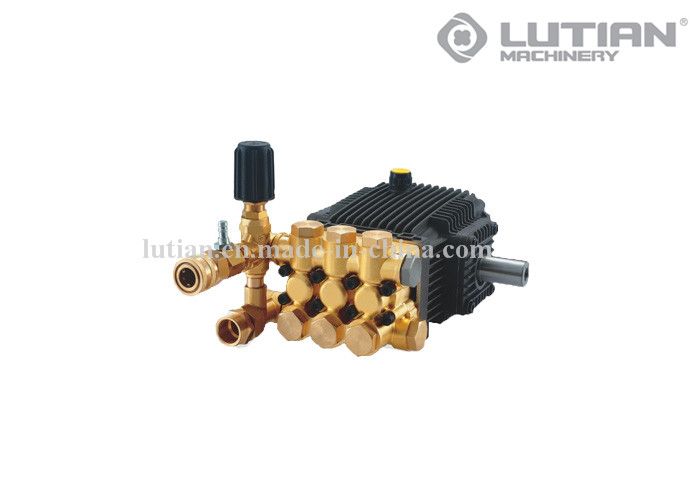

                                    Plunger Pump for High Pressure Washer (3WZ-1507B 3WZ-1508B 3WZ-1510B)
                                    • Plunger Pump for High Pressure Washer (3WZ-1507B 3WZ-1508B 3WZ-1510B)Plunger Pump for High Pressure Washer (3WZ-1507B 3WZ-1508B 3WZ-1510B)

                                    Plunger Pump for High Pressure Washer (3WZ-1507B 3WZ-1508B 3WZ-1510B)

                                    Lutian Machinery Co., Ltd. Was founded in August, 2002, which covers an area of 120000.With the goal of becoming a respectable enterprise in its industry,Lutian has been dedicated to the researching and development,manufacturing of generators,water pumps and high pressure washers for more than 13 ye......

                                    Send Inquiry

                                    Product Description

                                    Plunger Pump for High Pressure Washer (3WZ-1507B 3WZ-1508B 3WZ-1510B)
                                    Lutian Machinery Co., Ltd. Was founded in August, 2002, which covers an area of 120000.With the goal of becoming a respectable enterprise in its industry,Lutian has been dedicated to the researching and development,manufacturing of generators,water pumps and high pressure washers for more than 13 years.During the last decade,Lutian has gained good reputation for its advanced management,proven quality,reliabilty and respect for the environment,labour and safety.The rising of Lutian is witnessed by all,
                                    both domestically and internationally.Today the sales network of Lutian has reached more than 92 countries and regions all over the world,generating sales of a hundred million USD annually.Now Lutian has grown into one of the biggest generator and high pressure washer manufacturers and exporters in china.As a customer-oriented company,Lutianese cherish the philosophy of "Effort,moves customer "and the satisfaction of customer will always be at the heart of Lutian's new and  future conquests.

                                    3WZ-1507B 3WZ-1508B 3WZ-1510B

                                    Pump features:
                                    .Forged brass cylinder
                                    .Anodized crankcase
                                    .Geramic plungers
                                    .German Parker water seal
                                    .Fixed rated chemical injector
                                    .Built-in self suction unloader
                                    .Pressure adjustable
                                    .In-line water inlet filter
                                    .Quick connect outlet

                                    Optional:
                                    .pressure gauge
                                    .Thermal relief valve
                                    .Adjustable chemical injector

                                    SPECIFICATIONS:
                                    ModelBore(mm)Store(mm)Max. Pressure Flow  RPMPower RequiredPacking Dim. (cm) Gross Weight (kg)
                                    barPSIL/minGPMHPKW
                                    3WZ-1507B 157180260010.42.70 2800
                                    3.736x28x258.2
                                    3WZ-1508B158206300011.8 3.132800
                                    436x28x258.2
                                    3WZ-1510B1510206300014.83.912800
                                    5.536x28x258.2
