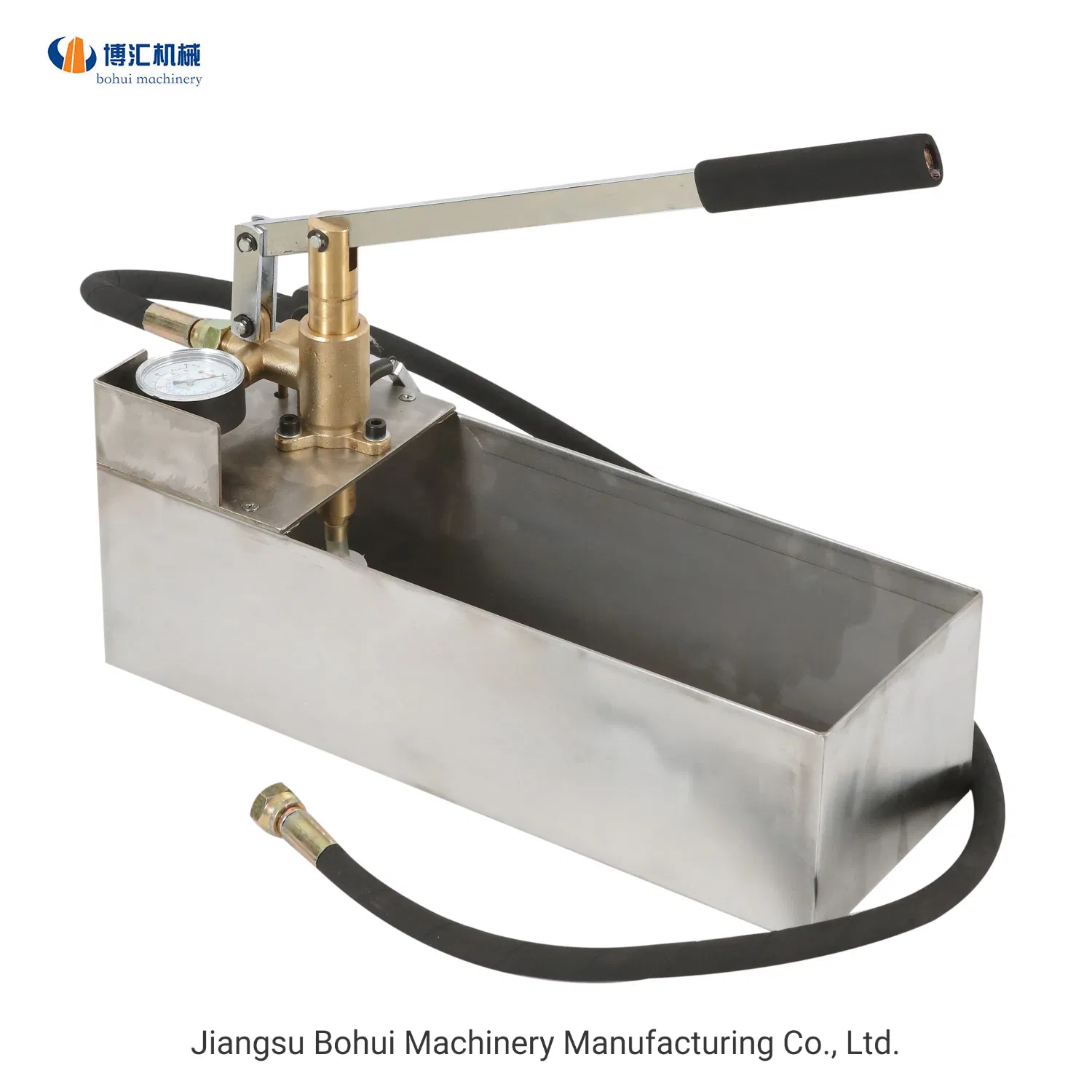

Manual Stainless Steel Pressure Testing Pump 60 Bar Water Hand Pump
Product DescriptionHe hand pressure test pump is usd for testing of leaks in installations, especially for use in heating, compressed air, refrigeration systems, oil inslallations, sprinkler systems and other small bore pipe applicationsHSY30-5SS test pump in light wight and compact design. Easy to ......
Send Inquiry
Product Description

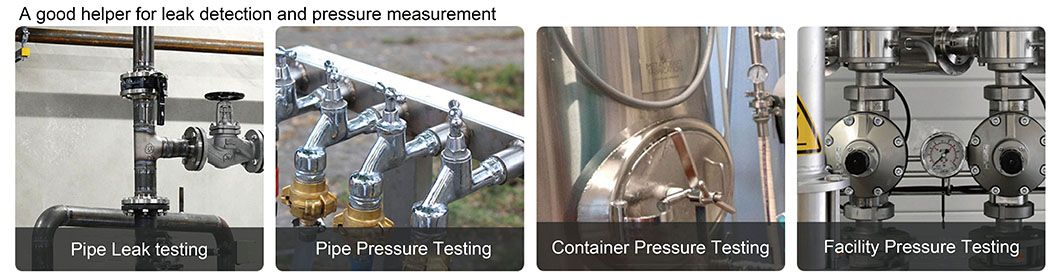

He hand pressure test pump is usd for testing of leaks in installations, especially for use in heating, compressed air, refrigeration systems, oil inslallations, sprinkler systems and other small bore pipe applications

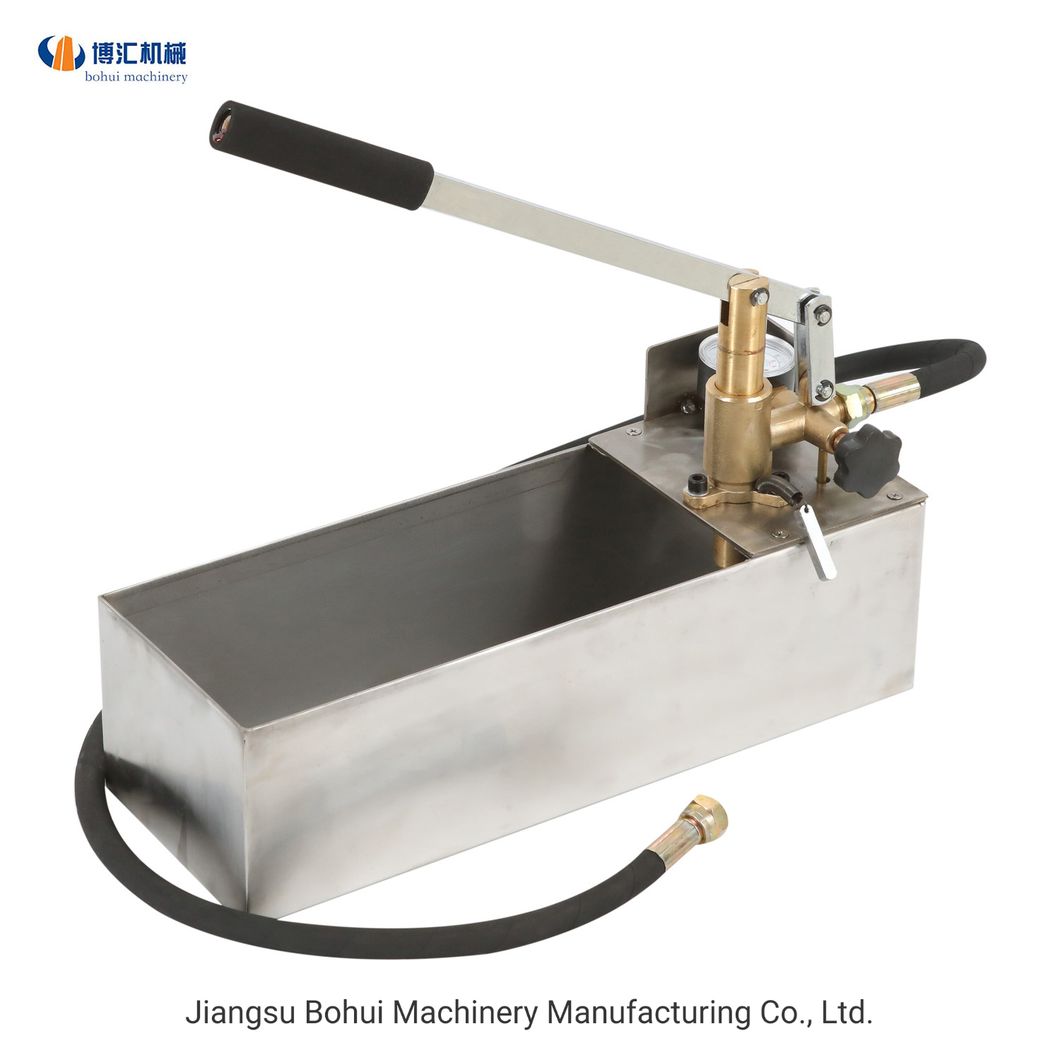

- HSY30-5SS test pump in light wight and compact design. Easy to carry. Will be your good tool to test in confined spaces.

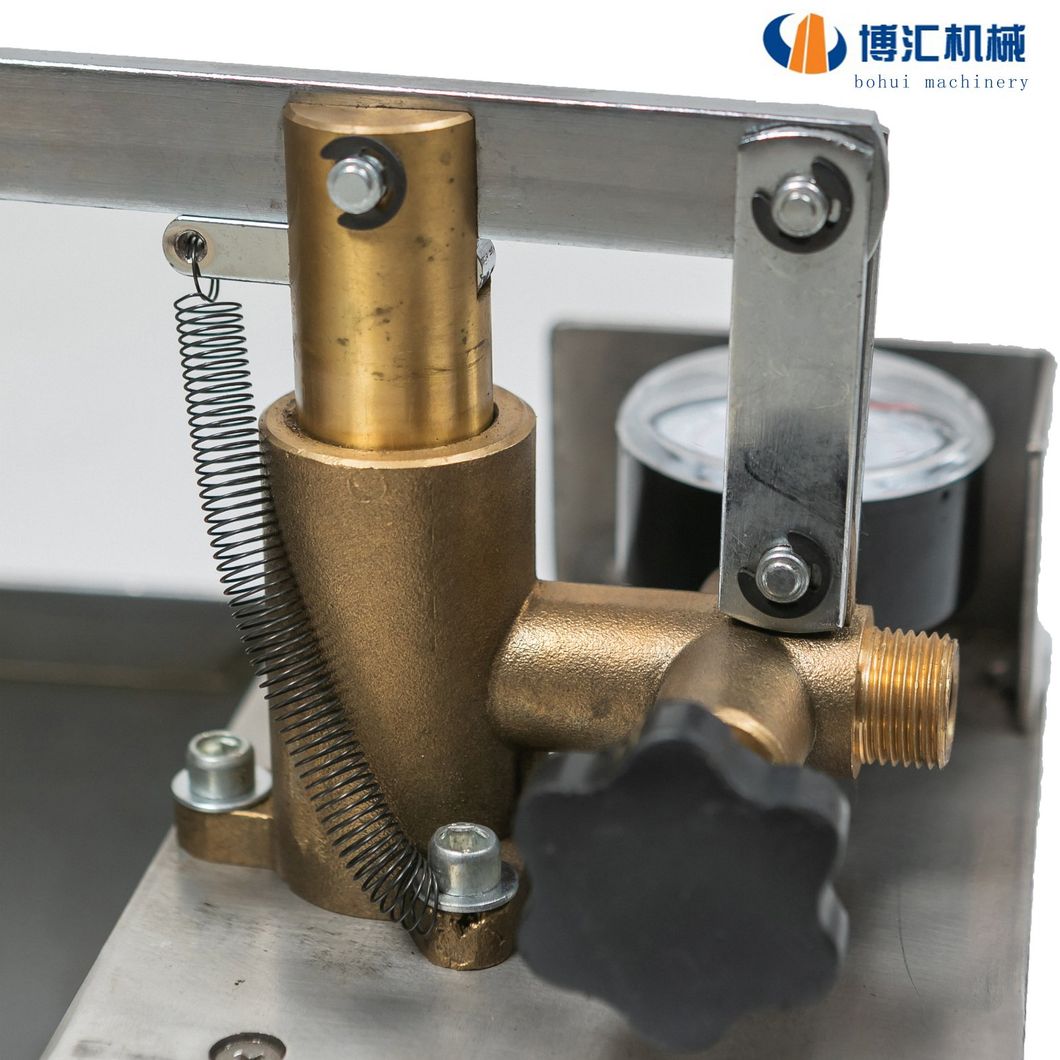

- Reliable and precise measurement results: Test pump with double valve system (twin valve) allows self-testing of the pump, as well as a precise fine adjustment of the pressure.

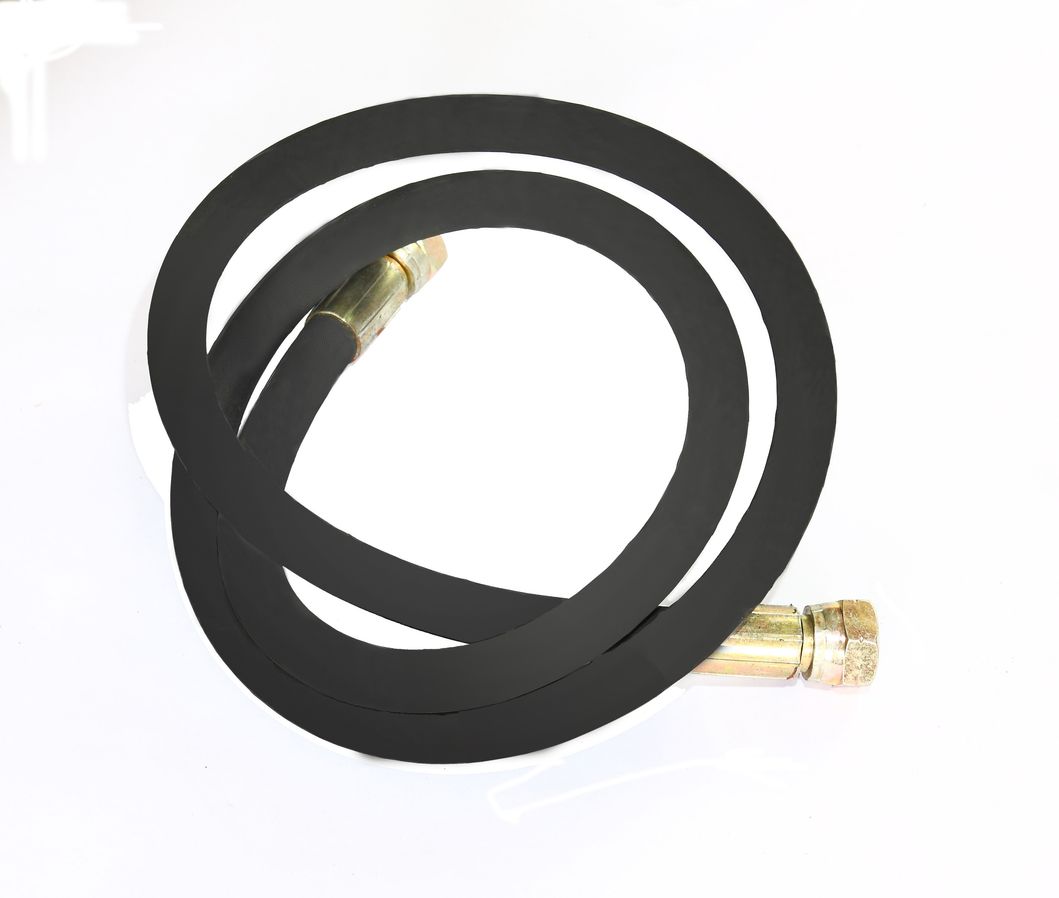

- Test Pump with steel mesh hose. No measuring errors which will be caused by expansion of the hose.
- Robust precision testing pump for pressure testing of water lines and containers up to 60 bar.
- A drag indicators displays the preset pressure so that a loss of pressure in the system can be detected easier.
- Tank with Cold-resistant coating ensure an extremely long service life.
- Finely scaled (scaling 0.1 bar) pressure gauge is optional.
- Pumps with single valve or double valve are all available

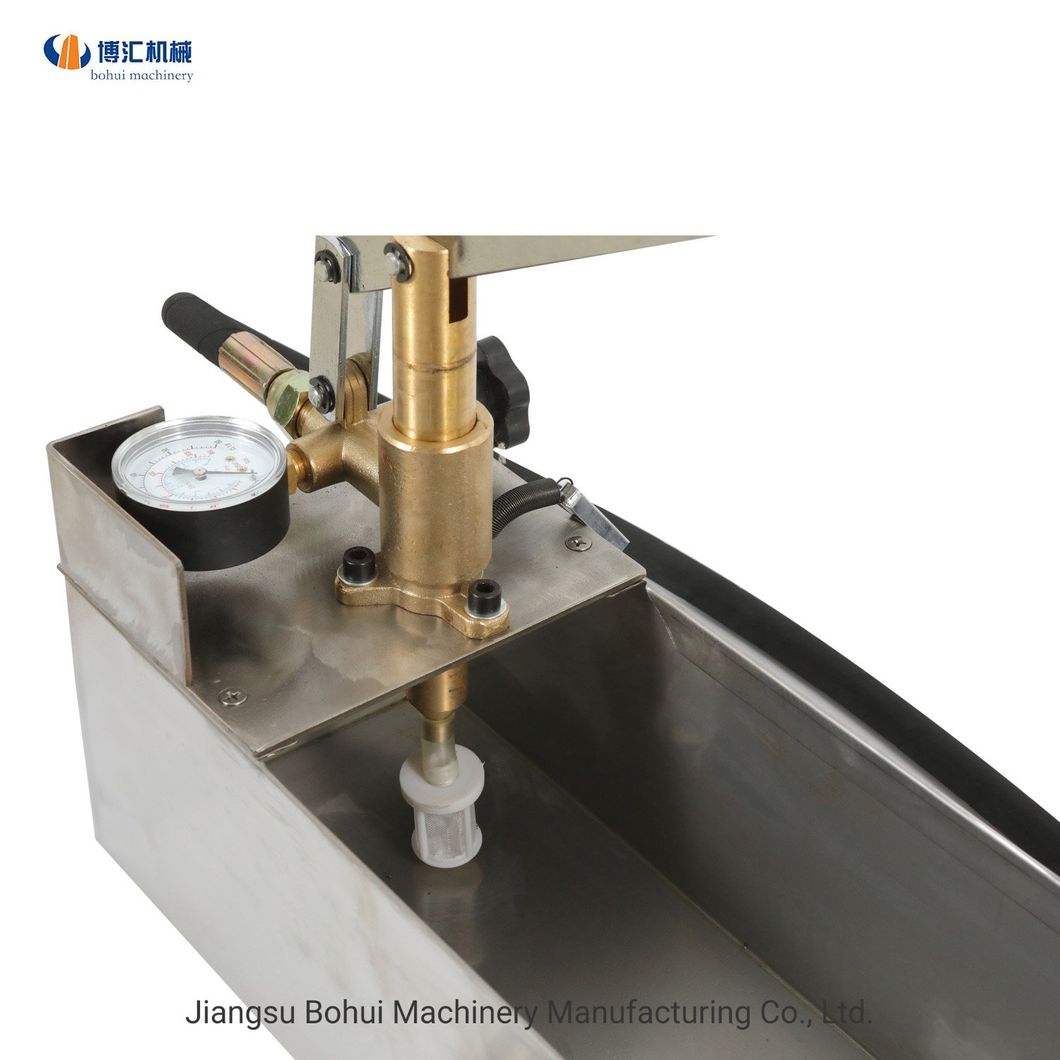

- Stainless Steel Water Tank.resistant to rusk
- We are the supplier of ROTHERNBERGER and Super-Ego.
| Technical Specifications | |||
| Model: | HSY30-5SS | Testing range: | 0-60 bar( 860 psi,6 MPa ) |
| Tank capacity: | 12 L | Volume/stroke: | ≈45 ml |
| Connections: | 1/2" BSPP | Pump material: | brass |
| Water tank: | Stainless teel | Temp Max. | 50ºC/120°F |
| Testing Medium | Water/Oil | Weight | 8 kgs |
| lift of pump | 5m | Meas. | 52*20*31cm |
Economical, practical, safe and rest assured.

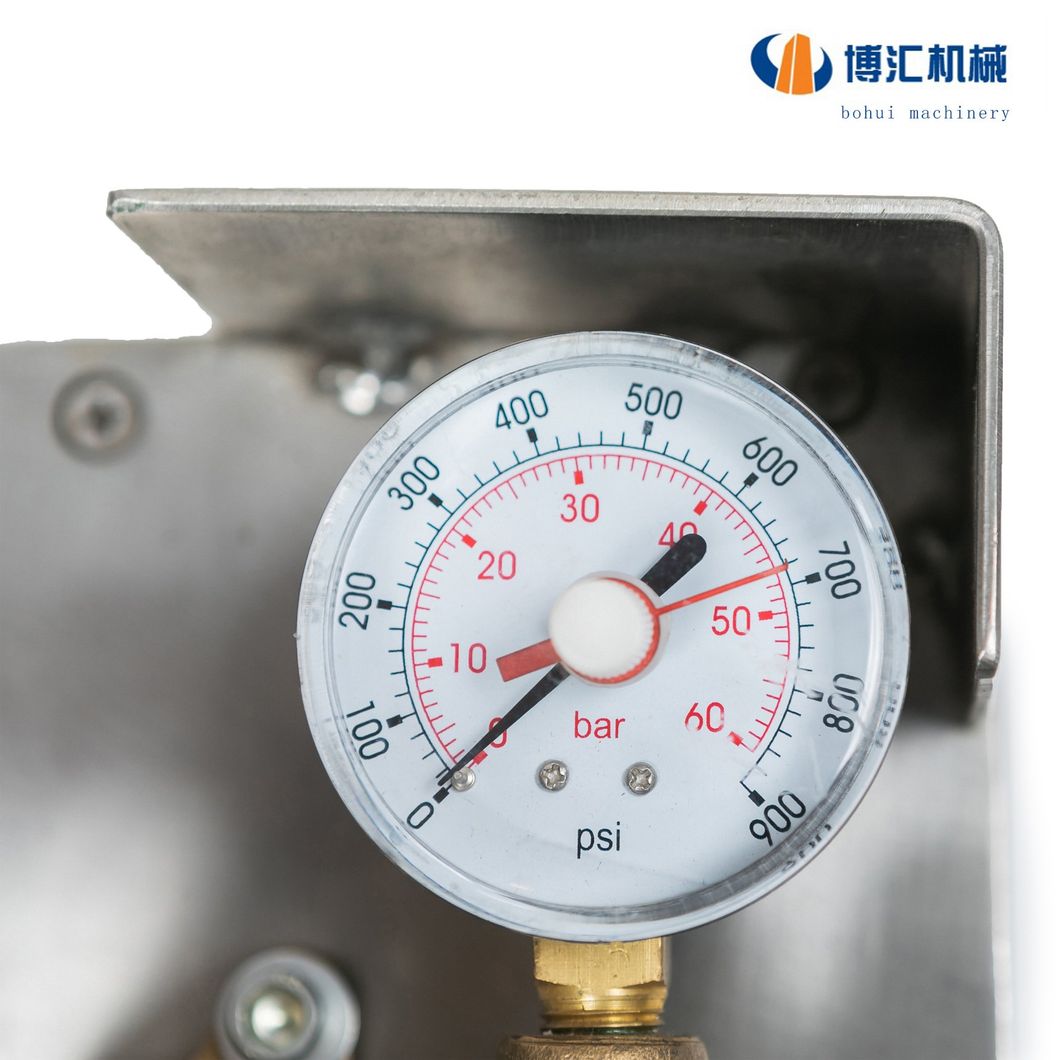

Newly upgraded dial with clear scale.
Sample and intuitive, accurate data display.
Not only shows the professional pressure unit, MPA.
It is more popular to display kilogram figures.
1. High compression resistance
2. Anti-aging
3. Not easy to crack
| Model no. | G.W.(kgs) | N.W.(kgs) | Meas(cm) |
| HSY30-5SS TEST PUMP | 8 kgs | 7.5 kgs | 52*20*31cm |
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. Free technical support and operation Video during lifetime
5. The continuous supply of the spare parts.
6. After you got our products, test them, If you have any questions with them, contact with us, we will offer a solve way accordingly.
Q1. Payment
A: Generally, we do T/T 100% in advance or T/T 30% as deposit, and 70% before shippment. We can also accept other terms according to the clients and order amount.
Q2. Terms of delivery
A: EXW, FOB, CFR, CIF.
Q3. Delivery time
A: 10-30 days after receiving your advance payment. The exact delivery time depends on the items and the quantity of your order.
Q4. Package

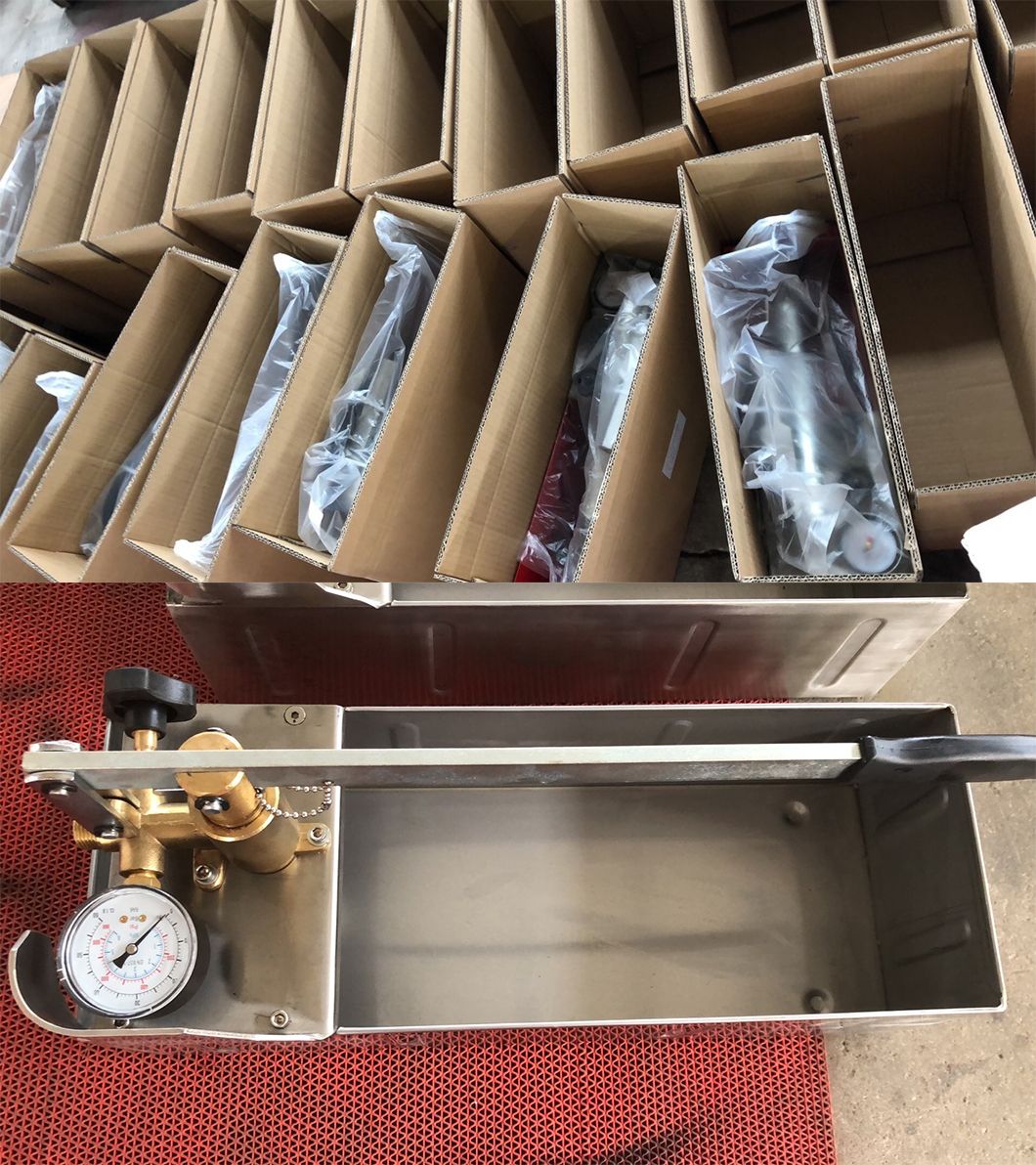

A: Generally, we pack our goods in Carton and in pallet if required.
Q5. OEM
A: If you can provide your samples or technical drawings. We can open the mold and produce accordingly
Q6. Quality test
A: we test 10% bulk before delivery
Q7. HS CODE OF test pump
A: 8413190000
