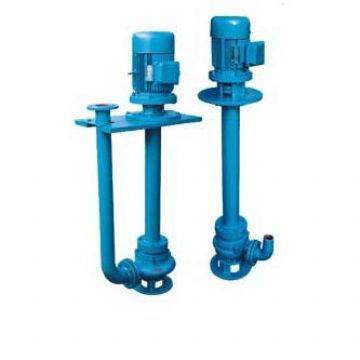

YW Semi-Submersible Pump

YW sewage submersible pump

Summarize

This series pump is the introduction of foreign advanced technology, combined with the use of the characteristics of domestic water pumps and pump the successful development of a new generation of products, with significant energy-saving, anti-wound, non-blocking and so on. At the carriage of solid particles and long fibers litter, the effect is unique.

 This series pump impeller structure unique and a new mechanical seal, can effectively contain solids conveying and long fibers, impeller compared with the traditional impeller, the impeller pump or a single flow channel of Double-channel form, which is similar to the one section of the same size Bend, has a very good flow, and with a reasonable cochlear room, makes the pump with high efficiency, the impeller by the balance test, so that the operation of pumps at no vibration. The effectiveness of its unique, reliable performance and stable quality of the welcome and the majority of users praise.

Usage

Applicable for urban environment, construction, fire control, chemical industry, pharmacy, dye, brew-age, power electricity, plating, paper making, washing of industrial mines, cooling of equipment, etc. it has automatic coupling installation device.
Characteristic
Road to adopt anti-clogging stream of hydraulic components of the design, greatly increased capacity dirt effectively through the pump 5 times the diameter of the fiber material and a diameter of pump diameter of about 50% of the solid particles. Designed reasonable reasonable matching motor, high efficiency, energy-saving effect. Single mechanical seal seal materials resistant to the hardness of tungsten carbide wear-resistant, with durable, wear-resistant characteristics, you can use the security for more than 8000 hours continuous operation...

Flow: 8-2600m3/h;

Head: 5-60m;

Power: 0.75-250kw;

Rotary speed: 580-2900r/min;

Calibre: 25-500mm;

Temperature range: ≤60ºC;



Company information





Certification




FAQ

1.Q: Are your company is trading company or manufacture?

A: Shanghai Pacific Pump Group Co.,Ltd. is a large professional manufacture for more than 18 years in china,and      produce with their own factory.

2. Q: What's your factory workshops?

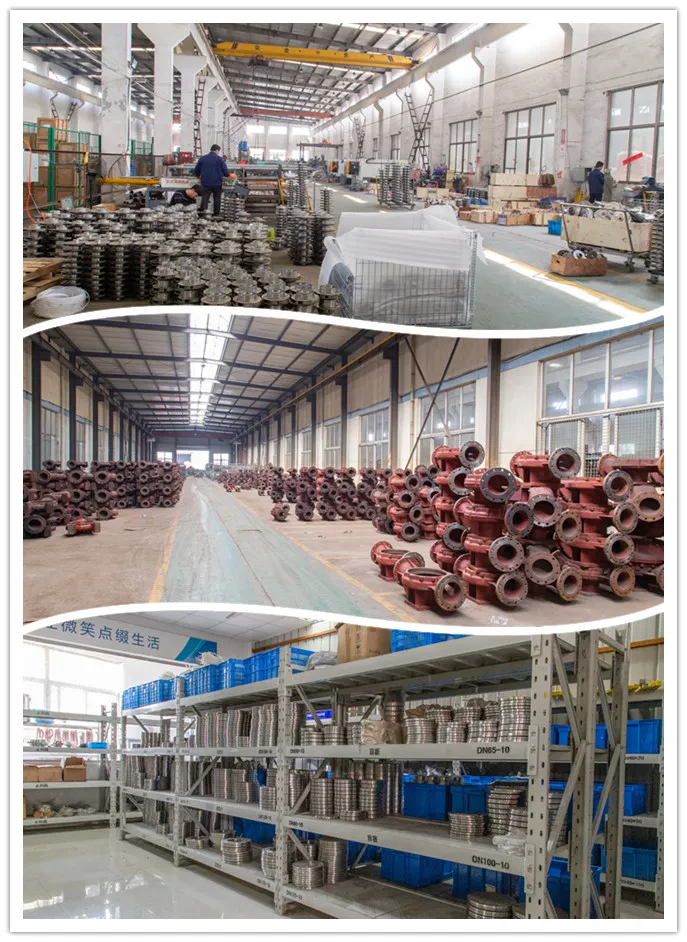

A: Our factory produce include casting,mechanical process,lathe process,heat treatment,assembly,and test,etc.          Warmly welcome to visit & test our factory any time.

3. Q: How about your pumps price?

A: Our price is factory price,and insist high quality for long-term cooperation.

4. Q: How to do if the pump or parts have operation problem within your warranty?

A: Tell me details timely,and show me pictures,we will send you solution at once without any hesitation.

5. Q: We don't know which pump model we need,can u help us?

A: Yes,pls tell me your detail requirement,include liquid,flow rate,head,etc.and our engineers team will calculate &         select most suitable pump model for u,offer pump solution for u.

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Warmly welcome to our factory and any quetion just feel free to contact me .
