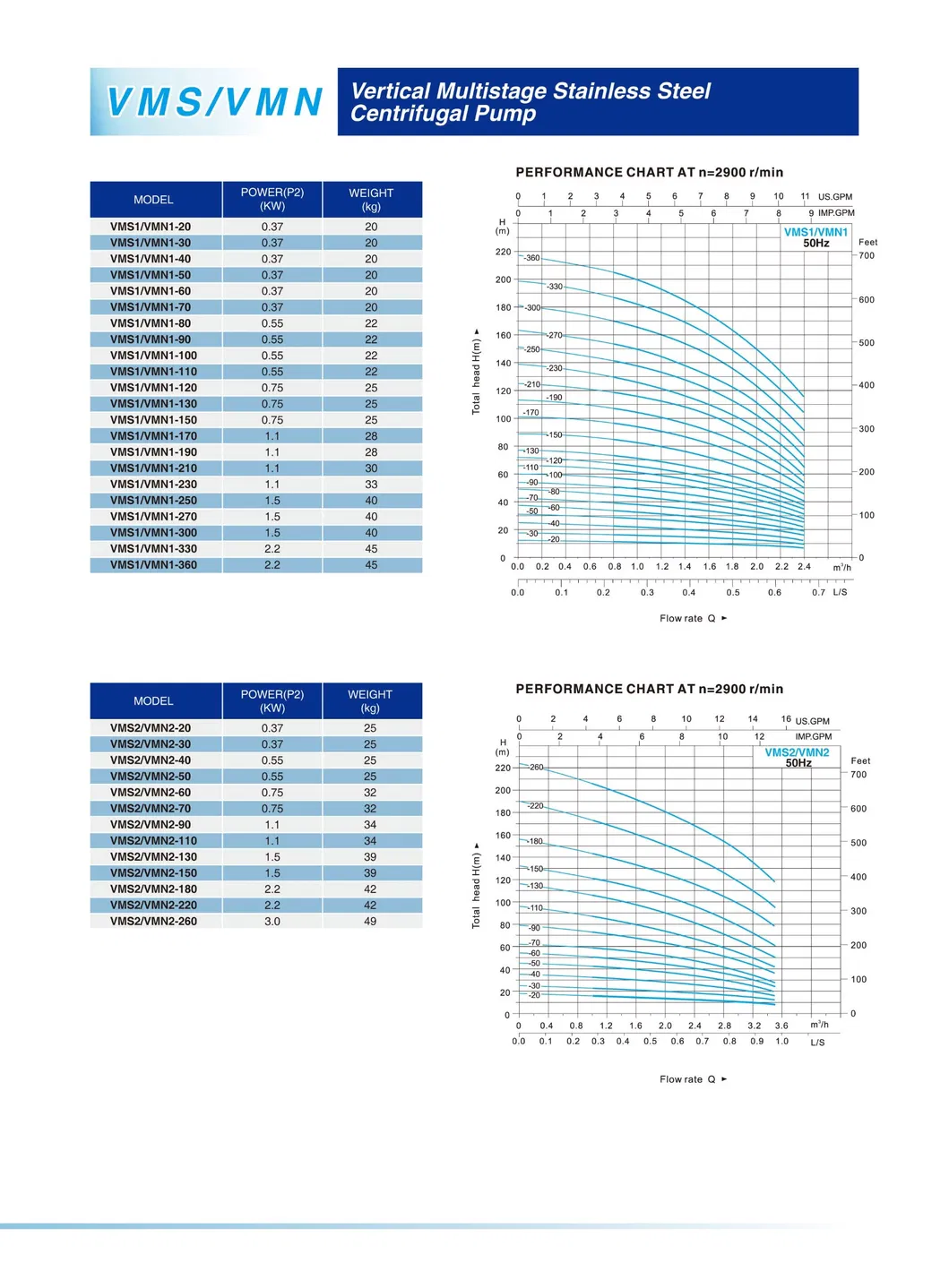

VMS/VMN Vertical Multistage Stainless Steel Centrifugal Pump(VMS1/VMN1-360)

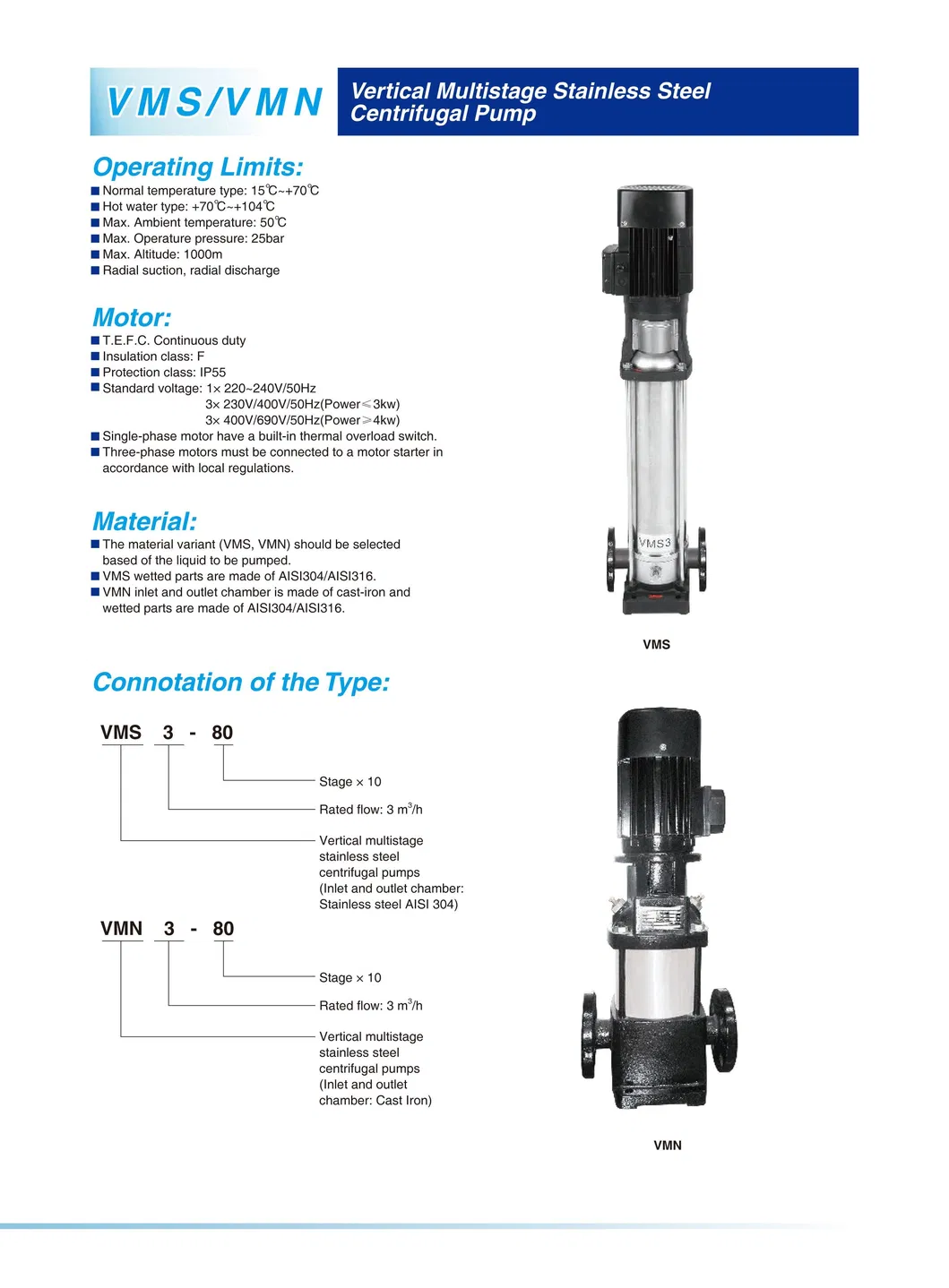

Operating Limits:
Normal temperature type: 15ºC~+70ºC
Hot water type: +70ºC~+104ºC
Max. Ambient temperature: 50ºC
Max. Operature pressure: 25bar
Max. Altitude: 1000m
Radial suction, radial discharge

Motor:
T.E.F.C. Continuous duty
Insulation class: F
Protection class: IP55
Standard voltage: 1× 220~240V/50Hz
                  3× 230V/400V/50Hz(Power≤ 3kw)
                  3× 400V/690V/50Hz(Power≥4kw)
Single-phase motor have a built-in thermal overload switch.
Three-phase motors must be connected to a motor starter in
accordance with local regulations.

Material:
The material variant (VMS, VMN) should be selected
based of the liquid to be pumped.
VMS wetted parts are made of AISI304/AISI316.
VMN inlet and outlet chamber is made of cast-iron and
wetted parts are made of AISI304/AISI316.

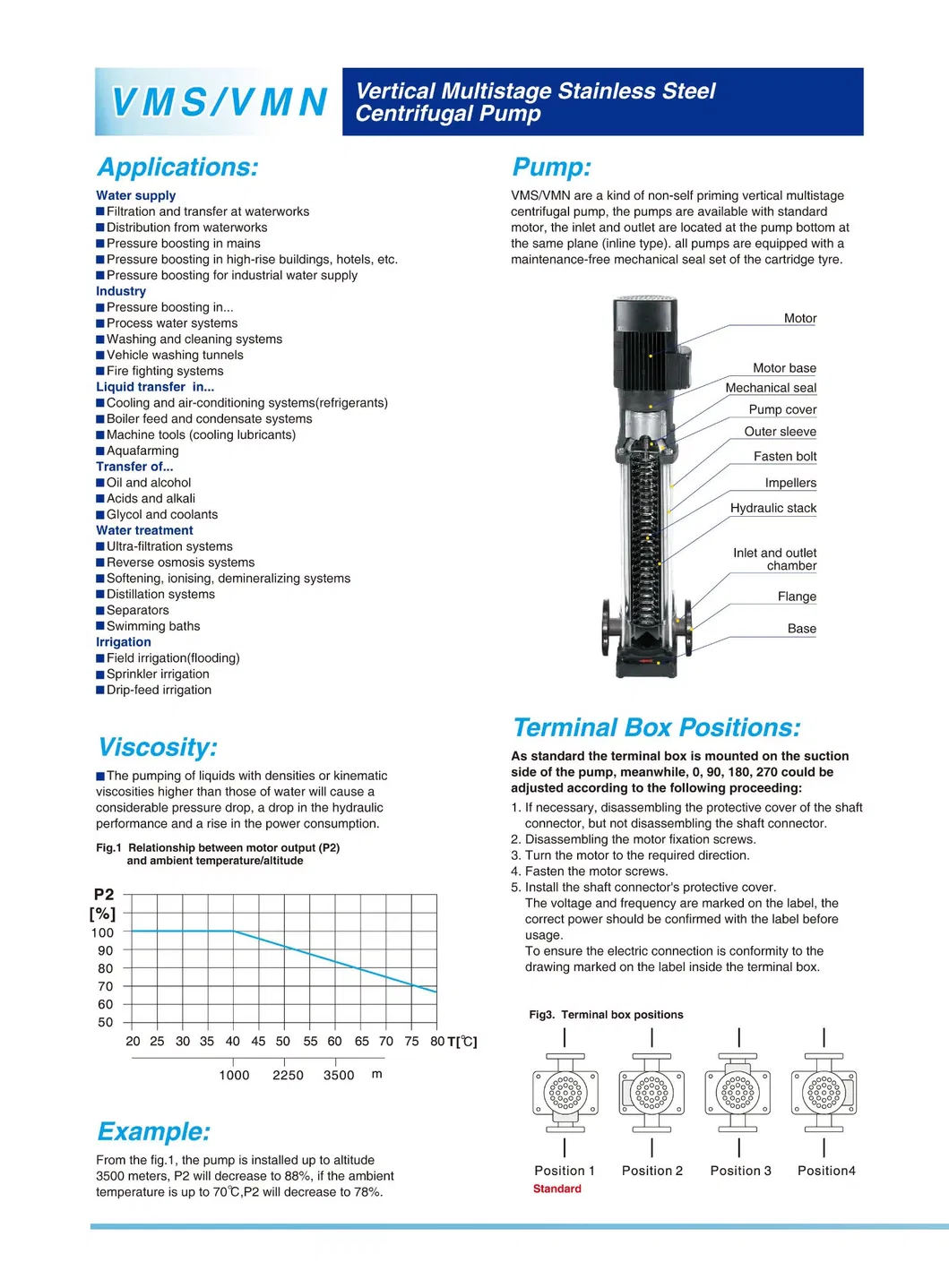

Applications:

Water supply
Filtration and transfer at waterworks
Distribution from waterworks
Pressure boosting in mains
Pressure boosting in high-rise buildings, hotels, etc.
Pressure boosting for industrial water supply

Industry
Pressure boosting in...
Process water systems
Washing and cleaning systems
Vehicle washing tunnels
Fire fighting systems

Liquid transfer in...
Cooling and air-conditioning systems(refrigerants)
Boiler feed and condensate systems
Machine tools (cooling lubricants)
Aquafarming

Transfer of...
Oil and alcohol
Acids and alkali
Glycol and coolants

Water treatment
Ultra-filtration systems
Reverse osmosis systems
Softening, ionising, demineralizing systems
Distillation systems
Separators
Swimming baths

Irrigation
Field irrigation(flooding)
Sprinkler irrigation
Drip-feed irrigation
