Product Description

Product Description:
The water pumps are suitable for applications in dredging, quarries, mines, cleaning of settling ponds, and other applications and industries that need pumping solutions with very high durability.
Discharge : Up to 600 mm
Capacity : up to 3000 m3/h
Head : up to 40 meters
Permissible solid size : up to 125 mm
There are so me type as follow,you can contact me if you need other type.

Type	Outlet diameter(mm)	Capacity		Head(m)	Speed (r/min)	power (kW)	Efficiency (%)	Weight (Kg)
Type	Outlet diameter(mm)	(m³/h)	(L/s)	Head(m)	Speed (r/min)	power (kW)	Efficiency (%)	Weight (Kg)
AT350WQ1200-6-30	350	1000	277.8	7	730	30	75	850
		1200	333.3	6			72
		1500	416.7	5			70
AT350WQ1200-8-37		1000	277.8	9	740	37	76	950
		1200	333.3	8			75
		1500	416.7	6			70
AT350WQ1100-10-45		900	250	11	740	45	67	1250
		1100	305.6	10			70
		1500	416.7	7			68
AT350WQ1100-12-55		900	250	14	740	55	69	1320
		1100	305.6	12			71
		1500	416.7	8			66
AT350WQ1100-16-75		900	250	19	980	75	70	1650
		1100	305.6	16			75
		1500	416.7	12			72
AT350WQ1100-20-90		900	250	24	980	90	70	1770
		1100	305.6	20			75
		1500	416.7	15			72
AT350WQ1100-25-110		900	250	30	980	110	72	1840
		1100	305.6	25			76
		1500	416.7	18			73
AT350WQ1100-30-132		900	250	35	980	132	72	1920
		1100	305.6	30			75
		1500	416.7	24			79
AT350WQ1100-36-160		900	250	40	980	160	70	2700
		1100	305.6	36			75
		1500	416.7	28			80
AT350WQ1500-30-185		1200	333.3	35	980	185	75	2800
		1500	416.7	30			80
		2000	555.6	24			77
AT350WQ1500-32-200		1200	333.3	38	740	200	75	2850
		1500	416.7	32			80
		2000	555.6	25			78
AT350WQ1500-35-220		1200	333.3	40	740	220	75	3050
		1500	416.7	35			80
		2000	555.6	27			78
AT350WQ1500-40-250		1200	333.3	42	740	250	78	3250
		1500	416.7	40			80
		2000	555.6	33			82
AT350WQ1800-40-280		1400	333.3	42	740	280	78	3450
		1800	416.7	40			80
		2600	555.6	33			82
AT350WQ1800-43-315		1400	333.3	48	740	315	78	3650
		1800	416.7	43			80
		2600	555.6	35			82
AT350WQ1800-46-355		1400	333.3	50	740	355	78	3950
		1800	416.7	46			80
		2600	555.6	38			82

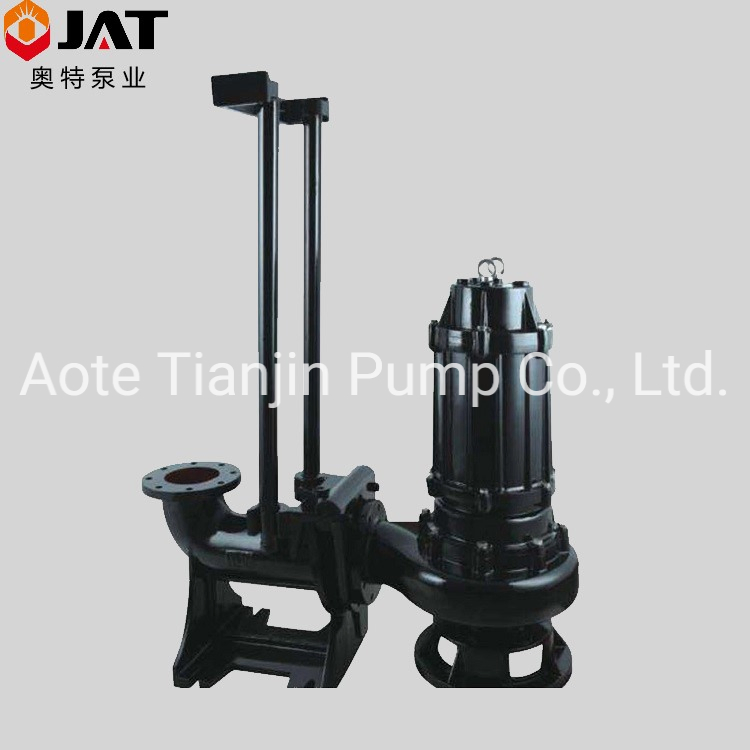

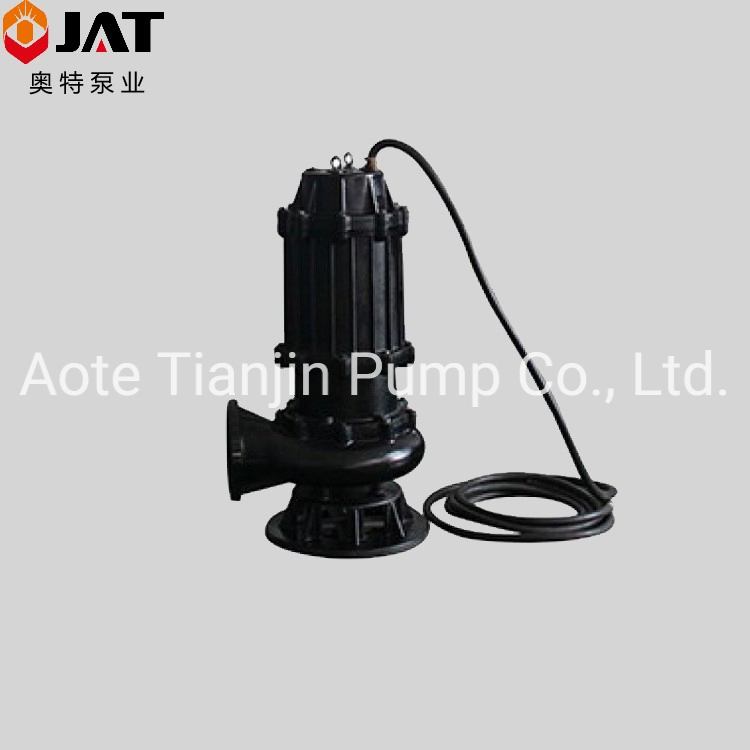

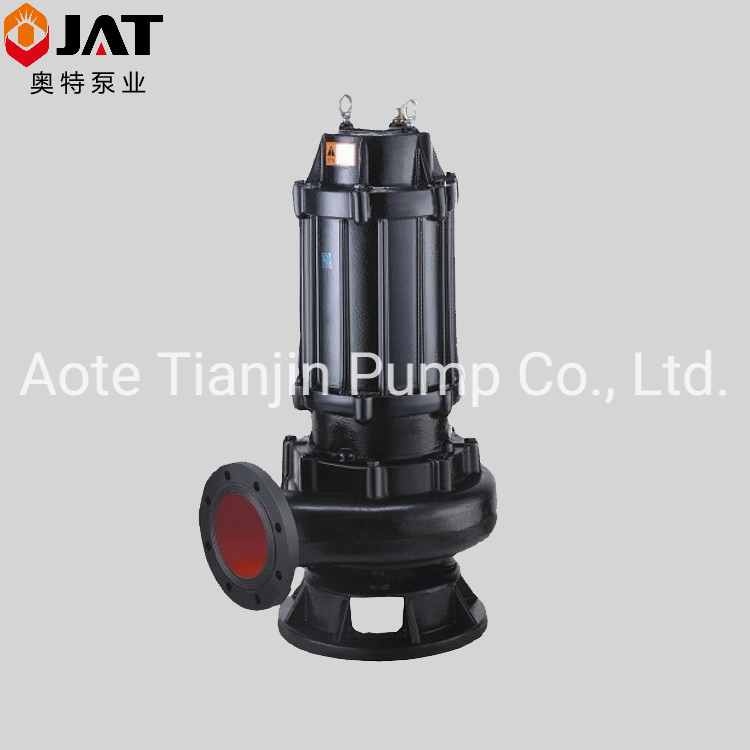

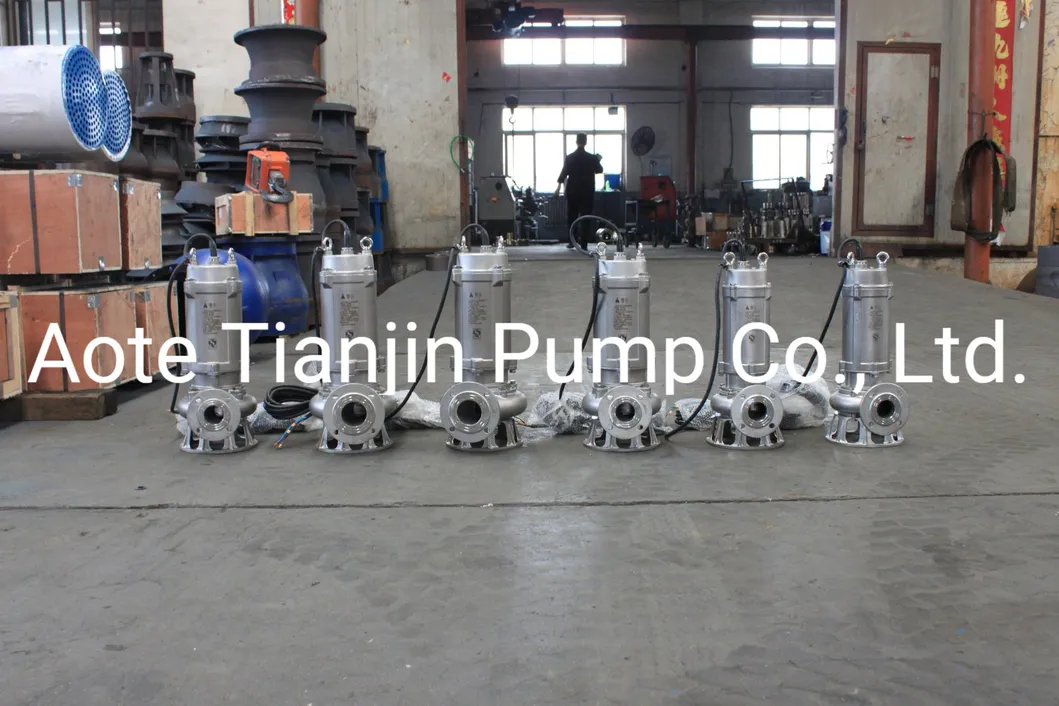

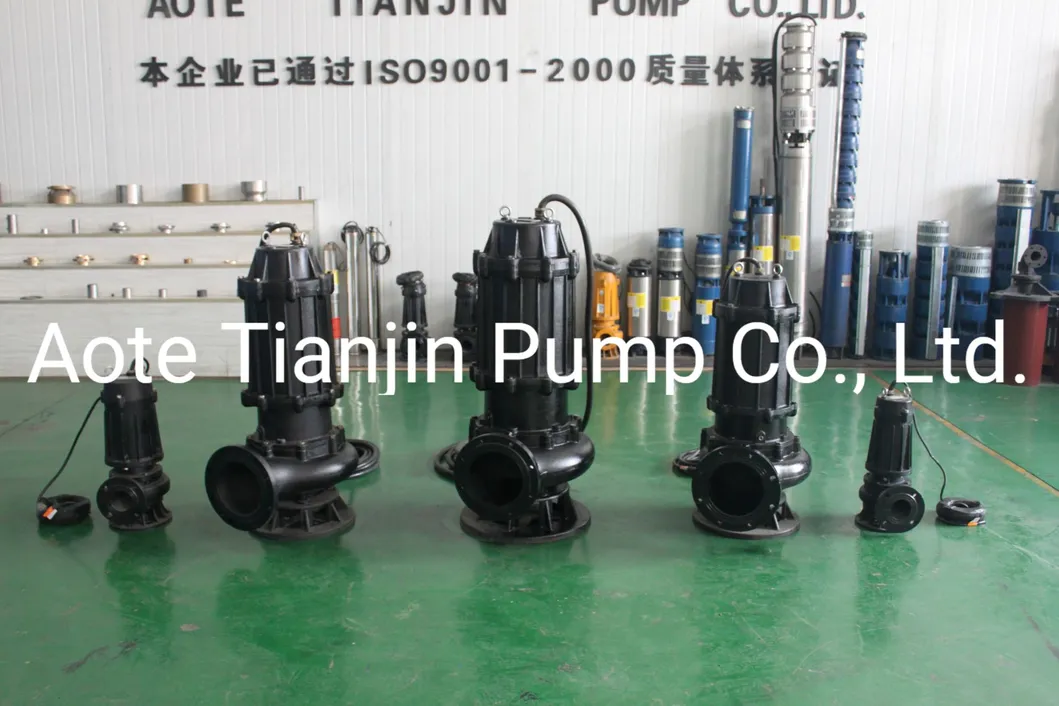

Product photo:

Submersible Sewage Water Pumps for River

Our company:

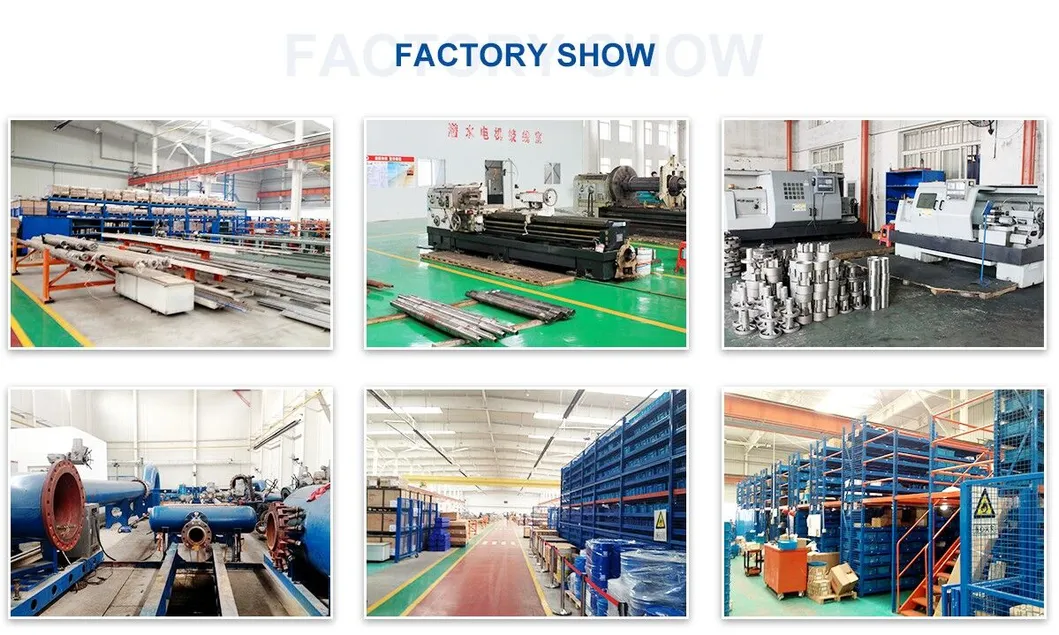

Aote Tianjin Pump Co., Ltd. was established in 2004,which is a professional manufacturer specialized in production, sales, R&D of ESP and Seawater Submersible Pump Units.
We have setted up 6 main sections for ESP manufacturing, including lamination stacking, stator winding, motor assembly, pump assembly, protector assembly and separator assembly, protector assembly and separator assembly. So far, the annual production capacity of AOTE has reached 1150 ESP units.

Now we can produce 23 series and 550 specifications of ESP:
TM375,456,540,562,738series oil-submerged motors;
TPR338,400,513,675 series protector;
TS338,400,513 series gas separator;
TIN338,400,513,675 series intake;
TP338,400,513,675 oil-submerged pumps;

Our Seawater Submersible Pump Unit are in great need for the uses of offshore platform fire protection, water injection and cooling.
Customerization and OEM is acceptable.

Win-win cooperation is the foundation of our business. We listen to our customers' requirements and provide best solutions accordingly with minimized cost. Best quality, fast delivery, good after sale service are our core values.
