Shanghai China Kyl Water Pump Bombas

Product Description

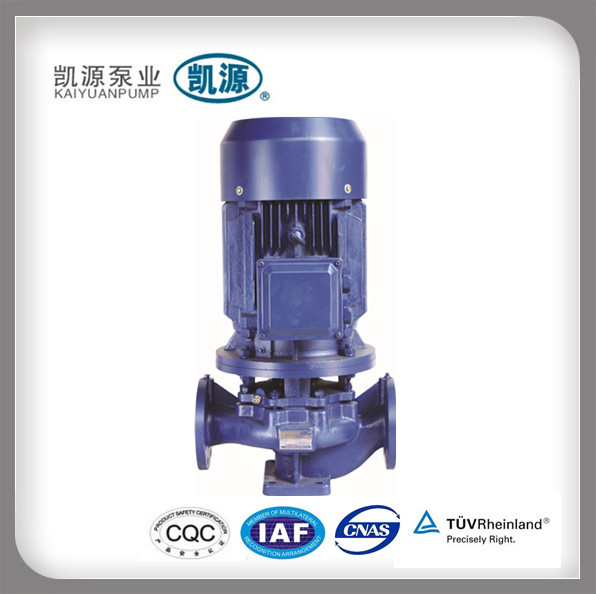

Shanghai China KYL Water Pump Bombas

OVERVIEW:

1. KYL series vertical centrifugal water pump is used to transport pure water and other liquids of the similar physical nature as pure water and suitable for water supply and drainage in industries and cities, boost water-feeding of high buildings, garden irrigation, fire-fighting boost, remote water-transportation, warming, cold-hot water circulation and boost in bathrooms, and equipment completing as well. The temperature of the used medium' S temperature is under 120° C.

FEATURES:

1. Compact structure. These series pumps have an integrally horizontal structure, beautiful appearance and less area of occupied land, which, comparing with the ordinary ones, is reduced by 30%.
2. Stable running, low noise, high concentricity of assembly. By the straight joint between the motor and the pump, the middle structure is made simplified, thus enhancing the running stability, making the impeller of a good balance of moving-resting, resulting in no vibration during running and improving the environment of use.
3. No leakage. Mechanical seal of corrosive-proof hard metal alloy is used for the shaft sealing so as to get rid of serious leakage of the filings of centrifugal pumps and ensure the operating place clean and neat.
4. Convenient service. Service can be easily done without removing any pipeline because of the back-door structure.
5. Viewing from the inlet of the pump, the outlet of it can be mounted in one of the three ways, horizontally leftward, vertically upward and horizontally rightward.

APPLICATIONS:

1. KYL series vertical centrifugal pump is used to transport pure water and other liquids of the similar physical nature as pure water and suitable for water supply and drainage in industries and cities, boost water-feeding of high buildings, garden irrigation, fire-fighting boost, remote water-transportation, warming, cold-hot water circulation and boost in bathrooms, and equipment completing as well. The temperature of the used medium' S temperature is under 120° C.
2. KYLR series vetical hot-water pump is suitable for the warming, hot-water boost, circulation, transportation etc. Heat-supply system of the buildings and houses in civil and enterprise units, such as power station, thermal power station, residual heat utilization, metallurgy, chemical industry, textile, wood process, paper-making etc. Where is a high-temperature hot-water supply system from industrial boilers. The used medium' S temperature is under 120° C.
3. KYLH series vertical chemical pump is used to transport the liquid containing no solid grain, of causticity and similar viscosity like water and suitable for light textile industry, petroleum, chemistry, metallurgy, electric power, paper-making, food, pharmacy, synthetic fiber etc. Departments. The operation temperature is-20 to 120° C.
4. YG series vertcal anti-explosion oil pump is suitable for the industries of petroleum, light textile industry, chemistry, mechanism etc. To transport non-corrosive, combustible and explosive liquids, the temperature of the transported medium is -20 to 120C and the medium intensity<1 000kg/CBM
5. KYBG series vertical anti-explosion chemical pump is used to transport the liquid containing no solid grain of causticity and similar viscosity like water, combustible and explosive and suitable or light textile industry, petroleum, chemistry, metallurgy, mine, pharmacy, synthetic fiber etc. Department. The operation temperature is -20 to 120° C.

IF You Need More Detailes Information About Las bombas centrí Fugas And Price List. Please Kindly Email Us, We Will Reply You As Soon As Possible!

KAIYUAN BRAND, WORLD FAMOUS.

Model	Capacity Q		Head (m)	Effi. (%)	Speed (r/min)	Power (KW)	NPSH (m)
	m 3 /h	L/s
15-80	1.1 1.5 2.0	0.30 0.42 0.55	8.5 8 7	26 34 34	2800	0.18	2.5

20-110	1.8 2.5 3.3	0.5 0.69 0.91	16 15 13.5	19 34 35	2800	0.37	2.5


20-160	1.8 2.5 3.3	0.5 0.69 0.91	33 32 30	19 25 23	2800	1.5	2.5


25-110	2.8 4 5.2	0.78 1.11 1.44	16 15 13.5	34 42 41	2900	0.75	2.5


25-125	2.8 4 5.2	0.78 1.11 1.44	20 20 18	28 36 35	2900	0.75	2.5


25-125A	2.5 3.5 4.5	0.69 0.97 0.25	17 16 17	35	2900	0.75	2.5


25-160	2.8 4 5.2	0.78 1.11 1.44	33 32 30	24 32 33	2900	1.5	2.5


25-160A	2.5 3.5 4.5	0.69 0.69 1.25	29 28 26	31	2900	1.1	2.5


32-125	4.5 5 6.5	1.25 1.39 1.80	20.5 20 18	29 38 38	2900	0.75	2.5


32-125A	3.3 4.5 5.7	0.92 1.25 1.58	17 16 14	37	2900	0.75	2.5


40-100	4.4 6.3 8.3	1.22 1.75 2.31	13.2 12.5 11.3	48 54 53	2900	0.75	2.5


40-100A	4 5.5 7	1.11 1.53 1.94	10.6 10 9	47 52.6 54	2900	0.75	2.5


40-125	4.4 6.3 8.3	1.22 1.75 2.31	20.5 20 18.5	36 46 43	2900	1.1	2.5


40-125A	4 5.5 7	1.11 1.53 1.94	16.3 16 15.5	40 44 42.5	2900	0.75	2.5


40-160	4.4 6.3 8.3	1.22 1.75 2.31	32.2 32 30.2	34 40 42	2900	2.2	2.5


40-160A	4 5.5 7	1.11 1.53 1.94	29 28 26.6	33 38 39	2900	1.5	2.5


40-160B	3.5 5 6.5	0.97 1.39 1.80	25 24 22.5	31.5 37 39	2900	1.1	2.5


40-200	4.4 6.3 8.3	1.22 1.75 2.31	50.5 50 48	26 33 35	2900	4	2.5


40-200A	4 5.5 7	1.11 1.53 1.94	44.6 44 42.7	26 31 32	2900	3	2.5


40-200B	3.5 5 6.5	0.94 1.39 1.80	39 38 36	29	2900	2.2	2.5


40-250	4.4 6.3 8.3	1.22 1.75 2.31	82 80 74	24 27.5 28	2900	7.5	2.5


40-250A	4 5.5 7	1.11 1.53 1.94	72.5 70 65	24 26 24.5	2900	5.5	2.5


40-250B	3.5 5 6.5	0.97 1.39 1.80	63 60 55	25	2900	4.0	2.5


40-100(I)	8.8 12.5 16.3	2.44 3.47 4.53	13.6 12.5 11.3	55 62 60	2900	1.1	2.5


40-100(I)A	8 11 14	2.22 3.05 3.89	10.5 10 9	60	2900	0.75	2.5


40-125(I)	8.8 12.5 16.3	2.44 3.47 4.53	21.5 20 17.8	49 58 58	2900	1.5	2.5


40-125(I)A	8 11 14	2.22 3.05 3.89	17.0 16 14.3	56	2900	1.1	2.5


40-160	8.8 12.5 16.3	2.44 3.47 4.53	33.3 32 29.8	45 52 53	2900	3.0	2.5


40-160(I)A	8 11 14	2.22 3.05 3.89	29 28 26.2	43 48 47	2900	2.2	2.5


40-160(I)B	7 10 13	1.94 2.78 3.61	26 24 20	50	2900	1.5	2.5


50-250(I)	9.0 12.6 16.2	4.86 6.94 9.13	81.8 80 76.5	39 50 55	2900	15	3.O

50-250(I)A	4.44 6.11 7.78	71.4 70 68.0	71.4 70 68.0	42 47 51	2900	11	3.O


50-250(I)B	14 20 26	3.89 5.56 7.22	62 60 56	50	2900	7.5	3.O


50-315(I)	17.5 25 32.5	4.86 6.94 9.03	127 125 122	31 40 44	2900	30	3.O


50-315(I)A	16 22 28	4.44 6.11 7.78	115 113 110	38	2900	22	3.O


50-315(I)B	14 20 26	3.89 5.56 7.22	103 101 98	37	2900	18.5	3.O


65-100	17.5 25 32.5	4.86 6.94 9.03	13.7 12.5 10.5	67 69 70	2900	1.5	3.O


65-100A	16 22 28	4.44 6.11 7.78	10.8 10 8.7	65 68 65	2900	1.1	3.O


65-125	17.5 25 32.5	4.86 6.94 9.03	22 20 17	63 67 65	2900	3.O	3.O


65-1425A	16 22 28	4.44 6.11 7.78	17.5 16 13.5	62 63 62	2900	2.2	3.O


65-160	17.5 25 32.5	4.86 6.94 9.03	34.4 32 27.5	55 63 60	2900	40	3.O

65-160A	16 22 28	4.44 6.11 7.78	30 28 24.5	57 59 58	2900	3.O	3.O


65-160B	14 20 26	3.89 5.56 7.22	26 24 21	61	2900	2	3.O


65-200	17.5 25 32.5	4.86 6.94 9.03	52.7 50 45.5	49 57 60	2900	7.5	3.O


65-200A	16 22 28	4.44 6.11 7.78	46.2 44 41	52 55 57	2900	5.5	3.O


65-200B	14 20 26	3.89 5.56 7.22	40.5 38 34	55	2900	5.5	3.O


65-250	17.5 25 32.5	4.86 6.94 9.03	81.8 80 76.5	39 50 55	2900	15	3.O


65--250A	16 22 28	4.44 6.11 7.78	71.4 70 68	42 47 51	2900	11	3.O
