Product Description

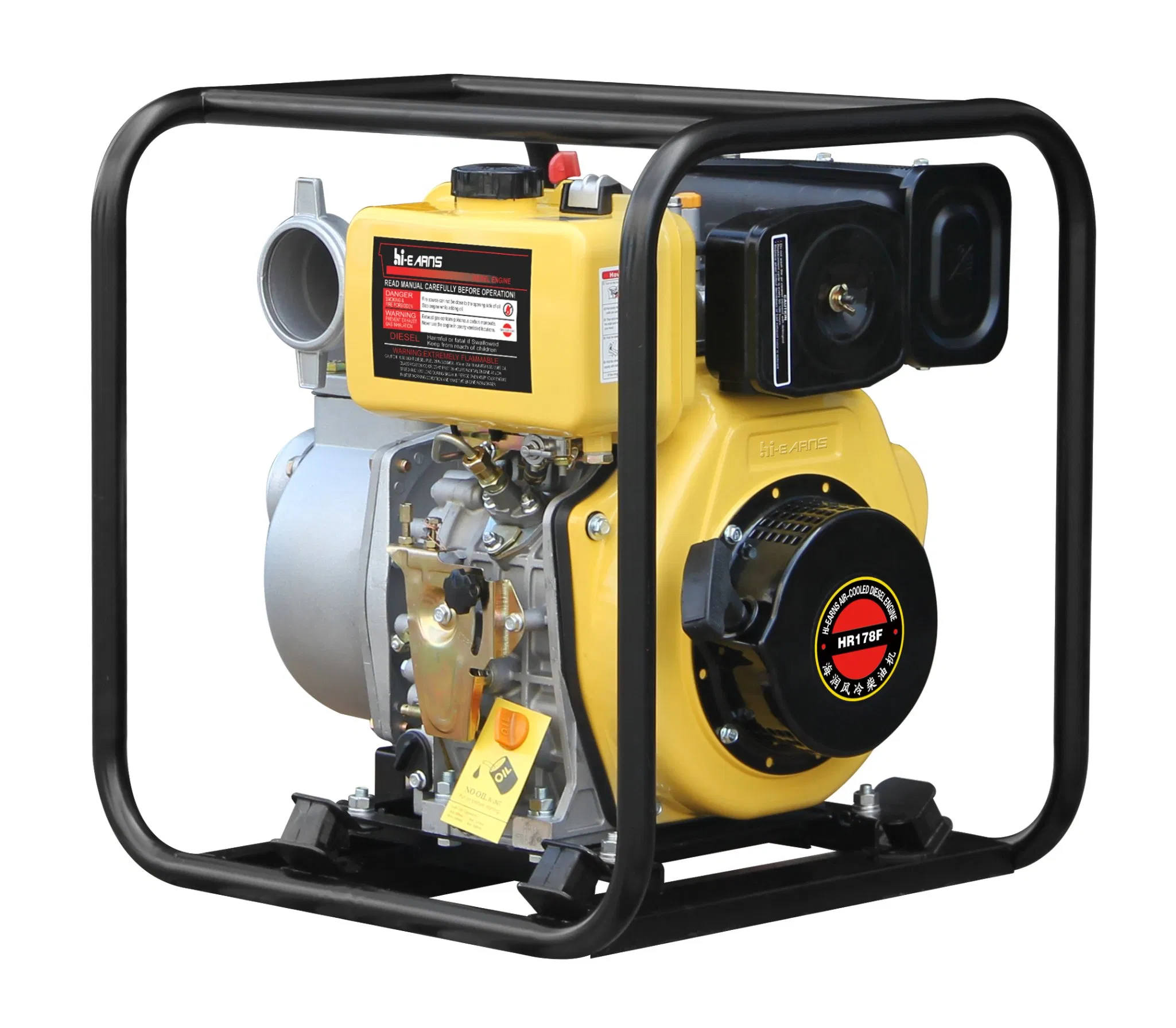

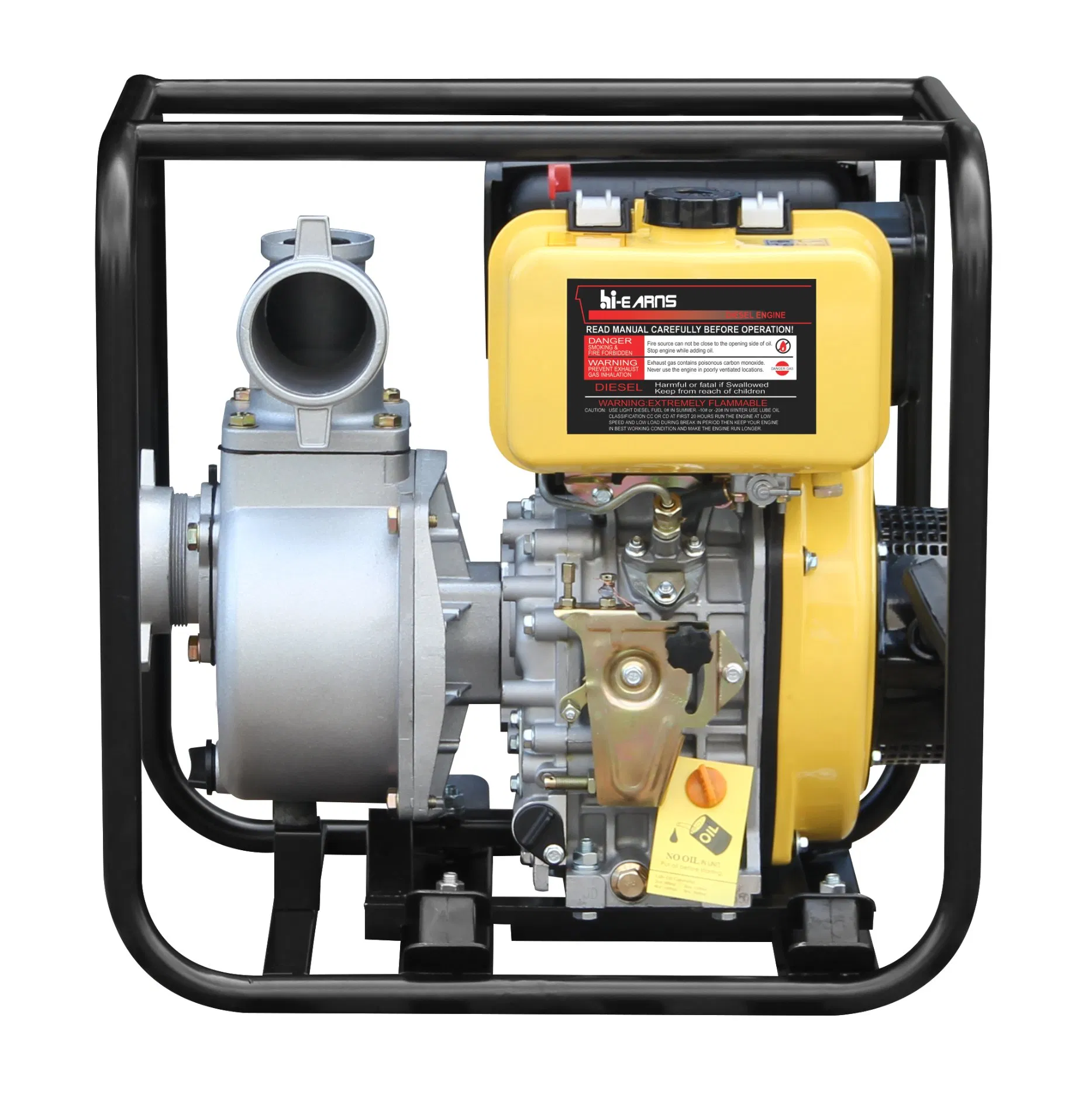

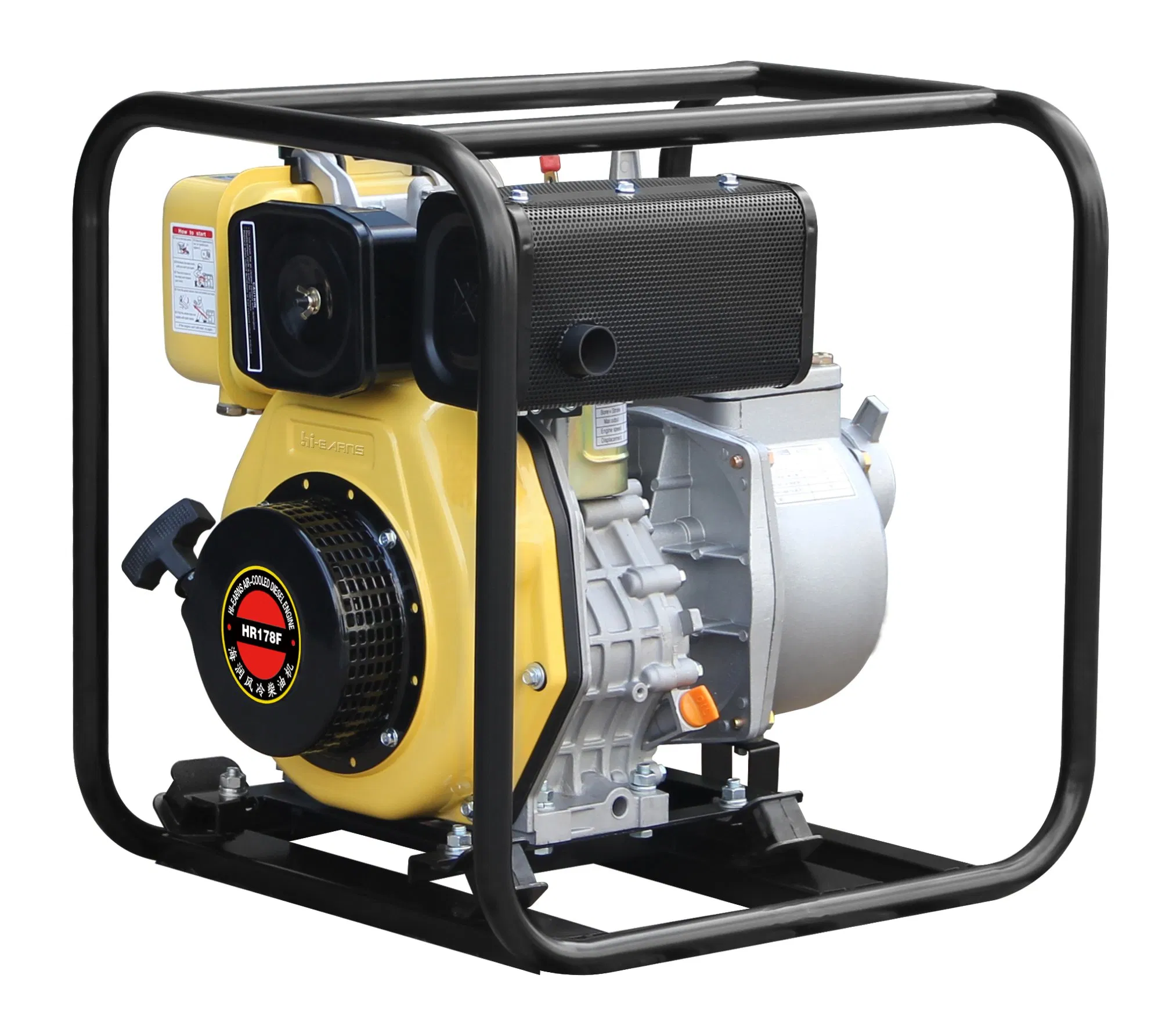

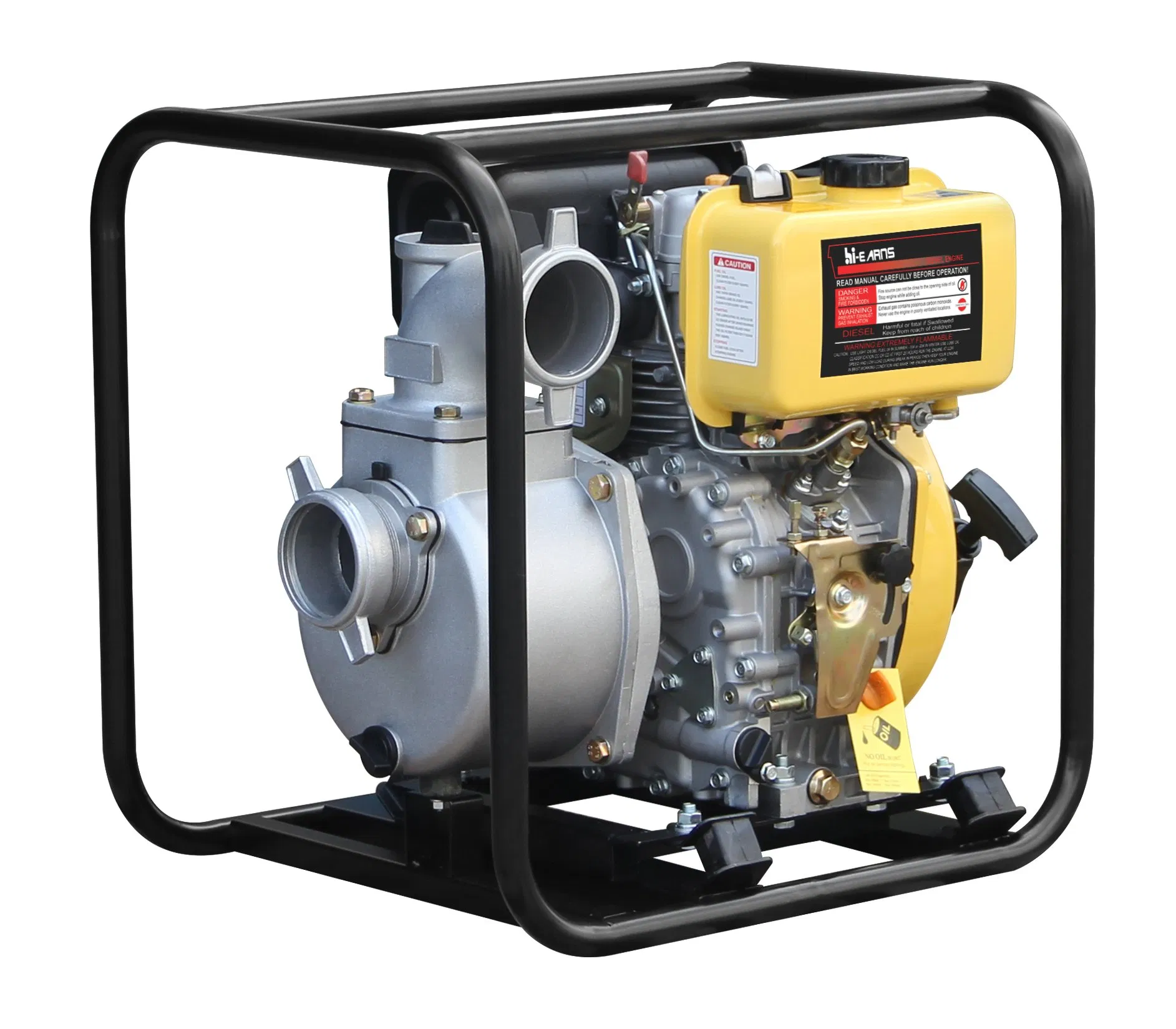

1.5-4 Inch Diesel Engine Water Pump

*Powered by Hiearns 4-stroke air-cooled diesel engine as belowed catalogue;

*Full frame protection offers exceptional performance even in the toughest conditions.

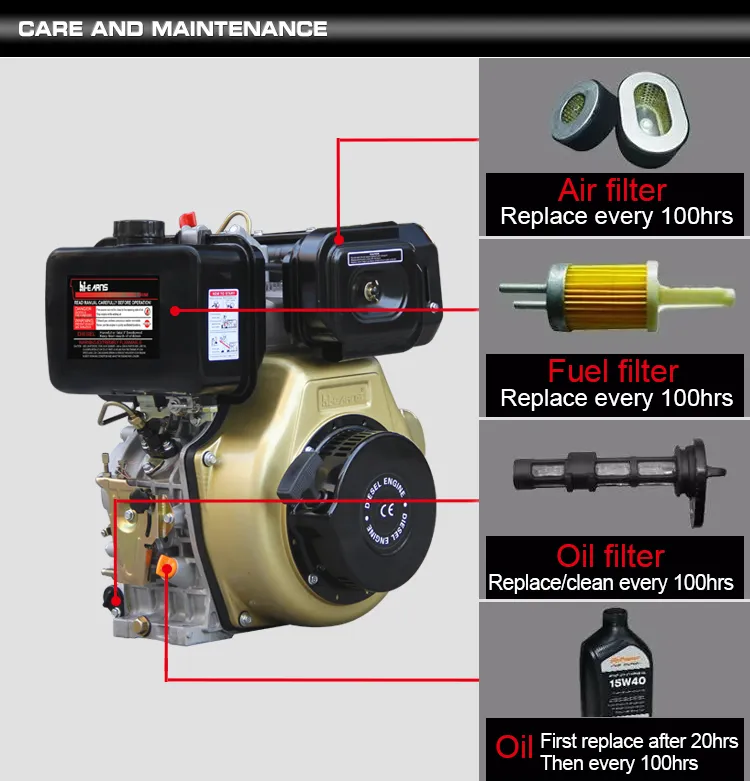

*Easy maintenance

*Meets a wide range of applications.

*Some of the spare parts are made by ourself make sure a cheap price for selling also for maintence;

*We support 1 year or 500 working hours warrenty, can support all spare parts to our customer for free during warrenty time, also low then the market price spare parts out of warrenty time!

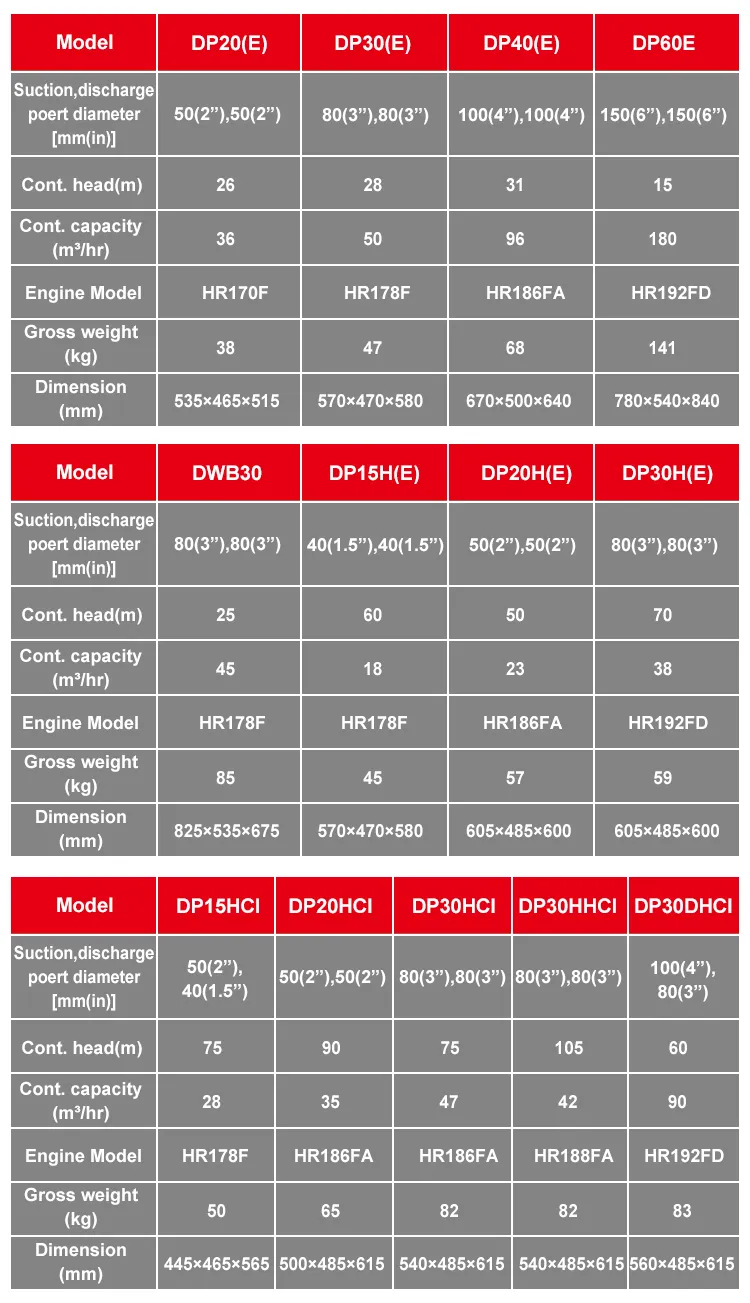

*Besides this type we also can make sewage pump, high pressure pump, high pressure washer all with the diesel engine made by ourself. Check followed water pump series picture:

We are professional manufacture of diesel engine(4-22HP), diesel generator(1.8-1000KW), diesel water pump(1.5-4INCH), small construction machine and so on.
Just send us your inquiry with what u need, we will highly appreciate it!

Model		DP20	DP30	DP40	DP15H
WATER PUMP	Suction, discharge port diameter(mm(in))	50(2' ' )	80(3' ' )	100(4' ' )	40(1.5' ' )
	Cont. head(m)	26	25	31	60
	Self-priming time (s/4m)	70	120	180	30
	Max suction head (m)	8
	Cont. capacity(m3/hr)	36	50	96	18
ENGINE	Engine model	HR170	HR178	HR186	HR178
	Horse power(hp)	4	6	9	6
	Speed(rpm)	3000
	Type	Single-cylinder, vertical, 4-stroke air-cooled diesel engine
	Displacement(cc)	211	296	406	296
	Bore× stroke (mm)	70× 55	78× 62	80× 70	78× 62
	Starting system	Recoil or Electric
	Fuel tank capacity(L)	2.5	3.5	5.5	3.5
STANDARD FEATURES	Oil alert	yes	yes	yes	yes
	Connecter of infall, Connecter of outfall	yes	yes	yes	yes
	Filter	yes	yes	yes	yes
	Seal ring	yes	yes	yes	yes
	Hoop	yes	yes	yes	yes
OPTIONAL FEATURES	Luxury big fuel tank	optional	optional	optional	optional
OPTIONAL FEATURES	Electric Start	optional	optional	optional	optional
DIMENSIONS	Dimension(L× W× H)(mm)	490× 405× 515	558× 405× 550	650× 480× 610	570× 445× 550
	Dry weight(kg)	35	52	69	46
	20FT	180	140	99	120
