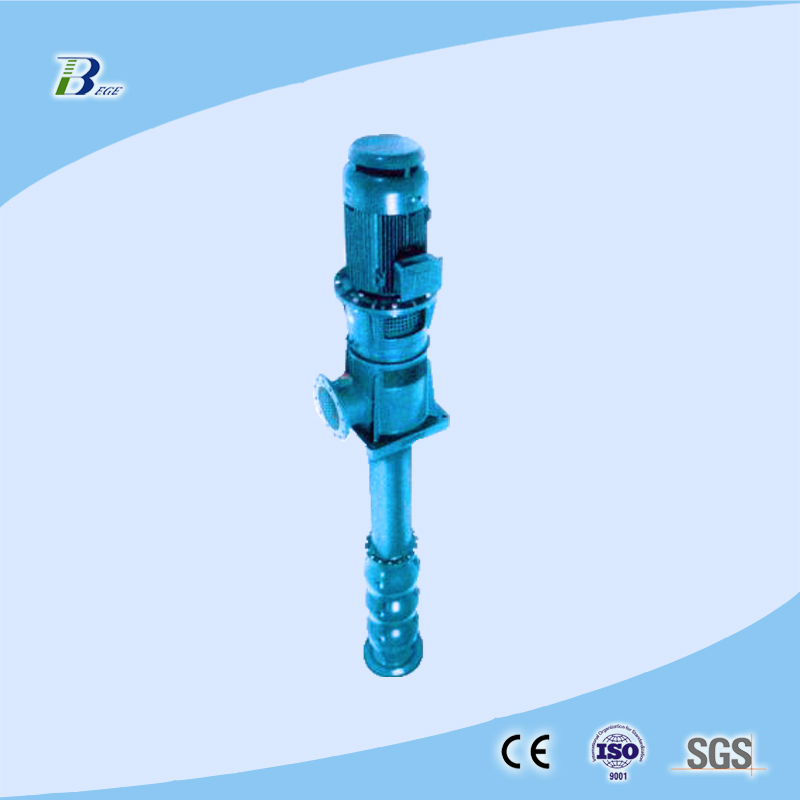

Line-Shaft Deep well Pump of Beite(0552C114, 15kw, 154m)

The Pump of Beite

The Line-shaft Deep well Pump is composed of Impeller, diffuser shell, lifting pipe, shaft, base of pump, and the motivation.
It is widely used in deep well, pool (well), and open water sources, especially for water supply and drainage, industrial processes, municipal water supply and fire system, and in the power industry, chemical industry, iron and steel, municipal gardens and various types of fire places industry are very widely used.
This product is driven by electric motors or diesel engines to ensure that different applications can reach a satisfactory level.

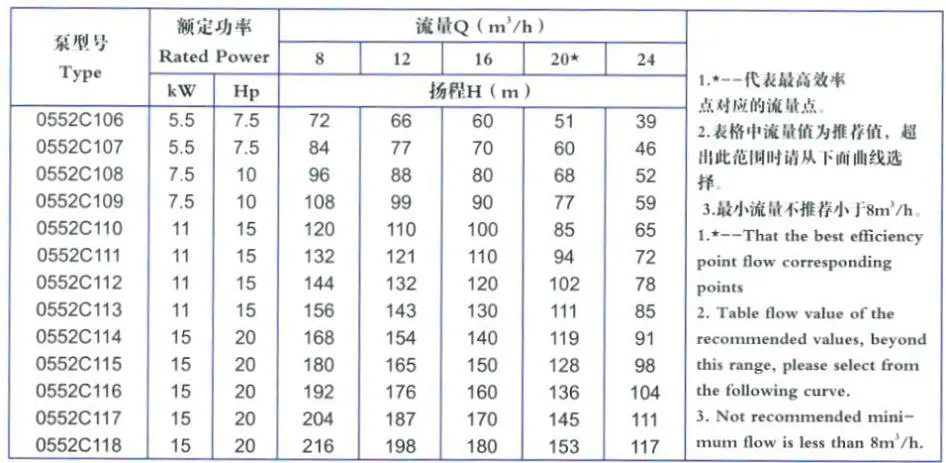

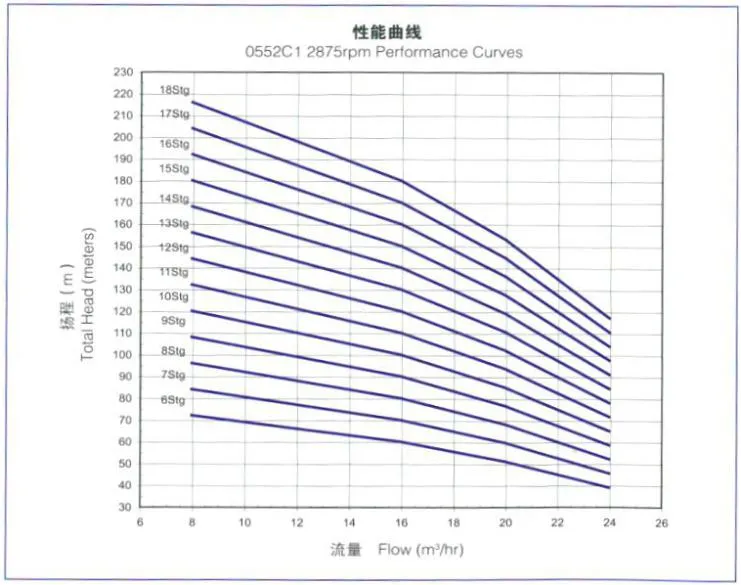

Table of Hydraulic Performance






Product Characteristics

1.May vertical be hanging either the inclined installment (specialized  technique) the single stage or the multistage impellers.
2.Discharge biggest 2400m³/h,lifting highest 270m,power biggest 900kw,installs depth biggest 210m.
3.The careful design's water power model,the water pump effciency is highest reaches 85%.
