Idb Series Clean Water Pump

APPLICATION
1. The pump have a compact size and simple to use.
2. Heavy duty continuous work.
3. Ambient temperature up to 40º C.
4. The thermal protector is installed if required.
5. The shaft is 45# steel or stainless steel and not easy to rust.
6.220-240V 50Hz power which is safer for your using.
7. The stator is 100% copper wire with high quality.

OPERATING CONDITION
1. Liquid temperature up to 60
2. Ambient temper up to 40
3. Total suction lift to 9m
4. Continuous duty

CONSTRUCT

PUMP
Pump body: Cast Iron
Impeller: Brass
Mechanical seal: Carbon/ceramic/Stainless Steel

MOTOR
Single Phase
Heavy Duty Continuous Work
Motor Housing: Aluminum
Shaft: Carbon Steel/ Stainless steel
Insulation class: B and F
Protection class: IP44 or IP54
Cooling: Externally ventilation

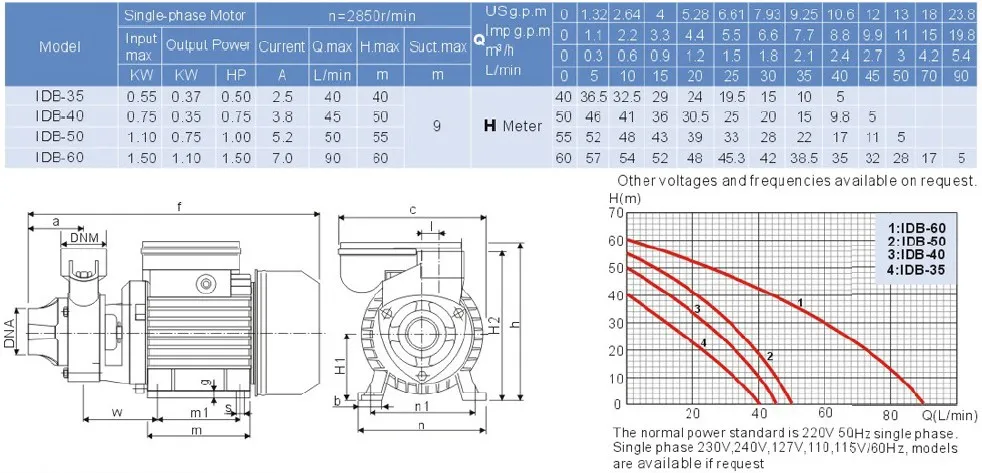

TECHNICAL DATA(220-240V/50Hz)
