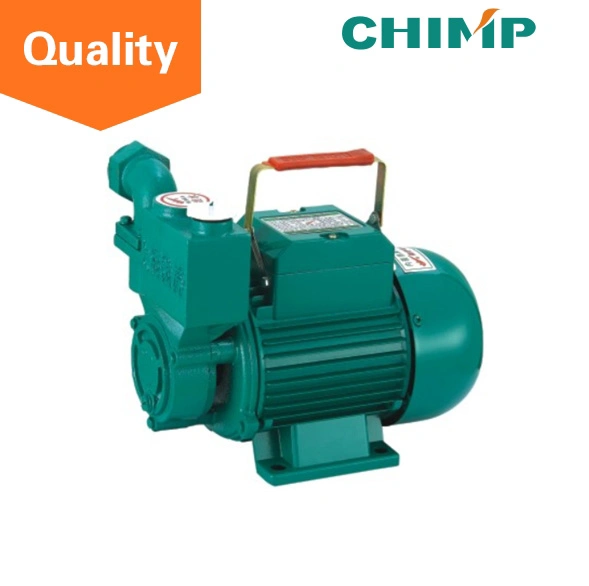

Hot Sale High Quality Vortex Self-Priming Electric Pump
PUMPMax. liquid temperature:+0~+80ºCLiquid pH VALUE:6.5~8.5Cast iron pump body and supportMOTORCopper windingShaft: stainless steel welded with 45#/45# steel be electroplatedInsulation c......
Send Inquiry
Product Description
PUMP
- Max. liquid temperature:+0~+80ºC
- Liquid pH VALUE:6.5~8.5
- Cast iron pump body and support
MOTOR
- Copper winding
- Shaft: stainless steel welded with 45#/45# steel be electroplated
- Insulation class: B or F
- Protection class: IP X4
- Max.Ambient temperature:+40ºC
- Cooling: External ventilation
PUMP INSTALLATION AND APPLICATIONS
25WZB intelligent vortex self-priming pump is a combination of motors,pumps,pressure tanks,pressure switches,flow sensor switch and electronic controllers for the integration of intelligent automatic water supply system.
These pumps are widely used in apartment water supply systems,automatic water system pressurized floors,but also for the hotels,canteens,supermarkets,beauty salons,office buildings and other public occasions.
TECHNICAL PARAMETERS
| NO. | DESCRIPTION | NO. | DESCRIPTION | NO. | DESCRIPTION | NO. | DESCRIPTION |
| 1 | "O" ring | 10 | Fairlead nut | 19 | Bolt | 28 | Impeller |
| 2 | "O" ring | 11 | Capacitor | 20 | Suction flange | 29 | Key |
| 3 | Charge plug | 12 | Fan | 21 | Gasket | 30 | Snap ring |
| 4 | Pressure switch | 13 | Terminal cover | 22 | Pump body | 31 | Washer |
| 5 | Casing with wound stator | 14 | Fan cover | 23 | Pump support | 32 | Mechanical seal |
| 6 | "O" ring | 15 | Screw | 24 | Bolt | 33 | Bearing |
| 7 | Pressure tank | 16 | Screw | 25 | "O" ring | 34 | Rotor |
| 8 | Terminal box | 17 | Check value | 26 | Spring washer | 35 | Split ring |
| 9 | Screw | 18 | "O" ring | 27 | Bolt |
FAQ
Q: What is your MOQ of this item?
A: Our MOQ is a full 20ft container, first time cooperation, we accept trial order to check quality.
Q: Is it acceptable to make customers' own brand?
A: Sure, we can do OEM.
Q: What are your payment terms?
A: 30% T/T deposit, 70% against documents, or L/C at sight.
Q: How long is your warranty?
A: One year!
Q: What is the delivery time?
A: 25-30 days after receiving your L/C or T/T deposit.
