Product Description

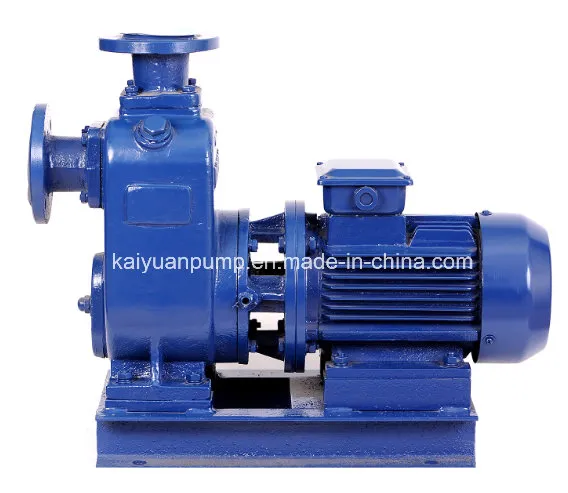

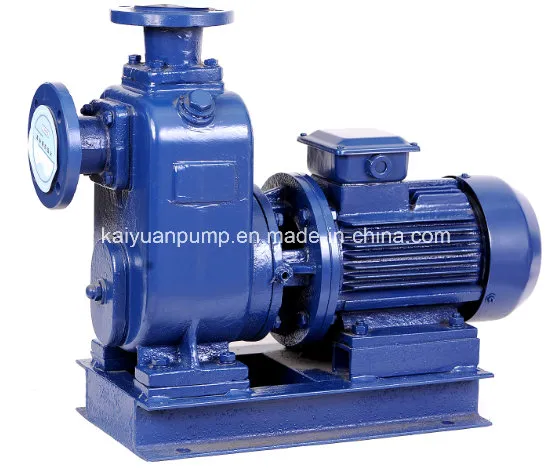

BZ Selfpriming Water Pump for Marine

>>>Product overview

BZ self-priming pump is a new pattern of energy-saving pump in 1 990s. It has simple structure, stable function and feature of less noise. It is sealed by way of ceramic-ring mechanic, so such pumps are corrosion resistant, alkaline-resisting, high temperature-resisting and nontoxic. This pump is smaller size but produce larger flow rate, higher pump head. And it is easy and safe to install, maintain and handle. It can be used in various industrial fields, such as chemical, pharmaceutical, mining, dyes and food industries, also used for water supply and drain in mining industry, washing sector, fire-fighting sector and building trade. Any other filtering machine equipments can support its' use and when fixed with a nozzle in farm and orchard such pump turns to a sprayer.

Model Meaning
40: Pump mark of inlet diameter
BZ: Pump mark of self-priming function
20: Pump mark of head

Model	Q (L/min)	H (m)	power (KW)	efficiency (%)	speed (r/min)	suction head (m)	drawing time (min/5m)
Model	Q (L/min)	H (m)	power (KW)	efficiency (%)	speed (r/min)	suction head (m)	drawing time (min/5m)
40BZ-20	10	20	1.5	58	2880	6	3
50BZ-25	10	25	2.2	60	2900	6	3
50BZ-32	10	32	3	52	2900	7	3
50BZ-35	14	35	4	52	2900	7	3
50BZ-32II	21	32	4	60	2900	6	3
50BZ-45	15	45	5.5	51	2900	6	3
50BZ-55	12	55	5.5	60	2900	6	3
65BZ-40	25	40	5.5	60	2900	6	3
80BZ-13	30	13	2.2	76	2900	6	3
80BZ-30	50	30	7.5	76	2900	6	3
80BZ-40	48	40	11	76	2900	6	3.5
80BZ-50	31	50	11	56	2900	6	3
80BZ-65	50	65	15	62	2900	6	3
100BZ-20	100	20	7.5	75	2900	5	3.5
100BZ-45	100	45	15	68	2900	5	3.5
