Anti-Corrosion Pipeline Centrifugal Water Pump
Anti-corrosion Pipeline Centrifugal Water PumpCapacity: 1.8~1200 m3/hHead: 5~150 mSize: 15~500 mmSpeed:970~3500 r/minTemperature: -20~120 degreeMaterial: Cast Iron, Stainless Steel Design standerds and main material: 1Capacity1.8~1200m3/h2Head5~150m3Size25~350mm4Pressure1.6MPA5MaterialCast Iron HT20......
Send Inquiry
Product Description
Capacity: 1.8~1200 m3/h
Head: 5~150 m
Size: 15~500 mm
Speed:970~3500 r/min
Temperature: -20~120 degree
Material: Cast Iron, Stainless Steel
Design standerds and main material:
| 1 | Capacity | 1.8~1200m3/h |
| 2 | Head | 5~150m |
| 3 | Size | 25~350mm |
| 4 | Pressure | 1.6MPA |
| 5 | Material | Cast Iron HT200, Stainless steel 304/316/316L |
| 6 | Impeller | Cast Iron HT200, Brass H65, Stainless steel 304/316/316L |
| 7 | Shaft | 45#steel, Stainless steel 2Cr13, Stainless steel 304/316/316L |
| 8 | Shaft Seal | Mechanical sealing |
| 9 | Structure | Horizontal, Single-stage, Single-suction, Volute type, Pipeline type |
| 10 | Flange Standard | PN16, optional: ANSI B16.5 Class 150LB |
| 11 | Design Standard | ISO2858, JB/T6878.2-93 BS EN733/DIN24255 |
Packaging & Delivery
| Packaging Detail: | Exporting plywood case |
| Delivery Detail: | 5 days |
Specifications
ISW pipeline centrifuagl pump used in households, water lifting from wells and irrigation for gardens, etc.

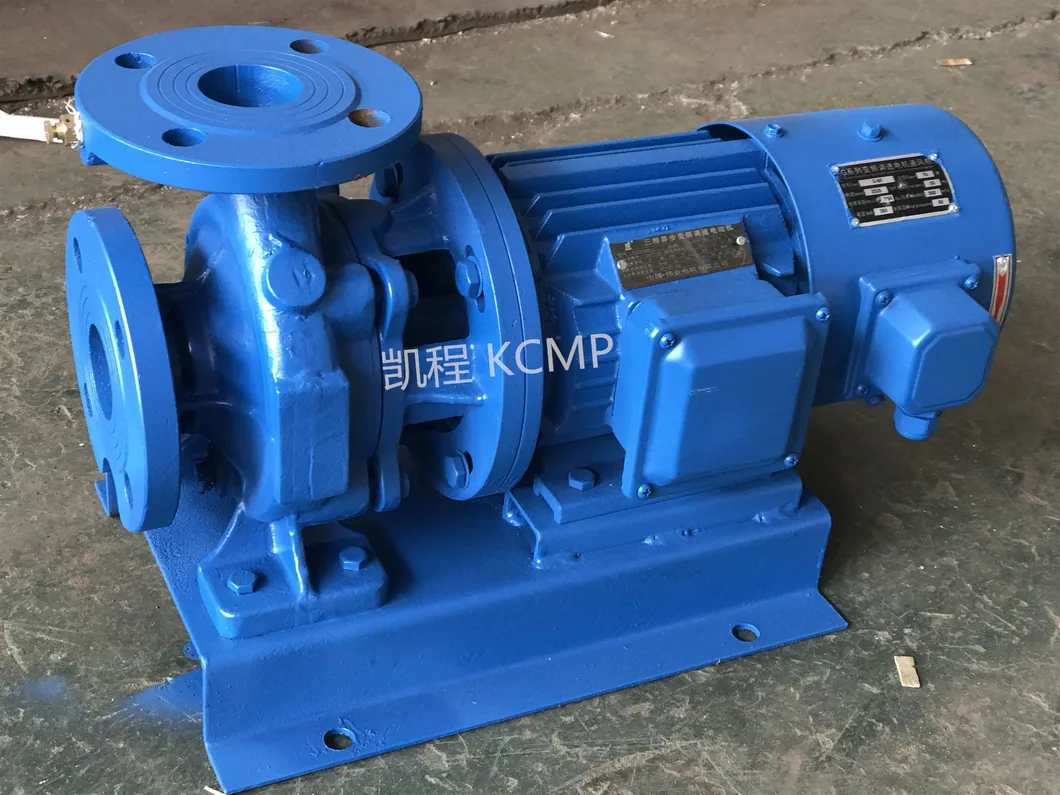

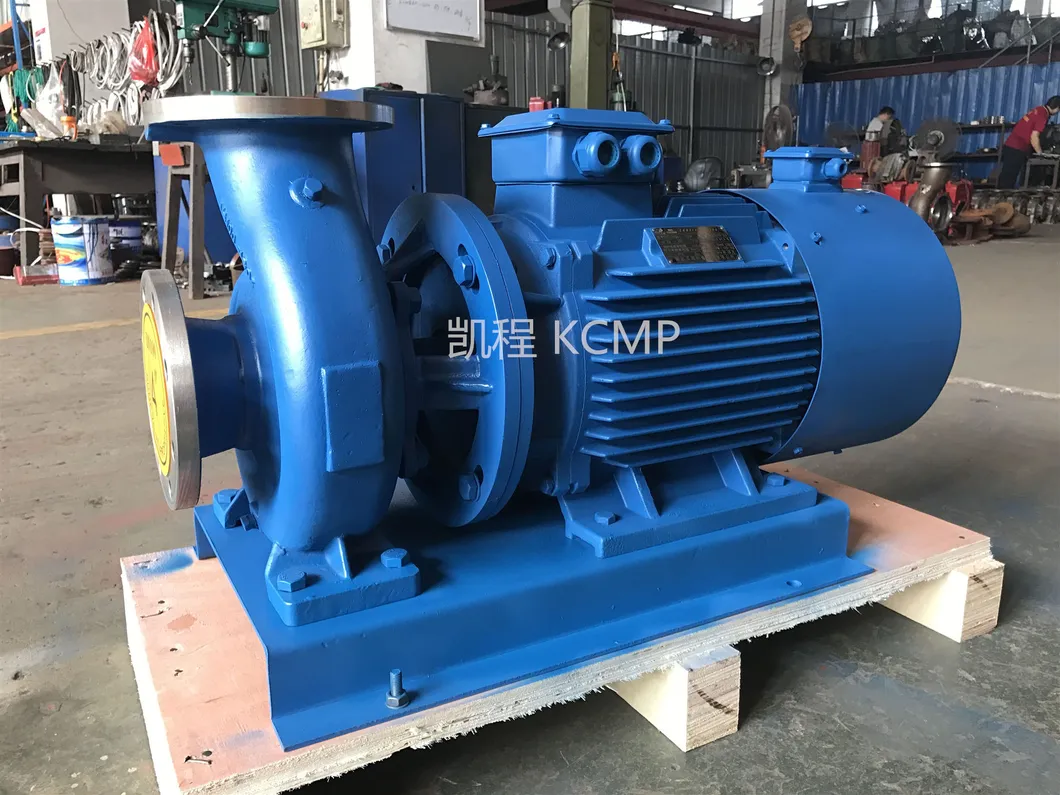

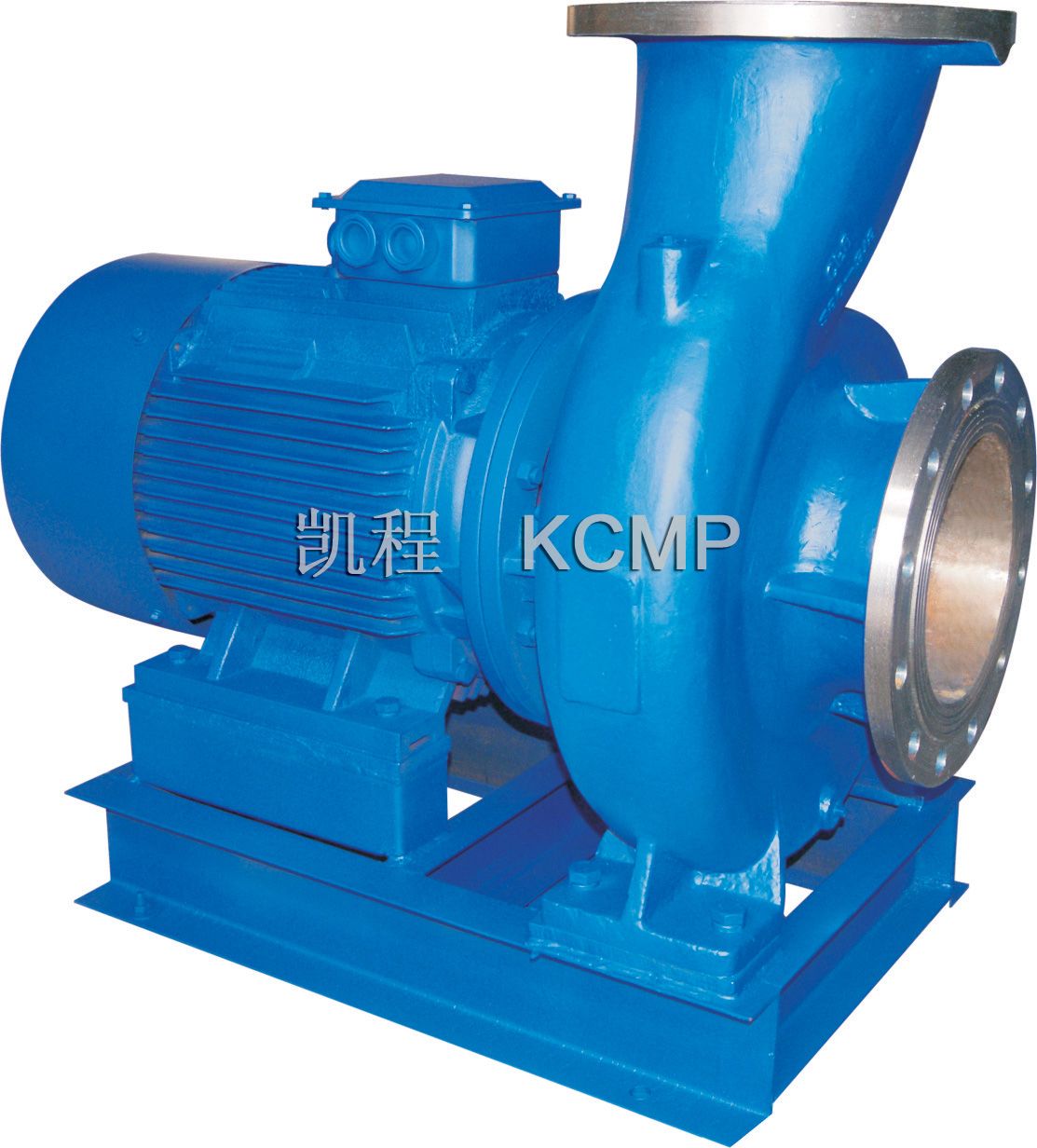

ISW horizontal pipeline centrifugal pump
ISW series horzontal centrifugal pump is the ideal, new generation, high efficiency, energy saved product, which is according to the performance parameter of the IS,IR type centrifugal pump and ISO standard, adopt excellent design of domestic hydraulic module.
Operating Condition
1.Shaft seal material: titanium or carbide alloy wearable material, anti-high temperature mechanical seal
2.Max. working pressure ≤1.6MPa
3.Proper medium: water
4.Temperature ≤40oC
5.Relative humidity ≤95%
6.Flow rate Q: max 1200m3/h
7. Head: max 150m
Characteristic
1.Compact structure, with motor, beautiful outline, take small place, about 30% reduce compare to common horizontal type. It can working in outdoor with IP55 outdoor motor.
2. Stablely operated, low noise, direct coupling, the impeller has balance performance with non-vibration, low noise, which is relong the use life of the shaft bearing, and improve the working environment.
3. Seal adopt good mechanism seal, dynamic and static loop are made of hard alloy, anti-grind, non-leakage, long used.
4. Adopt advanced hydraulic module with high effiency and good performance.
5. Particular structure, the pump bottom has a water discharge hole, and take pressure hole both in inlet and outlet flange, which is comfirm good performance and maintance.
6. Level inlet, vertical outlet, that convenience to install the pipe.
RFQ
1. How to get our quotation in time, pls answer following questions:
1)What liquid do you transfer? Oil, Water, Food or Corrosive Chemical liquid, with solid particle or not, and so on~
2) What's the flow or capcity (m3/h, L/m)?
3) What's the discharge head (m, feet, Mpa, bar )
If you do not have any request, we will do as our normal standard.
4) Contact us to get the quotation
2.OEM: Ok
3. MOQ: 1set
4. Package: Standar export Plywood Case or Styrofoam with Carton
5. Shipping ways: By sea, By air, By express
6. Lead time: 3-15days
7. Term of payment: 100% T/T, Aliexpress, L/C, Westunion
8. Warranty Period: One year, except spare parts
9. Why choose KAICHENG: Decades experiences manufacturer
Good quality with competitive pirce
ISO, CE certificate
Professional after-sales service
