9HP 4

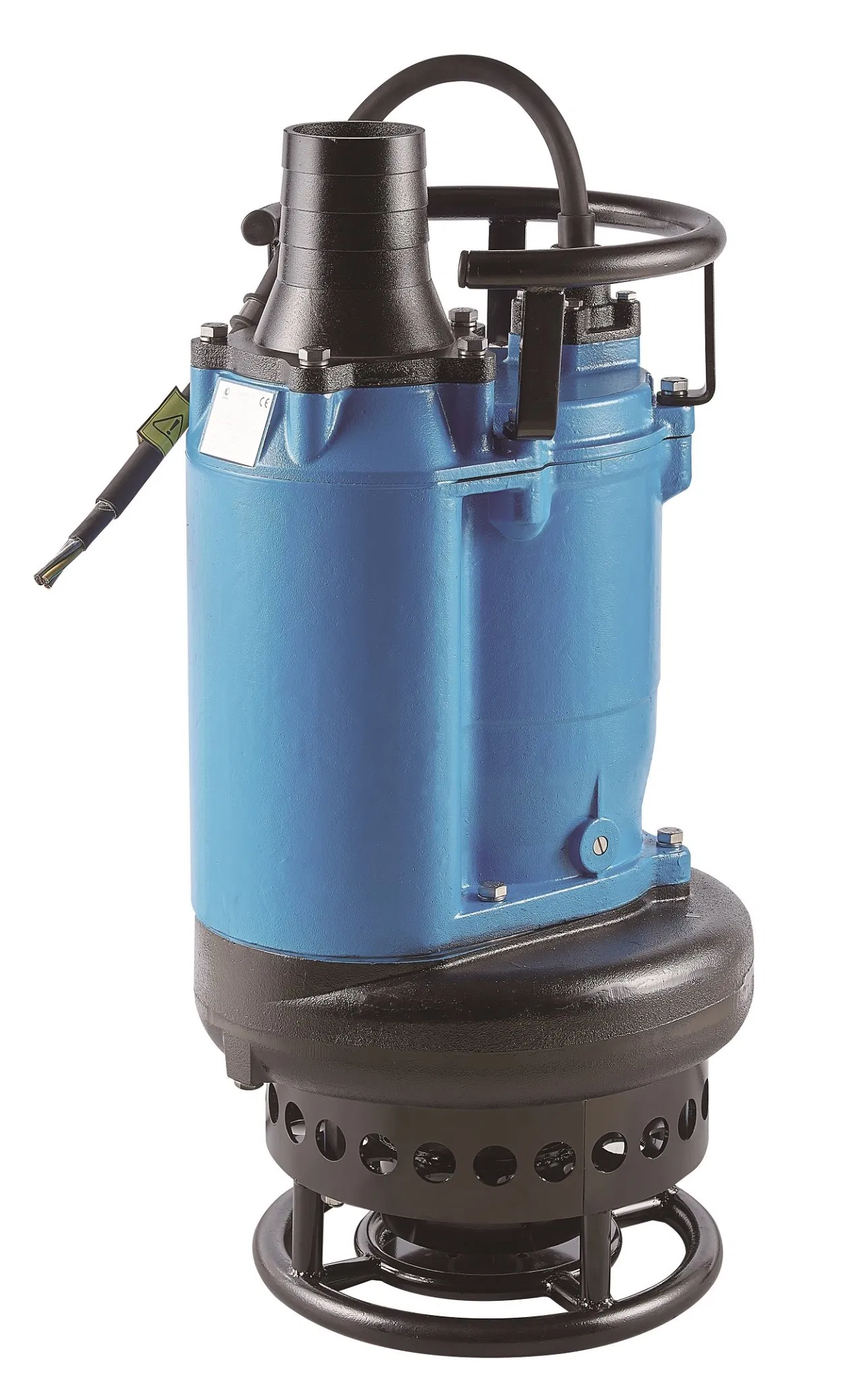

Product Description

Motor: 4 pole, 1450rpm

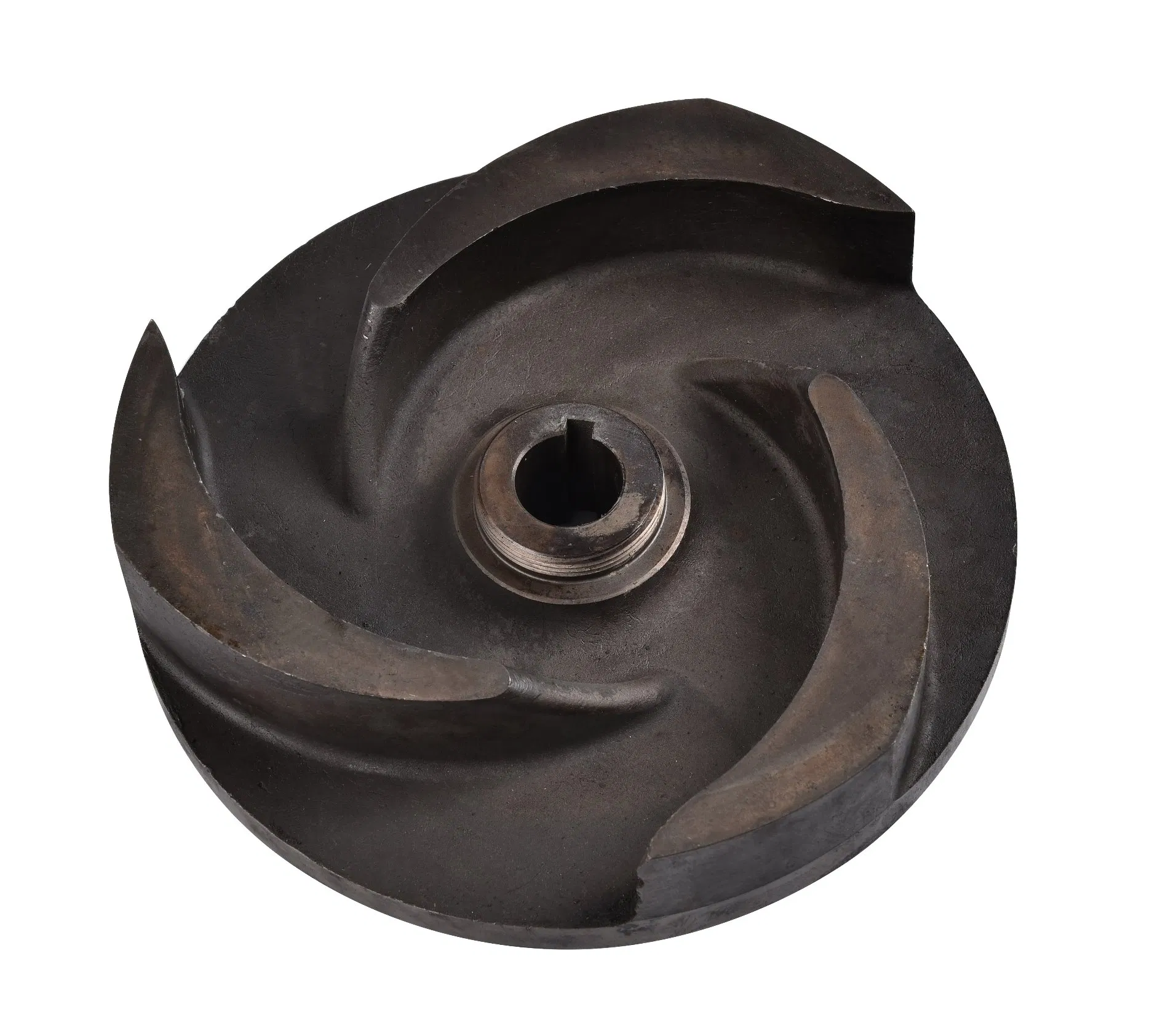

Impeller: Semi-open type, high chrome, heat treated
Suction plate: high chrome, heat treated

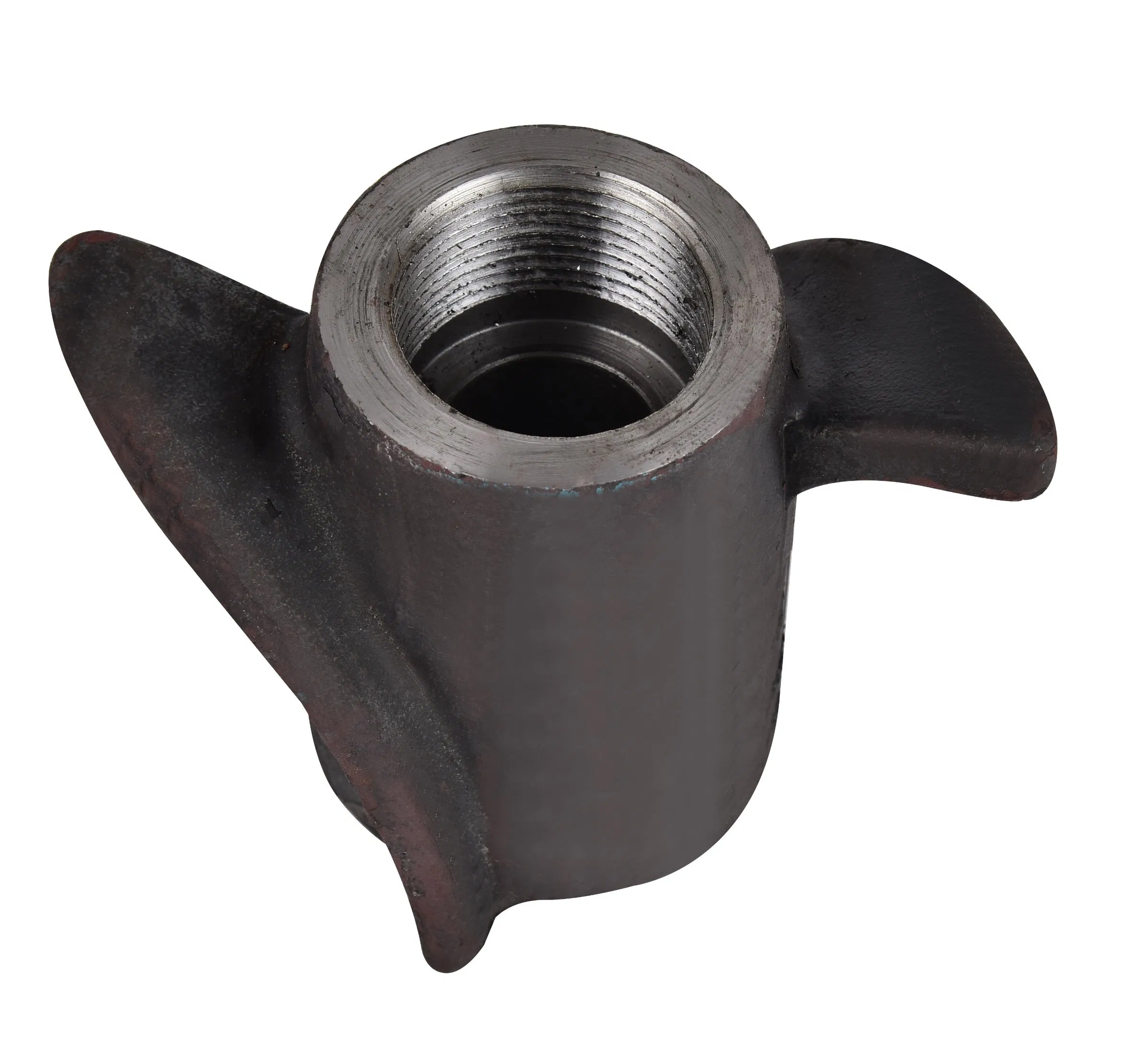

With agitator
Suitable for most rigorous situation such as mining and construction

Model	POWER		Discharge	CURRENT	RATED FLOW		RATED HEAD	Max. Flow	Max.head	PACKAGE	G.W	PATICULARS
50hz&60hz	KW	HP	MM	A	M³/H	M³/MIN	M	m³/h	m	CM	KG	MM
KBZ 21.5	1.5	2	50MM	3.5	15	0.25	15	27	22	59x29x25cm	37	8.5
KBZ22.2	2.2	3	50MM	5.1	18	0.3	20	27	26	59x29x25cm	39	8.5
KBZ23.7	3.7	5	50MM	8	12	0.2	30	29	34	69x34x29cm	64	8.5
KBZ31.5	1.5	2	80MM	3.5	30	0.5	8	40	14.5	59x29x25cm	37	8.5
KBZ32.2	2.2	3	80MM	5.1	36	0.6	11	50	21	59x29x25cm	39	8.5
KBZ33.7	3.7	5	80MM	8	30	0.5	20	55	29	69x34x29cm	66	8.5
KBZ43.7	3.7	5	100MM	8	60	1	11.5	90	18	69x34x29cm	67	8.5
KBZ35.5	5.5	7.5	80MM	11.6	36	0.6	25	75	34	75x35x36	84	8.5
KBZ45.5	5.5	7.5	100MM	11.6	60	1	16	105	23	75x35x38cm	85	8.5
KBZ47.5	7.5	10	100MM	15.4	48	0.8	30	84	40	81x39x40cm	113	11.5
KBZ411	11	15	100MM	22.5	60	1	35	86.4	48.5	85x43x39cm	138	11.5
KBZ67.5	7.5	10	150MM	15.4	90	1.6	15	124.8	31	84x37x40cm	114	19.5
KBZ611	11	15	150MM	22.5	102	1.7	22	147	32	85x43x39cm	140	19.5
KBZ415	15	20	100MM	30	60	1	42	78	55	93.5X41.5X43.5	158	11.5
KBZ615	15	20	150MM	30	102	1.7	30	155	40	93.5X41.5X43.5	160	19.5
80KBS44	4	5.5	80MM	10.2	60	1	10	1.65	14.8	83X41.5X47	113	30
100KBS46	6	8	100MM	13.8	90	1.5	10	2.5	16.5	91.5X47.5X52	156	30
150KBS49	9	12	150MM	19.5	100	1.67	15	2.9	23	93.5X50X55.5	184	30
200KBS415	15	20	200	30.1	200	3.33	16	22	372	66.5X49.5X125.5	278	30
200KBS422	22	30	200	42	200	3.33	24	32	360	74X57X146	434	30
