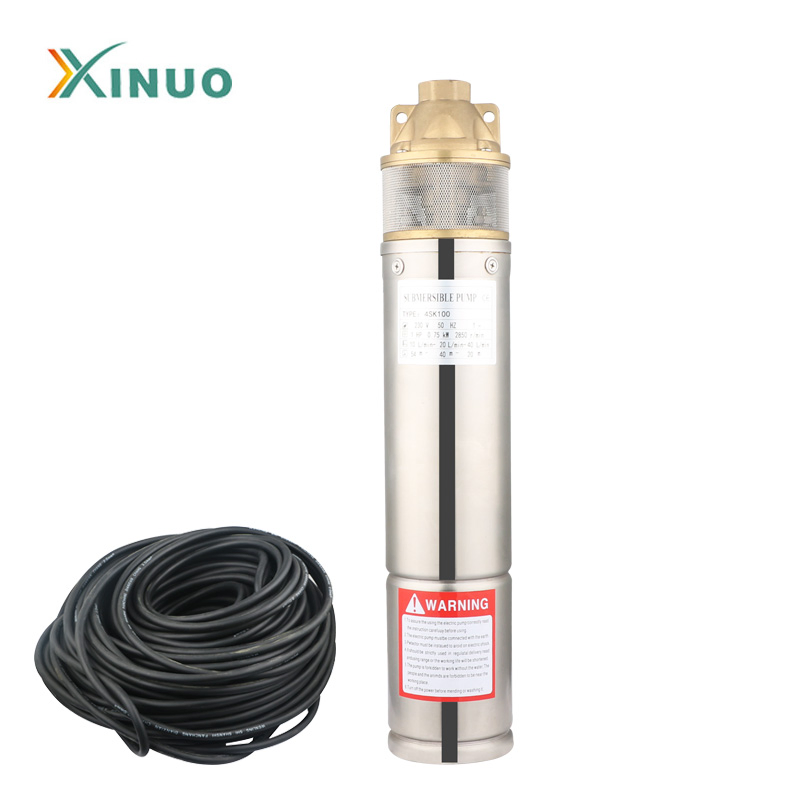

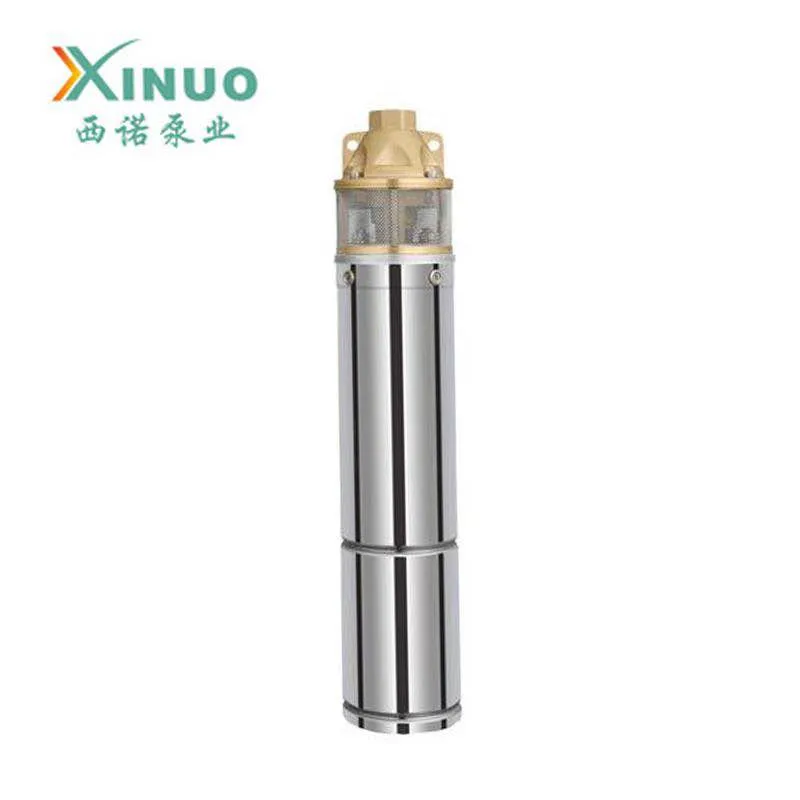

4skm Borehole Submersible Water Pump Deep Well Pump
Pump's Applications:For water supply from wells or reservoirs.For domestic use, for civil and industrial applications.For garden use and irrigation.For Tank applicationFor Pressure boostingPump's Operating conditions:Maximum fluid temperature up to +40 CMax ambient temperature +40º......
Send Inquiry
Product Description
Pump's Applications:
For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications.
For garden use and irrigation.
For Tank application
For Pressure boosting
Pump's Operating conditions:
Maximum fluid temperature up to +40 C
Max ambient temperature +40º C
Maximum sand content: 0.25%
Maximum immersion depth: 100m.
Minimum well diameter: 4"
Insulation: B
Protection: IP X8
Motor:
Rewind able motor
Three-phase: 380V-415V/50Hz
Single-phase: 220V-240V/50Hz
Equip with special start-up control box
Pump's Internal diameter of outlet:
1", 1.25", 1.5" 2"
Special features available
voltages.220V
Frequency 50Hz.
Other mechanical seal.
Pump's Material:
1, Pump external casing: AISI304ss
2, Delivery casing: Cast-Cu ASTM280 or AISI304ss
3, Suction lantern: Cast-Cu ASTM280 or AISI304ss
4, Diffuser: Plastic. PC
5, Impeller: Plastic. POM
6, Shaft: AISI316ss or AISI304ss
7, Shaft coupling: AISI316ss or AISI304ss
8, Wear ring: AISI304ss
9, Motor external casing: AISI304ss
10, Top cover: Cast-Cu ASTM280 or Cast iron G20 UNI5007
11, Bottom support: AISI304ss
12, Mechanical seal: Special seal for deep well (carbon -SIC/TC)
13, Shaft: AISI304ss-C1045
14, Bearing: C&U
15, Seal lubricant oil: Oil for food machinery and pharmaceutical use
FAQ
Q:What is your MOQ
A:Our MOQ is 100 pieces, of course we accept trial order to check quality.
Q:Is it acceptable to use customers' own brand?
A:Sure, we can do OEM.
Q:What are your payment terms?
A:30% T/T as deposit, 70% against copy of bill of lading
Q:How long of warranty?
A:One year
Q:What is the delivery time?
A:15 day as usual,25-30 days at busy season after receiving deposit.
For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications.
For garden use and irrigation.
For Tank application
For Pressure boosting
Pump's Operating conditions:
Maximum fluid temperature up to +40 C
Max ambient temperature +40º C
Maximum sand content: 0.25%
Maximum immersion depth: 100m.
Minimum well diameter: 4"
Insulation: B
Protection: IP X8
Motor:
Rewind able motor
Three-phase: 380V-415V/50Hz
Single-phase: 220V-240V/50Hz
Equip with special start-up control box
Pump's Internal diameter of outlet:
1", 1.25", 1.5" 2"
Special features available
voltages.220V
Frequency 50Hz.
Other mechanical seal.
Pump's Material:
1, Pump external casing: AISI304ss
2, Delivery casing: Cast-Cu ASTM280 or AISI304ss
3, Suction lantern: Cast-Cu ASTM280 or AISI304ss
4, Diffuser: Plastic. PC
5, Impeller: Plastic. POM
6, Shaft: AISI316ss or AISI304ss
7, Shaft coupling: AISI316ss or AISI304ss
8, Wear ring: AISI304ss
9, Motor external casing: AISI304ss
10, Top cover: Cast-Cu ASTM280 or Cast iron G20 UNI5007
11, Bottom support: AISI304ss
12, Mechanical seal: Special seal for deep well (carbon -SIC/TC)
13, Shaft: AISI304ss-C1045
14, Bearing: C&U
15, Seal lubricant oil: Oil for food machinery and pharmaceutical use
| NO. | Product model | Power | Outler | DELIVERY | rated speed n=2850r/min | ||||||||
| 220V/240V | 380V/415V | (KW) | (HP) | (inch) | m³/h | 0 | 0.3 | 0.9 | 1.2 | 1.5 | 2.1 | 2.4 | |
| 1 | 4SKM100 | 4SKM100 | 0.75 | 1 | 1" | Head(m) | 60 | 56 | 45 | 38 | 32 | 20 | 12 |
| 2 | 4SKM150 | 4SKM150 | 1.1 | 1.5 | 1" | 90 | 85 | 622 | 56 | 42 | 30 | 17 | |
| 3 | 4SKM200 | 4SKM200 | 1.5 | 2 | 1" | 120 | 108 | 82 | 71 | 50 | 34 | 23 | |
| 4 | 4SVM100 | 0.75 | 1 | 1" | 55 | 51 | 42 | 35 | 32 | 18 | 10 | ||
| 5 | 4SVM150 | 1.1 | 1.5 | 1" | 85 | 80 | 60 | 50 | 40 | 25 | 15 | ||
| 6 | 4SVM200 | 1.5 | 2 | 1" | 115 | 103 | 78 | 66 | 47 | 30 | 20 | ||
