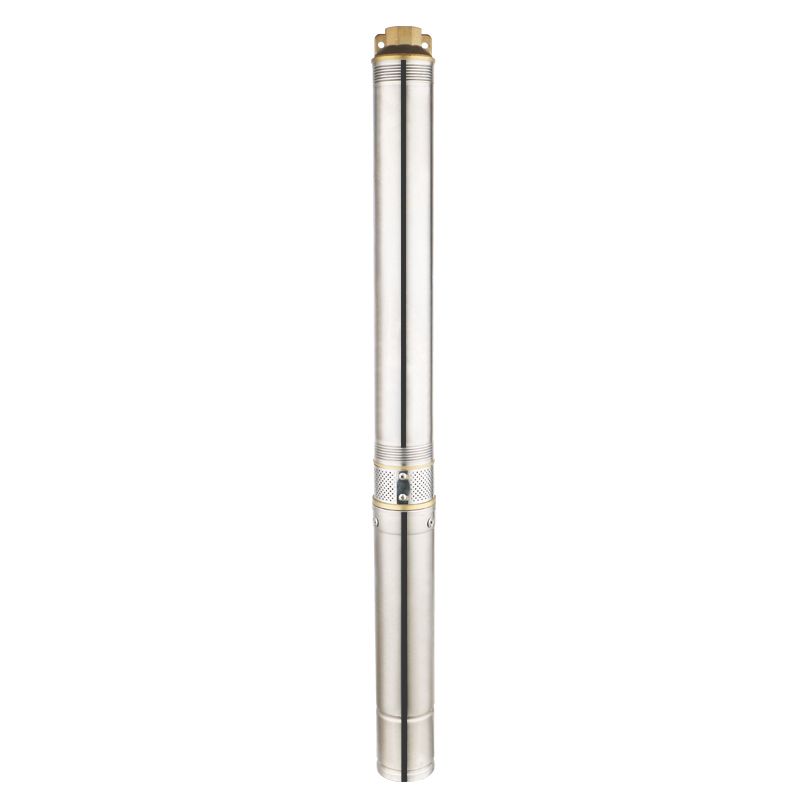

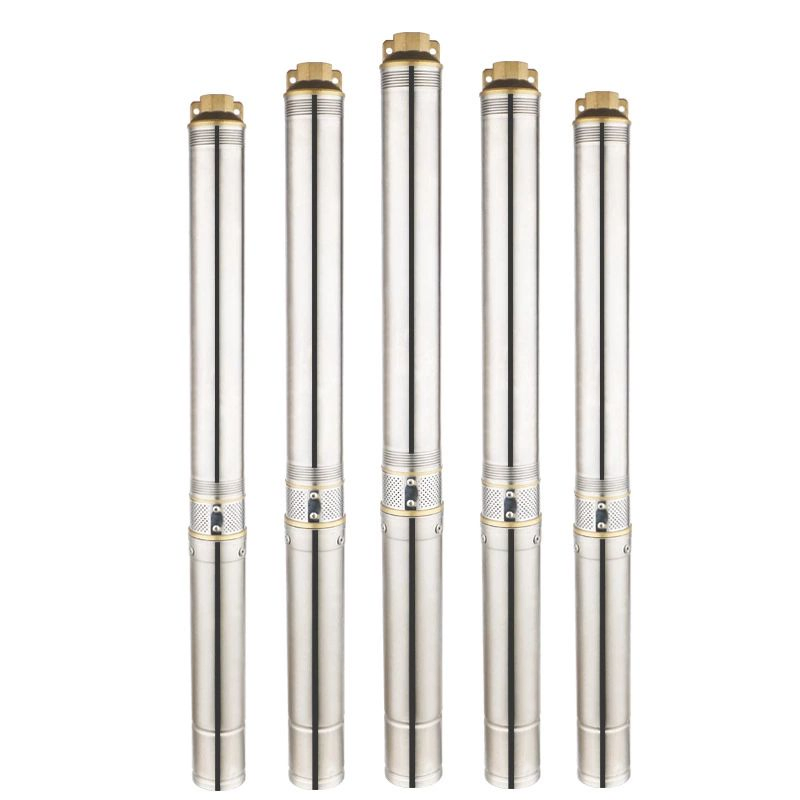

4sdm Deep Well Water Pump for 3 to 10 Inch Submersible Water Electric Pump

Send Inquiry

Product Description

Product Description
Pump 's Applications:
For water supply from wells or reservoirs
For domestic use, for civil and industrial appplications.
For garden use and irrigation.
For Tank application
For Pressure boosting

Pump's Operating conditions:
Maximum fiuid temperature up to +40 C
Max ambient temperature +40° C
Maximum sand content: 0.25%
Maximum immersion depth: 100m
Minimum well diameter : 4 "

Motor:
Rewind able moter
Three phase:380V-415V/50Hz
Single-phase: 220V-240V/50Hz

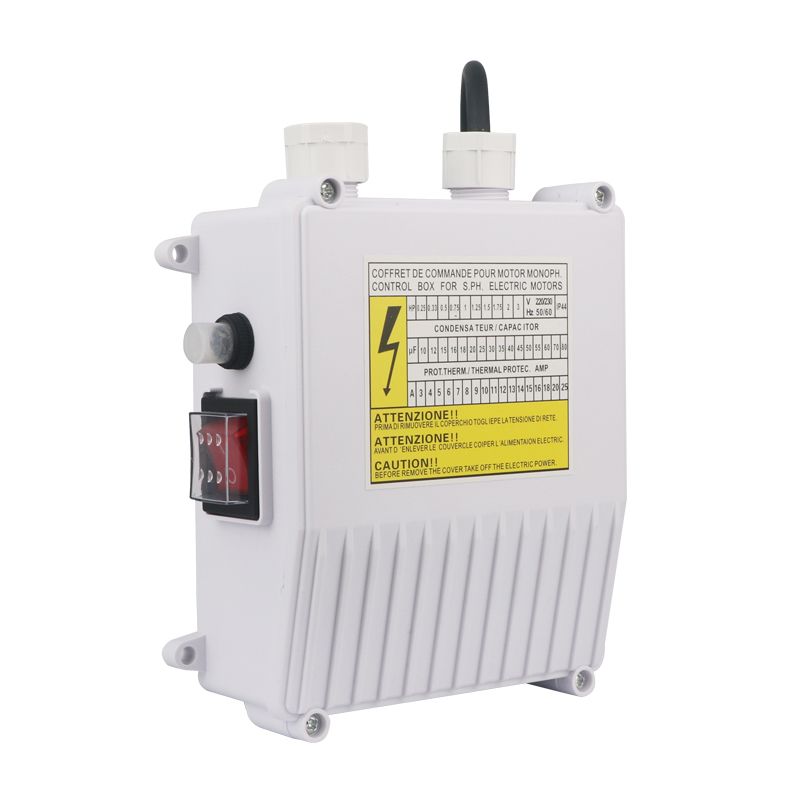

Equip with special start-up control box

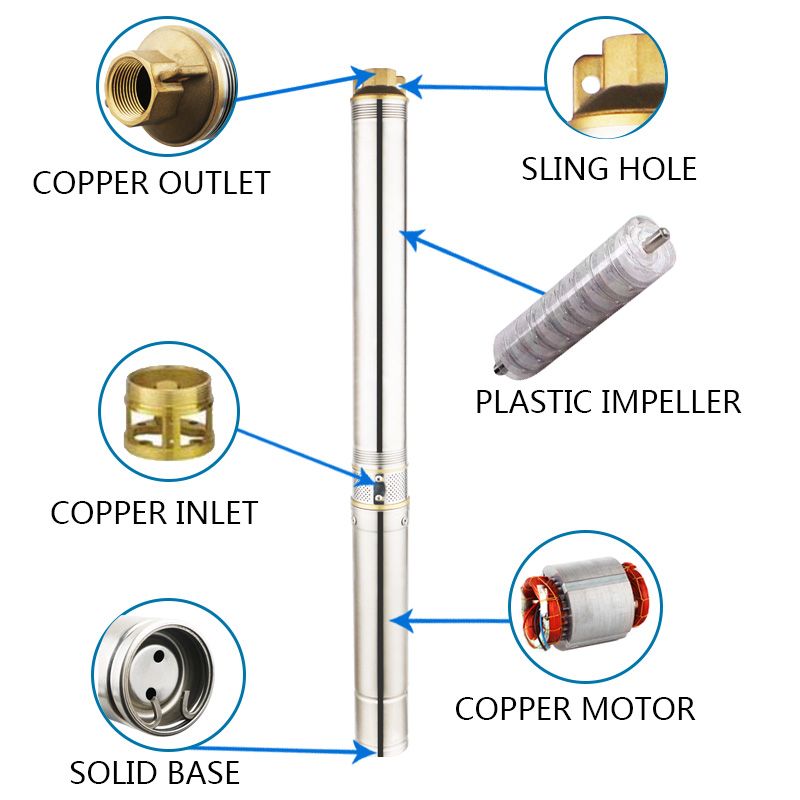

Component Material:

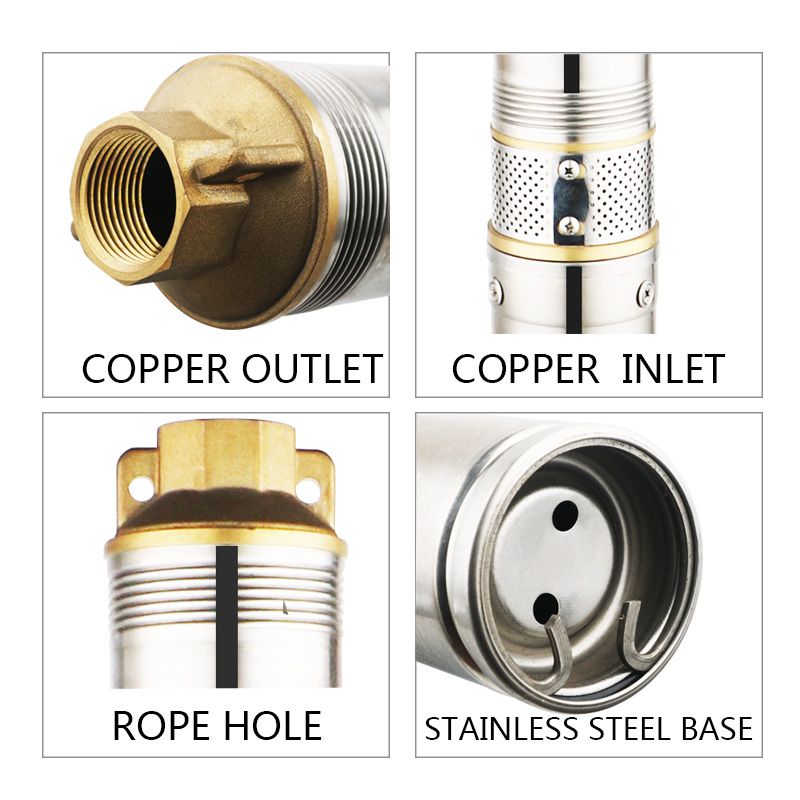

1, Pump external casing: AISI304ss

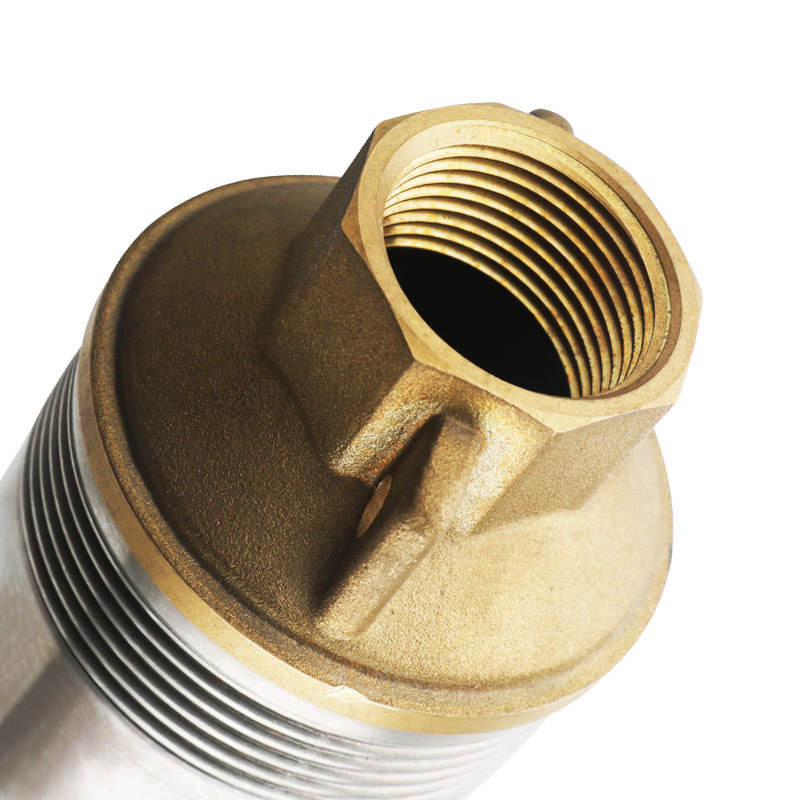

2, Delivery casing: Cast-Cu ASTM280 or AISI304ss

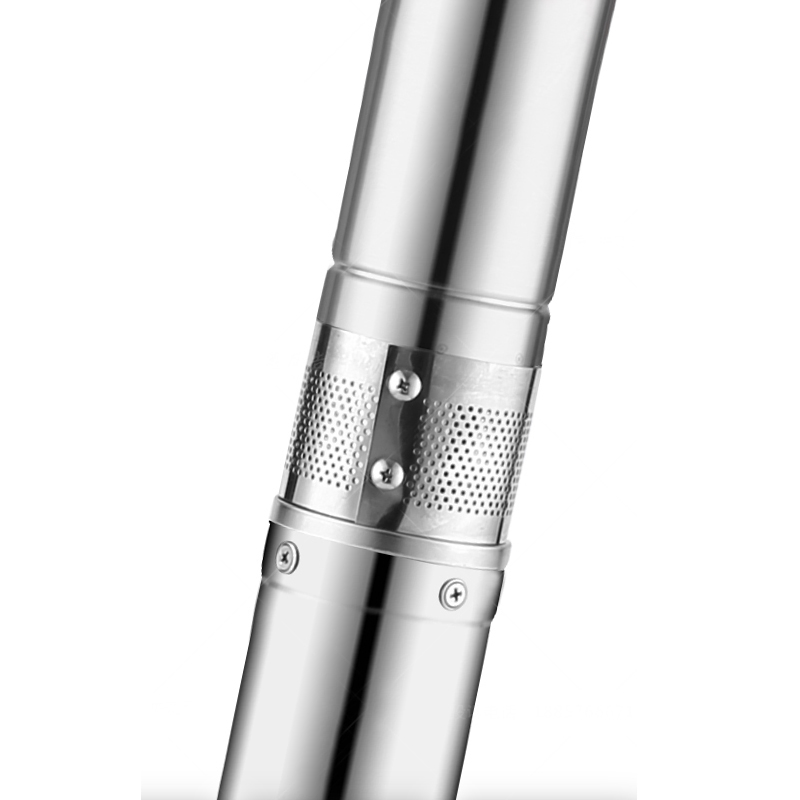

3, Suction lantern: Cast-Cu ASTM280 or AISI304ss
4, Diffuser: Plastic. PC
5, Impeller: Plastic. POM
6, Shaft: AISI316ss or AISI304ss
7, Shaft coupling: AISI316ss or AISI304ss
8, Wear ring: AISI304ss
9, Motor external casing: AISI304ss
10, Top cover: Cast-Cu ASTM280 or Cast iron G20 UNI5007

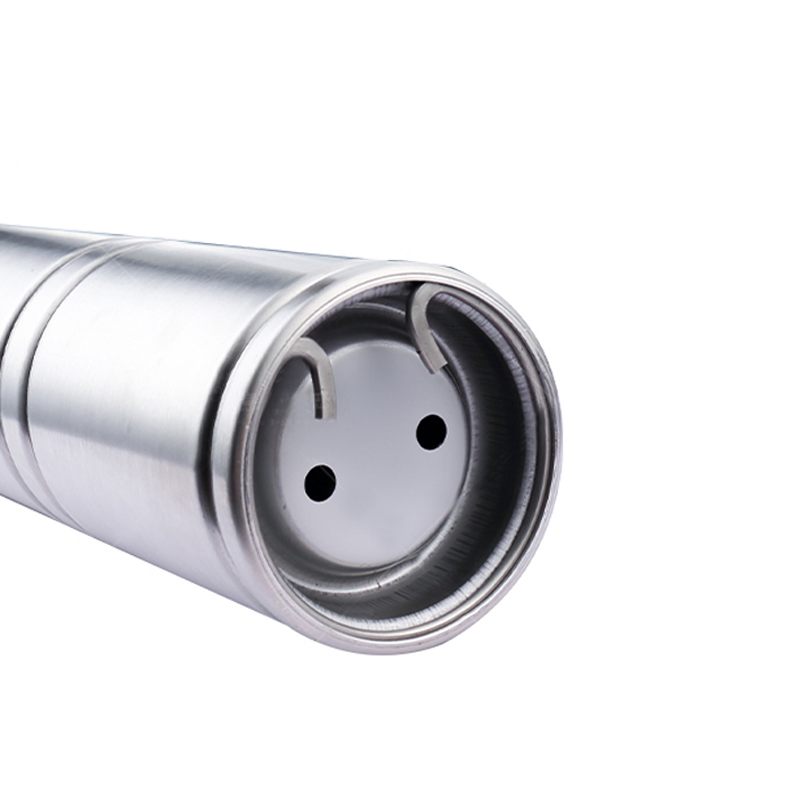

11, Bottom support: AISI304ss
12, Mechanical seal: Special seal for deep well (carbon -SIC/TC)
13, Shaft: AISI304ss-C1045
14, Bearing: C&U
15, Seal lubricant oil: Oil for food machinery and pharmaceutical use

4sdm Deep Well Water Pump for 3 to 10 Inch Submersible Water Electric Pump

PERFORMANCE DATA 50HZ
MODEL		P2		DELIVERY n~2850 1/min
1~ 220-240V	3~ 380-415V	KW	HP	m3/h	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7	3	3.3	OUTLET
4SDM2/6	4SD2/6	0.25	0.33	H(m)	42	42	42	41	39	37	35	31	28	23	18	11	1.25"
4SDM2/8	4SD2/8	0.37	0.5		56	56	56	55	53	50	46	42	37	31	24	15	1.25"
4SDM2/11	4SD2/11	0.55	0.75		77	77	77	75	72	68	63	58	51	43	33	21	1.25"
4SDM2/14	4SD2/14	0.75	1		98	98	98	96	92	87	81	73	65	54	42	27	1.25"
4SDM2/16	4SD2/16	0.92	1.25		112	112	111	110	105	99	92	84	74	62	48	30	1.25"
4SDM2/19	4SD2/19	1.1	1.5		133	133	132	130	125	118	109	100	88	74	57	36	1.25"
4SDM2/22	4SD2/22	1.3	1.75		154	154	153	151	142	137	127	115	102	85	66	42	1.25"
4SDM2/25	4SD2/25	1.5	2		175	175	174	171	165	155	144	131	116	97	75	48	1.25"
4SDM2/28	4SD2/28	1.8	2.5		196	196	195	192	184	174	161	147	130	108	84	53	1.25"
4SDM2/33	4SD2/33	2.2	3		231	231	230	226	217	205	190	173	153	128	99	63	1.25"
4SDM2/38	4SD2/38	2.2	3		266	266	265	260	250	236	219	199	176	147	114	72	1.25"
-	4SD2/44	3	4		308	308	307	302	290	273	253	231	204	170	132	84	1.25"
-	4SD2/50	3	4		350	350	348	343	329	310	288	262	231	194	150	95	1.25"
-	4SD2/62	4	5.5		434	434	432	425	408	385	357	325	287	240	186	118	1.25"

PERFORMANCE DATA 50HZ
MODEL		P2		DELIVERY n~2850 1/min
1~ 220-240V	3~ 380-415V	KW	HP	m3/h	0	0.6	1.2	1.8	2.4	3	3.6	4.2	4.8	OUTLET
4SDM3/5	4SD3/5	0.25	0.33	H(m)	36	35	35	33	30	26	22	17	11	1.25"
4SDM3/7	4SD3/7	0.37	0.5		50	49	48	46	42	37	31	24	16	1.25"
4SDM3/9	4SD3/9	0.55	0.75		65	63	62	59	54	47	40	30	20	1.25"
4SDM3/11	4SD3/11	0.75	1		79	77	76	72	66	58	49	37	25	1.25"
4SDM3/13	4SD3/13	0.92	1.25		93	91	90	85	78	68	58	44	29	1.25"
4SDM3/15	4SD3/15	1.1	1.5		108	105	14	98	90	79	67	50	34	1.25"
4SDM3/17	4SD3/17	1.3	1.75		122	119	118	111	102	90	76	57	39	1.25"
4SDM3/19	4SD3/19	1.5	2		136	133	131	124	114	100	85	64	43	1.25"
4SDM3/21	4SD3/21	1.8	2.5		151	147	145	138	126	111	93	71	48	1.25"
4SDM3/26	4SD3/26	2.2	3		187	182	180	170	156	137	116	88	59	1.25"
4SDM3/30	4SD3/30	2.2	3		216	210	208	197	180	158	133	101	68	1.25"
-	4SD3/35	3	4		251	245	242	229	210	184	156	118	79	1.25"
-	4SD3/40	3	4		287	280	277	262	240	211	178	135	91	1.25"
-	4SD3/45	4	5.5		323	315	311	295	270	237	200	151	102	1.25"
-	4SD3/50	4	5.5		359	350	346	328	300	263	222	168	113	1.25"
-	4SD3/55	5.5	7.5		395	385	380	360	330	290	245	185	125	1.25"
-	4SD3/60	5.5	7.5		431	420	415	393	360	316	267	202	136	1.25"

PERFORMANCE DATA 50HZ
MODEL		P2		DELIVERY n~2850 1/min
1~ 220-240V	3~ 380-415V	KW	HP	m3/h	0	0.6	1.2	1.8	2.4	3	3.6	4.2	4.8	5.4	6	OUTLET
4SDM4/5	4SD4/5	0.25	0.33	H(m)	44	42	41	39	37	35	33	29	24	19	14	1.5"
4SDM4/6	4SD4/6	0.37	0.5		51	49	48	47	45	42	38	34	28	23	16	1.5"
4SDM4/7	4SD4/7	0.55	0.75		58	56	55	54	53	49	44	39	33	26	18	1.5"
4SDM4/8	4SD4/8	0.75	1		73	70	68	66	60	61	55	48	41	32	23	1.5"
4SDM4/10	4SD4/10	0.92	1.25		87	84	82	80	75	73	66	58	49	39	27	1.5"
4SDM4/12	4SD4/12	1.1	1.5		102	98	96	93	90	85	77	68	57	45	32	1.5"
4SDM4/14	4SD4/14	1.3	1.75		117	112	110	106	105	97	88	78	65	51	37	1.5"
4SDM4/16	4SD4/16	1.5	2		131	126	123	120	117	109	99	87	73	58	41	1.5"
4SDM4/18	4SD4/18	1.8	2.5		153	147	144	140	135	127	115	102	85	68	48	1.5"
4SDM4/21	4SD4/21	2.2	3		175	168	164	160	158	146	132	116	98	77	55	1.5"
4SDM4/24	4SD4/24	2.2	3		204	196	192	186	180	170	154	136	114	90	64	1.5"
-	4SD4/28	3	4		233	224	219	213	210	194	176	155	130	103	73	1.5"
-	4SD4/32	3	4		262	252	247	239	240	218	198	175	146	116	82	1.5"
-	4SD4/36	4	5.5		291	280	274	266	260	243	220	194	163	129	91	1.5"
-	4SD4/40	4	5.5		328	315	308	299	293	273	248	218	183	145	103	1.5"
-	4SD4/45	5.5	7.5		364	350	343	333	325	303	275	243	203	161	114	1.5"
-	4SD4/50	5.5	7.5		401	385	377	366	358	334	303	267	224	177	126	1.5"
	4SD4/55	7.5	10		437	420	411	399	390	364	330	291	244	193	137	1.5"

PERFORMANCE DATA 50HZ
MODEL		P2		DELIVERY n~2850 1/min
1~ 220-240V	3~ 380-415V	KW	HP	m3/h	0	1.2	2.4	3.6	4.8	6	7.2	8.4	OUTLET
4SDM6/5	4SD6/5	0.37	0.5	H(m)	35	34	33	31	28	24	19	12	1.5"
4SDM6/6	4SD6/6	0.55	0.75		42	41	39	37	34	29	23	15	1.5"
4SDM6/7	4SD6/7	0.75	1		49	47	46	44	40	33	26	17	1.5"
4SDM6/8	4SD6/8	0.92	1.25		56	54	52	50	45	38	30	20	1.5"
4SDM6/9	4SD6/9	1.1	1.5		63	61	59	56	51	43	34	22	1.5"
4SDM6/11	4SD6/11	1.3	1.75		77	75	72	68	62	53	42	27	1.5"
4SDM6/12	4SD6/12	1.5	2		84	81	79	75	68	57	45	29	1.5"
4SDM6/14	4SD6/14	1.8	2.5		98	95	92	87	79	67	53	34	1.5"
4SDM6/17	4SD6/17	2.2	3		119	115	112	106	96	81	64	41	1.5"
4SDM6/20	4SD6/20	2.2	3		140	136	131	124	113	96	76	49	1.5"
-	4SD6/23	3	4		161	156	151	143	130	110	87	56	1.5"
-	4SD6/26	3	4		182	176	171	162	147	124	98	63	1.5"
-	4SD6/30	4	5.5		210	203	197	187	170	143	113	73	1.5"
-	4SD6/34	4	5.5		238	231	223	211	192	163	129	83	1.5"
-	4SD6/38	5.5	7.5		266	258	249	236	215	182	144	93	1.5"
-	4SD6/42	5.5	7.5		294	285	276	261	238	201	159	102	1.5"
-	4SD6/46	7.5	10		322	312	302	286	260	220	174	112	1.5"

PERFORMANCE DATA 50HZ
MODEL		P2		DELIVERY n~2850 1/min
1~ 220-240V	3~ 380-415V	KW	HP	m3/h	0	1.2	2.4	3.6	4.8	6	7.2	8.4	9.6	10.8	OUTLET
4SDM8/5	4SD8/5	0.55	0.75	H(m)	32	31	28	26	25	24	22	18	14	9	2.0"
4SDM8/6	4SD8/6	0.75	1		38	37	34	32	30	29	26	22	17	11	2.0"
4SDM8/7	4SD8/7	0.92	1.25		44	43	39	37	35	33	30	26	20	13	2.0"
4SDM8/8	4SD8/8	1.1	1.5		51	50	45	42	40	38	35	30	23	15	2.0"
4SDM8/9	4SD8/9	1.3	1.75		57	56	51	47	45	43	39	33	26	17	2.0"
4SDM8/10	4SD8/10	1.5	2		63	62	56	53	50	48	43	37	28	18	2.0"
4SDM8/12	4SD8/12	1.8	2.5		76	74	68	63	60	57	52	44	34	22	2.0"
4SDM8/15	4SD8/15	2.2	3		95	93	84	79	75	71	65	55	43	28	2.0"
4SDM8/18	4SD8/18	2.2	3		115	112	101	95	90	86	78	67	51	33	2.0"
-	4SD8/21	3	4		134	130	118	110	105	100	91	78	60	39	2.0"
-	4SD8/24	3	4		155	149	135	126	120	114	104	89	68	44	2.0"
-	4SD8/27	4	5.5		172	167	152	142	135	129	117	10	77	50	2.0"
-	4SD8/30	4	5.5		192	186	169	158	150	143	130	111	85	55	2.0"
-	4SD8/34	5.5	7.5		217	211	191	179	170	162	147	126	97	63	2.0"
-	4SD8/38	5.5	7.5		240	236	214	200	190	181	164	140	108	70	2.0"
-	4SD8/42	7.5	10		269	260	236	221	210	200	182	155	120	78	2.0"

PERFORMANCE DATA 50HZ
MODEL		P2		DELIVERY n~2850 1/min
1~ 220-240V	3~ 380-415V	KW	HP	m3/h	0	1.8	3.6	5.4	7.2	9	10.8	12.6	14.4	OUTLET
4SDM10/4	4SD10/4	0.75	1	H(m)	25	24	23	21	20	18	14	10	6	2.0"
4SDM10/5	4SD10/5	0.92	1.25		31	30	28	27	25	22	18	13	7	2.0"
4SDM10/6	4SD10/6	1.1	1.5		37	36	34	32	30	26	22	16	9	2.0"
4SDM10/7	4SD10/7	1.3	1.75		43	42	40	37	35	31	25	18	10	2.0"
4SDM10/8	4SD10/8	1.5	2		49	48	45	43	40	35	29	21	12	2.0"
4SDM10/10	4SD10/10	1.8	2.5		63	60	56	54	50	44	36	26	14	2.0"
4SDM10/12	4SD10/12	2.2	3		75	72	68	64	60	53	43	31	17	2.0"
4SDM10/14	4SD10/14	2.2	3		87	84	79	75	70	62	51	36	20	2.0"
-	4SD10/16	3	4		100	96	90	86	80	71	58	41	23	2.0"
-	4SD10/18	3	4		112	108	102	96	90	79	65	47	26	2.0"
-	4SD10/20	4	5.5		125	120	113	107	100	88	72	52	29	2.0"
-	4SD10/22	4	5.5		137	132	124	118	110	97	80	57	32	2.0"
-	4SD10/25	5.5	7.5		155	150	141	134	125	110	90	65	36	2.0"
-	4SD10/28	5.5	7.5		175	168	158	150	140	124	101	72	40	2.0"
-	4SD10/31	7.5	10		193	186	175	166	155	137	112	80	45	2.0"

PERFORMANCE DATA 50HZ
MODEL		P2		DELIVERY n~2850 1/min
1~ 220-240V	3~ 380-415V	KW	HP	m3/h	0	1.8	3.6	5.4	7.2	9	10.8	12.6	14.4	16.2	OUTLET
4SDM12/3	4SD12/3	0.75	1	H(m)	19	18	17	16	15	13	12	9	7	4	2.0"
4SDM12/4	4SD12/4	0.92	1.25		25	24	23	21	20	18	15	13	9	5	2.0"
4SDM12/5	4SD12/5	1.1	1.5		32	31	29	27	25	22	19	16	12	6	2.0"
4SDM12/6	4SD12/6	1.3	1.75		38	36	34	32	29	26	23	19	14	8	2.0"
4SDM12/7	4SD12/7	1.5	2		44	42	40	37	34	31	27	22	16	9	2.0"
4SDM12/8	4SD12/8	1.8	2.5		50	48	46	43	39	35	31	25	19	10	2.0"
4SDM12/10	4SD12/10	2.2	3		63	60	57	53	49	44	38	32	23	13	2.0"
4SDM12/12	4SD12/12	2.2	3		76	73	69	64	59	53	46	38	28	15	2.0"
-	4SD12/14	3	4		88	84	80	75	69	62	54	44	33	18	2.0"
-	4SD12/16	3	4		101	96	92	86	79	71	62	51	38	21	2.0"
-	4SD12/18	4	5.5		113	108	103	96	88	79	69	57	42	23	2.0"
-	4SD12/20	4	5.5		126	120	114	107	98	88	77	63	47	26	2.0"
-	4SD12/23	5.5	7.5		145	139	132	123	113	101	88	73	54	39	2.0"
-	4SD12/26	5.5	7.5		164	156	149	139	128	115	100	82	61	33	2.0"
-	4SD12/29	7.5	10		183	174	166	155	142	128	111	92	68	37	2.0"
-	4SD12/32	7.5	10		202	193	183	171	157	141	123	101	75	41	2.0"

PERFORMANCE DATA 50HZ
MODEL		P2		DELIVERY n~2850 1/min
1~ 220-240V	3~ 380-415V	KW	HP	m3/h	0	3	6	9	12	15	18	21	OUTLET
4SDM16/3	4SD16/3	1.1	1.5	H(m)	18	17	17	15	13	11	9	6	2.0"
4SDM16/4	4SD16/4	1.3	1.75		24	23	22	20	18	15	12	8	2.0"
4SDM16/5	4SD16/5	1.5	2		30	29	28	25	22	19	15	10	2.0"
4SDM16/6	4SD16/6	1.8	2.5		36	34	32	30	26	23	18	12	2.0"
4SDM16/8	4SD16/8	2.2	3		48	47	44	40	35	30	25	17	2.0"
4SDM16/9	4SD16/9	2.2	3		54	52	50	45	40	34	28	19	2.0"
-	4SD16/11	3	4		66	64	61	55	49	42	34	23	2.0"
-	4SD16/12	3	4		72	71	67	60	53	45	37	25	2.0"
-	4SD16/14	4	5.5		84	83	79	70	62	53	43	29	2.0"
-	4SD16/16	4	5.5		96	94	90	80	71	61	49	33	2.0"
-	4SD16/18	5.5	7.5		108	106	101	90	79	68	55	37	2.0"
-	4SD16/20	5.5	7.5		120	118	112	100	88	76	62	42	2.0"
-	4SD16/22	7.5	10		132	129	123	110	97	83	68	46	2.0"
-	4SD16/24	7.5	10		144	141	134	120	106	91	74	50	2.0"
