Vrd Series Good Quality Rotary Vane Vacuum Pump for Short Path
Product DescriptionChina Lab Oil Vacuum pump Two-stage rotary vane workshop Vacuum pump Mechanical pump Electric suction pump VRD seriesIt is mainly used in medicinal products analysis , industry of fine chemicals , biochemical pharmacy , food examination , The criminal investigation technology , et......
Send Inquiry
Product Description

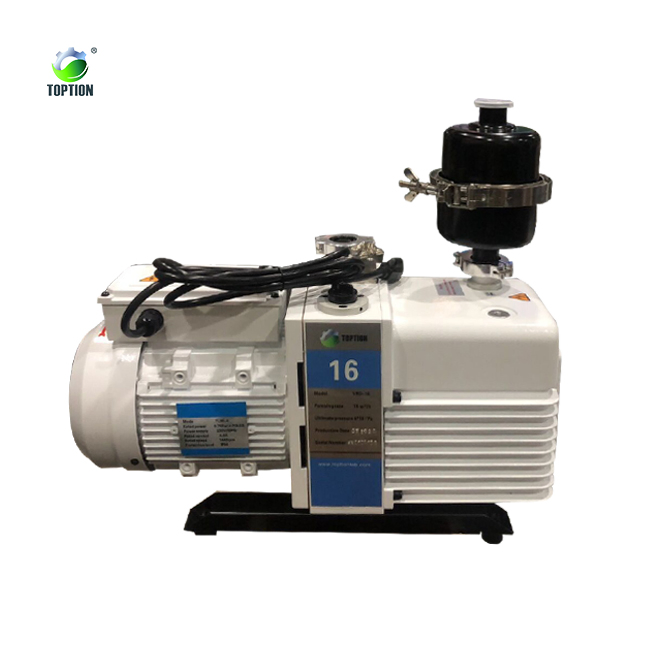

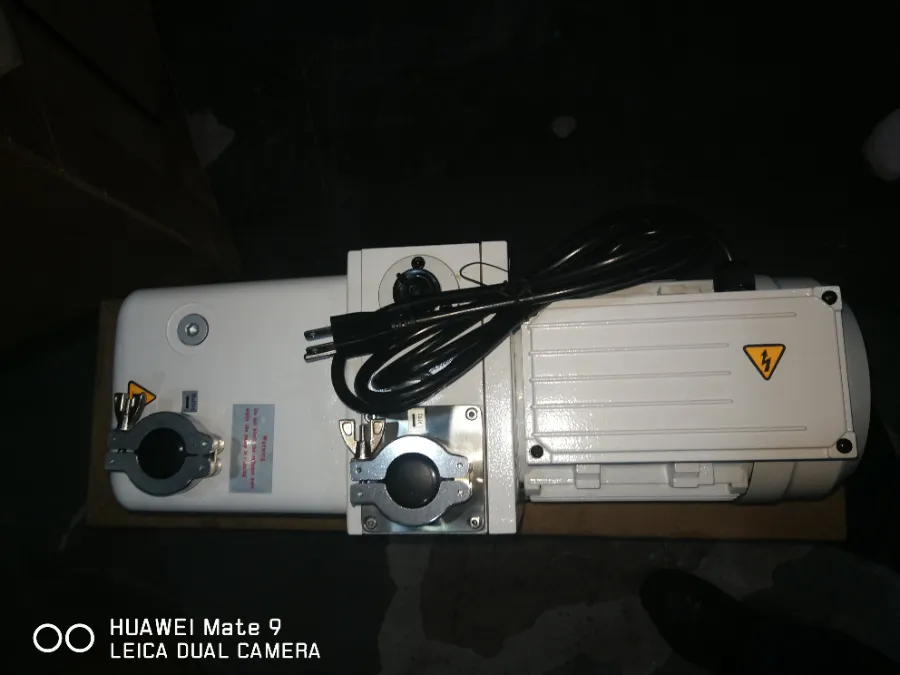

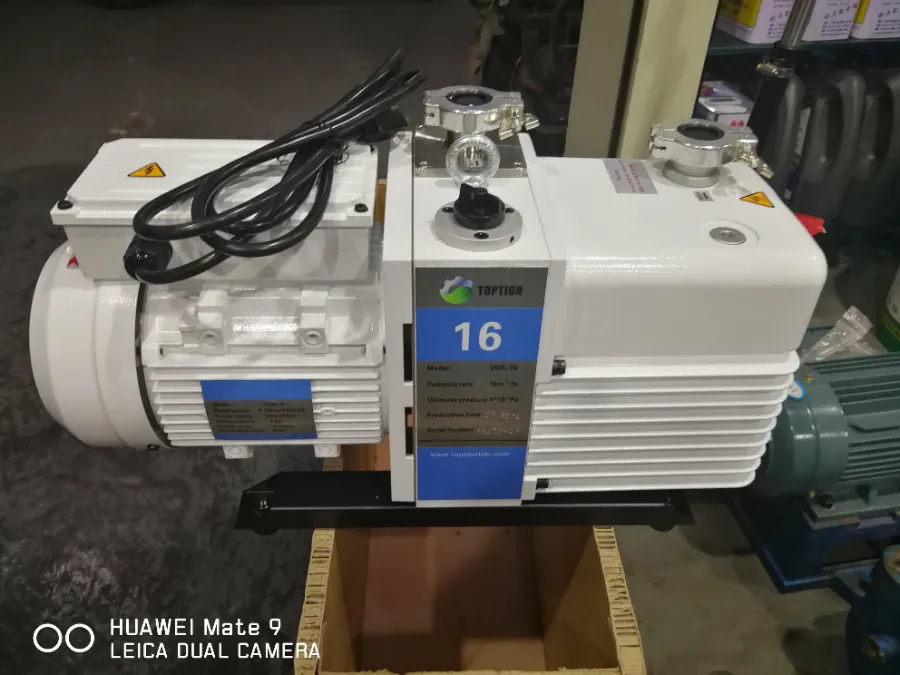

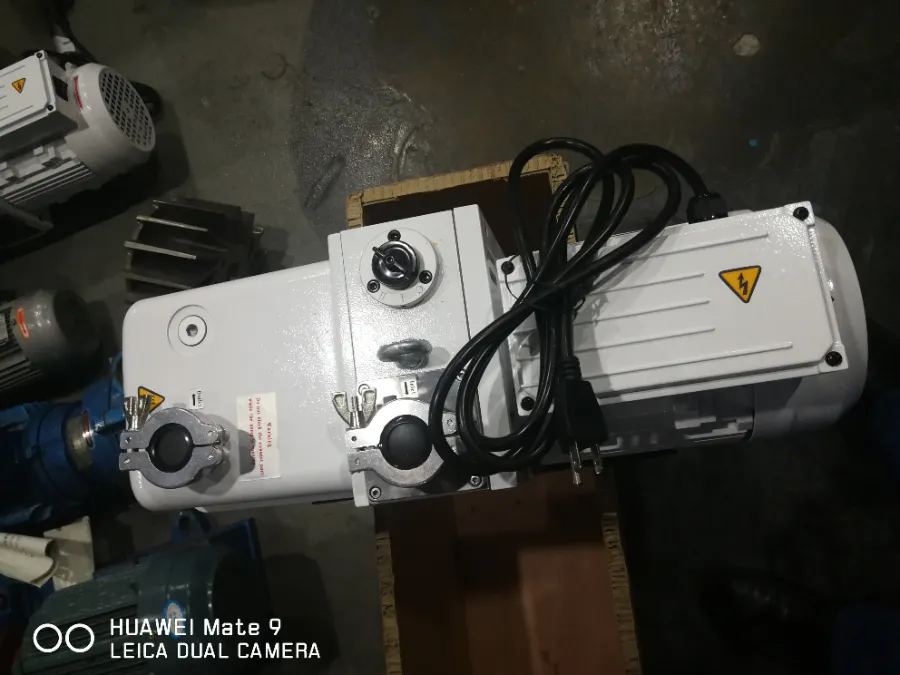

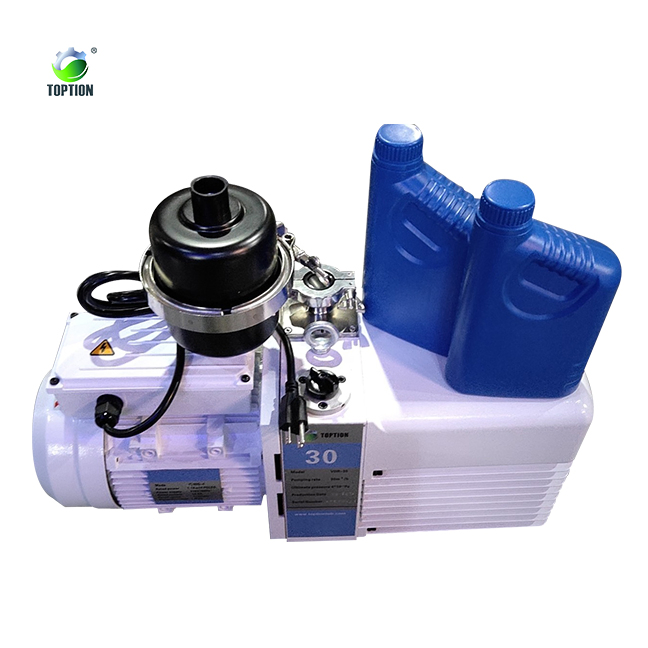

China Lab Oil Vacuum pump Two-stage rotary vane workshop Vacuum pump Mechanical pump Electric suction pump VRD series
It is mainly used in medicinal products analysis , industry of fine chemicals , biochemical pharmacy , food examination , The criminal investigation technology , etc . It is used with the precision chromatography instrument , the necessary of laboratory . This product is specially designed for laboratory , reliable and easy to use .
APPLICATION:rotary evaporator/ glass reactor / vacuum filter / distillation
| MODEL | VRD-8 | VRD-16 | VRD-24 | VRD-30 | VRD-48 | VRD-65 | |
| Displacement speed m3/h (L/s) | 50Hz | 8 (2.2) | 16 (4.4) | 24 (6.6) | 30 (8.3) | 48 (13.3) | 65 (18) |
| 60Hz | 9.6 (2.6) | 19.2 (5.2) | 28.8 (7.9) | 36 (9.9) | 57.6 (16) | 78 (21.6) | |
| Ultimate partial pressure gas ballast closed (Pa) | 5x10-2 | 4x10-2 | 4x10-2 | 4x10-2 | 4x10-2 | 4x10-2 | |
| Ultimate total pressure gas ballast closed (Pa) | 5x10-1 | 4x10-1 | 4x10-1 | 4x10-1 | 4x10-1 | 4x10-1 | |
| Ultimate total pressure gas ballast open (Pa) | 3 | 8x10-1 | 8x10-1 | 8x10-1 | 8x10-1 | 8x10-1 | |
| power supply | Single/Three phase | Single/Three phase | Single/Three phase | Single/Three phase | Three phase | Three phase | |
| Power rating (kW) | 0.4/0.37 | 0.75/0.55 | 1.1/0.75 | 1.1 | 1.5 | 2.2 | |
| Intake and exhaust DN (mm) | KF16/25 | KF25 | KF25/40 | KF25/40 | KF40 | KF40 | |
| Oil capacity (L) | 0.6~1.0 | 0.9~1.5 | 1.3~2.0 | 1.3~2.0 | 3.3~4.5 | 3.3~4.5 | |
| Motor speed (rpm) | 50Hz | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 |
| 60Hz | 1720 | 1720 | 1720 | 1720 | 1720 | 1720 | |
| Ambient temperature (°C) | 5 - 40 | 5 - 40 | 5 - 40 | 5 - 40 | 5 - 40 | 5 - 40 | |
| Noise level (dB) | ≤56 | ≤58 | ≤58 | ≤58 | ≤62 | ≤62 | |
| Net weight (kg) | 20 | 33 | 35 | 37 | 62 | 65 | |
1.Two-Shift adjustable gas ballast valve satisfies different requirements of condensable vapor(such as water vapor) to be exhausted out of pump in different processes.
2.Dual protection of oil anti-sucking back ensures vacuum system from oil pollution when pump stops running and needs to be easily restarted.
3.Forced oil circulation system consisted of oil pump and constant pressure oil supply mechanism ensures stable running of the pump.
4. Less components are used, easy to maintain and repair.
