Topsflo Low Noise High Performance Brush Moto Air Mini Vacuum Pump
Topsflo low noise high Performance brush moto air mini vacuum pump Remarks:- We are high-end Brushless DC pumps manufacturer. Can provide customized services- If you are interested in our products, pls feel free to contact usOur Micro Diaphragm Pumps are available with a choice of four different dr......
Send Inquiry
Product Description

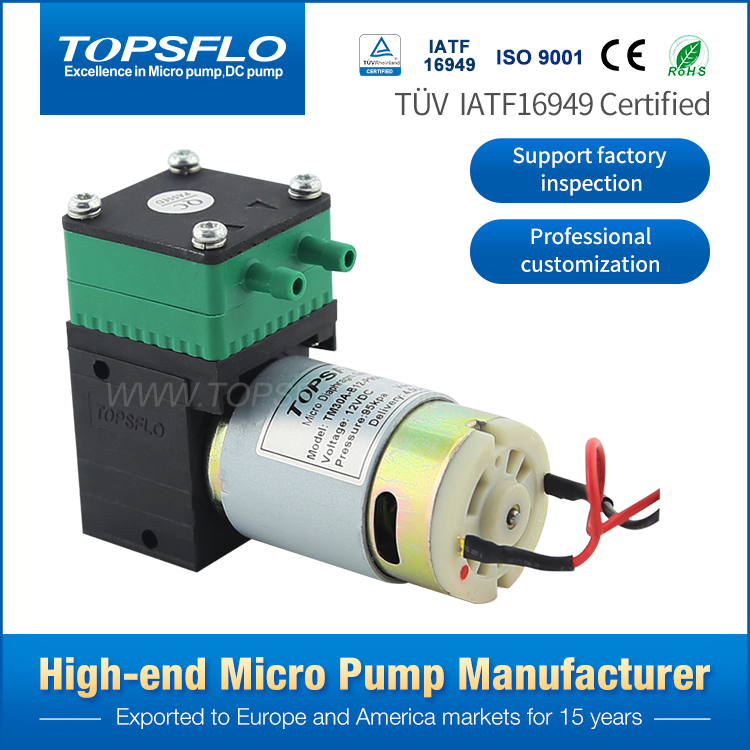

Topsflo low noise high Performance brush moto air mini vacuum pump
Remarks:
- We are high-end Brushless DC pumps manufacturer. Can provide customized services
- If you are interested in our products, pls feel free to contact us

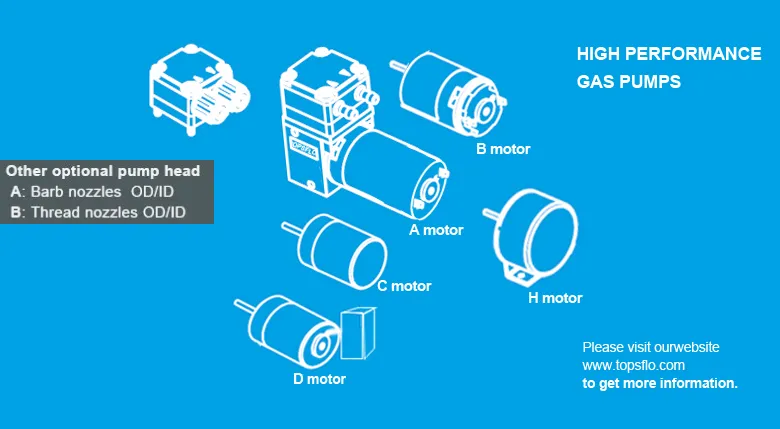

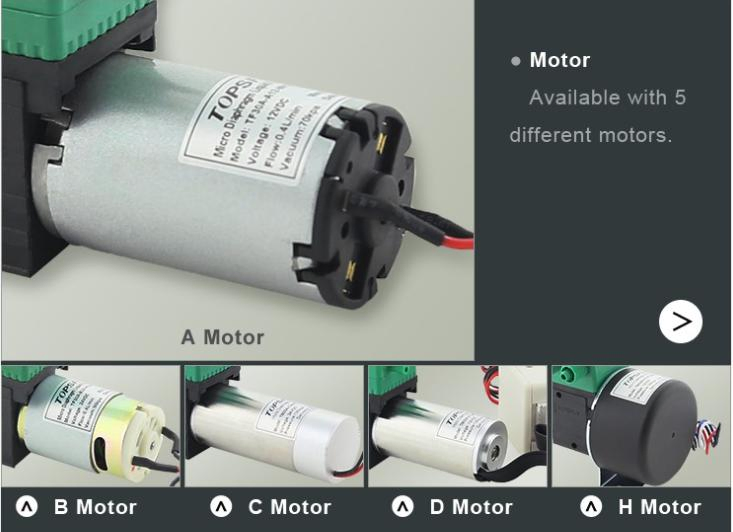

Our Micro Diaphragm Pumps are available with a choice of four different drive motors.
A- Premium duty brush DC motor
lifetime 3,000hours,longer endurance lifetime than other normal DC membrane pump
B- Economical brush DC motor
lifetime:1,500hours
C- Coreless Brushless DC Motor
A brushless electronically commutated dc motor (electronics integrated in motor), the motor runs vibration and spark free, almost silently, is very dynamic and extremely durable, ideal life-time 15000 hours
D- Coreless Brushless DC motor with outer controller
With all advantages of coreless brushless DC motor, ideal life-time 15000 hours, and outer controller can realize more control functions of PWM or 0 -5V speed adjustment, brake, ~ instant starting work
H- Brushless DC Motor
Long lifetime 10000hour
Product Specification
| Model | TM30A-A | TM30A-B | TM30A-C | TM30A-D |
| Motor type | A--high performance Brush motor | B--Brush motor | C--Brushless motor | D--Brushless motor |
| Pump Assembly Rated Life | 3000hour | 1000hour | 15000hour | 15000hour |
| Gas flow | 6L/min | 4.5L/ | 4.5 | 4 |
| Rated Voltage | 12V | 6/12/24v | 6/12/24v | 6/12/24v |
| No-load Current | 0.24 | 0.4/0.24/0.15 | ||
| Media | Most gas | |||
| Max Pressure | 120kpa | |||
| Max Vacuum | -70kpa | |||
| Ambient Temperature | 41 to 158 F(5 to 70C) | |||

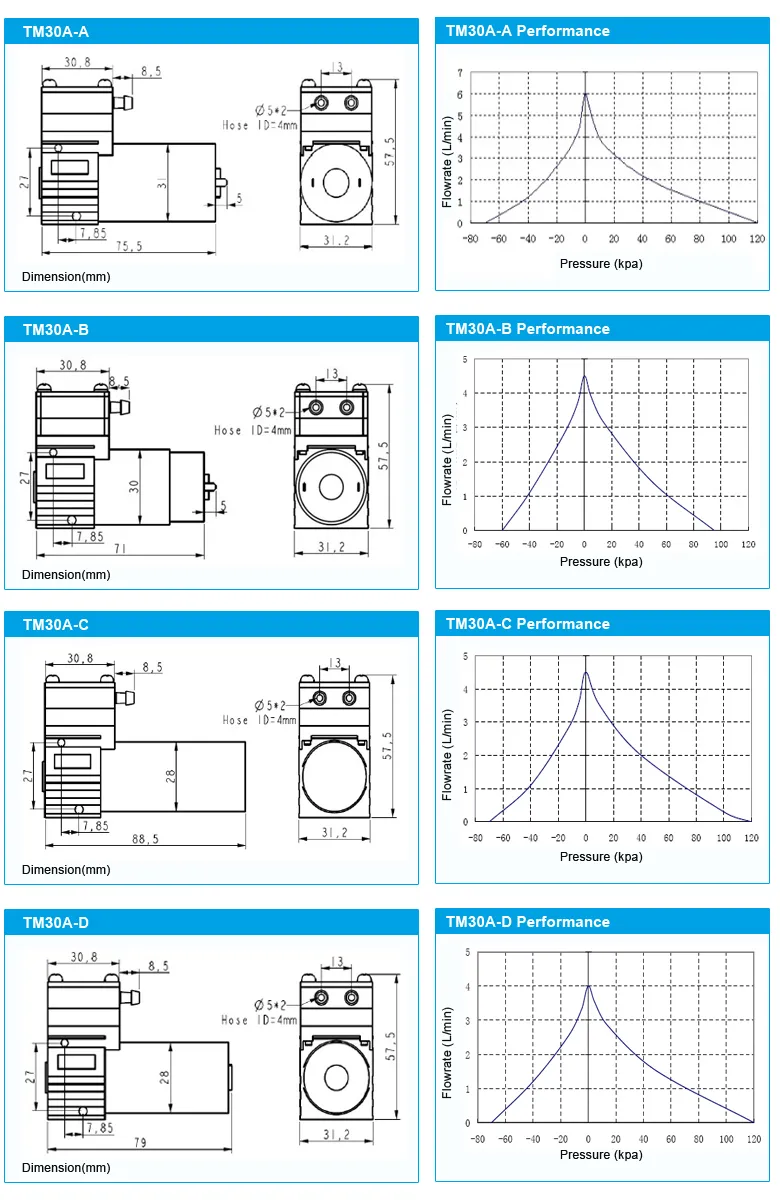

| Pump size | 75.5*30.4*54.6mm | 75*31.2*57.5mm | 79*31.2*57.5mm | 79*31.2*57.5mm |
| Weight | 200g | 150g | 250g | 250g |

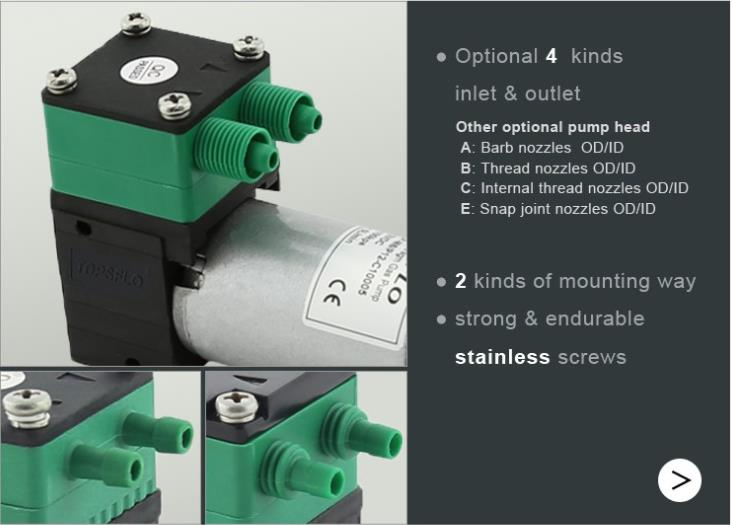

| Inlet&Outlet | OD 4.8mm/ID 2.6mm,hose suggestion:ID 4.0mm | |||
| Materials | pump head Nylon, membrane EPDM , valve EPDM | pump head Nylon, membrane EPDM / PTFE, valve EPDM / FPM | pump head Nylon, membrane EPDM / PTFE, valve EPDM / FPM | pump head Nylon, membrane EPDM / PTFE, valve EPDM / FPM |
| Wetted material options | 1.Optional membrane materials: EPDM for normal air FPM for corrosive air, like acid, alkali, ozone,etc. | |||
Get more Technical data, Please Send message

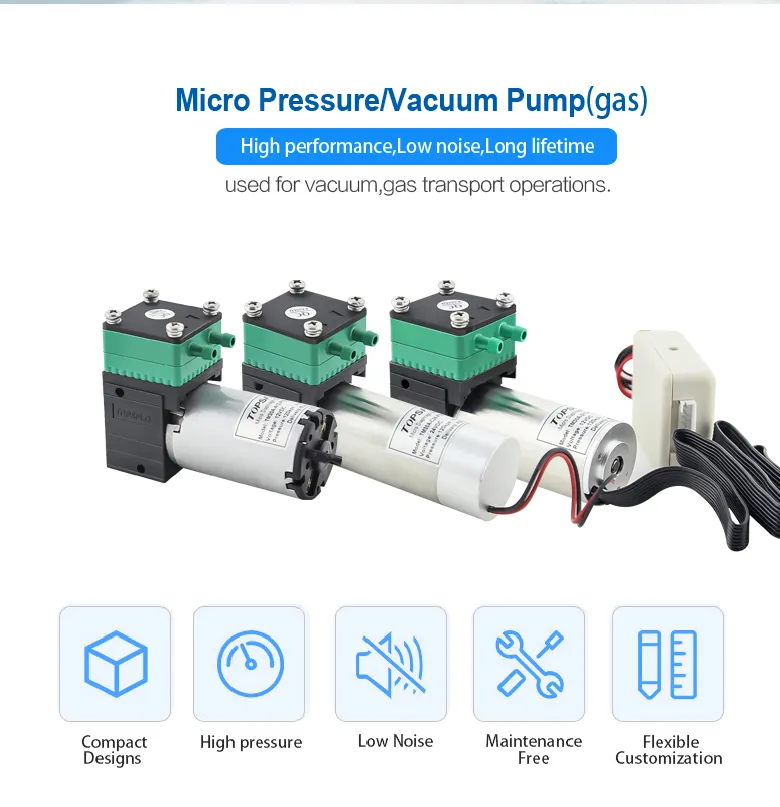

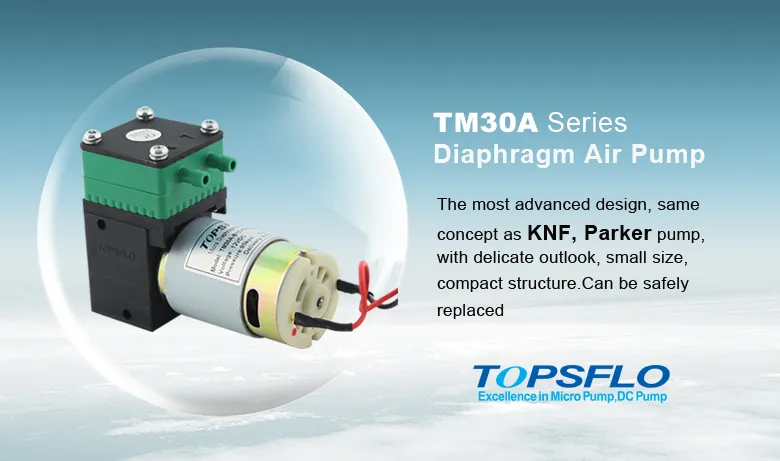

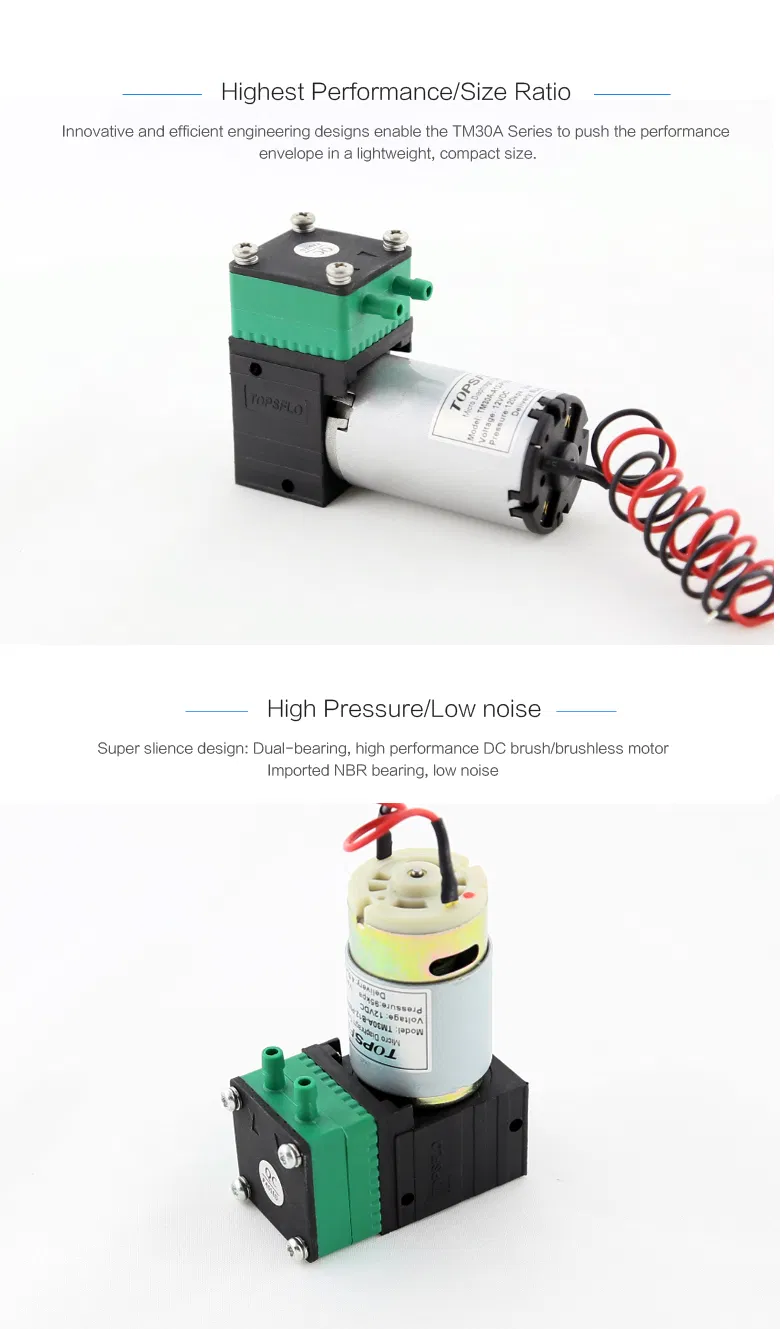

TOPSFLO Diaphragm series gas pumps are the perfect combination of form and function. The use of a special diaphragm allows the pump to transfer both air and liquid efficiently. The compact lightweight unit offers optimum sizing for analytical equipment.
ADVANTAGES
♦ High pneumatic performance
♦ Compact size/high power density
♦ Uncontaminated flow - no contamination of the media due to oil-free operation

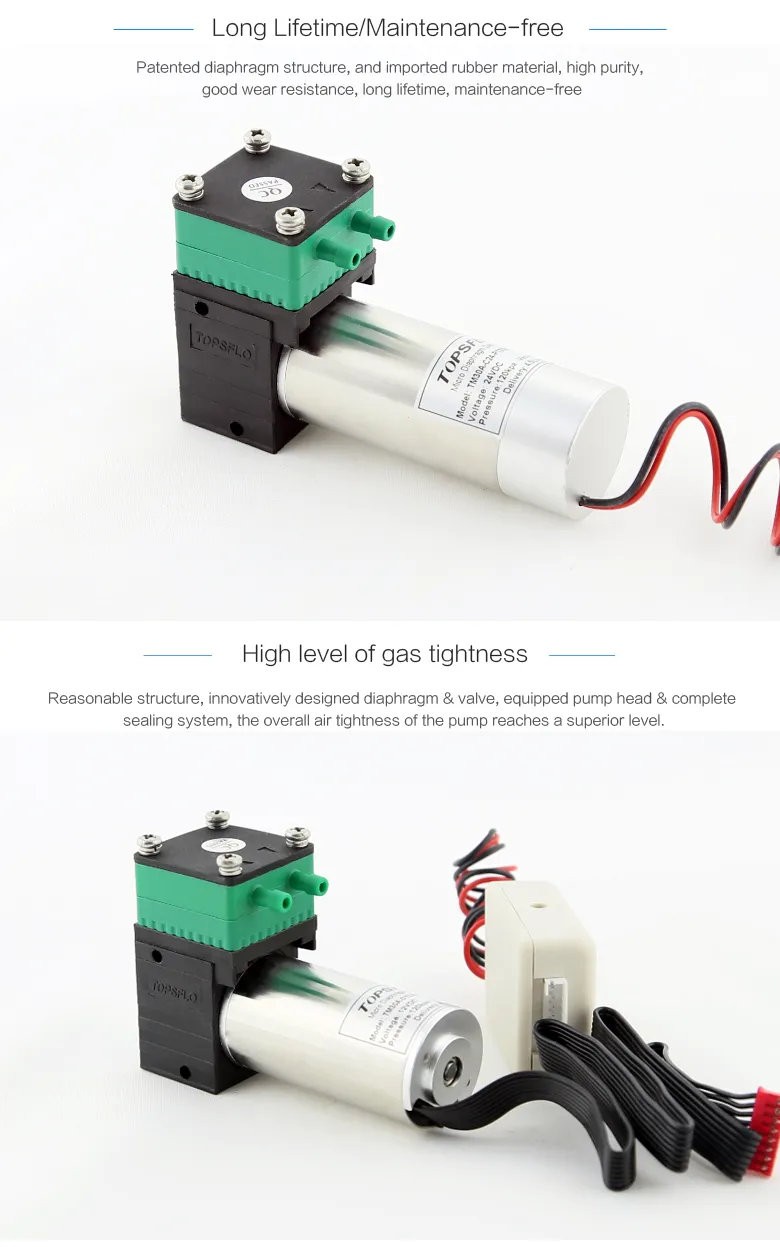

♦ Maintenance-free
♦ Long product life
♦ Low sound level
♦ Low power consumption
♦ Can operate in any orientation
♦ Suction
The versatility of TOPSFLO pumps allows a wide field of applications to be covered. Over many years our pumps have proved themselves in the following areas:
1.Industrial pressure and vacuum applications
2.Portable Analytical Instruments
3.Medical Equipment
4.Air Quality Sampling Monitors
5.Respiration Monitors
6.Gas or Odor Leak Detectors
Get more Technical data, Please Send message
