Product Description

sliding contacts for a crane with graphite products:
Carbon Graphite Sliding Contacts for a Crane with Graphite Products

What is it ?

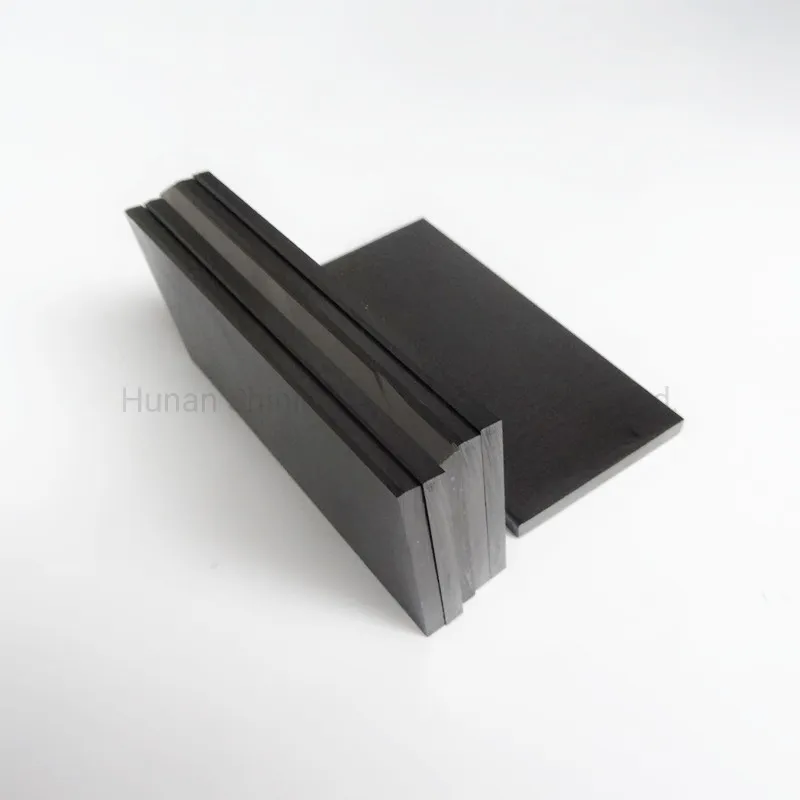

Vacuum pump carbon sheet is also known as vacuum pump carbon vanes, which is made of graphite carbon particles

Details :
1,The carbon sheet of vacuum pump is self-lubricating carbon sheet with strong wear resistance
2, The carbon sheet of the vacuum pump is high temperature resistant, and no vacuum pump oil and water are needed as the medium, which can save energy
3, The vacuum pump carbon sheet is more environmentally friendly and pollution-free, because there are light carbon particles in the self-lubricating carbon sheet that will be discharged from the exhaust port
4, High efficiency, more suitable for high speed vacuum pump

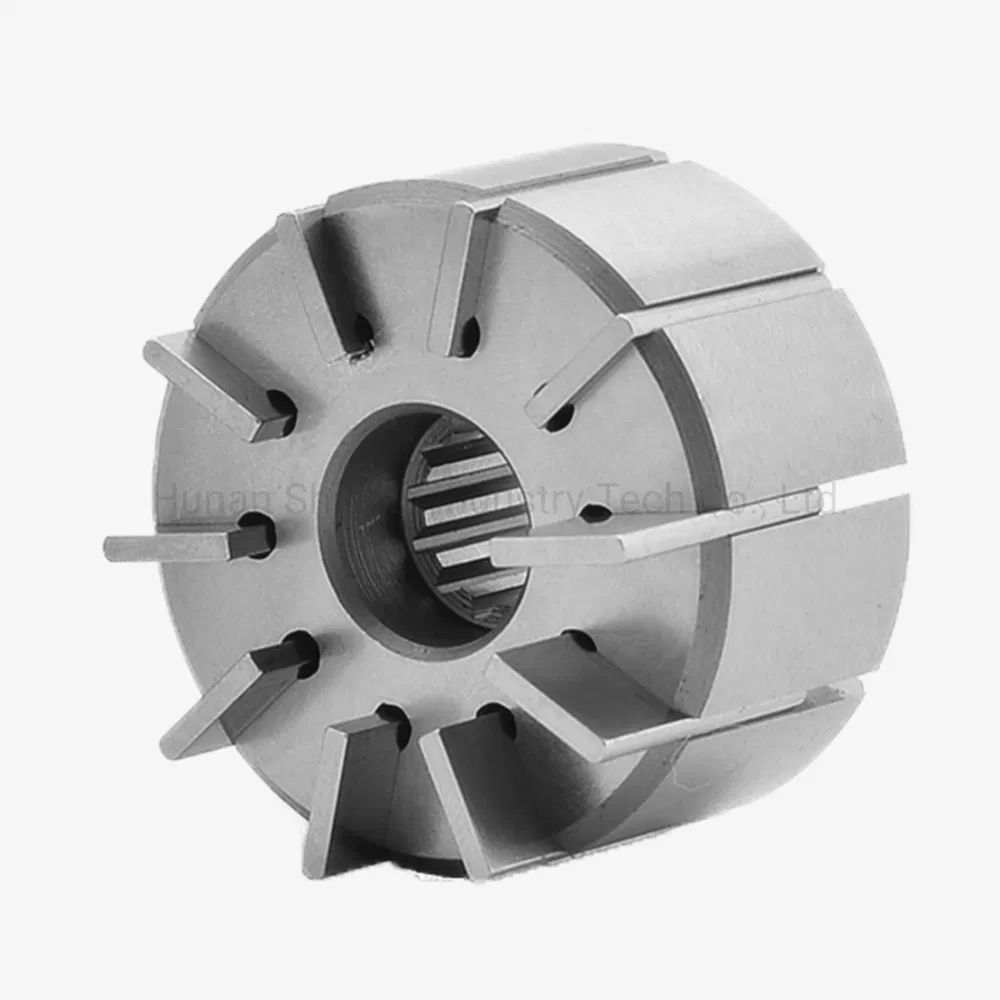

5, It is suitable for oil-free rotary vane vacuum pump, special vacuum pump carbon sheet and carbon sheet

We provide various types vanes, Part No have 90133000004,KDT/KVT 2.60 | 901329 00004,KRS6 PN 04041811011 ,KDT/KVT 2.80/3.60/3.80 | 901330 00004,TR60, TR60D/DE, TR60V, TR61V | PN 515642,TR 15DV | PN 513702,VFT 100, DFT 100 | PN 524002,DT 4.6; DT 4.8; VT 4.6; VT 4.8 | 901388 00005, Becker DT 3.60 | 901372 00007,DVT 140 | 901317 00008, DT/T/VT 3.16 / 4.16 | 901347 00007, Rietschle DLT25, KLT25, TL25, TLV25, VLT25, VTN25 | PN 513431,Becker DT 6, VT 6 | 901303 00008, Becker KDT / KVT 2.100 / 3.100 | 901333 00004, Becker DT 40, VT 40 | 901331 00007, Becker DVT 100 | 901316 00008

Item	Size (mm)	Qty(pcs)
XD-040	140304	3
XD-063	100404	3
XD-100	160404	3
XD-160,200	140526	3
XD-250,300	220526	3

Carbon Graphite Sliding Contacts for a Crane with Graphite Products

Our production process, from raw material preparation, configuration of powder composition ratio, mixing, pressing or chemical treatment, to the completion of mechanical processing products, has professional equipment and personnel to cooperate.
With more than 20 years of production experience, product stability can be guaranteed.

The equipment is available from cutting-grinding surface-grinding arc surface-chamfering-drilling-seed line-dispensing-terminal to improve efficiency and standardize production.

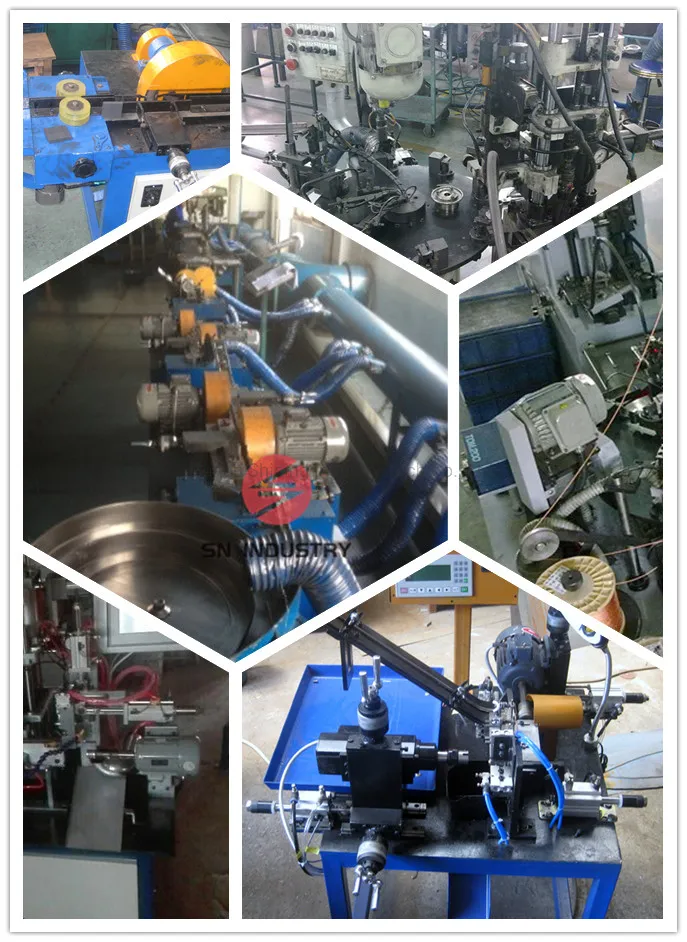

The equipment specifically includes:
Sawing machine
The carbon block is automatically punched,
Automatic four-side grinding and four-side chamfering
Automatic assembly machine
Arc grinding, bevel grinding, drilling and milling.

Testing Equipment:
Carbon brush tensile testing machine
Resistivity testing machine
Hardness testing machine.

Sample processing,Processing by drawing

The quantity ≤ 20 pcs------- it is packed in cartons and lined with anti-drop foam

The quantity ≥ 20pcs ------the carton packaging is lined with anti-drop foam, the outer packaging is packed in a hard corrugated carton

The quantity ≥ 500pcs -------the carton packaging is lined with anti-drop foam, and the outer packaging is composite board wooden box or plastic pallet
