Product Description

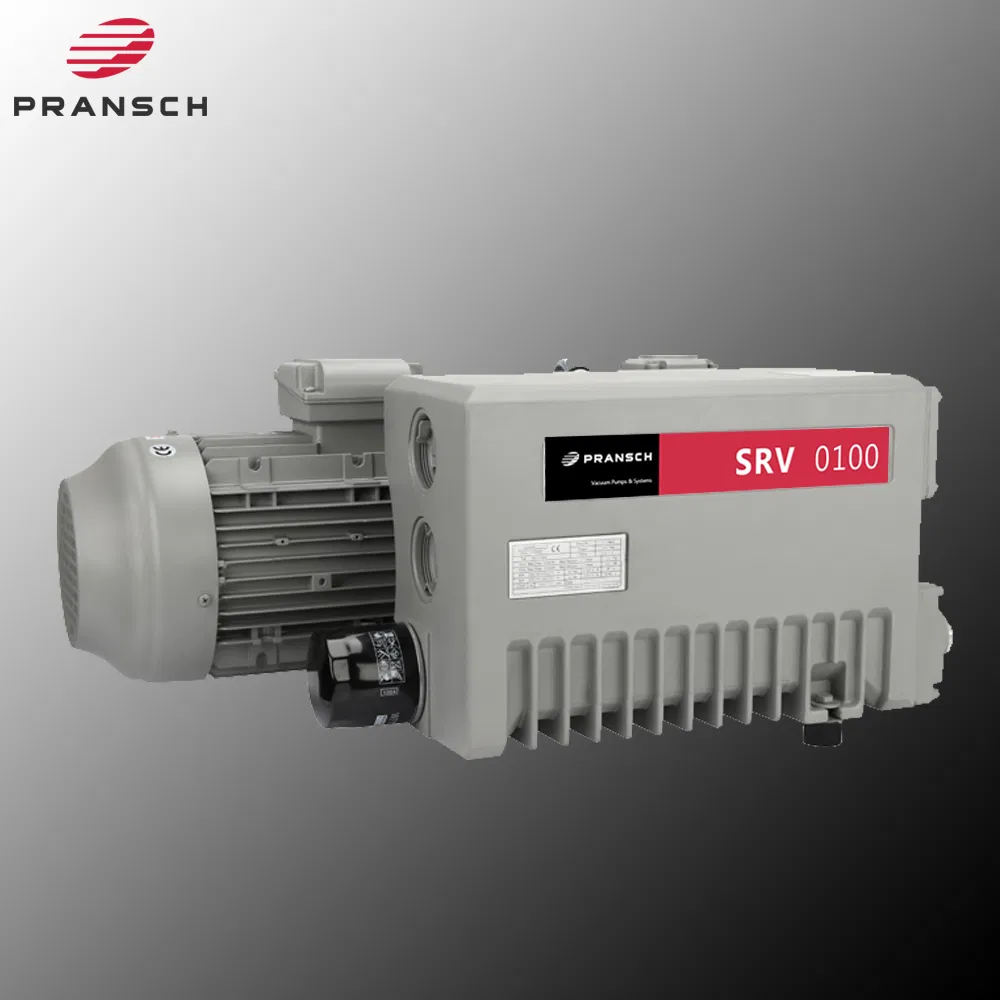

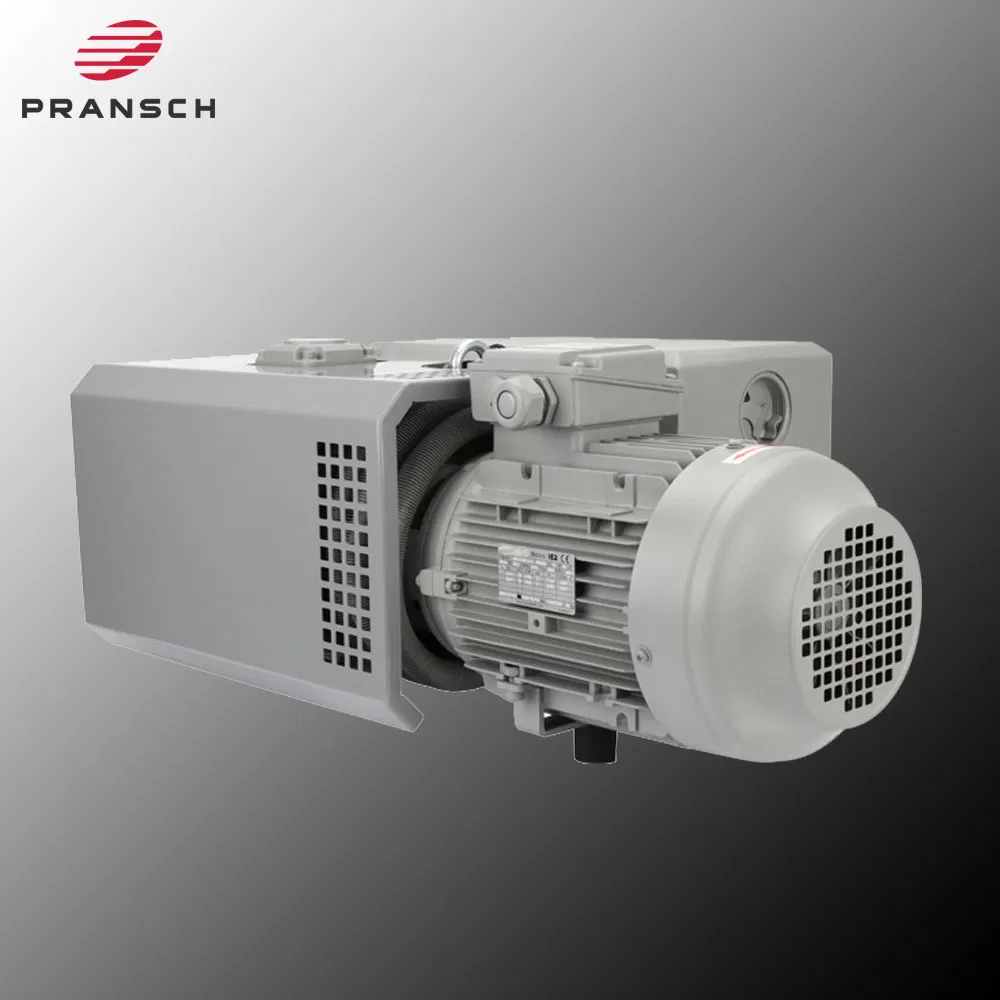

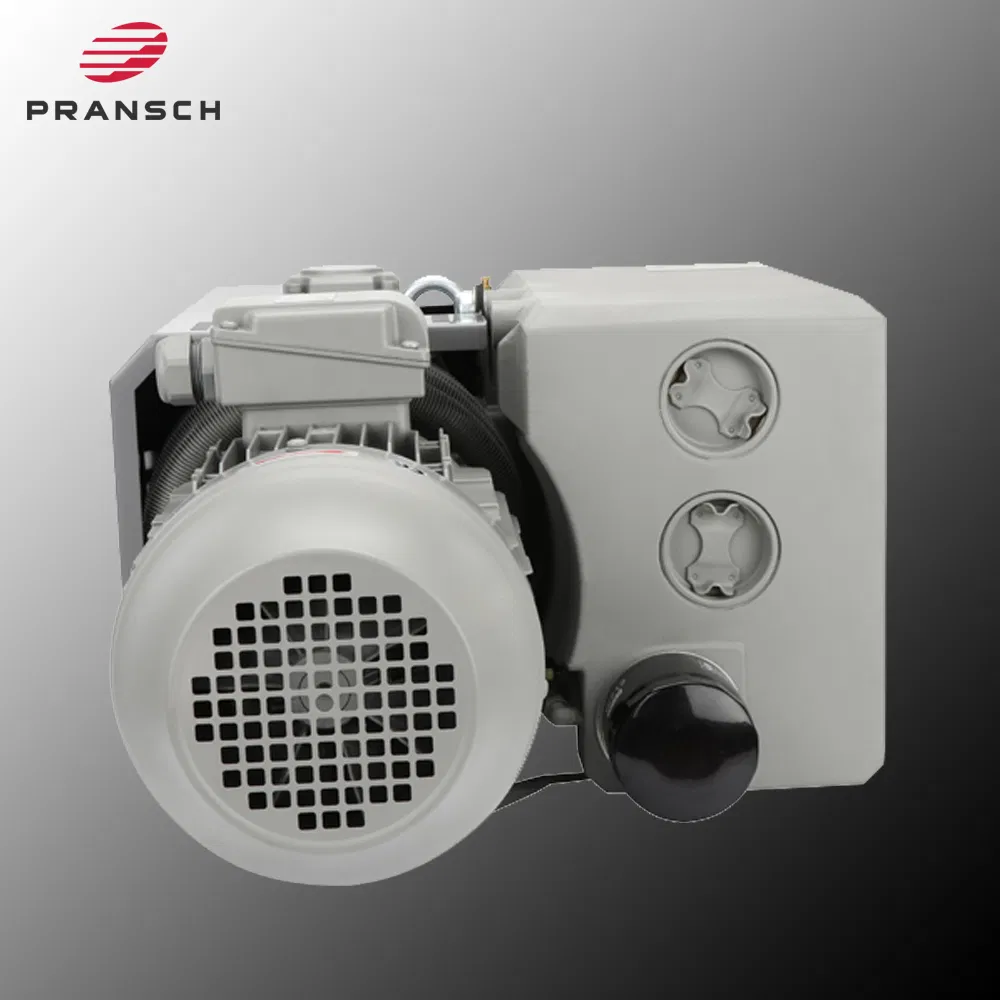

100m3/H Oil Sealed Single Stage Rotary Vane Vacuum Pump

SRV0100 Single-stage,Oil-lubricated rotary vane vacuum pump,rotary piston pump,rotary vane blower

Pransch air rotary vane pumps have been the most popular pumps for generating low and medium vacuum for many years now. They are sturdy and have a long life, whether they are used as backing pumps to generate the backing pressure called for by turbopumps, or as a single standalone pump. Rotary vane pumps belong to the family of displacement pumps and convey a virtually steady low-pulsation suction volume flow, irrespective of the type of gas used. They work on the principle of an eccentrically supported rotor revolving in a housing, and have two or more movable vanes. Every Pransch rotary vane vacuum pump is oil-lubricated. Special vacuum oils, also known as operating fluids, are responsible for insulating and lubricating components, resulting in very low final pressures. The oil lubrication also ensures an extremely long lifetime, even in continuous operation.

For industrial applications - very powerful
Three-phase universal motor available, allowing an almost worldwide network coverage
Integrated oil mist separator with highest degree of separation
Special vane material for a long service life

100m3/H Oil Sealed Single Stage Rotary Vane Vacuum Pump

Technical data	Frequency	SRV0100

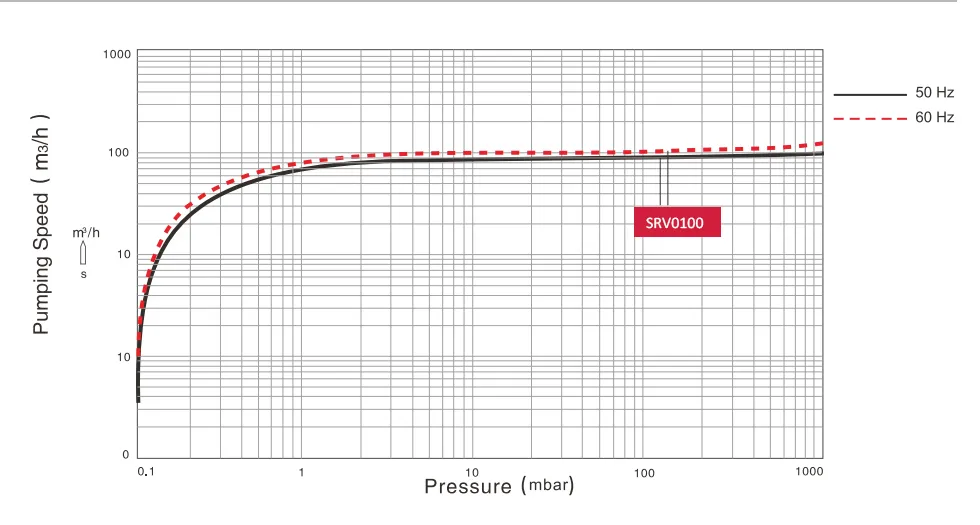

Pumping Speed	50Hz	100m³/h
Pumping Speed	60Hz	120m³/h
Ultimate pressure	mbar	0.1

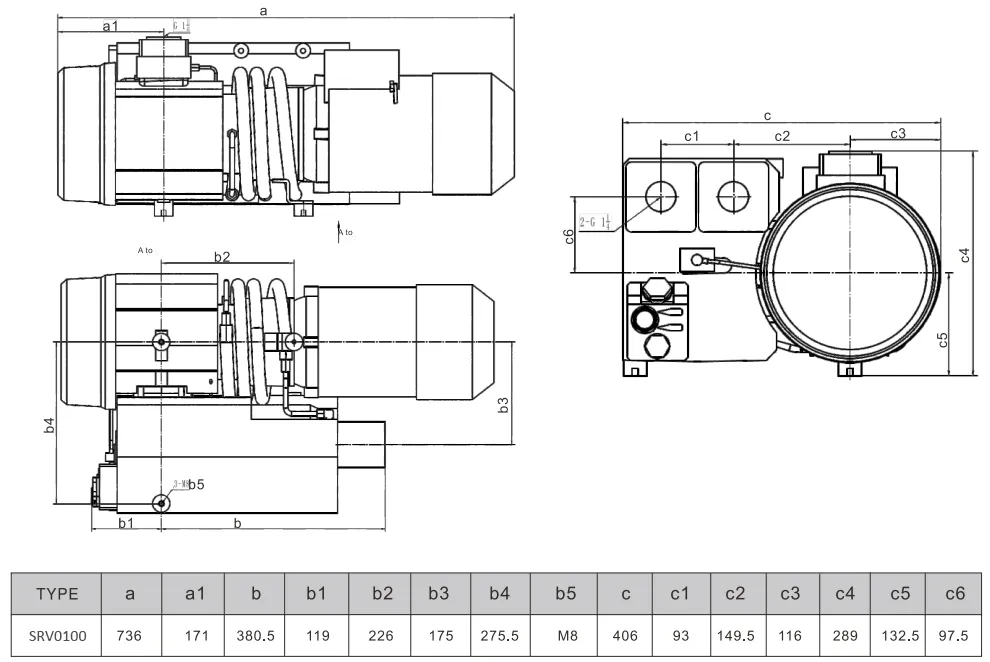

Diameter	"	G 1 ¼" / G 1 ¼"
Voltage	50Hz	220-240/345-415v
Voltage	60Hz	220-275/380-480v
Nominal motor rating	Kw	3
Current	50Hz	11.8/6.8A
Current	60Hz	13.0/7.5A
Nominal speed	rpm	1405/1720
Sound	dB(A)	65
Oil (max)	L	2
Weight(w/o oil)	Kg	75

100m3/H Oil Sealed Single Stage Rotary Vane Vacuum Pump

Single-stage rotary vane pumps from Pransch Air have long been some of the most widely used products for processes in the low and medium vacuum range. Their long life and pumping speed, irrespective of the gas used, are the outstanding properties of this pump.

Typical applications are found in widely ranging sectors:

Analytics (mass spectrometry, electron microscopy)
Coating technology (surface protection, decorative films, display units, monitor screens)
Vacuum metallurgy (vacuum soldering, vacuum sintering, vacuum alloys, furnace construction)
Leak detection technology (vacuum systems, automotive tanks, airbag cartridges, packaging)
Lighting industry (light bulb manufacture)
Drying industry (vacuum drying, transformer drying)
