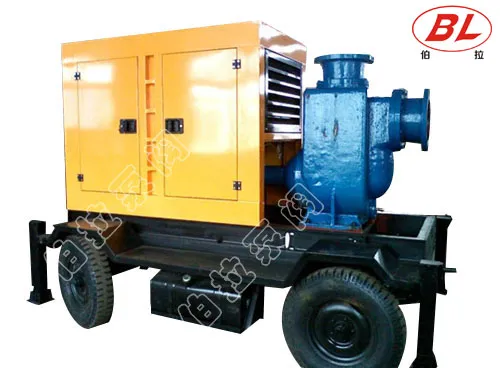

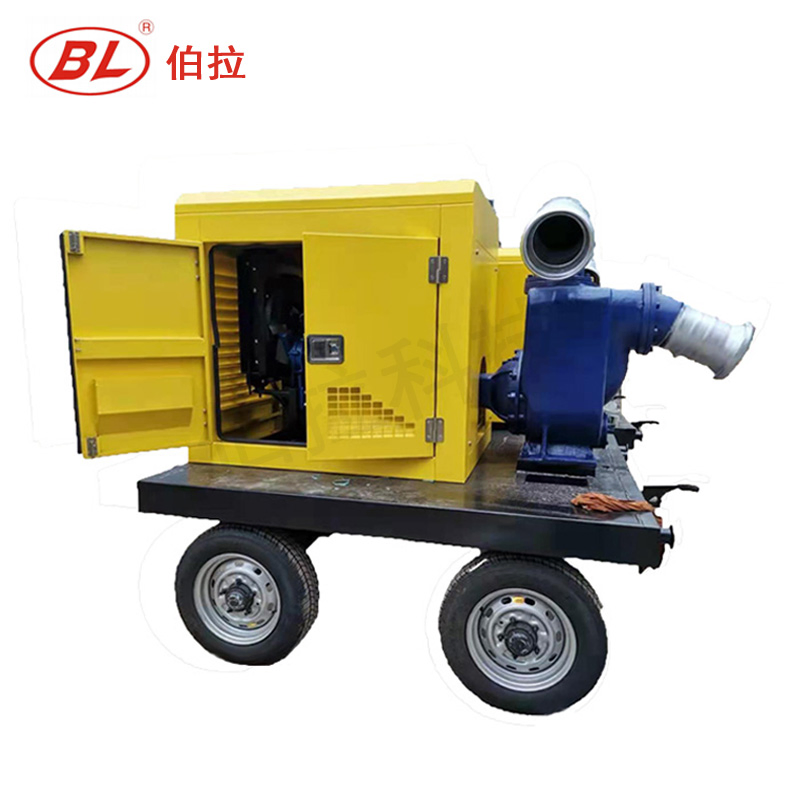

Silenced Diesel Trash Water Pump with Trailer
Silenced Diesel Trash Water Pump with TrailerMix Flow pumps are horizontal,single-stage,single-suction,volute mixed-flow pumps. The pumps are designed to handle clear water or any other kinds of liquids with similar physical and chemical properties to water, so they are widely used for flood, agricu......
Send Inquiry
Product Description
Silenced Diesel Trash Water Pump with Trailer
Mix Flow pumps are horizontal,single-stage,single-suction,volute mixed-flow pumps. The pumps are designed to handle clear water or any other kinds of liquids with similar physical and chemical properties to water, so they are widely used for flood, agriculture irrigation and drainage, industrial or municipal water supply, and drainage.
Feature :
1. Simple construction, reliable operation.
2. Easy maintenance and repair.
3. High efficiency, small space, and lightweight.
Pump Construction :
Casing/impeller:cast iron,stainless steel,copper,bronze,
Shaft: carbon steel 45#,stainless steel
Mechanical seal:graphite/silicon carbide/tungsten carbide
Application :
Characteristics:
1. 1m noise measured 65dB(A)-85dB(A);
2. Silenced diesel engine pump, has a compact structure, small;
3. The vibration absorbed, to reduce vibration and noise;
4. Noise absorbed material-made cover, to reduce noise;
5. Noise absorbed compound silencer reduces noise;
6. High-efficient noise-off inlet channel;
7. Big-capacity fuel tank;
8. Cap plate, easy to maintain.
Conditions:
1. Altitude:≤2500m
2. Ambient temperature:-25~55ºC
3. Relative humidity:9~95%
4. Earthquake: 7 degree
5. Flow range: 50-700(L/S)
6. Head range: 32-600m
7. Diesel engine power: 18-1100KW
8. Media part materials: cast iron, graphite cast iron, stainless steel, cast copper.
Silenced diesel engine pump:
1. automatic start: when receiving fire/piping network/power off/other start signals, in 5s, automatic start with a full load;
2. automatic charging: the storage can carry out automatic charging by industrial power supply or diesel charging motor;
3. automatic warning: automatic warning for diesel engine low oil pressure, high water temperature, ultra-speed;
4. automatic preheat: for emergency;
5. Direct coupling: under 360kw, diesel engine pump, innovative, flexible shaft couples, direct coupling.
Technical Parameter :
Borra Technology Co., Ltd.
Borra Technology co., Ltd., founded in 1995, owns a top-rank design, production, sales, and service team, and modern production lines, to manufacture various self-priming pumps, movable diesel pumps, diesel Self-Priming dirt drain pumps, diesel fire pumps units, diesel mini pumps
Certificate :
Services:
1. One year or 1000 working hours guarantee of the whole machine except for wear parts;
2. Technical support by email the whole day;
3. Calling service;
4. User's manual available;
5. Installation guide for clients from both China and abroad;
6. Maintenance and replacement service;
FAQ:
Q1: Are you a reliable company?
A1: Bora is located in Wenzu, a beautiful city in Zhejiang Province, China. we have many years of manufacturing experience,
we can supply all types of fire protection solutions, Drainage and sewage solution, and other pump products.
We have an independent factory and trade office.
Q2: how to deliver the portable diesel water pump
A2: We can offer our equipment by containers or bulk ship.
Q3: How to pay for the portable Diesel water pump?
A3: We can accept T/T, L/C and soon
Q4: why choose borra company?
A4: We have an independent factory and foreign trade office. so we can design high-quality portable generators
and water pumps according to clients requirements and our price is reasonable.
Contact Us
If you are interested in our products or have any questions about our products, we are very honored to serve you.
Mix Flow pumps are horizontal,single-stage,single-suction,volute mixed-flow pumps. The pumps are designed to handle clear water or any other kinds of liquids with similar physical and chemical properties to water, so they are widely used for flood, agriculture irrigation and drainage, industrial or municipal water supply, and drainage.
Feature :
1. Simple construction, reliable operation.
2. Easy maintenance and repair.
3. High efficiency, small space, and lightweight.
Pump Construction :
Casing/impeller:cast iron,stainless steel,copper,bronze,
Shaft: carbon steel 45#,stainless steel
Mechanical seal:graphite/silicon carbide/tungsten carbide
Application :
- Mixed flow diesel pump is suitable for mine.
- Suitable for transporting pure water or liquids with physical and chemical properties similar to water.
- Suitable for agricultural irrigation.
- Suitable for water supply and drainage in the factory.
- Suitable for the power station.
- Suitable for flood control
Characteristics:
1. 1m noise measured 65dB(A)-85dB(A);
2. Silenced diesel engine pump, has a compact structure, small;
3. The vibration absorbed, to reduce vibration and noise;
4. Noise absorbed material-made cover, to reduce noise;
5. Noise absorbed compound silencer reduces noise;
6. High-efficient noise-off inlet channel;
7. Big-capacity fuel tank;
8. Cap plate, easy to maintain.
Conditions:
1. Altitude:≤2500m
2. Ambient temperature:-25~55ºC
3. Relative humidity:9~95%
4. Earthquake: 7 degree
5. Flow range: 50-700(L/S)
6. Head range: 32-600m
7. Diesel engine power: 18-1100KW
8. Media part materials: cast iron, graphite cast iron, stainless steel, cast copper.
Silenced diesel engine pump:
1. automatic start: when receiving fire/piping network/power off/other start signals, in 5s, automatic start with a full load;
2. automatic charging: the storage can carry out automatic charging by industrial power supply or diesel charging motor;
3. automatic warning: automatic warning for diesel engine low oil pressure, high water temperature, ultra-speed;
4. automatic preheat: for emergency;
5. Direct coupling: under 360kw, diesel engine pump, innovative, flexible shaft couples, direct coupling.
Technical Parameter :
| Type | Speed (r/min) | Power (kw) | Flow (m3/h) | Head (m) | % |
| ZBCY25-8-15 | 2900 | 1.5 | 8 | 15 | 55 |
| ZBCY32-10-20 | 2900 | 2.2 | 10 | 20 | 55 |
| ZBCY40-15-30 | 2900 | 3 | 15 | 30 | 60 |
| ZBCY50-10-20 | 2900 | 2.2 | 10 | 20 | 58 |
| ZBCY50-15-30 | 2900 | 3 | 15 | 30 | 60 |
| ZBCY65-30-18 | 1450 | 4 | 30 | 18 | 60 |
| ZBCY65-20-30 | 2900 | 5.5 | 20 | 30 | 60 |
| ZBCY65-25-40 | 2900 | 7.5 | 25 | 40 | 55 |
| ZBCY80-40-16 | 1450 | 4 | 40 | 16 | 62 |
| ZBCY80-80-35 | 2900 | 15 | 80 | 35 | 62 |
| ZBCY80-50-60 | 2900 | 22 | 50 | 60 | 55 |
| ZBCY100-100-15 | 1450 | 7.5 | 100 | 15 | 65 |
| ZBCY100-80-20 | 1450 | 7.5 | 80 | 20 | 65 |
| ZBCY100-100-30 | 2900 | 22 | 100 | 30 | 60 |
| ZBCY100-80-60 | 2900 | 37 | 80 | 60 | 58 |
| ZBCY100-80-80 | 2900 | 45 | 80 | 60 | 55 |
| ZBCY125-180-14 | 1450 | 15 | 180 | 14 | 60 |
| ZBCY125-200-15 | 1450 | 15 | 200 | 15 | 63 |
| ZBCY150-400-20 | 2900 | 55 | 400 | 20 | 60 |
| ZBCY200-300-18 | 1450 | 37 | 300 | 18 | 65 |
| ZBCY250-400-22 | 1450 | 55 | 400 | 22 | 68 |
| ZBCY300-800-14 | 1450 | 55 | 800 | 14 | 61 |
Borra Technology Co., Ltd.
Borra Technology co., Ltd., founded in 1995, owns a top-rank design, production, sales, and service team, and modern production lines, to manufacture various self-priming pumps, movable diesel pumps, diesel Self-Priming dirt drain pumps, diesel fire pumps units, diesel mini pumps
Certificate :
Services:
1. One year or 1000 working hours guarantee of the whole machine except for wear parts;
2. Technical support by email the whole day;
3. Calling service;
4. User's manual available;
5. Installation guide for clients from both China and abroad;
6. Maintenance and replacement service;
FAQ:
Q1: Are you a reliable company?
A1: Bora is located in Wenzu, a beautiful city in Zhejiang Province, China. we have many years of manufacturing experience,
we can supply all types of fire protection solutions, Drainage and sewage solution, and other pump products.
We have an independent factory and trade office.
Q2: how to deliver the portable diesel water pump
A2: We can offer our equipment by containers or bulk ship.
Q3: How to pay for the portable Diesel water pump?
A3: We can accept T/T, L/C and soon
Q4: why choose borra company?
A4: We have an independent factory and foreign trade office. so we can design high-quality portable generators
and water pumps according to clients requirements and our price is reasonable.
Contact Us
If you are interested in our products or have any questions about our products, we are very honored to serve you.
