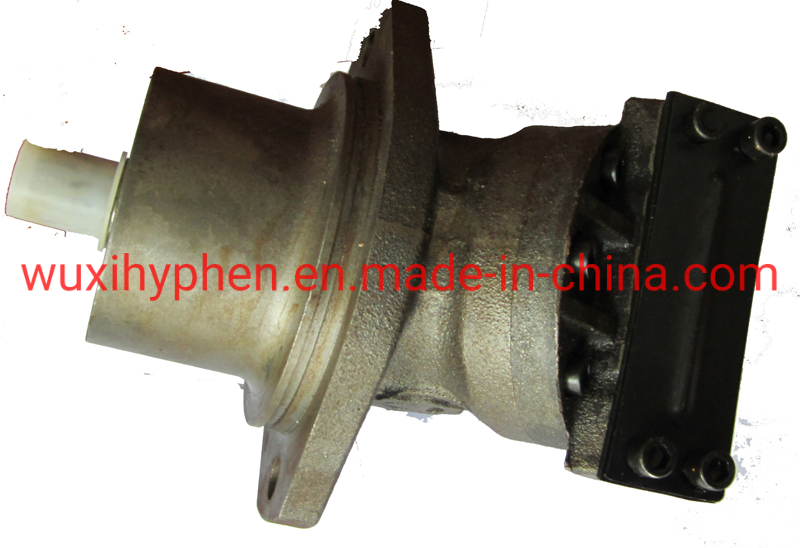

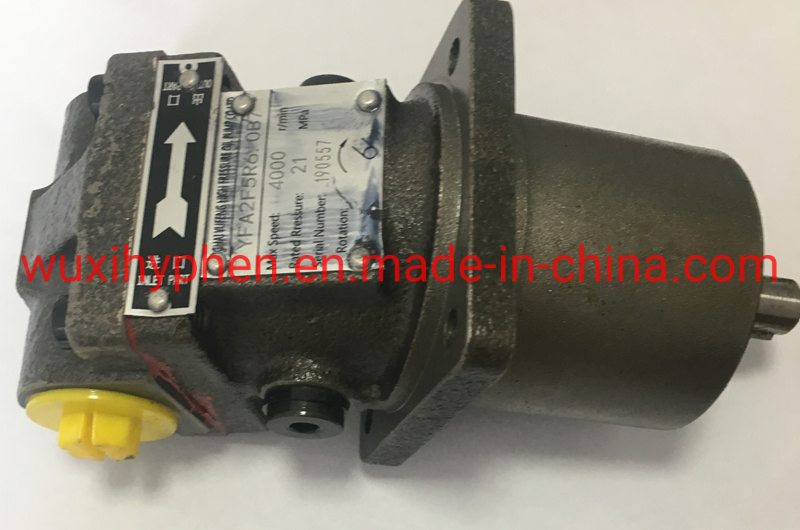

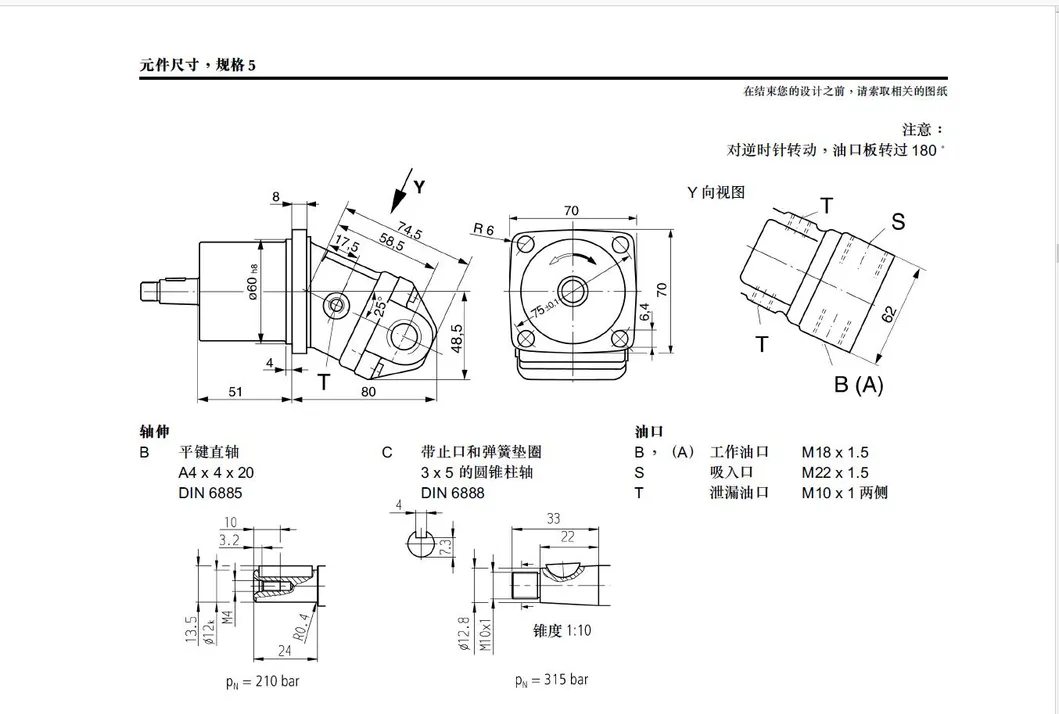

High Speed Piston Pump A2f5 Small Displacement 5CCA2f5/6.0rb7

Description:
Axial piston unit of bent axis design with fixed displacement for use as either pump or motor in hydrostatic drive,in open or closed circuit.
Operated as a pump,the flow is proportional to the drive speed and displacement.
Operated as a motor ,the output speed is proportional to the volume and inversely proportional to displacement.
The output torque increase with the pressure drop between the high and low pressure sides.
Light weight,long life time.
Easy mounting and small size.



Working pressure: 35MPA,
Rated displacement: 5ml/rev,
Rated speed: 1500 r/min,
Volumetric efficiency>=98%.
