How Does an Outdoor Permanent Magnet Circuit Breaker Improve Power System Reliability?

Outdoor power distribution networks demand extremely high reliability, fast fault isolation, and minimal maintenance. Among modern switching devices, the Outdoor Permanent Magnet Circuit Breaker has become a critical solution for utilities and industrial operators seeking enhanced stability and operational efficiency. This article explains its structure, working principle, advantages, and application scenarios while addressing common customer concerns in real-world deployments.

Abstract

The Outdoor Permanent Magnet Circuit Breaker is designed for medium-voltage outdoor distribution systems where reliability and rapid response are essential. Unlike traditional spring-operated mechanisms, it uses permanent magnet actuator technology to achieve faster switching, lower mechanical wear, and improved lifecycle performance. This article provides a comprehensive overview of its design, operational benefits, selection considerations, and maintenance strategies, helping users make informed engineering decisions.

Table of Contents

• 1. Overview of Outdoor Permanent Magnet Circuit Breaker
• 2. Working Principle and Structural Design
• 3. Key Advantages in Power Systems
• 4. Comparison with Traditional Circuit Breakers
• 5. Application Scenarios
• 6. Selection and Installation Considerations
• 7. Maintenance and Reliability Optimization
• 8. Frequently Asked Questions (FAQ)

1. Overview of Outdoor Permanent Magnet Circuit Breaker

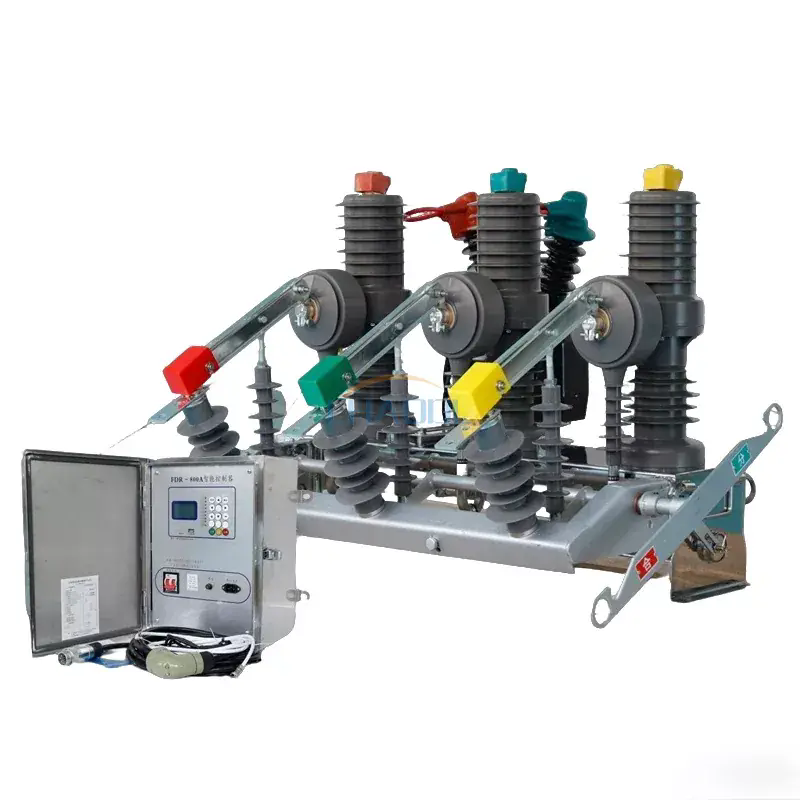

The Outdoor Permanent Magnet Circuit Breaker is a high-performance switching device designed for outdoor medium-voltage electrical networks. It integrates vacuum interruption technology with a permanent magnet actuator, replacing traditional mechanical spring systems. This design significantly reduces moving parts, improving durability and response speed in harsh environmental conditions such as humidity, dust, temperature fluctuations, and wind exposure.

It is widely used in distribution automation systems, substations, industrial grids, and renewable energy integration points where fault isolation speed and system stability are critical.

2. Working Principle and Structural Design

The core innovation of the Outdoor Permanent Magnet Circuit Breaker lies in its actuator system. Instead of storing energy in springs, it relies on electromagnetic force generated by a permanent magnet system to maintain contact position.

• Closing Operation: A control pulse activates the electromagnetic coil, overcoming magnetic holding force and driving contacts to close.
• Opening Operation: Reverse coil excitation neutralizes magnetic force, allowing stored magnetic energy dynamics to separate contacts rapidly.
• Holding State: No continuous power is required; magnetic force maintains stable contact position.

This structure reduces mechanical fatigue and ensures consistent operation over a long lifecycle, even under frequent switching conditions.

3. Key Advantages in Power Systems

Outdoor Permanent Magnet Circuit Breakers offer several engineering advantages that directly address operational pain points in power distribution networks.

• High-Speed Operation: Extremely fast tripping response improves fault isolation efficiency.
• Low Maintenance: Fewer mechanical components reduce wear and maintenance frequency.
• Energy Efficiency: No continuous coil energization is required for holding state.
• Long Service Life: Reduced mechanical stress extends operational lifespan.
• Environmental Adaptability: Performs reliably under extreme outdoor conditions.

These advantages make it particularly suitable for smart grid modernization projects.

4. Comparison with Traditional Circuit Breakers

5. Application Scenarios

The Outdoor Permanent Magnet Circuit Breaker is suitable for a wide range of applications where reliability and automation are critical:

• Urban and rural power distribution networks
• Smart grid automation systems
• Renewable energy integration (solar and wind farms)
• Industrial manufacturing power systems
• Railway and transportation electrification networks

Its adaptability makes it a preferred solution for both new infrastructure and retrofit projects.

6. Selection and Installation Considerations

Selecting the right Outdoor Permanent Magnet Circuit Breaker requires evaluation of multiple technical parameters:

• Rated voltage and current capacity
• Short-circuit breaking capability
• Environmental conditions (temperature, humidity, altitude)
• Control system compatibility
• Communication and automation integration requirements

Proper installation ensures optimal performance. Outdoor units should be installed with adequate protection against flooding, corrosion, and mechanical impact. Grounding systems must comply with electrical safety standards to ensure fault protection reliability.

7. Maintenance and Reliability Optimization

Although the system is designed for low maintenance, periodic inspection is still recommended to ensure long-term stability.

• Check insulation resistance regularly
• Inspect terminal connections for corrosion or loosening
• Verify control circuit functionality
• Perform mechanical operation tests under scheduled maintenance cycles

Preventive maintenance helps avoid unexpected downtime and ensures consistent grid reliability.

8. Frequently Asked Questions (FAQ)

Q1: What makes permanent magnet technology better than spring mechanisms?
A: It eliminates mechanical fatigue associated with springs, resulting in higher reliability and faster switching response.

Q2: Is the device suitable for extreme weather conditions?
A: Yes, it is designed specifically for outdoor environments including high humidity, dust, and temperature variations.

Q3: How long is the typical service life?
A: With proper maintenance, it can operate reliably for many years with minimal performance degradation.

Q4: Can it integrate with smart grid systems?
A: Yes, it supports automation and remote monitoring functions commonly used in modern smart grids.

Engineering and Manufacturing Expertise

The development and production of advanced switching equipment require deep engineering capability and strict quality control. Zhejiang Anqiang Power Technology Co., Ltd. specializes in designing and manufacturing high-performance power distribution solutions, including Outdoor Permanent Magnet Circuit Breakers tailored for global utility and industrial applications. The company focuses on reliability, innovation, and long-term operational safety.

Conclusion

The Outdoor Permanent Magnet Circuit Breaker represents a significant advancement in medium-voltage power distribution technology. By combining permanent magnet actuation with vacuum interruption, it delivers faster response, lower maintenance, and improved system reliability. These characteristics make it an essential component in modern smart grids and industrial power infrastructures.

For customized solutions, technical consultation, or product inquiries, Zhejiang Anqiang Power Technology Co., Ltd. is ready to support your project requirements.

Contact us today to discuss your application needs and explore tailored solutions for your power system infrastructure.
