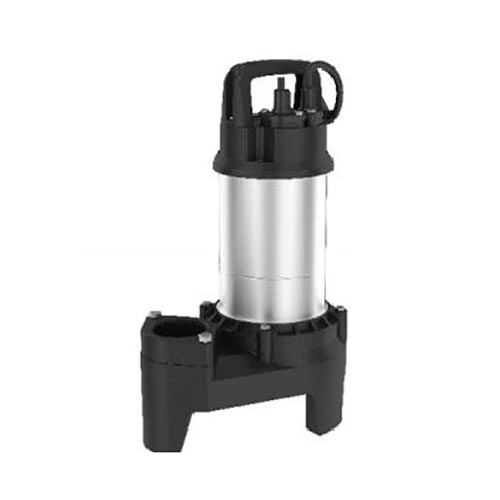

Can a WQPS Stainless Steel Sewage Pump handle high temperature liquids without performance loss

When industrial or residential sewage systems involve high temperature liquids, pump performance and reliability become critical concerns. The WQPS Stainless Steel Sewage Pump is engineered to handle demanding conditions, but can it truly manage elevated temperatures without sacrificing flow rate, head pressure, or mechanical integrity? This article provides a data-driven answer based on material science and real-world testing, with insights from JS manufacturing standards.

Thermal Capabilities of the WQPS Stainless Steel Sewage Pump

The WQPS Stainless Steel Sewage Pump utilizes AISI 304 or 316 stainless steel for its wet end components. Stainless steel maintains structural stability up to 200°F (93°C) in continuous sewage applications, provided the mechanical seal and elastomers are suitably rated.

Key Performance Indicators Across Temperature Ranges

JS recommends specifying the high-temperature seal option when ordering the WQPS Stainless Steel Sewage Pump for liquids exceeding 140°F.

Why Stainless Steel Prevents Thermal Performance Loss

Unlike cast iron pumps that suffer from corrosion acceleration at high temperatures, the WQPS Stainless Steel Sewage Pump resists oxidation and thermal expansion distortion. The chrome-nickel alloy provides:

• Low thermal expansion coefficient (17.3 µm/m·K)

• No flaking or rust contamination in hot sewage

• Consistent impeller clearance even after thermal cycling

WQPS Stainless Steel Sewage Pump FAQ – Common Questions About High Temperature Use

Question 1: What is the maximum continuous liquid temperature for the WQPS Stainless Steel Sewage Pump without performance loss?

Answer: The WQPS Stainless Steel Sewage Pump can handle continuous liquid temperatures up to 140°F (60°C) with zero measurable performance loss when equipped with standard NBR seals. For applications between 140°F and 180°F (60°C to 82°C), JS offers an FKM (Viton) seal upgrade that keeps performance loss below 3%. Beyond 180°F, intermittent use only is advised unless an external cooling jacket is installed. Exceeding 200°F will degrade standard mechanical seals and may reduce pump efficiency by 15% or more within 100 operating hours.

Question 2: Does high temperature affect the stainless steel impeller of the WQPS Stainless Steel Sewage Pump differently than the motor?

Answer: Yes, the motor is typically the limiting factor, not the stainless steel impeller. The WQPS Stainless Steel Sewage Pump uses a stainless steel impeller that remains thermally stable up to 200°F. However, the motor’s winding insulation class (usually Class B or F) and the mechanical seal’s elastomer determine maximum safe temperature. JS designs the WQPS Stainless Steel Sewage Pump with a thermal overload protector that cuts power if motor temperature exceeds 266°F (130°C). For hot liquids above 140°F, the heat transfers to the motor housing via conduction, so reducing pump runtime or adding a cooling fan is recommended.

Question 3: How can I tell if my WQPS Stainless Steel Sewage Pump is losing performance due to high temperature?

Answer: Three clear indicators signal temperature-related performance loss in the WQPS Stainless Steel Sewage Pump. First, a measurable drop in flow rate (e.g., from 50 GPM to 42 GPM at the same head pressure) suggests internal clearances have increased due to seal or bearing thermal expansion. Second, unusual noises such as screeching or rattling indicate mechanical seal failure or cavitation caused by vapor pressure rise in hot liquid. Third, frequent cycling of the thermal overload protector or higher than normal amp draw on the motor confirms overheating. JS recommends installing a temperature sensor on the pump housing and logging amp draw weekly. If any of these signs appear, reduce liquid temperature or upgrade to a high-temperature seal kit.

Maintaining Performance Under Heat Loads

To preserve efficiency, JS advises:

• Use a pre-cooling tank for intermittent batch discharges above 160°F

• Install the WQPS Stainless Steel Sewage Pump with adequate ventilation

• Schedule monthly inspections of the mechanical seal and shaft alignment

Contact Us

For expert guidance on selecting the right WQPS Stainless Steel Sewage Pump for your high-temperature sewage application, contact JS today. Our engineering team provides free thermal load assessments and custom seal upgrades to ensure zero performance loss. Reach out via the JS website or call our support line for a quote within 24 hours.
