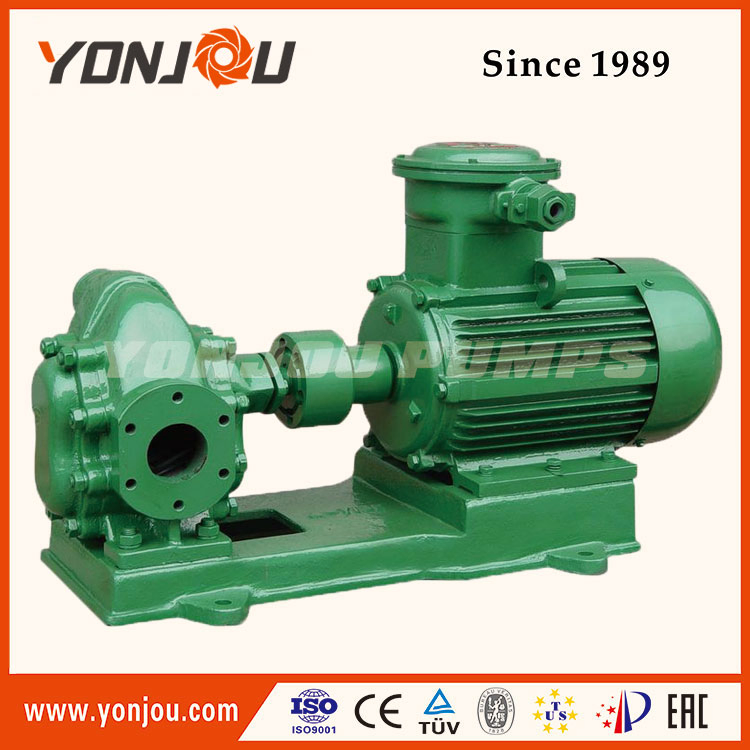

Yonjou Olive Oil Gear Pump
Summarize:1. KCB Electric Hydraulic Gear Oil Pump Transfer Waste Oil, Olive Oil, Crude Oil, Diesel Oil is designed for pumping light fuel oils such as diesel, kerosene, and biodiesel. It is also possible to pump vegetable oil, motor oil, and even glycerol.2. It is helical gear pump, and built-in by......
Send Inquiry
Product Description
Summarize:

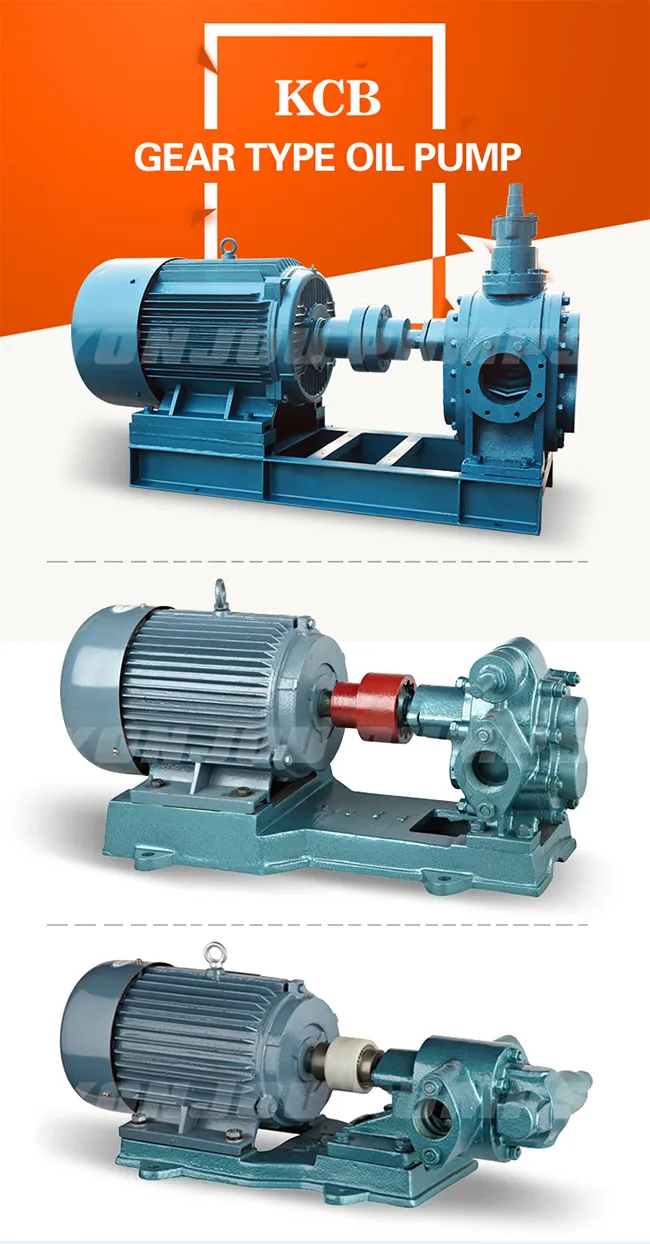

1. KCB Electric Hydraulic Gear Oil Pump Transfer Waste Oil, Olive Oil, Crude Oil, Diesel Oil is designed for pumping light fuel oils such as diesel, kerosene, and biodiesel. It is also possible to pump vegetable oil, motor oil, and even glycerol.

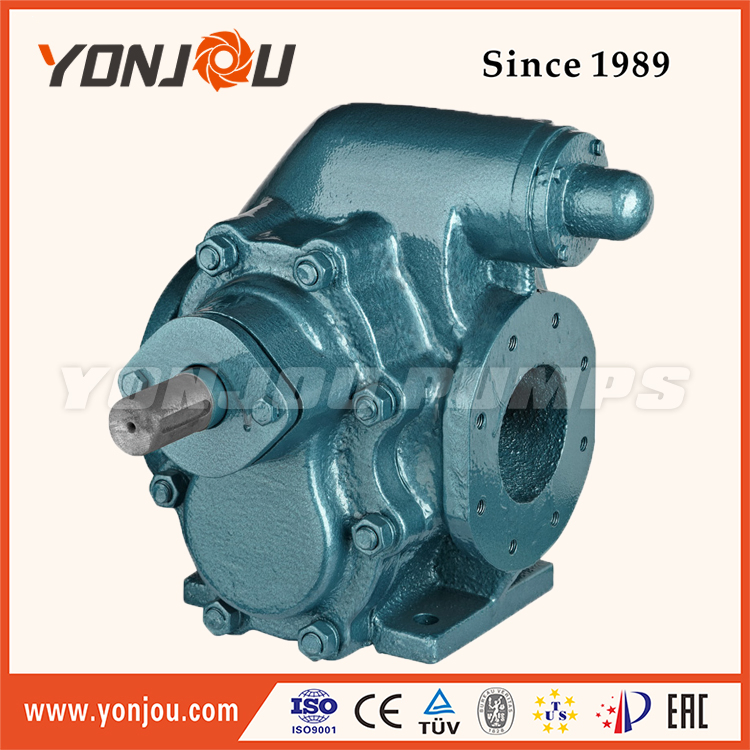

2. It is helical gear pump, and built-in by-pass valve. For pumping clean viscous liquids, not containing abrasive or solid particles.
3. They can run dry for only intermediate amounts of time, allowing for the use of a suction hose for collecting fluids from a tank. They should not be run dry for an extended period of time as oil is required to lubricate the pump head.
Generally used in:
- Petrochemicals: Pure or filled bitumen, pitch, diesel oil, crude oil, lube oil etc.
- Chemicals: Sodium silicate, acids, plastics, mixed chemicals, isocyanates etc.
- Paint and ink.
- Resins and adhesives.
- Pulp and paper: acid, soap, lye, black liquor, kaolin, lime, latex, sludge etc.
- Food: Chocolate, cacao butter, fillers, sugar, vegetable fats and oils, molasses, animal food etc.
Product details:
| Working Principle: | Double Gears |

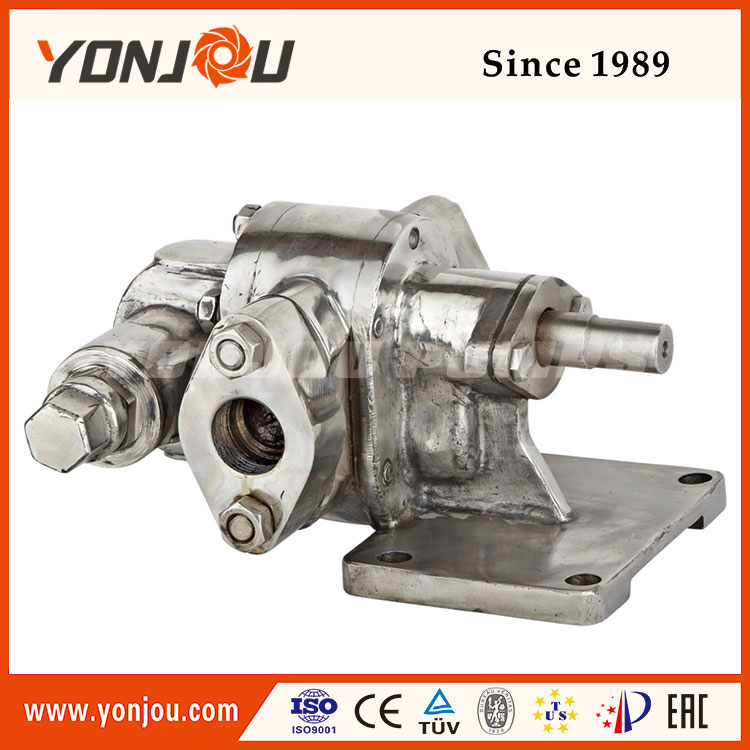

| Pump body material: | Cast Iron, SS304, SS316 |
| Gear material: | #45 Steel, Copper, SS304, SS316 |
| Temperature range: | Normal ≤ 70 C, Special ≤ 300 C |
| Driver: | Motor engine, diesel engine |
| Power specs: | 220V, 240V, 380V, 400V, 415V, 440V, 460V, 50hz/60hz |
| Max flow rate: | 9600 L/min |
| Max discharge pressure: | 1.45MPa |
| Type of connection: | Quick couple, Thread, Flange |
| Shaft seal type: | Oil seal, Mechanical seal, Graphite seal |
| Sliding bearing: | Good aseismic performance |
| Helical Gear: | Good meshing performance, steady transmisson of gear reduce noise. |
Performance Data:
| Model | Flow rate | Max Pressure | Max Power | Inlet&Outlet |
| (L/m) | (Mpa) | (kW) | (mm) | |
| KCB18.3 | 18.3 | 1.45 | 1.5 | 20 |
| KCB33.3 | 33.3 | 1.45 | 2.2 | 20 |
| KCB55 | 55 | 1 | 3 | 25 |
| KCB83.3 | 83.3 | 1 | 4 | 40 |
| KCB133 | 133 | 1 | 5.5 | 50 |
| KCB200 | 200 | 1 | 7.5 | 50 |
| KCB300 | 300 | 1 | 11 | 80 |
| KCB483.3 | 483.3 | 1 | 11 | 80 |
| KCB633 | 633 | 0.8 | 22 | 100 |
| KCB960 | 960 | 0.6 | 30 | 100 |
| KCB1200 | 1200 | 0.6 | 37 | 150 |
Company information:
Zhejiang Yonjou Technology Co., Ltd is one of the leading manufacturers and exporters in the field of industry pumps with manufacturing facilities in mainland China. We are specialized in oil pump, diaphragm pump, diesel engine pump, centrifugal pump, screw pump, chemical pump etc.
