Yonjou Belt Driven Water Pump
Summarize:1. Belt Driven Gear Pump is a kind of high effecient and energy-saving products. It is drvien by belt pulley. 2. The installation and usage is much more convenient, can widely use in outdoor and compound with other machine.3. By adopting belt pulley drive, the speed of pump is adjustable......
Send Inquiry
Product Description
Summarize:

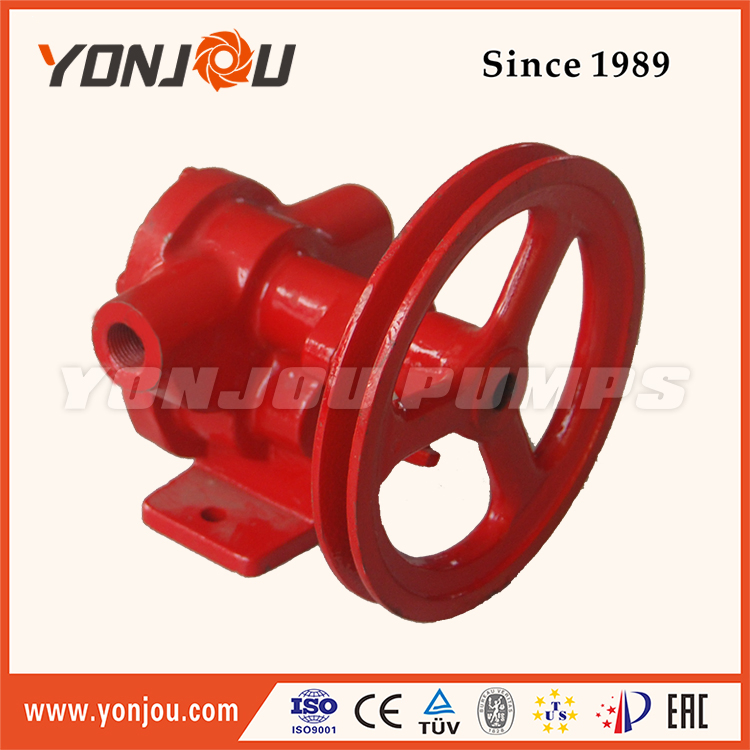

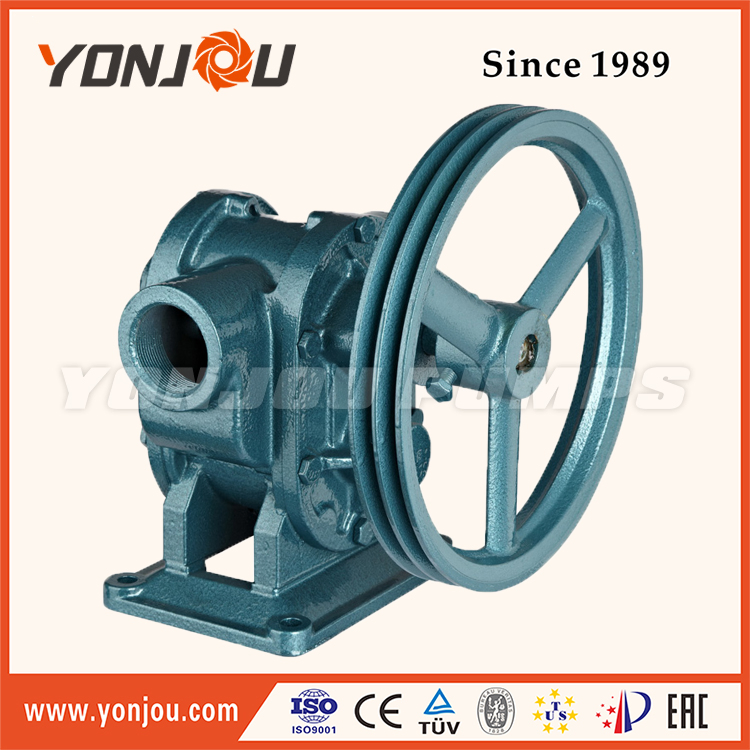

1. Belt Driven Gear Pump is a kind of high effecient and energy-saving products. It is drvien by belt pulley.
2. The installation and usage is much more convenient, can widely use in outdoor and compound with other machine.
3. By adopting belt pulley drive, the speed of pump is adjustable. It could be used for high viscosity medium.
4. The stainless steel pump also could transfer chemical liquid, and the one with bronze gear is designed for low flash point oil, such as gasoline Specifications.
5. To the differect clients' demand, we design it into two material: C type and B type.
C type is made of cast iron, using to transit water, kerosene, white oil, heacy oil and machine oil etc.
B type is adopt barss gear, using to pump sea water, brine, weak acid and other chemistry liquid
Product details:
| Working Principle: | Double Gears |
| Main applications: | Oil (Forbidden Gasoline), Lubricating fluid |
| Driver: | Electric motor |
| Power Specs: | 220V/380V/415V 3phase; 110V/220/240 1phase; 50hz/60hz,etc |
| Max. permissible fluid temperature: | 70°C |
| Type of connection: | Thread |
| Installation position: | Horizontal |
| Casing parts material: | Cast iron, stainless Steel |
| Gear mateiral: | Cast iron, stainless steel, bronze |
| Shaft seal type: | Oil seal |
| Maximum viscosity: | 1.5X103C.S.T |
| Maximum drive rating: | 5.5kW (7.5HP) |
| Maximum caliber: | 80mm (3inch) |
| Maximum discharge-side pressure: | 0.3MPa (3bar) |
| Maximum suction | 3m (9.8ft) |
| Flow rate range: | 16-320L/min (4.2-84.5US.GPM) |
Performance Data:
| Model | Capacity (L/min) | Pressure (MPa) | Speed (r/min) | Shaft Power (kW) | Match Set Powwer (kW) |
| BP-1/2-C(B) | 16 | 0.2-0.4 | 500 | 0.22 | 0.37 |
| BP-3/4-C(B) | 39 | 0.2-0.4 | 500 | 0.37 | 0.55 |
| BP-1-C(B) | 56 | 0.2-0.4 | 500 | 0.75 | 1.1 |
| BP-11/4-C(B) | 66 | 0.2-0.4 | 500 | 0.9 | 1.5 |
| BP-11/2-C(B) | 100 | 0.2-0.4 | 450 | 1.7 | 2.2 |
| BP-2-C(B) | 160 | 0.2-0.4 | 450 | 2.6 | 3 |
| BP-3-C(B) | 320 | 0.2-0.4 | 450 | 3.7 | 4 |
