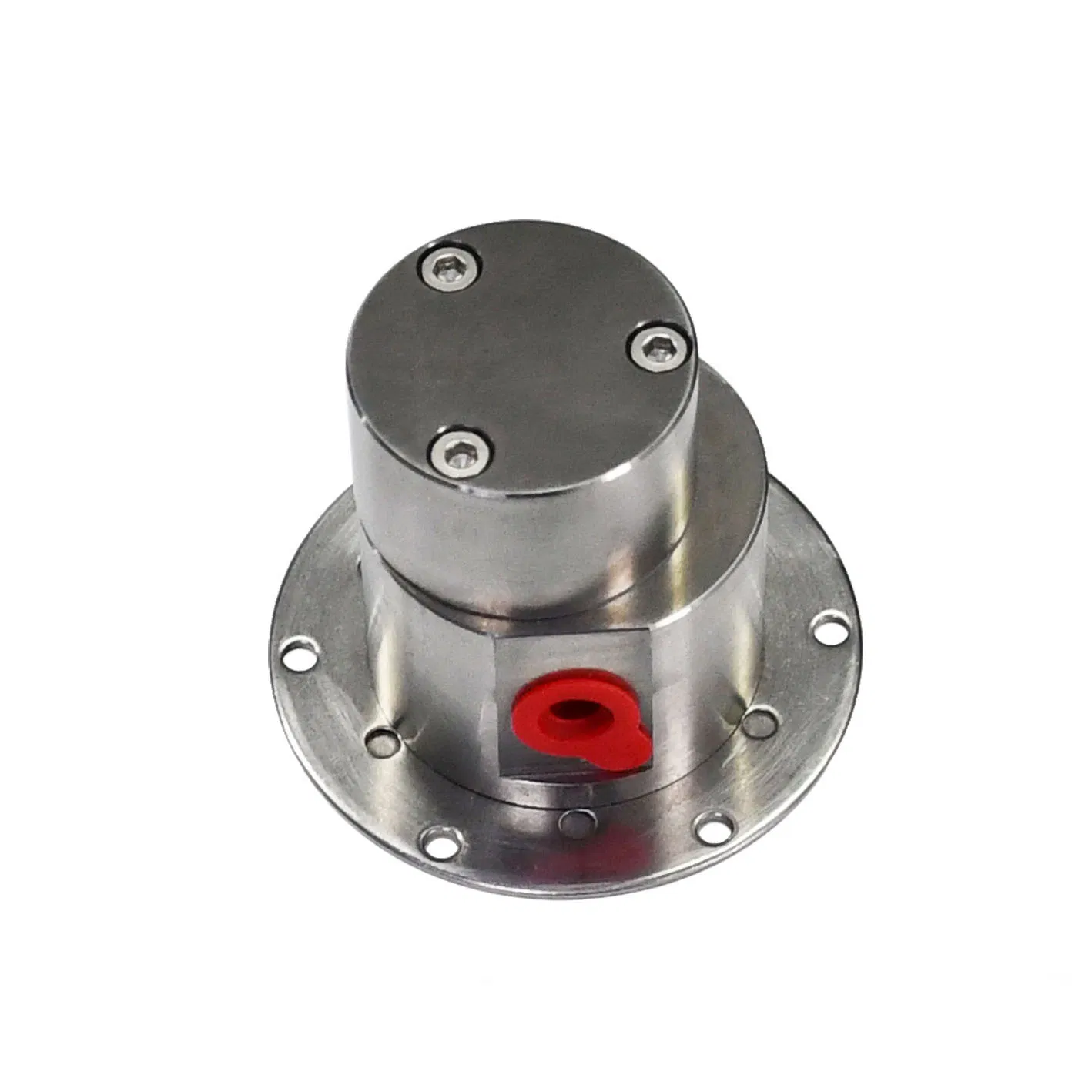

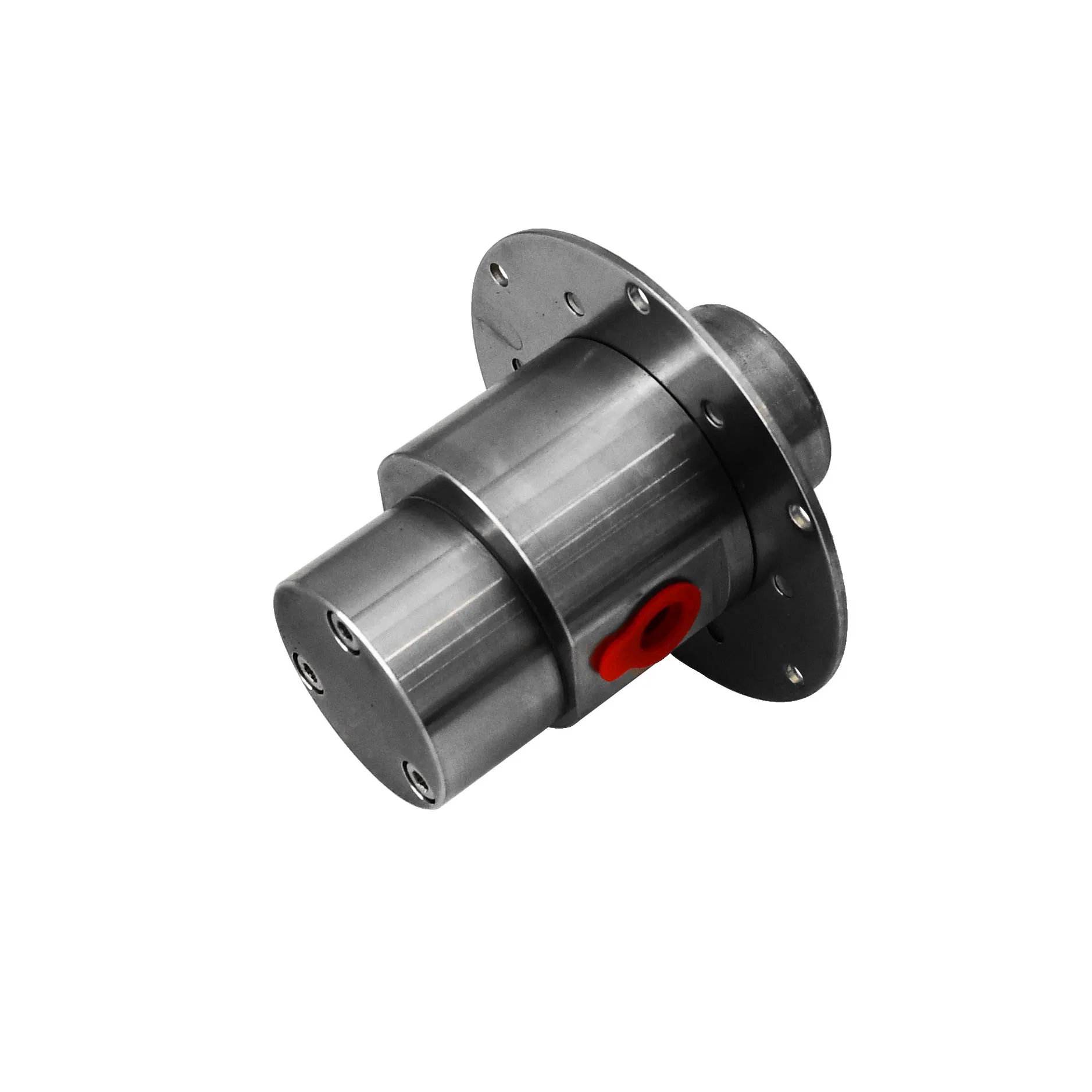

Hastelloy Corrosion Resistance Miniature Magnetic Gear Pump Head M0.07h57
Product Model DescriptionProduct Instruction the pump body materials is Hastelloy, the gear and shaft sleeve is PEEK, the seal materials is PTFE, the rest of the pump flow material is Hastelloy Attentions: 1.400 Mesh filter shall be installed at the inlet of gear pump. 2.Before using, squeeze in a......
Send Inquiry
Product Description
Product Instruction
the pump body materials is Hastelloy, the gear and shaft sleeve is PEEK, the seal materials is PTFE, the rest of the pump flow material is Hastelloy
Attentions:
1.400 Mesh filter shall be installed at the inlet of gear pump.
2.Before using, squeeze in a small amount of medium to lubricate the gear from the gear pump inlet.

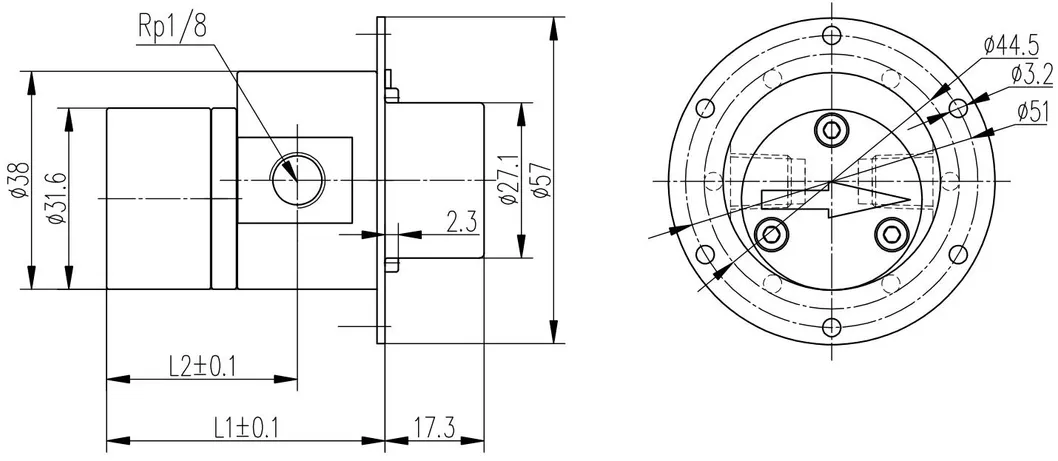

Product Diagram:
Product Diagram:

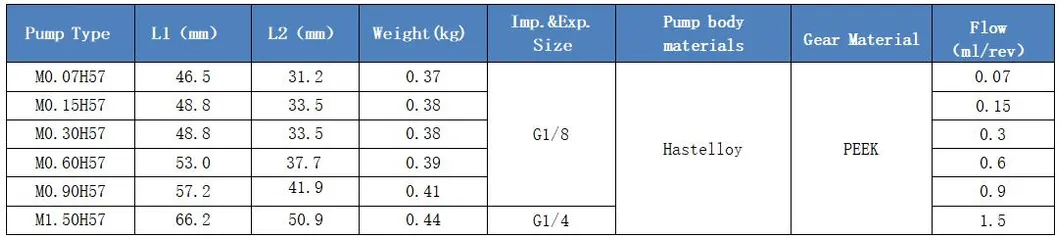

The values in this table are for reference only.

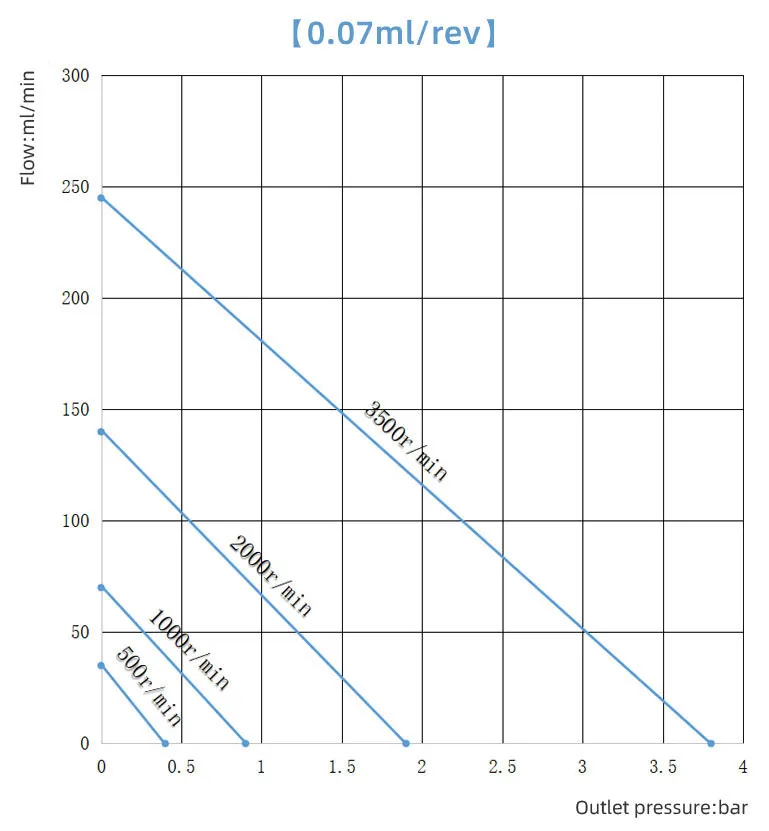

Product Characteristics:
Test MediumWater
Product Characteristics:
1.Smooth transmission, no pulse, accurate measurement;
2.Use magnetic drive structure, static seal, truly achieve zero leakage;
3.Diversified drive, wide application in the industry, complete models;
4.High efficiency and energy saving, easy maintenance, low installation cost and long service life.
Attentions:
It cannot be used to transport fluids with hard particles;
Filter to be installed at inlet.
Remarks:
OEM service are avaiable according to your request.
The specifications are only for reference, for details checking, please feel free to contact us.
Applications:
| Industrial machinery and equipment | Water treatment | Food and cosmetics |
| Inkjet printing/painting | Mask making | Food and Beverage filling |
| Oil transportation | Booster pressure | Filling of perfume cosmetics |
| Sand mill/Grinding | Circulating cooling | Quantitative Transport |
