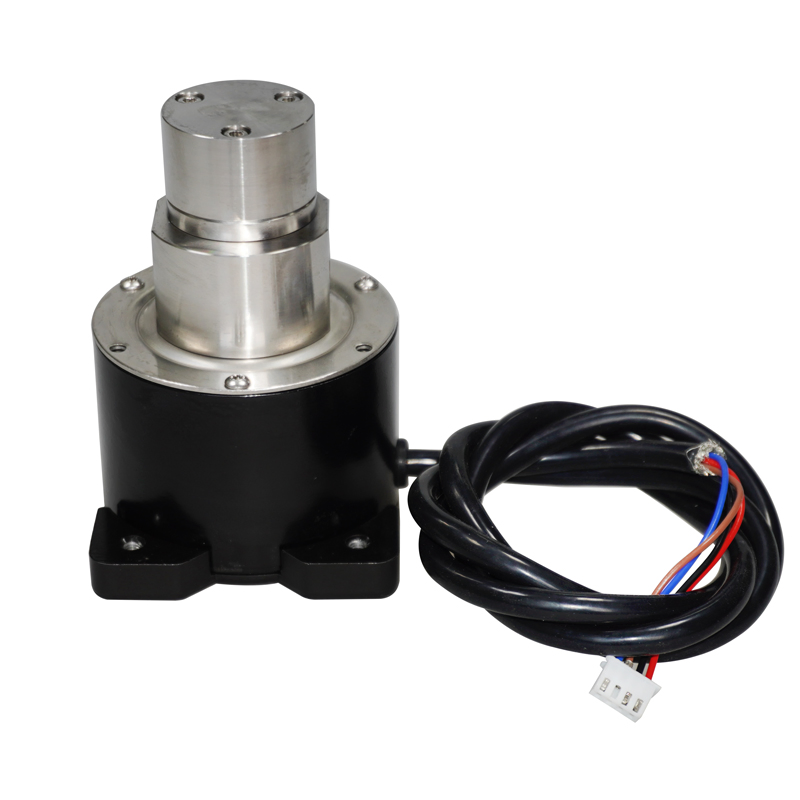

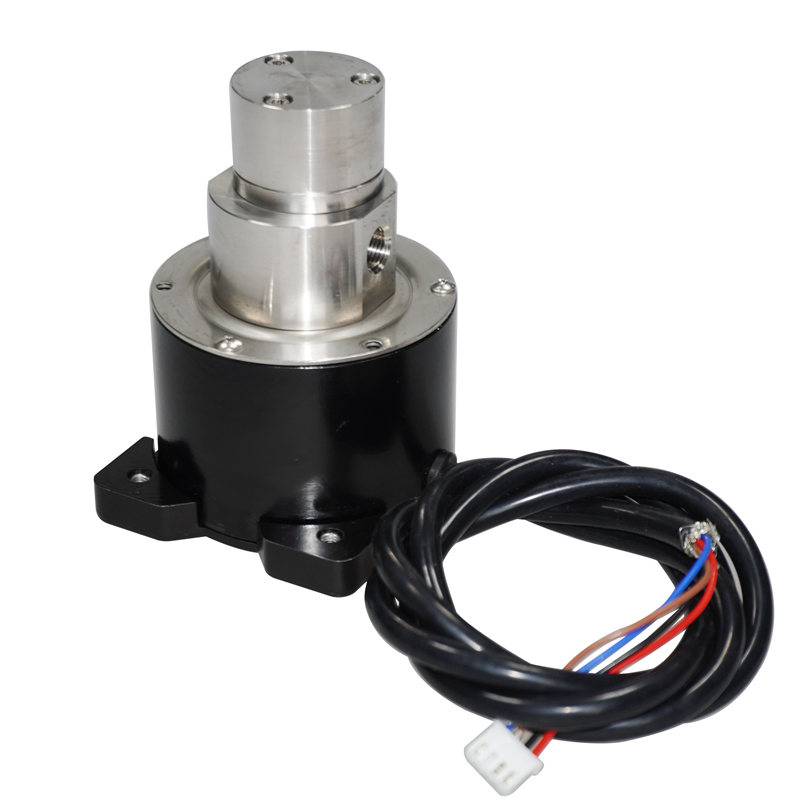

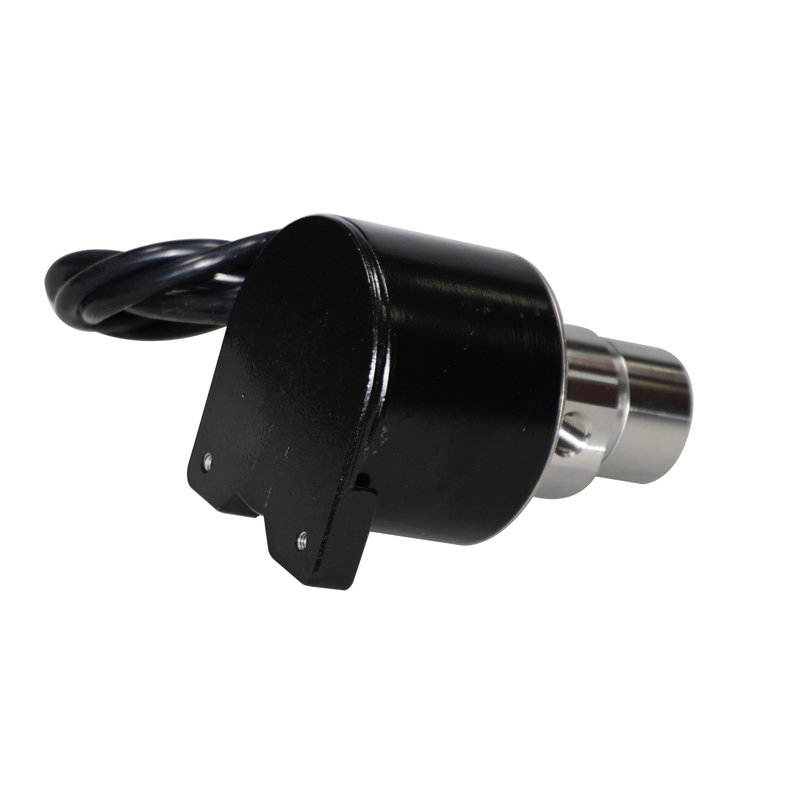

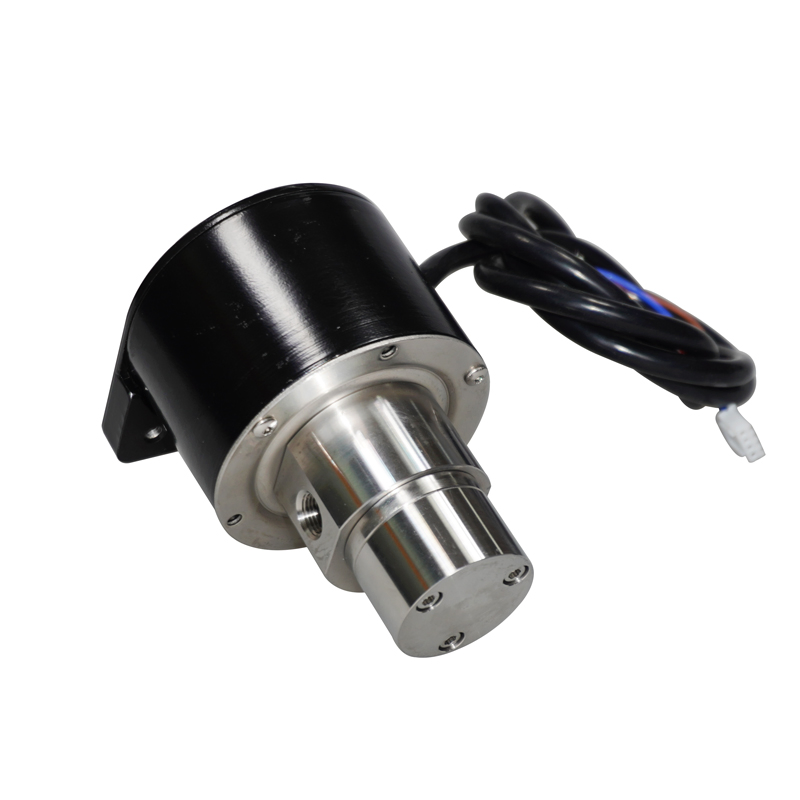

0.3ml/ Rev stainless Steel DC Micro Gear Pump Inkjet Printer Pump Water Pump Hydraulic Pump
Summarize:The micro magnetic drive stainless steel gear pump is a fluid delivery unit composed of a micro pump head, a permanent magnet drive and a micro motor. It is especially suitable for various liquid media (like acid and alkali, corrosive, toxic , flammable,explosive, hydraulic oil) transporta......
Send Inquiry
Product Description
Summarize:
The micro magnetic drive stainless steel gear pump is a fluid delivery unit composed of a micro pump head, a permanent magnet drive and a micro motor. It is especially suitable for various liquid media (like acid and alkali, corrosive, toxic , flammable,explosive, hydraulic oil) transportation, dripping, sampling, circulation, diversion, spraying, flushing, perfusion, cooling and lubrication.
Features:
1. compact structure, pump head and motor are integrated, and the brushless driver is integrated in the motor tail.
2. 316 stainless steel pump body, PEEK gear, self-lubricating, organic solvent resistance, corrosion resistance, high temperature resistance, high friction resistance.
3. PTFE static sealing, no leakage.
4. The flow can be adjusted as needed.
5. DC brushless motor with build-in driver, one
6. Smooth operation and low noise down to 45db.
7. Wide applicable media.
Application:
medical osmotic analysis equipment food processing equipment
experimental instruments water purification inkjet printing
Datasheet:
HC S GE 0.3 DCB66-24-40W
HC---Brand
S---Stainless Steel 316L T--- Stainless Steel 316L with Titanium nitride coated gear coating
GE---Magnetic drive
0.3---output volume 0.3 ml/rev
DCB66-24-40W --- DCB-Brushless motor, 66-diameter, 24-DC24V, 40w- Power consumption
*The parameters are obtained from laboratory. The media is pure water @ 25ºC. specific performance will vary with actual applications.

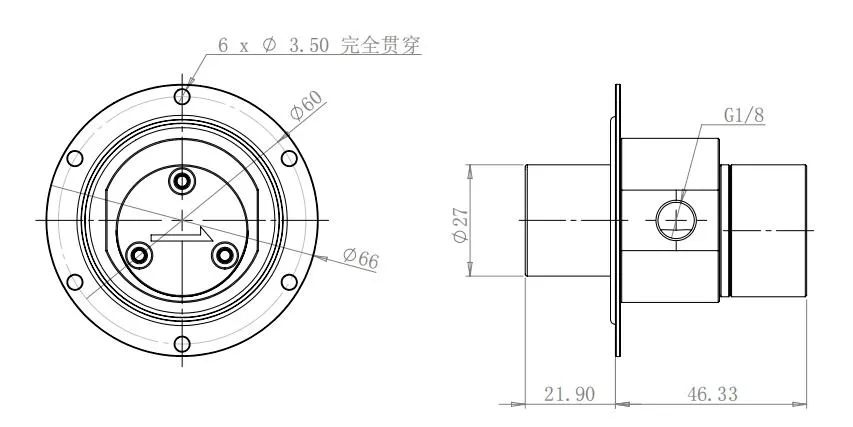

Dimension:
More pumps with different specification:

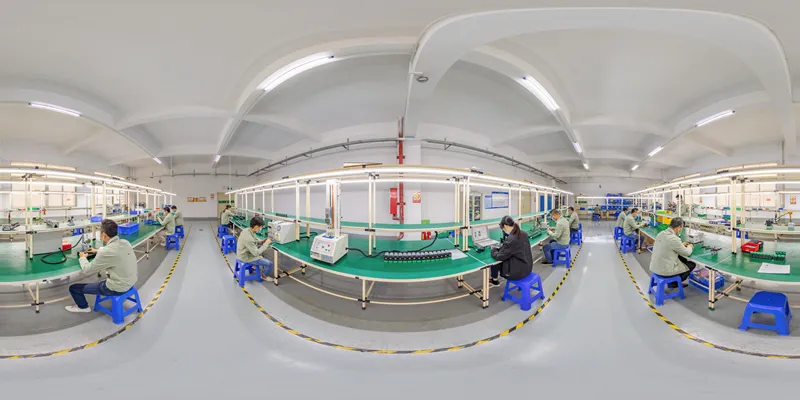

Factory show:

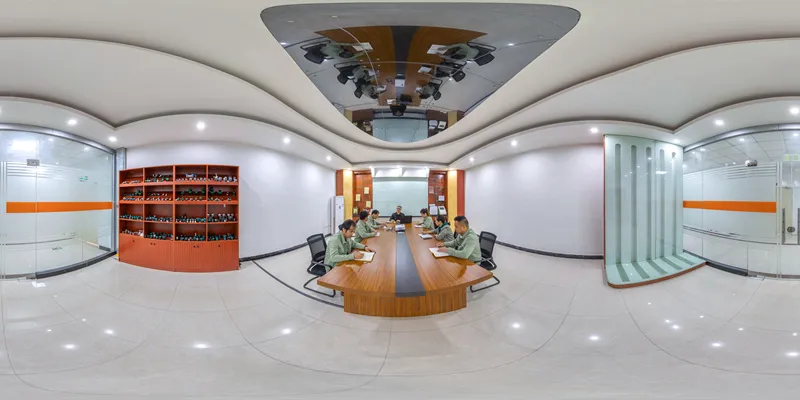

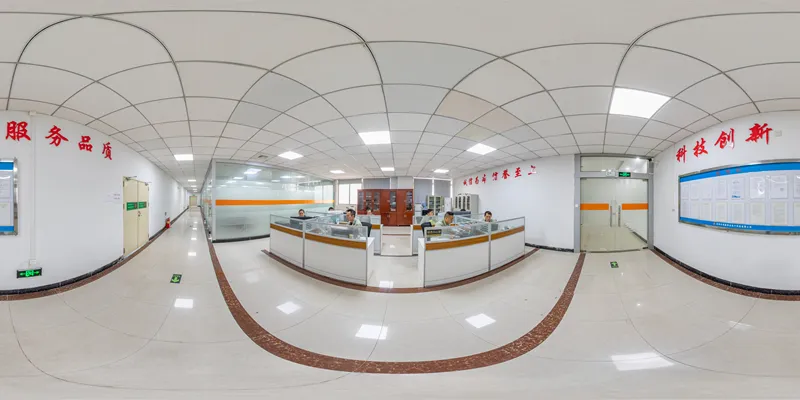

Office Meeting room/Show room

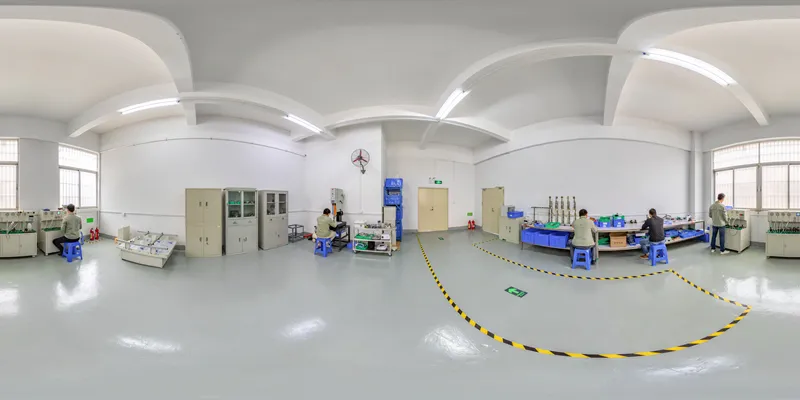

Assemble line Test room
The micro magnetic drive stainless steel gear pump is a fluid delivery unit composed of a micro pump head, a permanent magnet drive and a micro motor. It is especially suitable for various liquid media (like acid and alkali, corrosive, toxic , flammable,explosive, hydraulic oil) transportation, dripping, sampling, circulation, diversion, spraying, flushing, perfusion, cooling and lubrication.
Features:
1. compact structure, pump head and motor are integrated, and the brushless driver is integrated in the motor tail.
2. 316 stainless steel pump body, PEEK gear, self-lubricating, organic solvent resistance, corrosion resistance, high temperature resistance, high friction resistance.
3. PTFE static sealing, no leakage.
4. The flow can be adjusted as needed.
5. DC brushless motor with build-in driver, one
6. Smooth operation and low noise down to 45db.
7. Wide applicable media.
Application:
medical osmotic analysis equipment food processing equipment
experimental instruments water purification inkjet printing
Datasheet:
HC S GE 0.3 DCB66-24-40W
HC---Brand
S---Stainless Steel 316L T--- Stainless Steel 316L with Titanium nitride coated gear coating
GE---Magnetic drive
0.3---output volume 0.3 ml/rev
DCB66-24-40W --- DCB-Brushless motor, 66-diameter, 24-DC24V, 40w- Power consumption
| Model number | HC SGE0.3DCB66-24-40W |
| Material | Pump body:316L Shaft:316L Gear: PEEK Shaft sleeve: PEEK Static seal: PTFE |
| Drive method | magnetic drive |
| Output volume | 0.3ml/rev |
| Outlet pressure | 8 bar |
| Inlet/outlet specification | G1/8 |
| Motor | DC brushless motor with build-in driver |
| Working voltage | DC 24V |
| Speed regulation voltage | DC 0 to 5V |
| Speed | 500 to 5000r/min |
| Power consumption | 40 W |
| Noise | 45dB |
| Insulation class | H |
| Liquid viscosity range | <1500cP |
| Liquid temperature range | 15-100ºC |
| Dimension | 93.5x66x72mm |
| working systerm | continuous |
| Wire diagram | red:24V black:- brown:0-5v blue: FG output |
*The parameters are obtained from laboratory. The media is pure water @ 25ºC. specific performance will vary with actual applications.
Dimension:

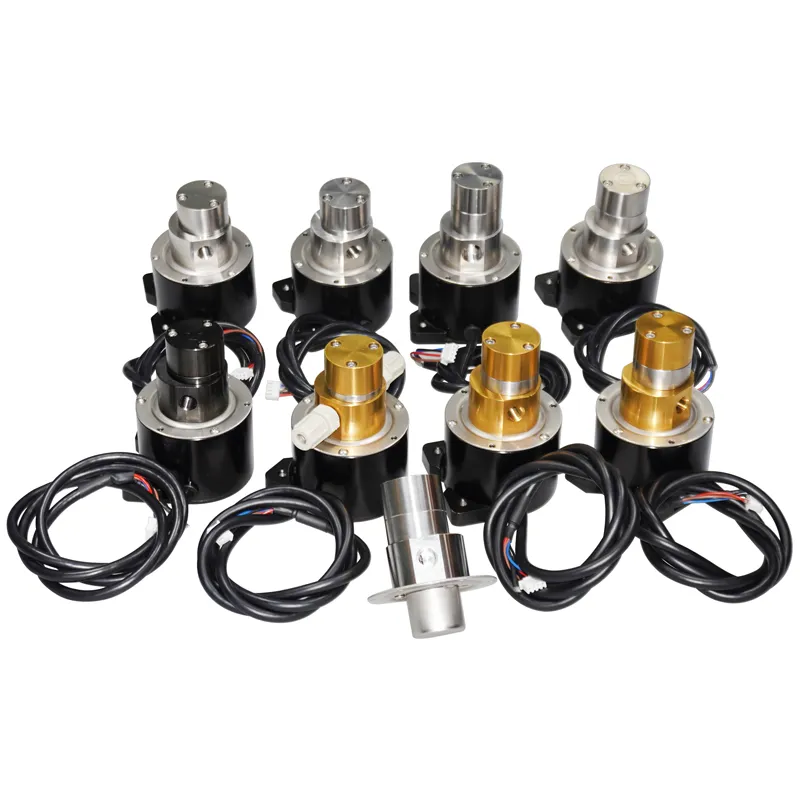

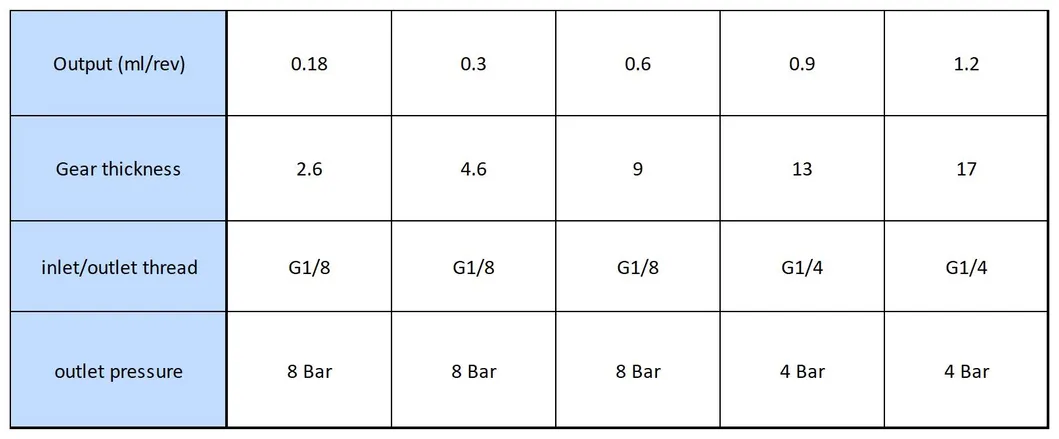

More pumps with different specification:
Factory show:
