Miran MGH- 1232 -100T Automatic Butter Pump Cental Lubrication System
Miran MGH-1232-100T Automatic Butter Pump Technical ParameterOperation ModeSelf-controlOil Injection Cycle1~200s and 1~999min adjustableOil Pressure0~100kgf/cm2Oil Flow50ml/minWorking Voltage220 VACMotor Power40WOil ViscosityNLGI 000#~3#Tank Capacity1000mlOil Pipe SizeΦ6mmApplicable SystemD......
Send Inquiry
Product Description

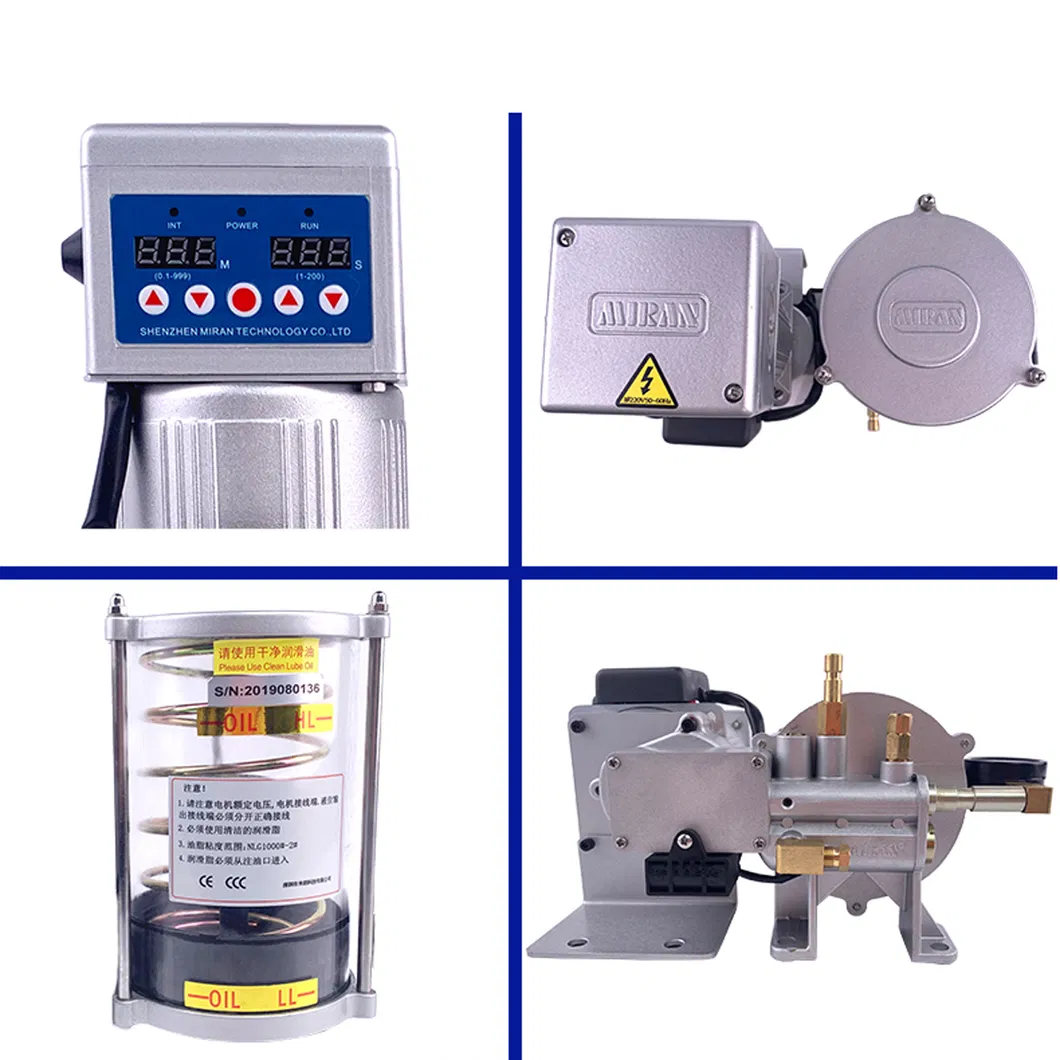

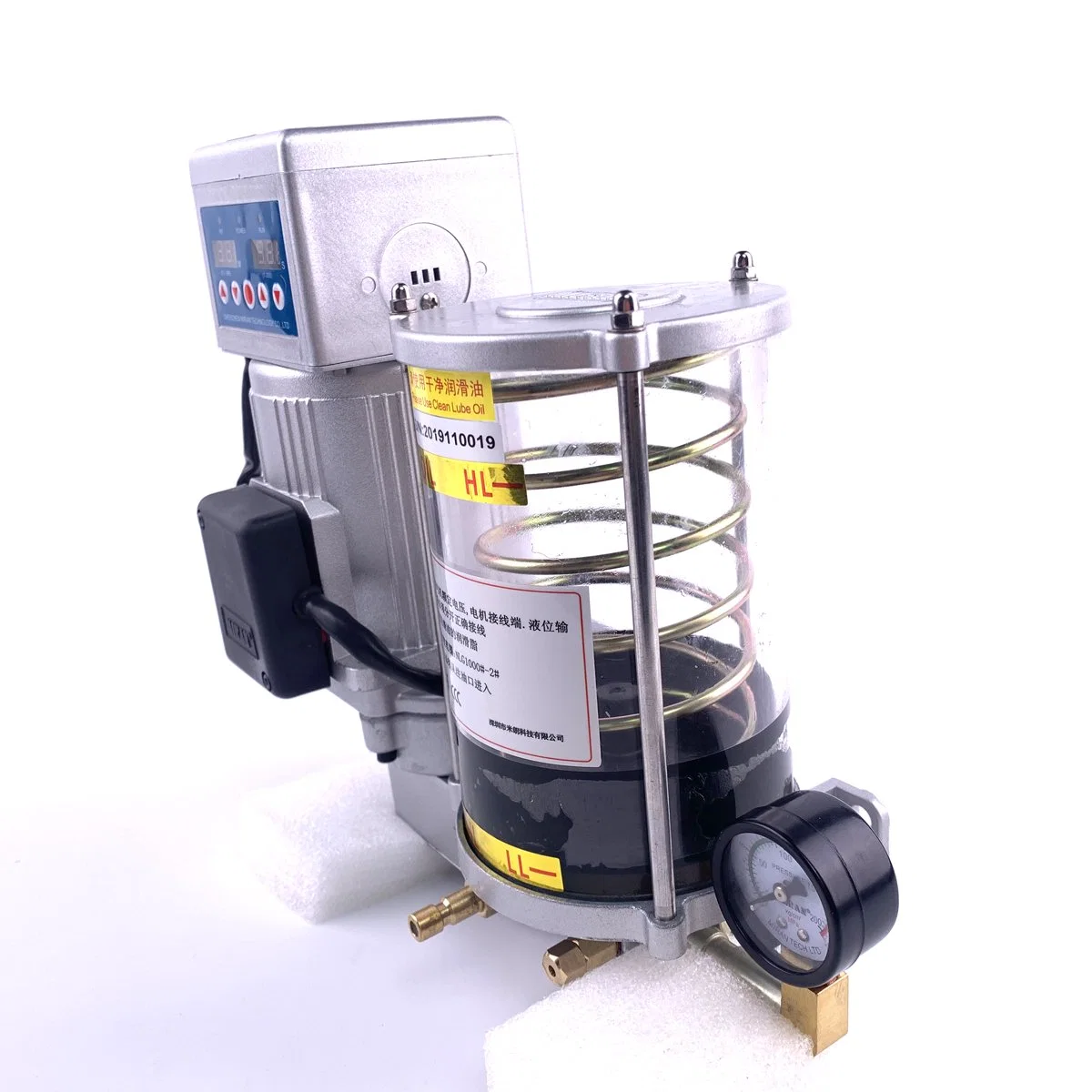

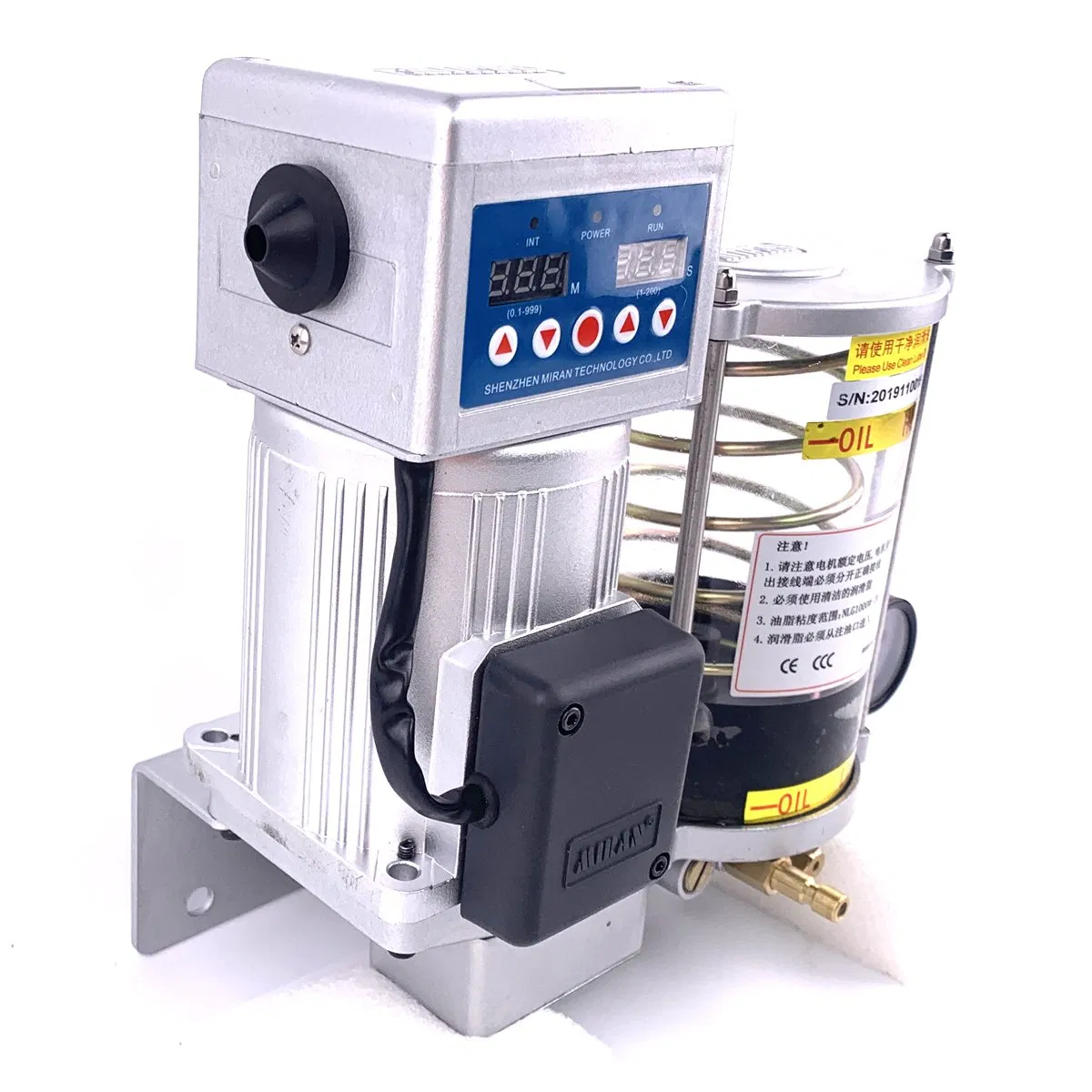

Miran MGH-1232-100T Automatic Butter Pump

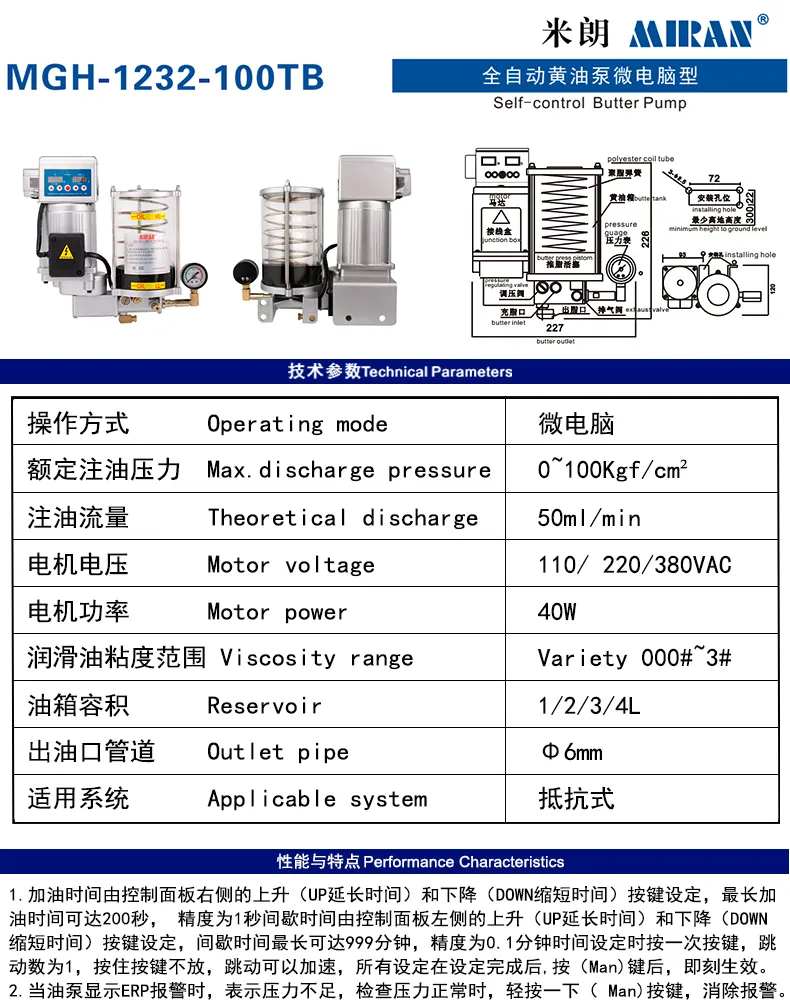

Technical Parameter
| Operation Mode | Self-control |
| Oil Injection Cycle | 1~200s and 1~999min adjustable |
| Oil Pressure | 0~100kgf/cm2 |
| Oil Flow | 50ml/min |
| Working Voltage | 220 VAC |
| Motor Power | 40W |
| Oil Viscosity | NLGI 000#~3# |
| Tank Capacity | 1000ml |
| Oil Pipe Size | Φ6mm |
| Applicable System | Damper Type SLR |
More Details: MGH-1232-100T : self-controlled, intermittence could be maximum 999 minutes, oil supply last maximum 200 seconds. When the liquid level is insufficient, the machine stops and buzzing alarm goes. NC / COM / NO outputs, water outlet at the bottom, suitable for various lubricating systems. Pumps are suitable for plastic machinery,engineering machinery,and machinery for textile,printing,woodworking,chemical,etc. ,ensuring lubrication performance of various kinds of machinery products, for longer service life and accuracy. | |

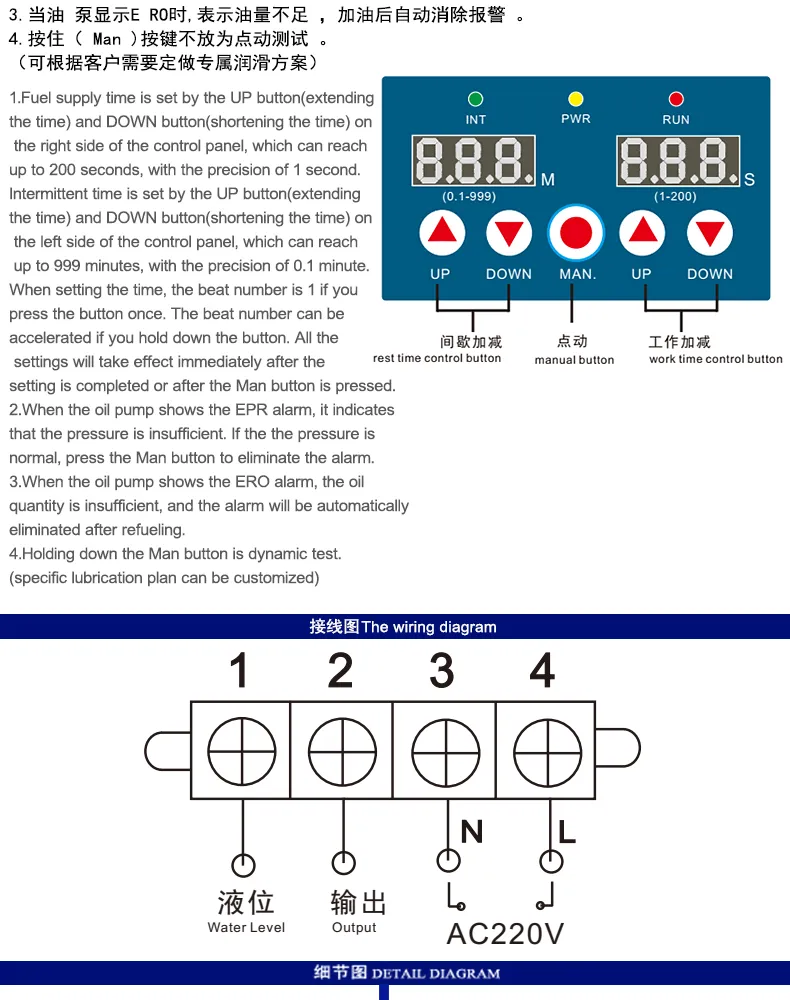

1. What is the difference between: 1202 and 1232 ? 1202 type is half-controlled,it needs your machine to control the oil offering time and resting time. 1232 type is self-controlled,there is the controller inside,it can control the oil offering time (0-200 seconds) and resting time(0-999 mins). 2.How long can be the hose? You can buy our plastic hose,it is from 1 meter to 100 meters,200 meters or 300 meters. 3.How many lubrication points can be used for each pump? You can buy our lubricating points from 2 points to 14 points. 4.What is the main application for lubricating pump? Normally our pumps are suitable for plastic machinery,engineering machinery,and machinery for textile,printing,woodworking,chemical,etc. ,ensuring lubrication performance of various kinds of machinery products, for longer service life and accuracy. | |
Color page

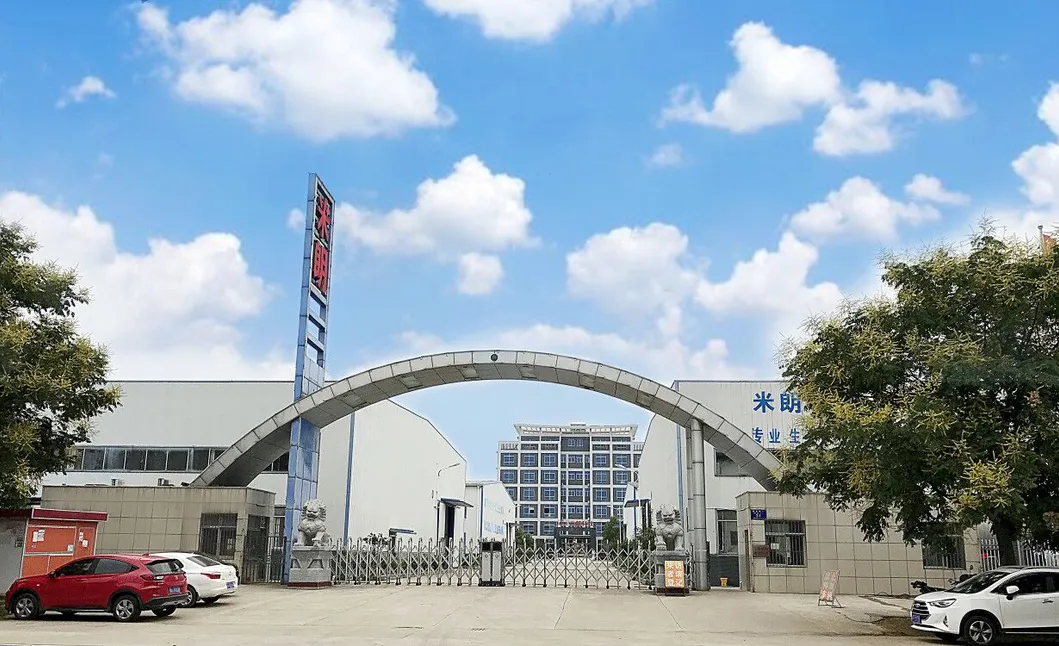

Company InformationMiran Industry Zone
