Widely Used Air Diaphragm Pump
Widely used Air diaphragm pumpAdvantage:1. Easy to install.2. Easy maintenance - directly on line without dismantling the pump.3. Quick start, strong self-suction capability.4. Center body and sealing parts are imported from USA.5. Center body is treated with anodizing, to well resist oxidation and ......
Send Inquiry
Product Description
Advantage:
1. Easy to install.
2. Easy maintenance - directly on line without dismantling the pump.
3. Quick start, strong self-suction capability.
4. Center body and sealing parts are imported from USA.
5. Center body is treated with anodizing, to well resist oxidation and tough environment.
6. Able to be connected with solenoid valve to realize remote control.
7. Lube free
8. No crash
RV pneumatic diaphragm pump has been exported to more than 30 countries and regions, including Southeast Asia, the Middle East, Europe and United States, ect., already has been granted 35 patents.
Certificate: CE, BV, SGS, CCS, ISO9001, vessel CCS
After sales service: 15-years guarantee for structural parts of certer body, 1-year guarantee for the whole pump

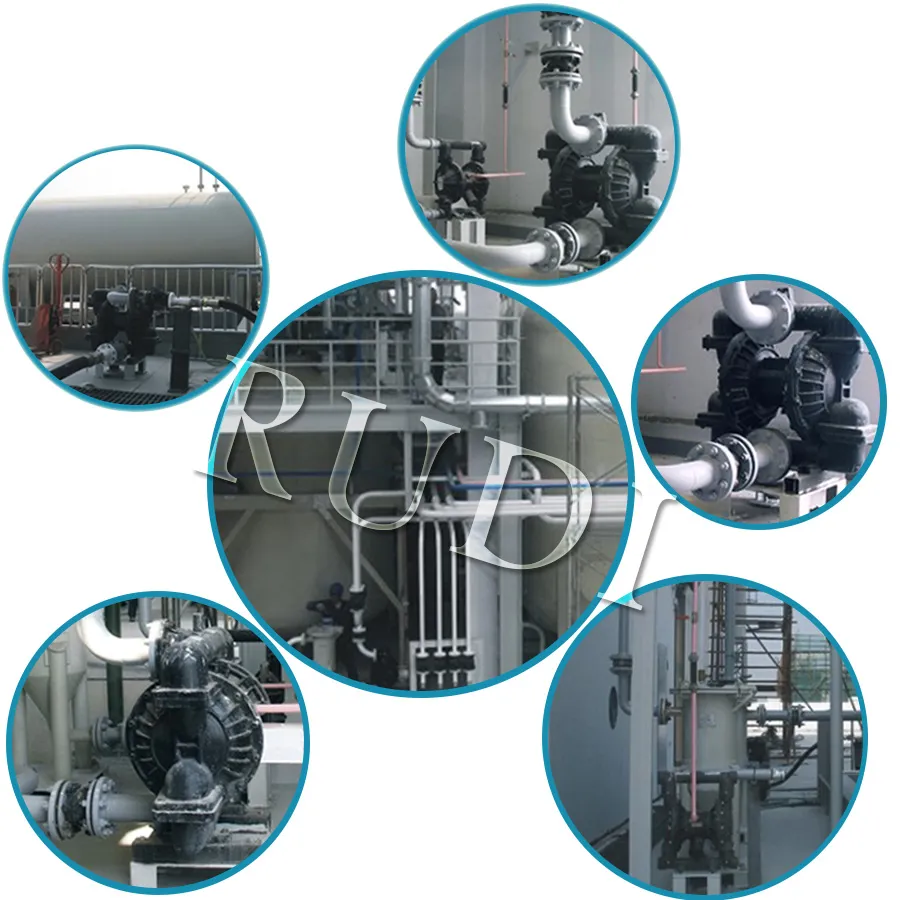

Application area: Chemical Industry; Coating Industry; Painting Industry; Dye Industry; Pigment and Textile Chemical Industry; Food Industry; Water treatment Industry; Petroleum Industry; Environmental protection Industry; Pharmaceutical Industry
Type | RD25 - SS |
| Inlet size | 1" |
| Outlet size | 1" |
| Air inlet size | 1/2" |
| Suction lift (dry) | 5m |
| Max. working pressure | 7bar, 0.7MPa |
| Max. flow rate | 1501/min (9.0m³/h) |
| Max. delivery lift | 70m |
| Max.grain diameter | 4mm |
| Weight | 18kgs |
| Body material | Stainless Steel 304 / 316 |
Our Services
* All of the enquiry will be replied within 24 working hours
* Professional pump producer, with design team.
* All of the goods are packed with standard export wooden case (non-fumigation)
* Support OEM or ODM
* Fast after-service
Shanghai Rudi Fluid Conveyor Co., Ltd(Rudi pump) is a professional manufacturer of air operated diaphragm pump, with over 20-year manufacturing experience in this field. The company has two production bases, three branch offices, and approx. 120 employees in total, among which there are more than 30 engineers.
Our pumps have achieved more than 30 patents, CE, ISO9001, SGS certificates. Thanks to the reliable quality, we have won big appraise from our clients all these years.
The air operated diaphragm pumps manufactured by RUDI use compressed air as power source, and it is the most advanced type of diaphragm pumps in market for the moment. It adopts three-way air pilot valve to achieve real no dead stop and faster reversing. Compared with other traditional domestic pumps, it has larger flow rate, more stable operation, and smaller pulsation. It is widely applied in waste water treatment, chemical industry, petrochemical industry, painting, ceramics, environmental protection, printing and dyeing, etc. to deal with all kinds of corrosive, volatile, flammable, poisonous fluids with particles and high viscosity.
We have the following materials available, and our engineers will select the most suitable and economical material for you according to your specific working conditions.
Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc.
Diaphragm material: Teflon, Santoprene, Viton, Hytrel, Buna-N, etc.
Available inlet/outlet size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"
Connection type:
-Threaded connection: Plastic pumps from 1/4" to 1-1/2", and all metal pumps.
-Fanged connection: Plastic pumps from 1/2" to 3".
Exhibition Of River-wave pump:
1. Q: What is MOQ?
A: 10 pc for regular product.
2. Q: What's the payment?
A: D/P, T/T,etc. please confirm with us with exact order.
3. Q: What is the delivery time?
A: Depend on the quantity.
4. Q: What about package?
A: Cartons with foam inside & wooden case.
5. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)
6. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to
