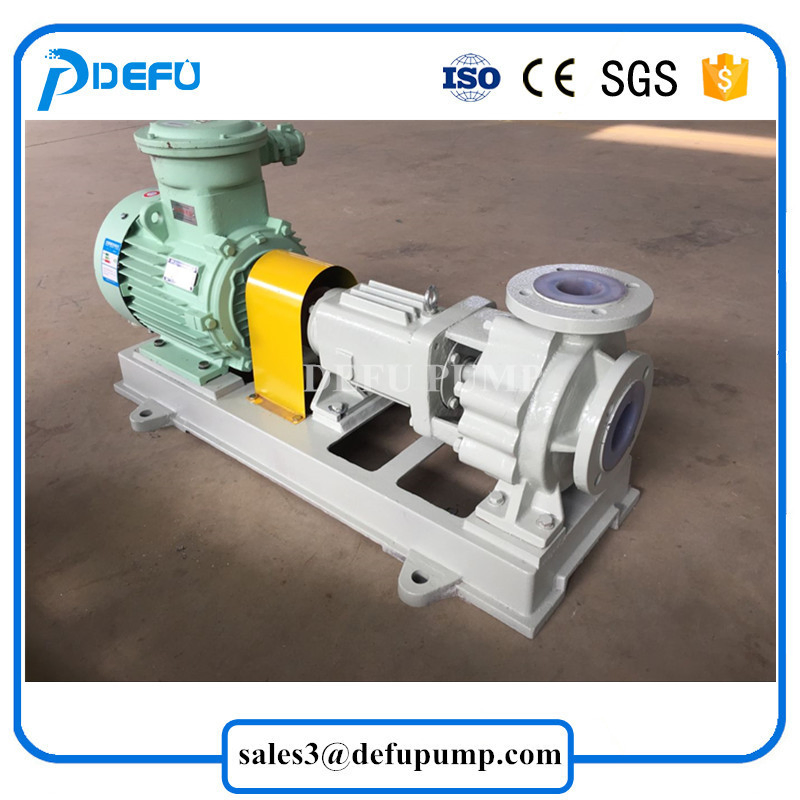

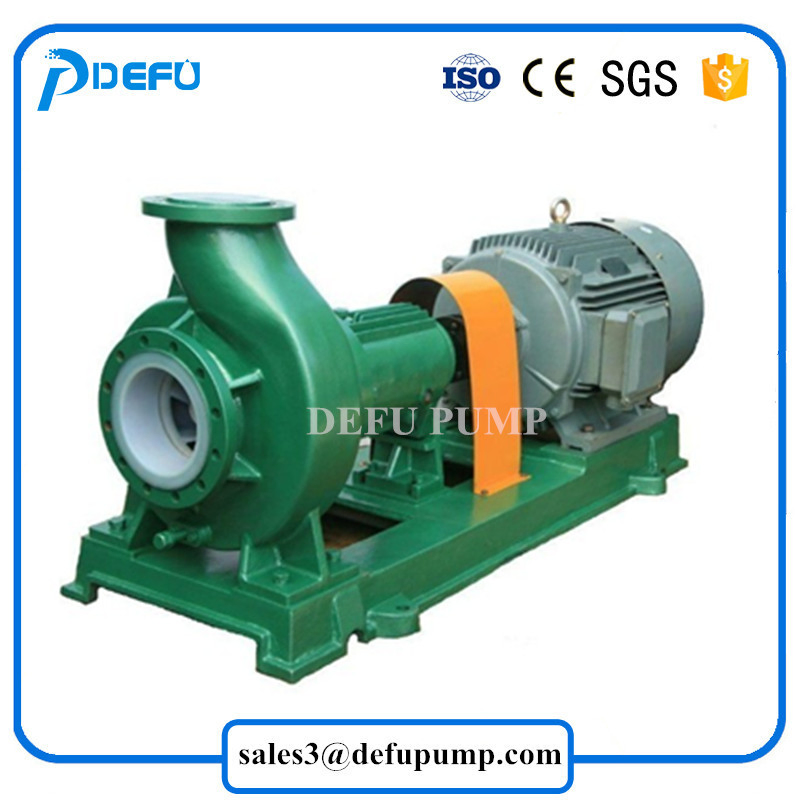

Strong Acid and Alkali Liquid Transfer Centrifugal Chemical Pump
1.Product DescriptionIHF High Concentration Sulfuric Acid Pump PTFE Lining pump is one of kind of chemical pump, which isproduced by our company devoting in researching FEP inner centrifugalpump. As proper structure, excellent sealing, the product is favored in chemical, metallurgy, oil, ion membran......
Send Inquiry
Product Description
1.Product Description
2.Pump Specifications
a) Caliber: DN40-DN125mm
b) Flow: 6.3-250m3/hr
c) Head:20-100 m
d) Rotate speed: 2900r/mine)
d)Motor power:1.5-90 kw
3.Partial Models For Clients Choosing(More models pls feel free to contact us)
IHF High Concentration Sulfuric Acid Pump PTFE Lining pump is one of kind of
chemical pump, which isproduced by our company devoting in researching FEP inner centrifugalpump. As proper structure, excellent sealing, the product is favored in chemical, metallurgy, oil, ion membrance,war industry project etc.
2.Pump Specifications
a) Caliber: DN40-DN125mm
b) Flow: 6.3-250m3/hr
c) Head:20-100 m
d) Rotate speed: 2900r/mine)
d)Motor power:1.5-90 kw
3.Partial Models For Clients Choosing(More models pls feel free to contact us)
| Model | n=2900r/min | n=1450r/min | ||||||||
| Q (m3/h) | ||||||||||
| H (m) | Power(kw) | NPSH(m) | Eff.(%) | Q (m3/h) | H (m) | Power(kw) | NPSH(m) | Eff. (%) | ||
| IHF40-25-125 | 6.3 | 20 | 1.5 | 3 | 41 | 5 | 0.55 | 3 | 35 | |
| IHF40-25-160 | 6.3 | 32 | 2.2 | 3 | 36 | 3.2 | 8 | 0.55 | 3 | 30 |
| IHF40-25-200 | 6.3 | 50 | 4 | 3 | 30 | 3.2 | 12.5 | 0.75 | 3 | 25 |
| IHF50-32-125 | 12.5 | 20 | 2.2 | 3 | 51 | 6.3 | 5 | 0.55 | 3 | 45 |
| IHF50-32-160 | 12.5 | 32 | 4 | 3 | 46 | 6.3 | 8 | 0.55 | 3 | 40 |
| IHF50-32-200 | 12.5 | 50 | 7.5 | 3 | 39 | 6.3 | 12.5 | 1.1 | 3 | 33 |
| IHF65-50-125 | 25 | 20 | 3 | 3.5 | 62 | 12.5 | 5 | 0.55 | 3.5 | 55 |
| IHF65-50-160 | 25 | 32 | 5.5 | 3.5 | 57 | 12.5 | 8 | 1.1 | 3.5 | 51 |
| IHF65-40-200 | 25 | 50 | 11 | 3.5 | 52 | 12.5 | 12.5 | 1.5 | 3.5 | 46 |
| IHF80-65-125 | 50 | 20 | 5.5 | 4 | 69 | 25 | 5 | 1.1 | 4 | 64 |
| IHF80-65-160 | 50 | 32 | 11 | 4 | 67 | 25 | 8 | 1.5 | 4 | 62 |
| IHF80-50-200 | 50 | 50 | 15 | 4 | 63 | 25 | 12.5 | 2.2 | 4 | 57 |
| IHF100-80-125 | 100 | 20 | 11 | 4.5 | 77 | 50 | 5 | 1.5 | 4.5 | 74 |
| IHF100-80-160 | 100 | 32 | 15 | 4.5 | 73 | 50 | 8 | 2.2 | 4.5 | 69 |
| IHF100-65-200 | 100 | 50 | 30 | 4.5 | 73 | 50 | 12.5 | 5.5 | 4.5 | 68 |
| IHF125-80-160 | 160 | 32 | 30 | 5 | 70 | 80 | 8 | 5.5 | 5 | 74 |
| IHF125-100-200 | 200 | 50 | 55 | 5 | 65 | 100 | 12.5 | 11 | 5 | 71 |

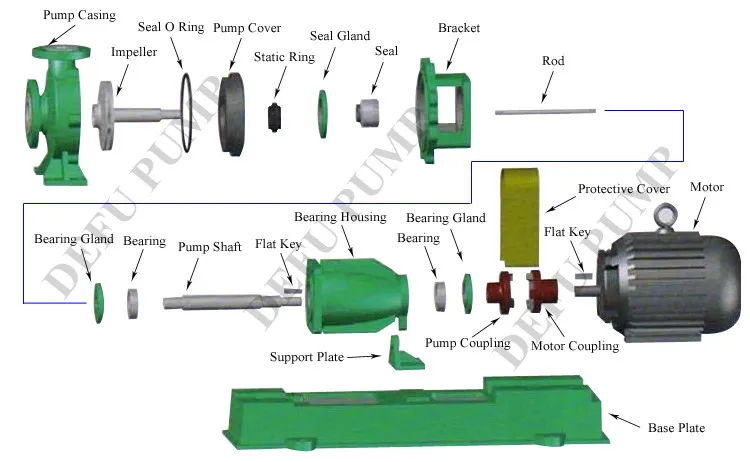

4.Pump Structure

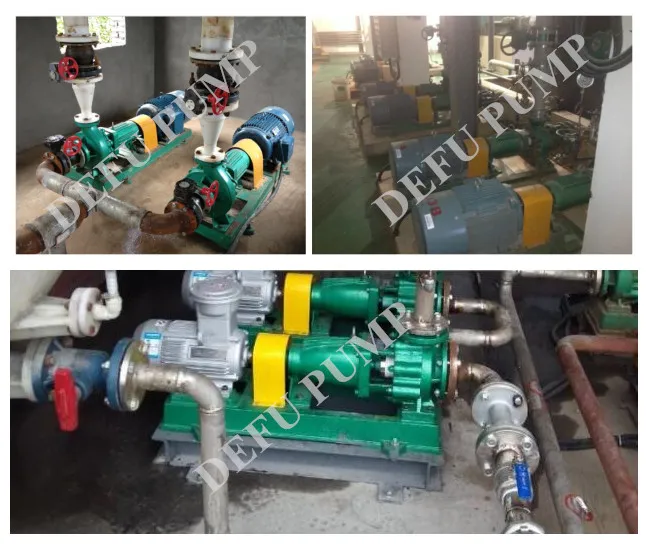

5.Applications
6.Factory Show
Welcome to visit our factory!
All My Striving,For Your Satisfaction.
*********************************************************************************************
Head Office: Wenzhou DEFU Machinery Co.,Ltd
Subsidiary Factory Name:Shanghai Y&L Pump Co.,Ltd
Mobile :+86-18042130095 Fax: +86-577-86553150
WebSite:defucc-machinery.en.made-in-china.com
All My Striving,For Your Satisfaction.
*********************************************************************************************
Head Office: Wenzhou DEFU Machinery Co.,Ltd
Subsidiary Factory Name:Shanghai Y&L Pump Co.,Ltd
Mobile :+86-18042130095 Fax: +86-577-86553150
WebSite:defucc-machinery.en.made-in-china.com
