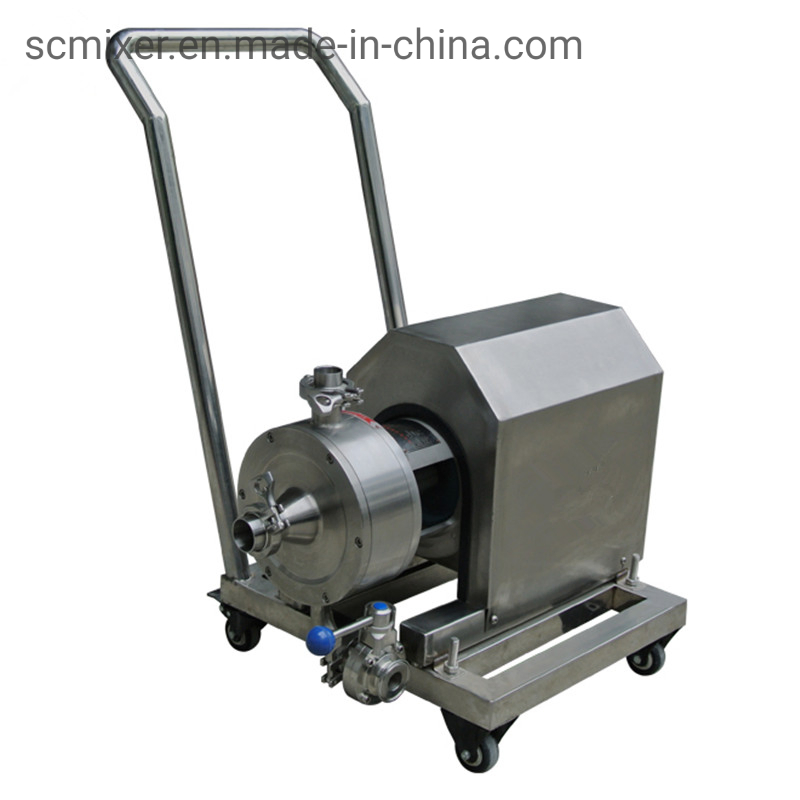

7.5kw Pipeline High Shear Dispersing Machine Emulsifier Pump
High Viscosity Liquid with Large Powder High Shear Emulsifier PumpProducts DesriptionsThe pipeline type high shear dispersing emulsifier is the high performance equipment used for continuous production and circular processing of fine materials. Inside the narrow space of its chamber, it is assembled......
Send Inquiry
Product Description

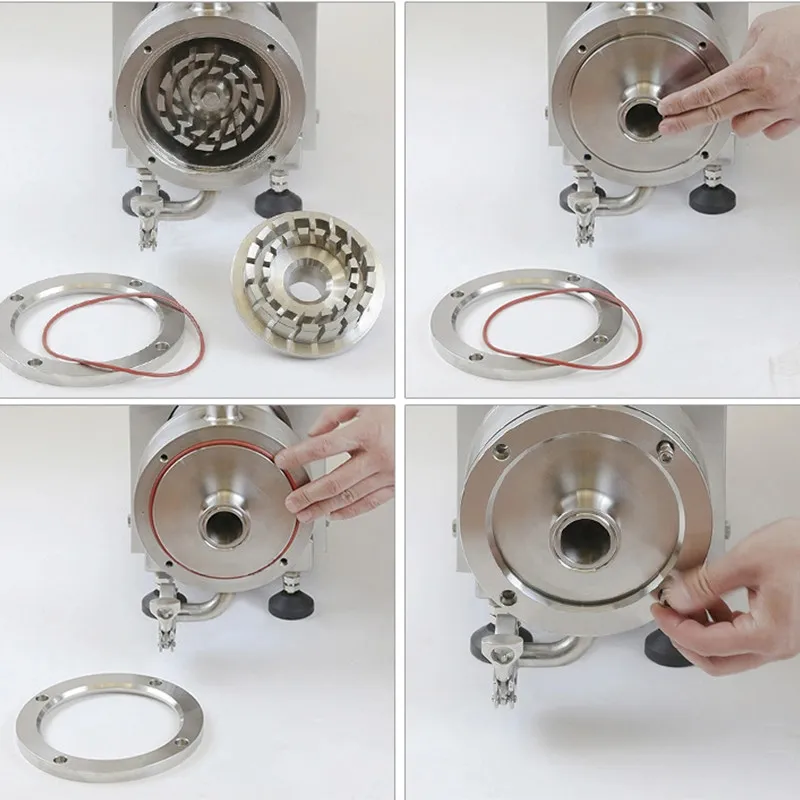

The pipeline type high shear dispersing emulsifier is the high performance equipment used for continuous production and circular processing of fine materials. Inside the narrow space of its chamber, it is assembled with 1-3 groups of dual-geared stators and rotors of multilayer. The materials are sucked into the chamber by the strong axial suction produced by fast-turning rotor driven by the motor. within the shortest time, the materials will be processed by the operation of dispersion,shearing and emulsification, after which the size distribution will be within a narrow range, and the finished products will be fine and stable for a long period.
This machine is suitable for petrochemical,pigment,fuel,coating,pharmaceutical,Oil and water emulsion,chemical and food industry etc.
The main system

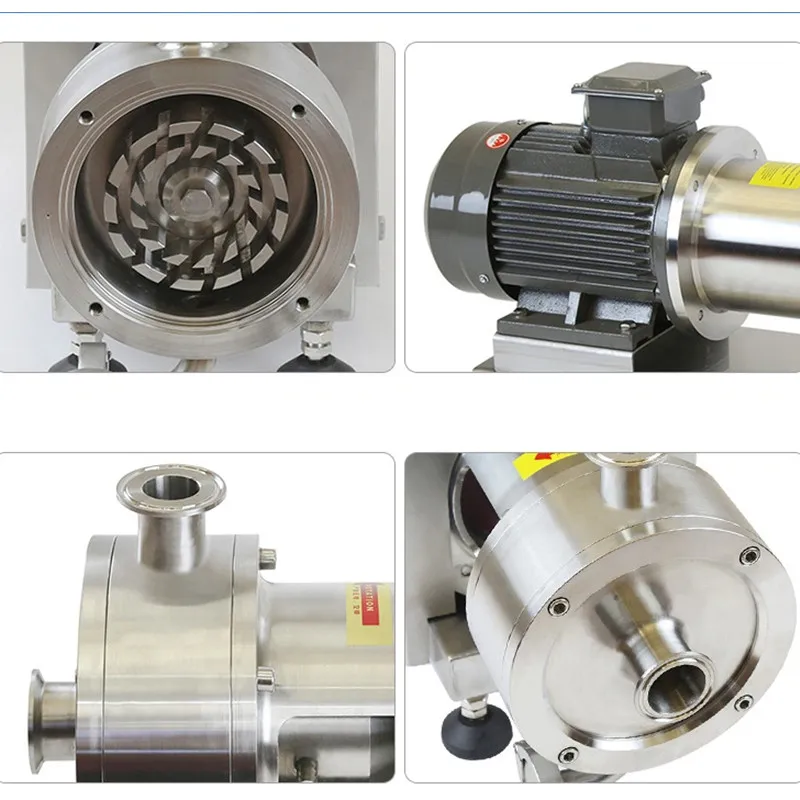

stator,rotor,Working cavity,Connecting bracket,Mechanical seal,main shaft,Mechanical seal seat,motor,the base,cleaning mouth,feed inlet,discharge etc.
Technical paramaeter
| model | Power(kW) | Speed(rpm) | Flow(t/h) |
| SMG-60 | 1.5 | 2900 | 0-1.5 |
| SMG-100 | 2.2 | 0-3 | |
| SMG-120 | 4 | 0-4 | |
| SMG-140 | 5.5 | 0-5 | |
| SMG-165 | 7.5 | 0-8 | |
| SMG-180 | 11 | 0-12 | |
| SMG-185 | 15 | 0-18 | |
| SMG-200 | 22 | 0-25 | |
| SMG-210 | 30 | 0-35 | |
| SMG-230 | 45 | 0-50 | |
Note: The flow rate range in the form indicates the data measured when the medium is water. The outlet pressure of models listed in the form than or equal to 0.2MPa. If adopting circulation technology,it is suggested that is should be used with interval high shear dispersing emulsifier. | |||
Application
2. The pump can suck the paint, pigment, glue and adhesive etc.
3. The pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.
4. The pump can suck various grinding materials, corrosive agent and clean the oil dirt etc.
5. The pump can suck various toxin and flammable or volatility liquid etc.
6. The pump can suck various wedge water, cement slurry and mortar etc.
7. The pump can suck various strong acid, alkali and corrosive liquid etc.
8. It can be used as a front-step transmission device of the solid and liquid separation equipment.
9. Our pump can be used directly as a submersible pump, it uses air as the power source, and does not have the leakage and other security risks. This diaphragm pump has lower cost than submersible pump which is caused by the maintenance of motor.
Warmly welcome to vist our company and machines .
Welcome to learn more information about machines (picture ,video and specification ).(Turn-key project )
Our Service
Pre-sales service:
1> Engineering design
2> Equipment model selection guide
3> equipment machinig
After-sales service:
1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to abroad installation and debugging.
Company Information

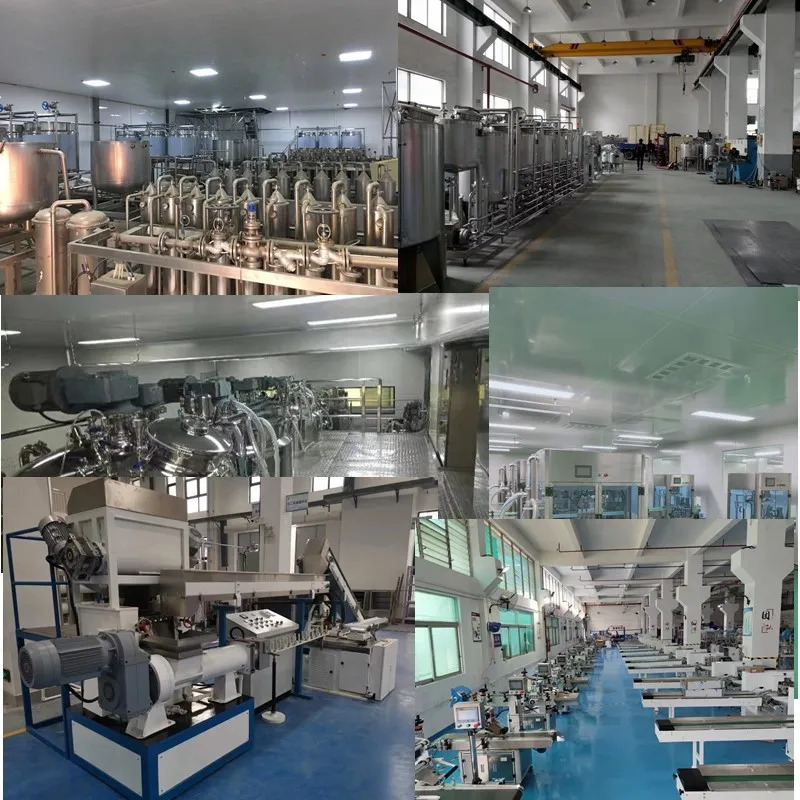

We are a professional manufacturer of cosmetic,chemical& pharmaceutical machinery and equipment more than 20 years .Product lines range from:
1> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, filling machine etc.
2> Chemical Machinery: reactor, mixing equipment,separation equipment, storage tank etc.
3> Pharmaceutical Machinery: vacuum ointment machine,sanitary stainless reaction pot,alcohol deposition can, collocation tank etc.
Warmly welcome to contact with us (pictures ,operation video ,operation book etc )
RAQ:
1:Are you manufacturer?
Yes, we are. Welcome to visit our factory.
2:Can you change the machine voltage as our request?
Yes, we can.
3: How about the delivery time?
With the standard products delivery time will be15-35 days after we receive your payment.
4: What's the payment terms?
Usually is T/T, L/C, or Western Union. We also accept Money Gram, PayPal and other payment terms.
5: Where are the main markets for your products?
Products have been exported to all over the world, especially in Northern Europe Western Europe, Eastern Europe North American, South American, Middle East, South Asia, Eastern Asia, African and etc.
