China Wm Centrifugal a-H Interchange Slurry Pump Spares R55 Material Impeller

Product Description

All Specifications of Centrifugal slurry pump parts:

Wm Centrifugal a-H Interchange Slurry Pump Spares R55 Material Impeller

1,General of anti-wear & anti-corrosive materials

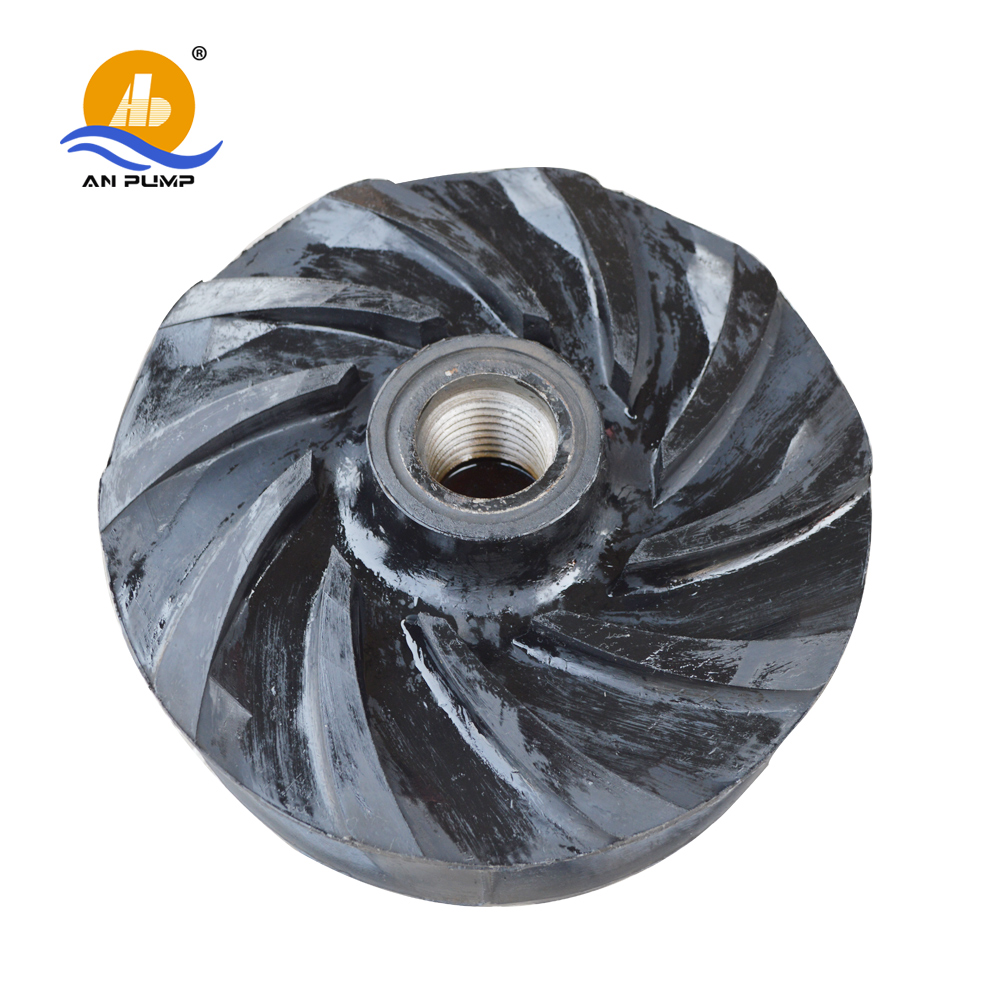

Slurry Pump Impeller is one of the most important spare parts pumps. When impeller working, the slurry pump could meet the requirements of the equipment. However, it is a component, which is worn out very easily. Therefore, for long service life of the impeller, the material plays an important role here.

2,Strictly material components controlling procedure
a) Analysis before and after the stove
b) Professional mould keeping and using
c) Impeller balance testing and revising by advanced quipment
d) Delicate both in dimension and surface

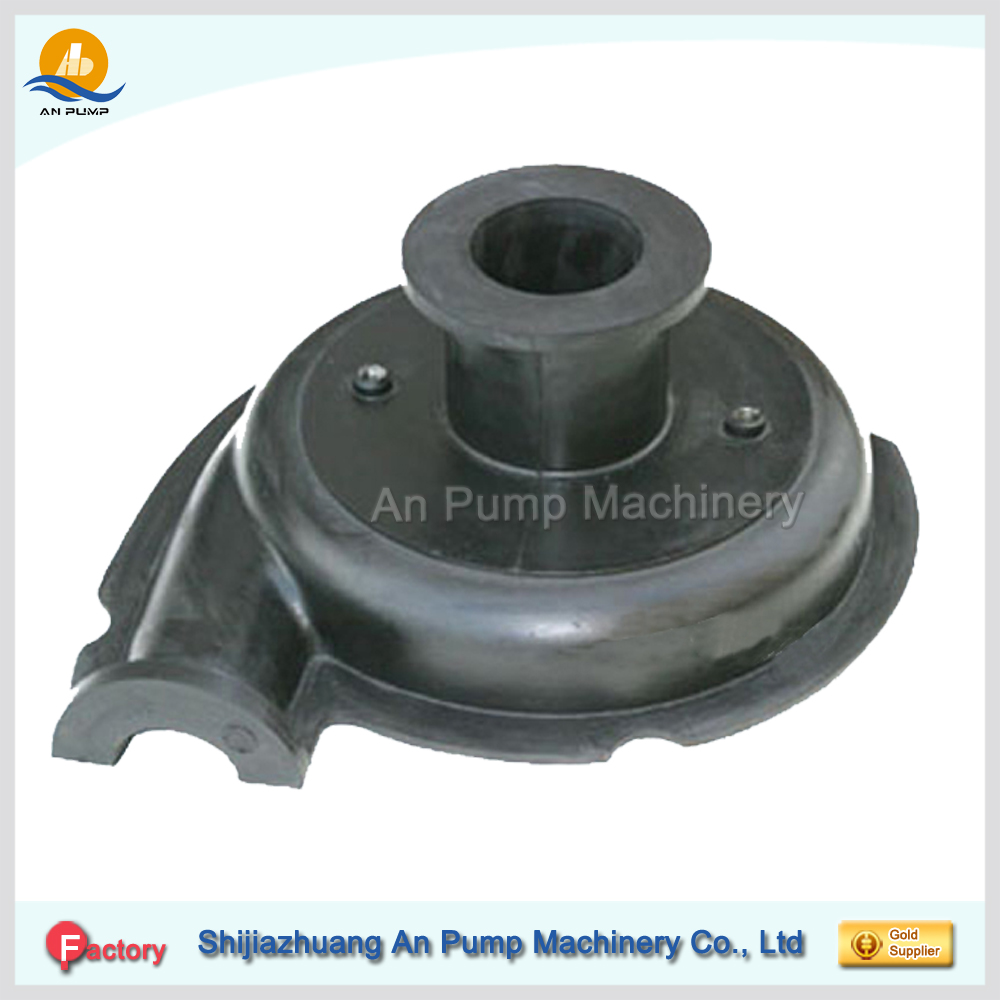

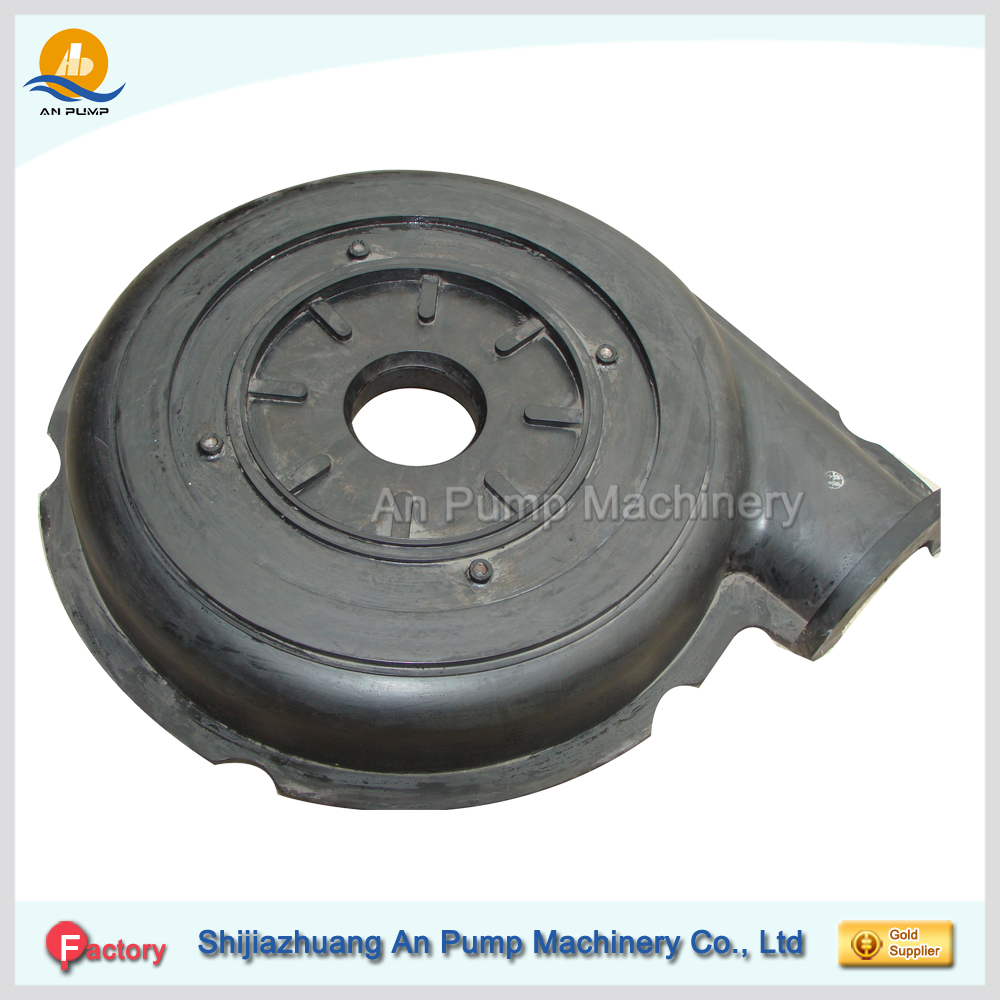

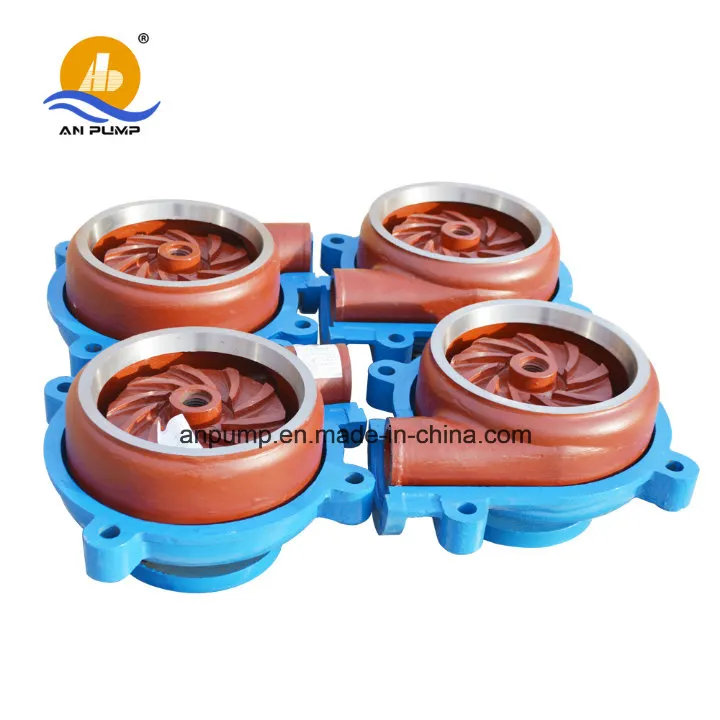

PUMP PARTS

1. All of the metal wet parts can are made of high chromium alloy which has superior wear and erosion resistance or grey iron which has a high rigidity.
2. As the expeller ring is assembled together with the expeller, much pressure can be reduced effectively for the impeller. Meanwhile, it can still maintain a reliable sealing performance.
3. The parts such as labyrinth, labyrinth locknut, end cover and shaft sleeve are used for bearing assembly; these parts can be changed easily and have high accuracy and longer service life.
4. Some fastening parts such as studs and bolts can be used for fixing the other parts securely. All the fastening parts can be attached easily, ensuring the safety.
5. All of the rubber parts have superior erosion resisting performance which can be used for a long life.

Materials:

Type	Code	Mark	Mechanism Performance			Special Performance	Application
Type	Code	Mark	δw/δb MPa	αk J/cm2	HRC	Special Performance	Application
Anti-wear white iron	A05	KmTBCr26	≥700	6-10	≥56	Erode resistance is a little bit lower than A07 with certain corrosive resistance	Used for higher wear condition with PH between 5 and 12
	A07	KmTBCr15Mo	≥550	4-8	≥59	Best erode resistance but lower wear resistance than A05	Used for higher wear condition
	A01	KmTBCr8	≥550	6-8	≥55	The erode resistance is about 0.9 times of A05.	Used for mud pump
	A11	KmTBMnMo	≥400	3-6	38-42	Lighter erode resistance and lower hardness. It can be perforated and tapped.	Used for light wear condition with fine grain.
Anti- wear &anti-corrosive iron	A49	--	≥600	--	43	It has certain erode and corrosive resistance in low PH condition. Its wear resistance is nearly equal to A03	For lower PH condition,especially for flue gas. For low sour condition desulphuration installation (PH≥4)
Anti- wear &anti-corrosive iron	A33	--	--	--	35	It has certain erode and corrosive resistance that is similar to A03 and certain corrosive resistance.	It can transport oxygenated slurry with PH not be less than 1.
Anti-wear cast steel	A22	--	1200	--	45	Fine anti-erode & anti-corrosive, high hardness.	Used for dredge pump casing.
	A23	--	700	--	HB500-600	Higher hardness and anti-erode.	Used for anti-wear &corrosive and high erode condition.
	A25	--	--	--	HB300-350	Lower hardness, better anti-wear & anti-corrosive and weldable.	Used for light erode and wear condition.

FAQ:
1.Q:Are you a factory or trading company?
A:We are a factory.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Shijiazhuang City, Hebei Province, China.You can fly to Shijiazhuang airport directly.All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:What is he material of your products?
A: The material is A05,A07,A33,A49 or Rubber. We can also choose material as customers' requirement.
4.Q:How can I get some samples?
A: We are honored to offer you samples.
5.Q:How does your factory do regarding quality control?
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has 15~30QC.

WE ARE THE FACTORY OF SLURRY PUMPS,GRAVEL PUMPS,SUMP PUMPS,WELCOME TO INQUIRE FROM US.WE WILL GIVE YOU LOWEST PRICE AND BEST QUALITY.

If interested,please contact us.
