Product Description

The ZJ and ZJL series slurry pumps

The ZJ and ZJL series slurry pumps is the our company according to the market demand, the absorption domestically, outside the advanced technology develops the design the series product. Pumps uses the outstanding water power model design, the efficiency high, the performance is good. The double pump housing structure, the installment service is convenient.

Rotational speed: Electrical machinery straight association transmission 2900/1480/980/730/590/ r/min
Between the belt pulley the association transmission conforms to the customer requirement
Medium temperature: General <= 80 º C Special may reach 110º C
Solid fluid mixture weight concentration: Mortar density <=45% Pulp density <= 60%
Current capacity: 30-2000m3/h
Lifts the scope: 15-30m
Horizontal type

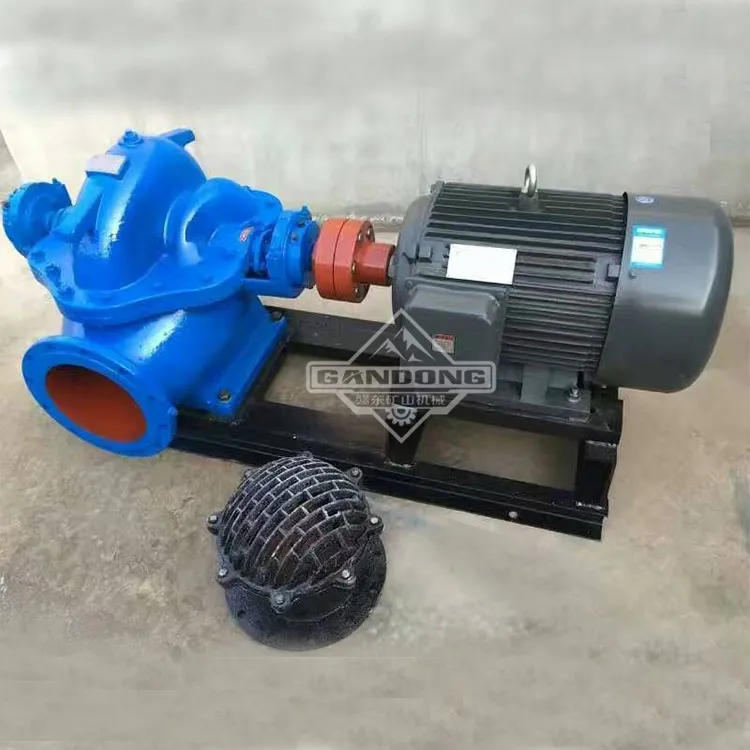

Water Pump Slurry Pump Submersible Pump

The flexible coupling straight association transmission (requests below 160Kw according to customer to be possible to use belt pulley variable transmission)
Pumps the export to be possible according to need to revolve 4directions according to 90º C gaps (normally to supply goods exportation vertically to be upward)
According to needs to pump may connect the use

Meaning of pump model:
E. G. 200ZJ-I-A70

200----Outlet diameter(mm)
ZJ----Slurry pump
I----Single stage pump
II----Two stage pump
A70----Impeller Diameter (mm)

Provide high quality, best service and competitive price mining plants with flowchart and design diagram. Such as shaking table, jig, gold trommel, gold sluice, rotary screen, sand washer, spiral chute etc which passed ISO9001: 2008 Certification.

We can make a special mineral processing approach for you with least cost & simplest way. We also provide all small/lab testing mining equipment, welcome to contact me for the details. Please do not hesitate to contact for possible business co-operation on below E-mail.

Water Pump Slurry Pump Submersible Pump

Model	Allowable max.power of ass.motor K w	Clear water performance					Particle max.size handled occasionally mm	Curve number
Model	Allowable max.power of ass.motor K w	Capacity M 3 /H	Head m	Speed r/min	Max.eff %	NPSH m	Particle max.size handled occasionally mm	Curve number
300ZJ-1-A110	560	746-1700	33.1-78.0	400-590	71.0	5.0	≤ 49	ZJ300110
300ZJ-1-A100	450	619-1826	27.2-67.1	400-590	81.0	4.1	≤ 49	ZJ300100
300ZJ-1-A100	400	589-1835	24.6-60.6	400-590	81.0	4.1	≤ 49	ZJ30095
300ZJ-1-A95	560	632-1844	33.4-78.0	500-730	82.0	4.8	≤ 45	ZJ30090
300ZJ-1-A90	450	596-1742	29.9-69.6	500-730	82.0	4.8	≤ 45	ZJ30085
300ZJ-1-A85	630	647-2333	16.7-76.8	500-980	80.4	6.0	≤ 51	ZJ30070
300ZJ-1-70	500	601-2166	14.4-66.2	500-980	80.4	6.0	≤ 54	ZJ30065
300ZJ-1-A65	250	403-1568	10.0-48.0	500-980	81.3	5.5	≤ 38	ZJ30056
300ZJ-1-A56	560	504-1470	39.9-91.0	500-730	79.0	5.3	≤ 38	ZJ25096
250ZJ-1-A78	450	473-1378	35.0-80.0	500-730	79.0	5.3	≤ 42	ZJ25085
250ZJ-1-A75	800	384-1504	31.4-129.8	500-980	77.0	5.1	≤ 42	ZJ25083
250ZJ-1-A73	710	375-1468	30.0-123.8	500-980	77.0	5.1	≤ 42	ZJ25080
250ZJ-1-A70	630	361-1415	27.8-115.0	500-980	77.0	5.0	≤ 42	ZJ25078
250ZJ-1-A68	630	352-1380	26.5-109.3	500-980	77.0	5.0	≤ 40	ZJ25075
250ZJ-1-A65	500	301-1480	22.3-98.4	500-980	81.6	4.9	≤ 40	ZJ25073
250ZJ-1-A63	500	293-1441	21.0-93.2	500-980	81.6	4.9	≤ 40	ZJ25070
250ZJ-1-A60	450	288-1380	19.4-85.7	500-980	81.6	4.8	≤ 40	ZJ25068
200ZJ-1-A75	355	280-1341	18.3-80.9	500-980	81.6	4.8	≤ 40	ZJ25065
200ZJ-1-A73	315	305-1249	15.4-68.5	500-980	79.5	4.7	≤ 40	ZJ25063
200ZJ-1-A70	315	295-1211	14.5-64.3	500-980	79.5	4.7	≤ 40	ZJ25060
200ZJ-1-A68	250	281-1152	13.1-58.4	500-980	74.5	4.7	≤ 31	ZJ20075
200ZJ-1-A65	355	230-900	24.0-103.7	500-980	74.5	4.5	≤ 31	ZJ20073
200ZJ-1-A63	355	223-876	22.7-98.2	500-980	77.5	4.5	≤ 31	ZJ20070
200ZJ-1-A60	315	240-950	19.9-85.8	500-980	77.5	4.4	≤ 31	ZJ20068
200ZJ-1-A58	280	233-923	18.8-81.0	500-980	79.3	4.4	≤ 35	ZJ20065
