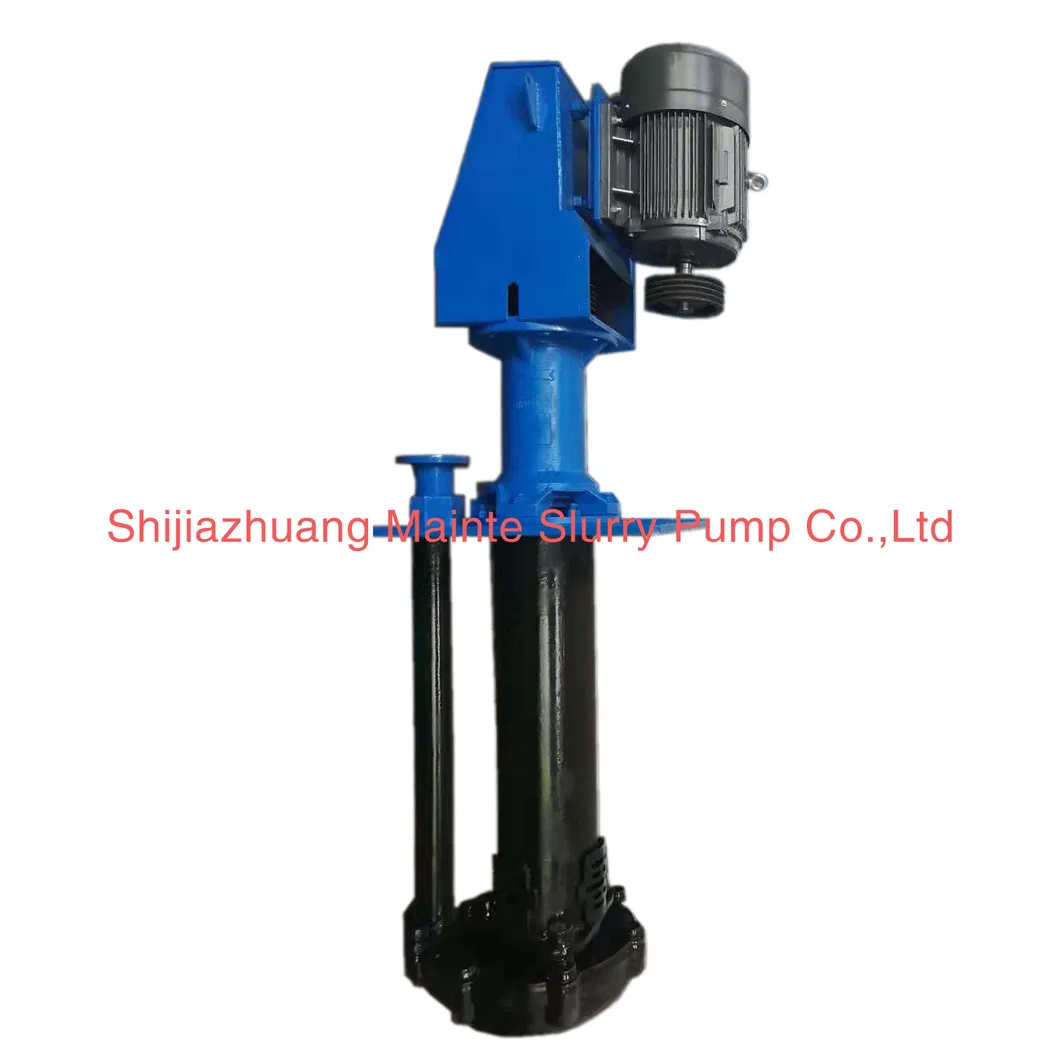

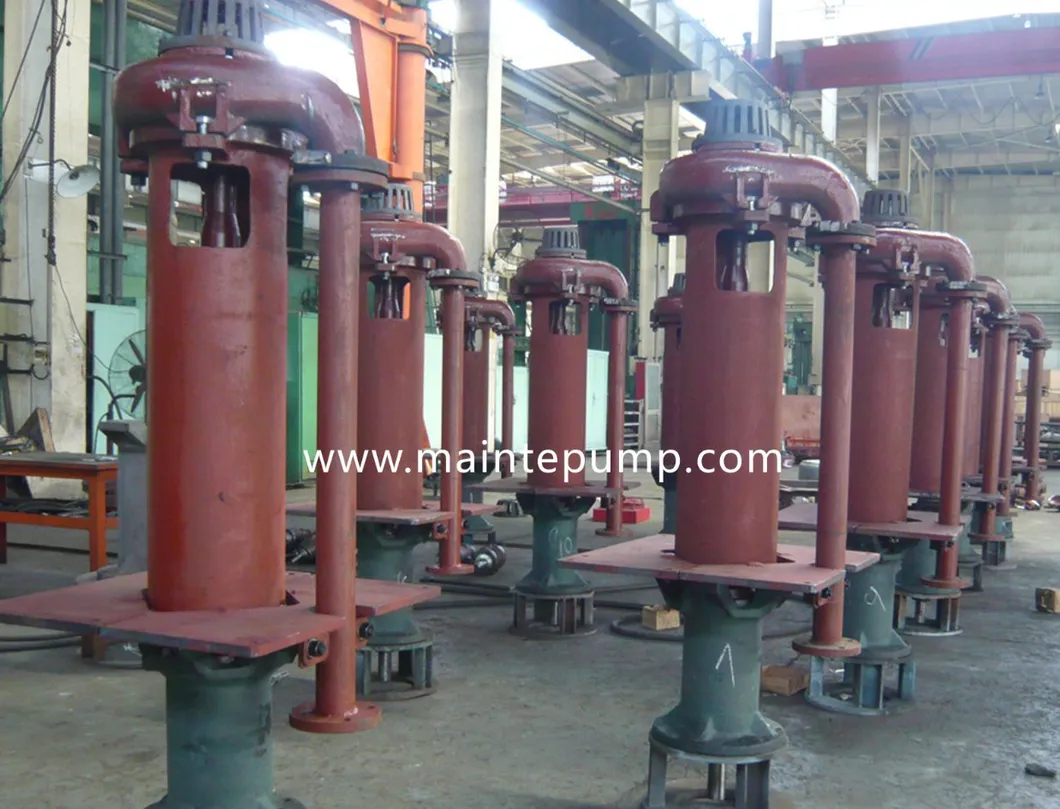

Vertical Sump Slurry Pump Use Mining Processing

Product Description

Applications

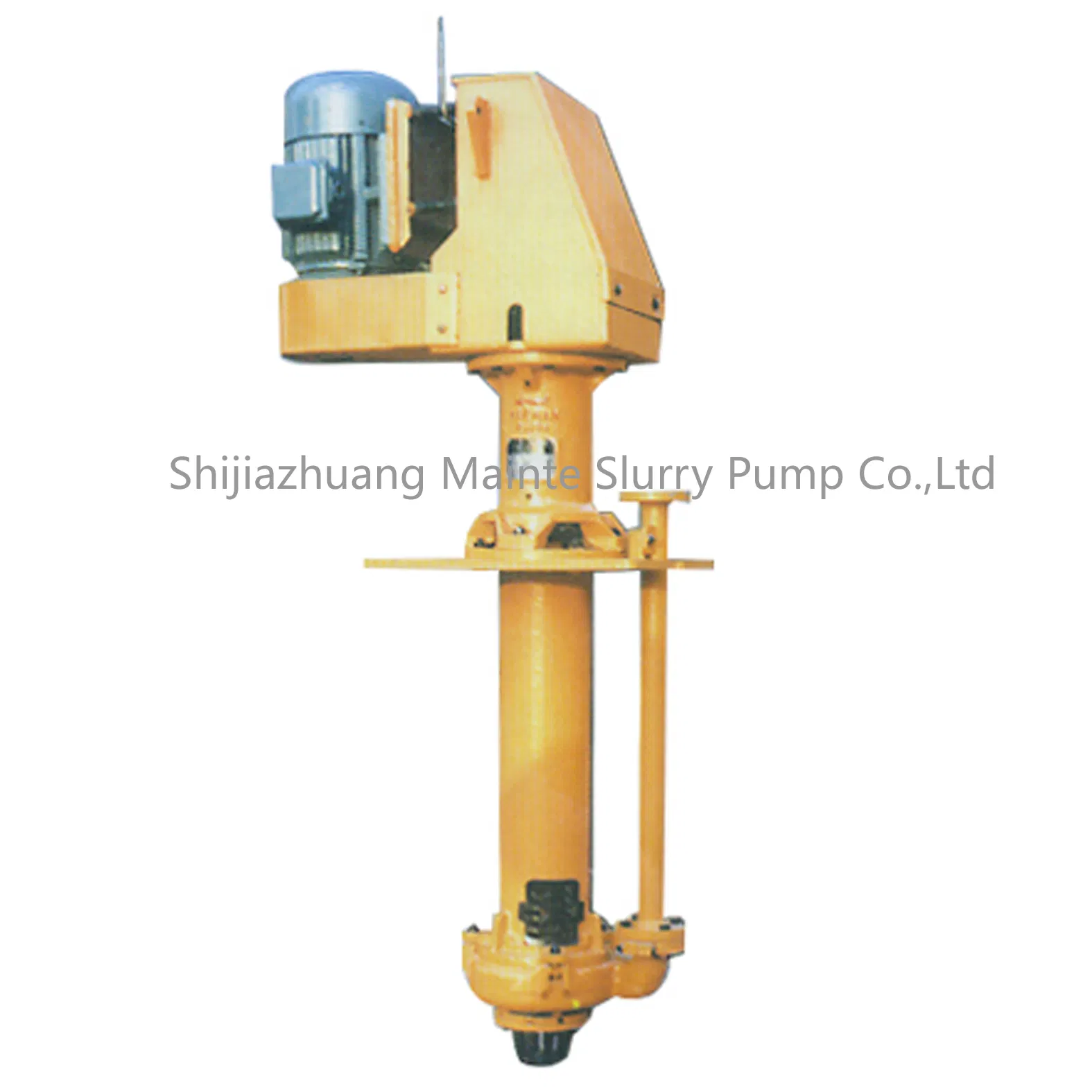

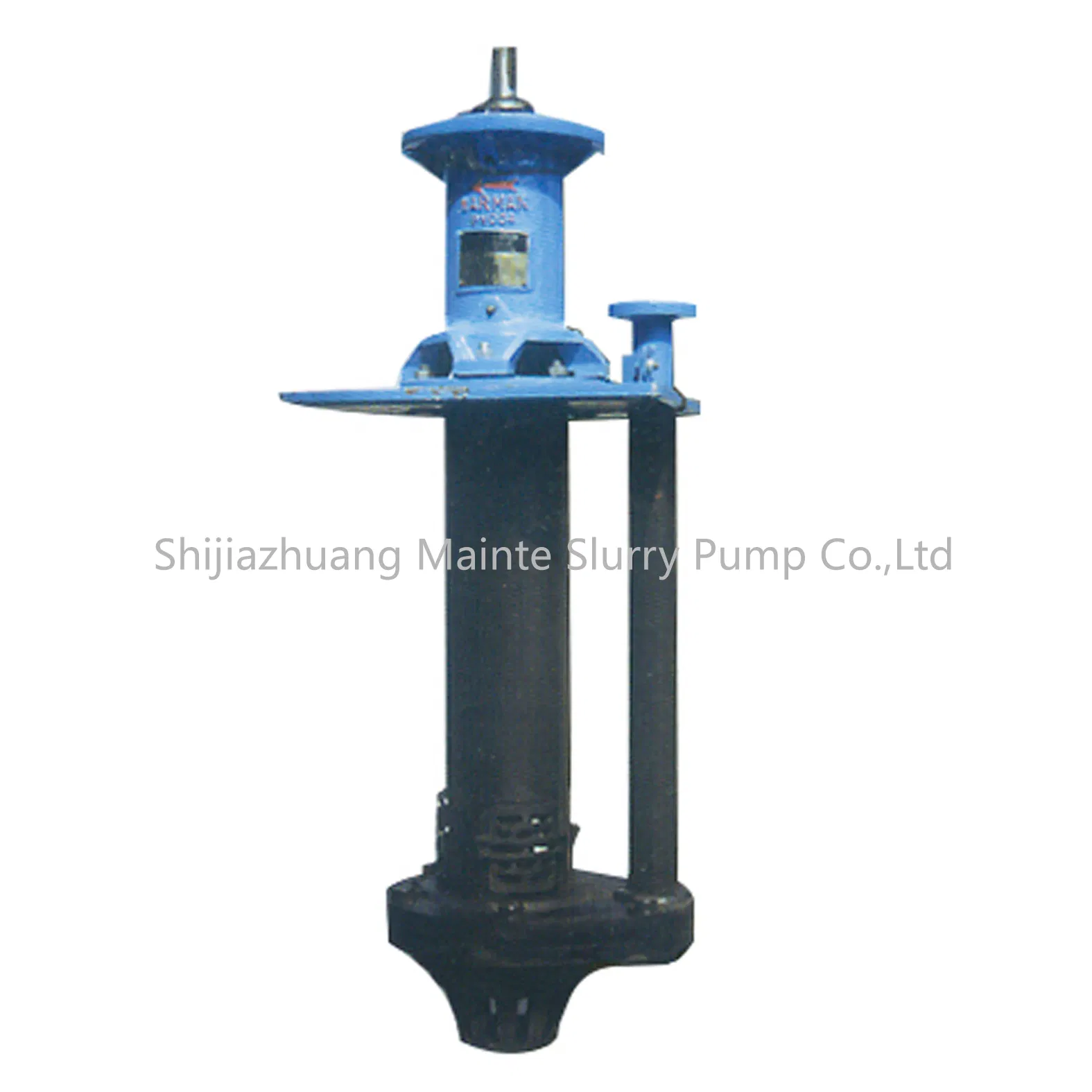

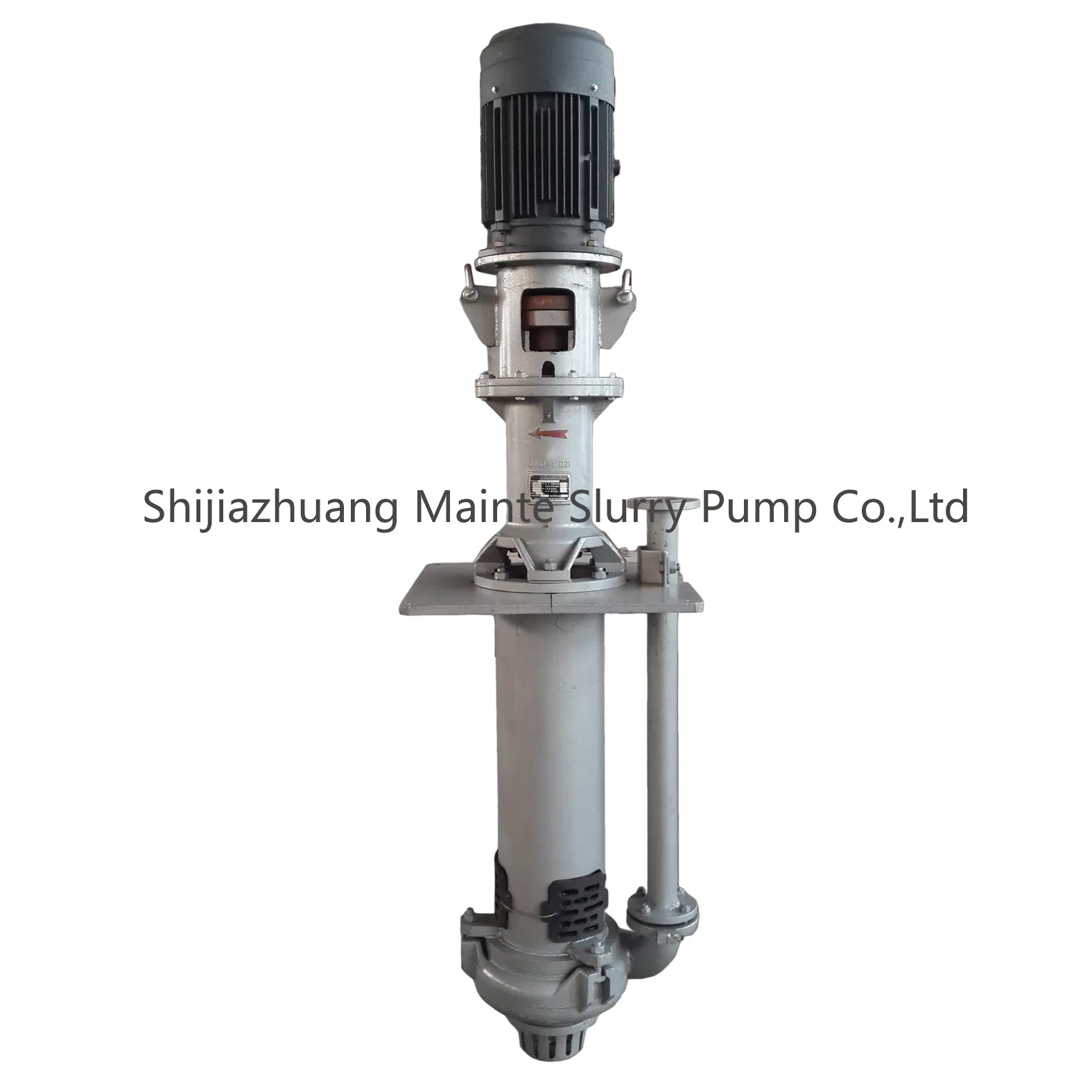

Type SP and SPR pump are vertical, centrifugal slurry pump submerged in sump to work. They are designed for delivering abrasive, large partical and high density slurries. This pump have no need of any shaft seal and sealing water. They can also be operated normally for insufficient suction duties.

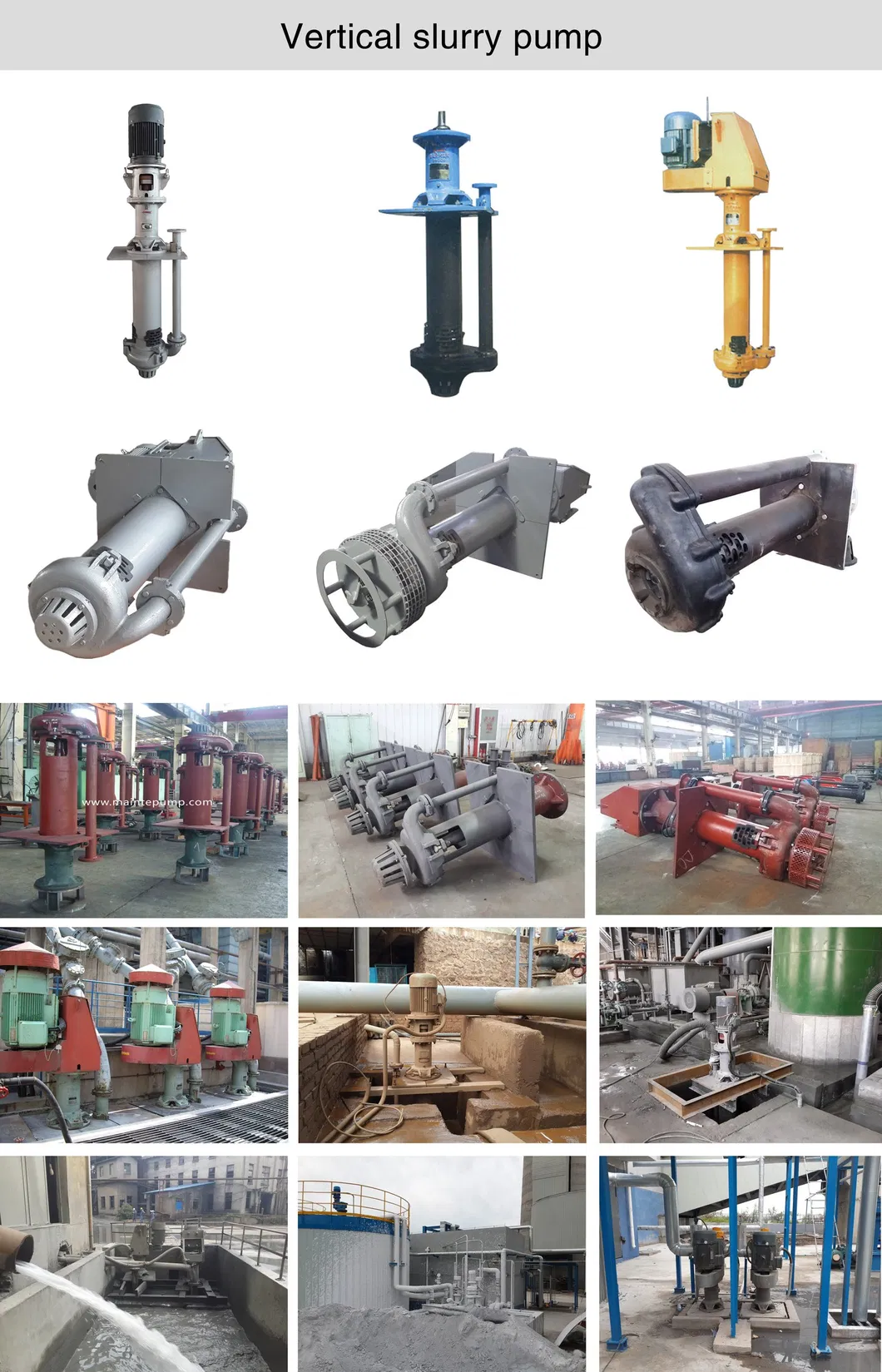

Type SP and SPR vertical pumps are widely used in power plants, steel, mining, metallurgy, building materials, desulfurization and other industries.
Wet parts of are make of abrasion-resistant metal or rubber.

Type Notation
65QV-SP(SPR)
SP(SPR)-----Slurry pump submerged in sump
SP------Metal liner
SPR----Rubber liner
QV-----Frame Type
65-----Outlet Diameter

Construction and feature
Type SP all metal for abrasive duty
Type SPR elastomer protected for acid /abrasive duty

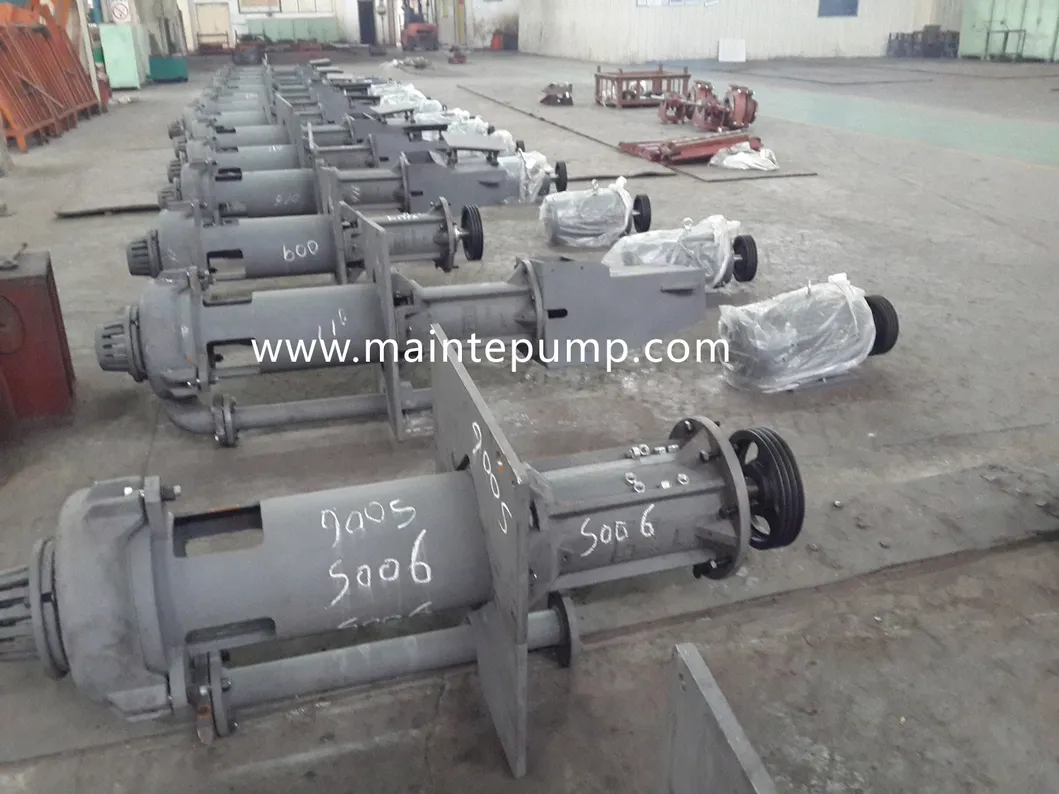

The pump has an extended shaft structure, which is suitable for the working condition of deeper level.
The pump can extend the suction pipe.
The pump can be with agitator.

Type SP and SPR selection performance datasheet

TYPE	Flow (m3/h)	Head (m)	Speed r/min	Standard submerged depth (mm)	allowable particle size (mm)
40PV-SP(R)	10~ 36	4.5~ 30	1000~2200	900	12
65QV-SP(R)	25.2~ 90	5.0~ 31	700~1500	1200	15
100RV-SP(R)	54~216	5.0~ 37	500~1200	1500	32
150SV-SP(R)	180~468	4.0~36	500~1000	1500	45
200SV-SP(R)	252~720	7.2~ 35	400~850	1800	65
250TV-SP	432~980	9.0~ 33	400~750	1800	65
300TV-SP	540~1080	7.0~ 33	350~700	1800	65
350TV-SP	720~1440	8.0~ 32	350~700	1800	75

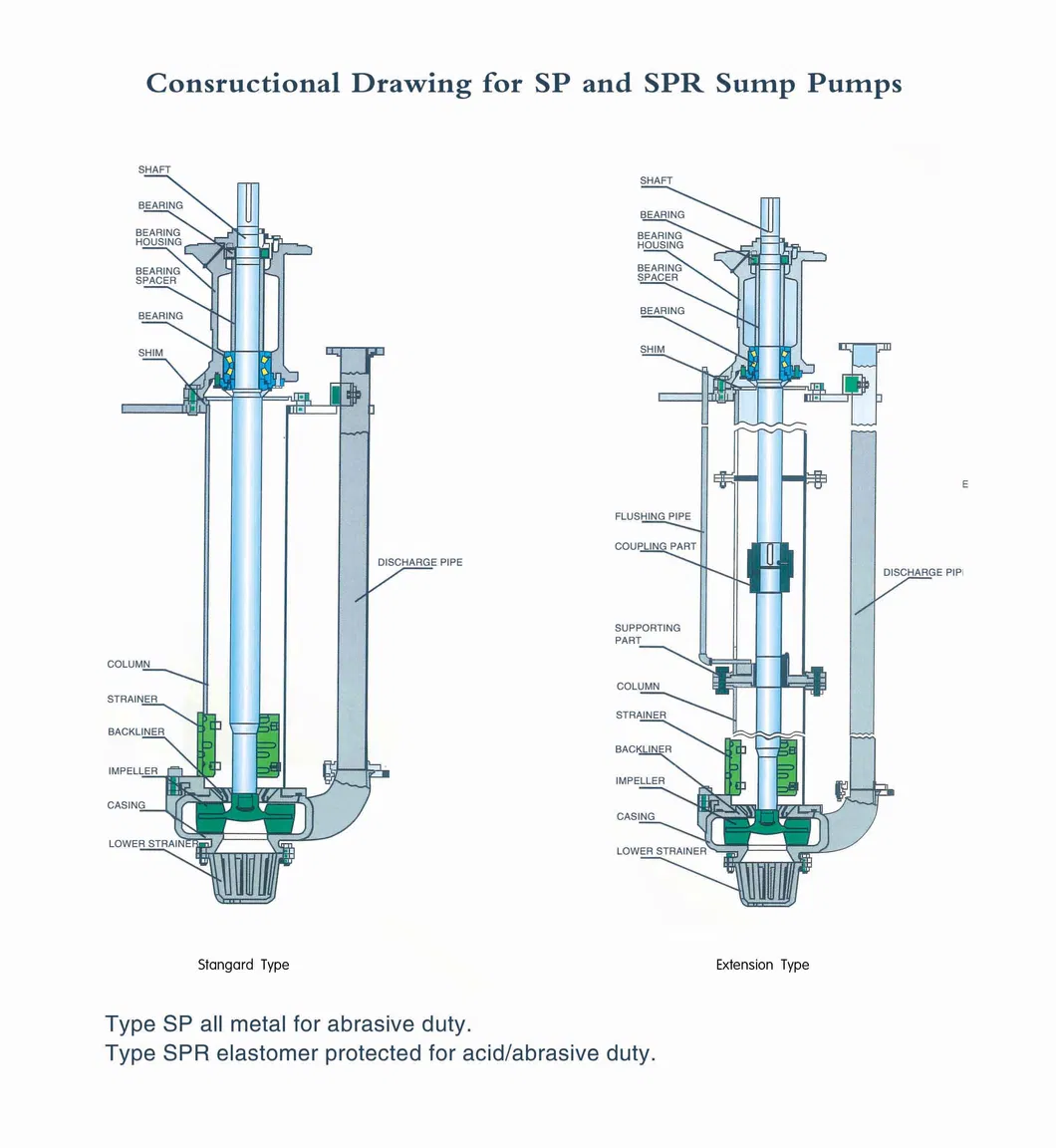

Conxtructure
Vertical Sump Slurry Pump Use Mining Processing

Pump part materials

Material	Code	Specification	HRC	Pump spare parts	Application
Hard metal	A05	High chrome white iron, Cr 25~30%	≥56	Impeller / Liner	Used for higher wear condition with PH between 6 to 12. Such as slurry pump, Dredging pump. Widely used in mine, coal, power plant, dredging, steel, building material.
	A07	High chrome white iron, Cr / Mo alloy.	≥59	Impeller / Liner	Used for higher wear condition with PH between 6 to 12. Such as slurry pump high abrasive. Widely used in mine, coal.
	A49	High chrome, Anti-corrosive Cr/Mo/Ni alloy	≥42	Impeller / Liner	Used for FGD(Gypsum slurry circulating)and other corrosive application.
	A33	High chrome, wear resistant Anti-corrosive Cr,/ Mo/ Ni alloy	≥36	Impeller / Liner	Used for Phosphorus chemical industry, Phosphorus gypsum slurry.

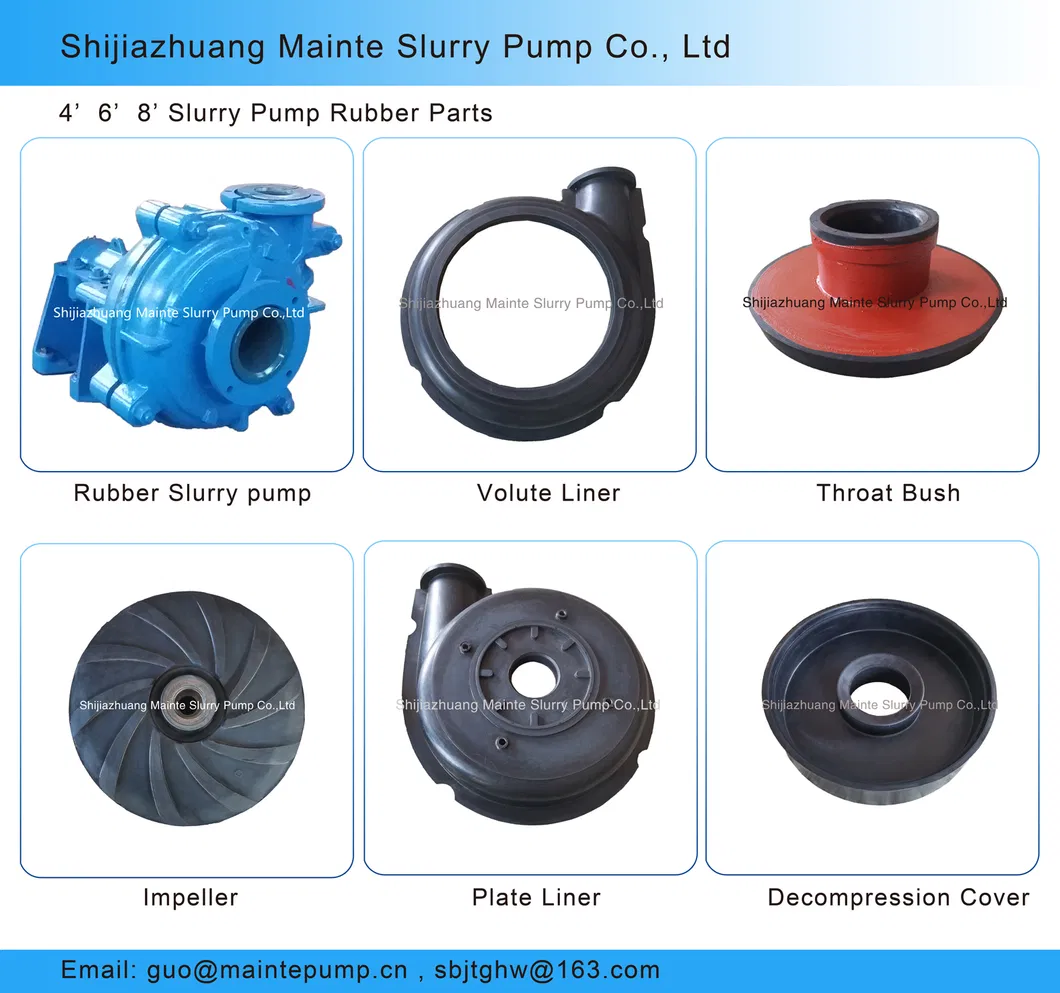

Rubber	R26	Standard liner rubber.	≥43HA	Liner	Have good wear resistance and erosion resistance. Used for pump liner. Maximum particle size ≤10mm. Widely used in slurry pump liner and FGD pump liner.
	R08	Standard impeller rubber.	≥55HA	Impeller	Have good wear resistance and erosion resistance. Used for pump impeller. Widely used in slurry pump impeller. Vertical pump parts.
	R55	Natural rubber	≥46HA	Impeller / Liner	Have cut resistance, sharp slurries. Widely used in slurry pump parts.

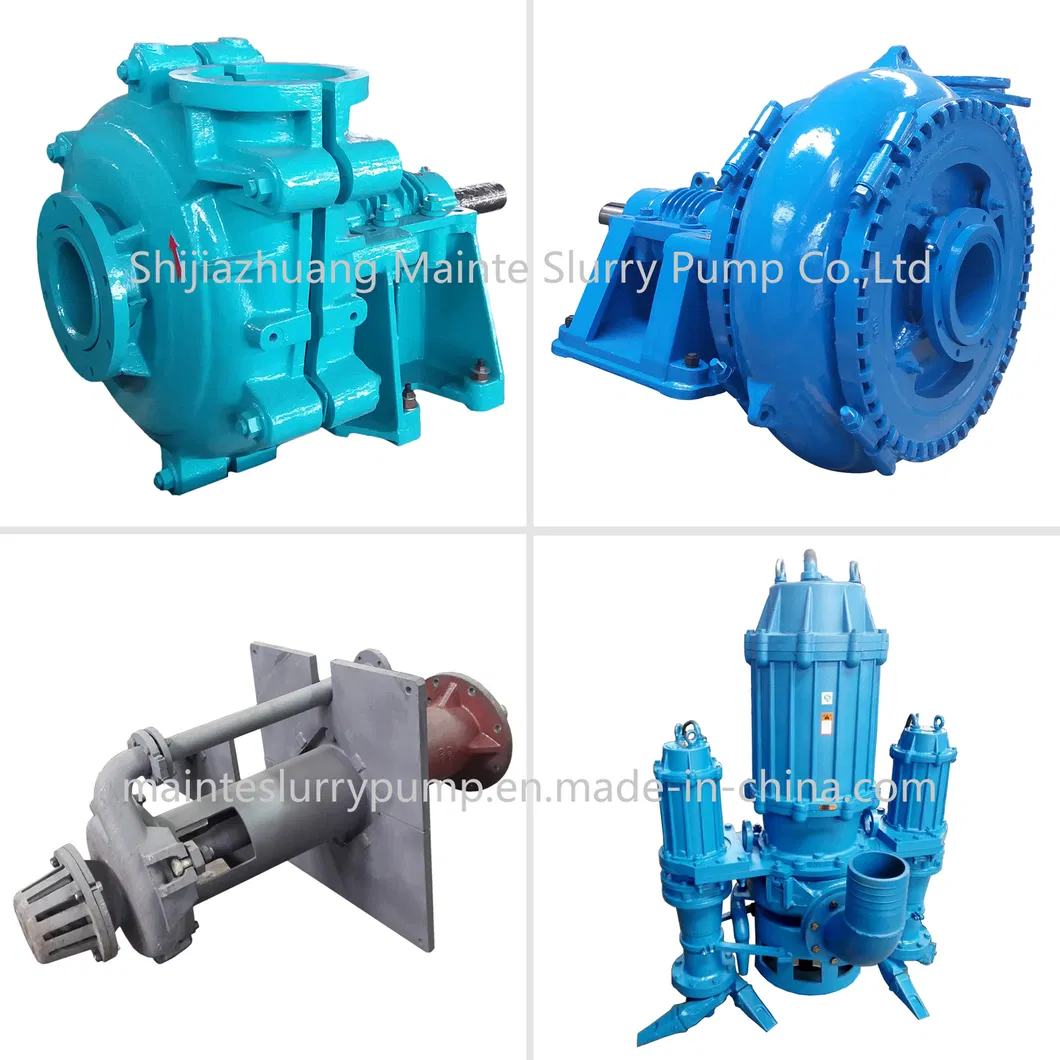

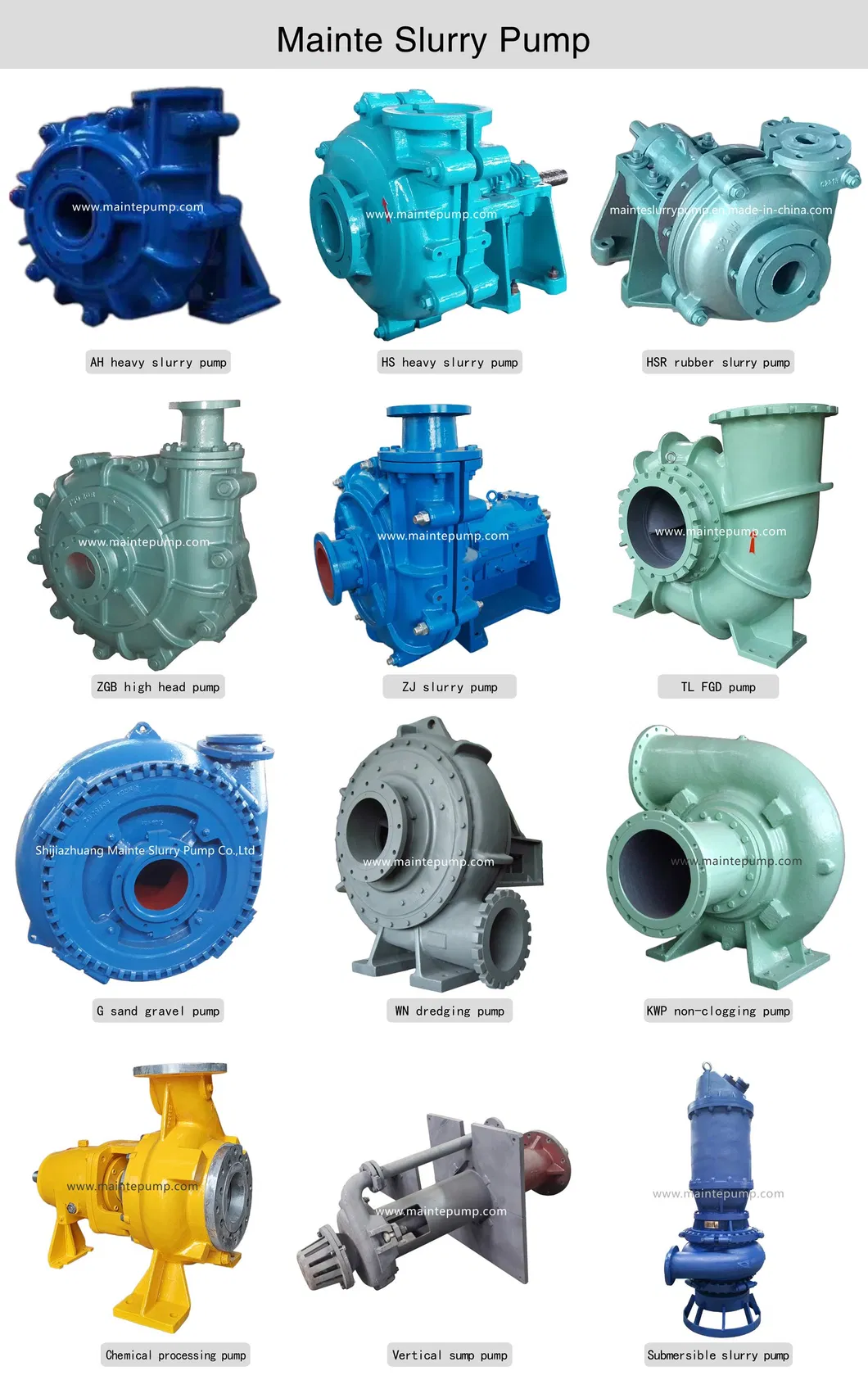

Related products

Vertical Sump Slurry Pump Use Mining Processing

---FAQ---

Q: How to customize pumps and mechanical seals?
A: Customers could send us application data, such as:
Liquid:
Capacity:        m3/hr, Head:          m
Voltage:         V,      Frequency:            Hz
We will select suitable pump and seal type.

Q: How can I pay for my items? What is the payment you can provide?
A: Usually by T/T, 30% down payment once PI confirmed, the balance will be paid after inspection and before shipment. L/C at sight.

Q: How long is warranty?
A: 12 months.

Q: How long is production lead time?
A: Normally 15 working days. If client need urgently, we have a huge spare part stock, we could finish assembly and testing in 10 days.

Q: Can you send the pump to our country?
A: Of course, Please advise destination port or your address.

Q: What is the shipping terms you can provide?
A: Depends on customer's requirements, we can provide different transportation terms, such as EXW, FOB, CIF.
