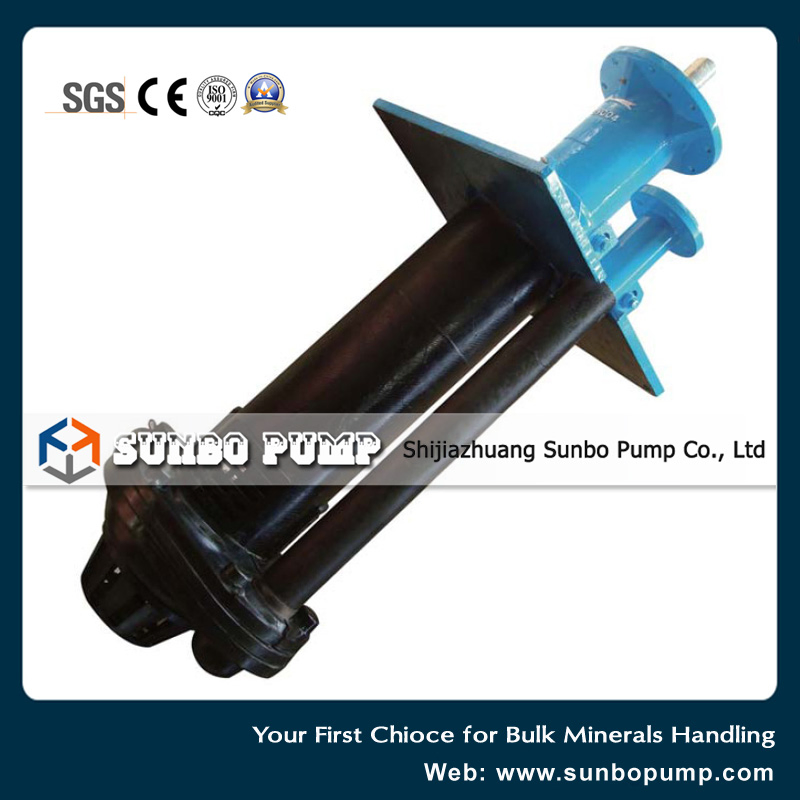

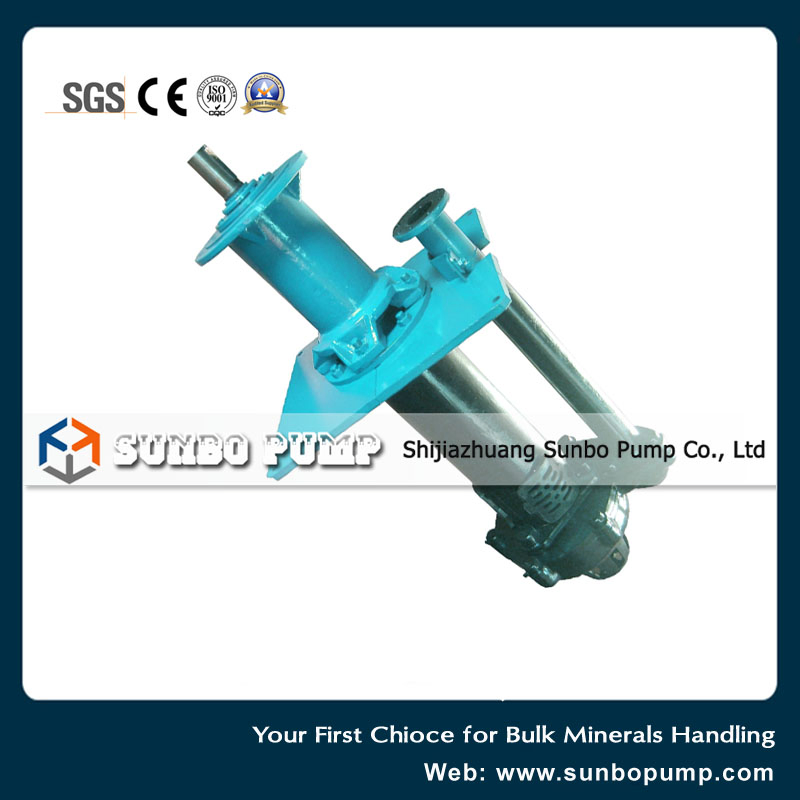

China Vertical Shaft Centrifugal Rubber Lined Sump Pit Slurrypump Sv Type

Product Description

Product Description

SV (R) Series Introduction:
SV(R) series is vertical centrifugal sump slurry pumps, which is designed to be immersed in liquid for conveying abrasive, coarse particles, dirty water and particle contaminated water.

Application:
SV(R) slurry pumps are mainly used for handing corrosive, coarse particles and high density slurries , and are widely used in sewage treatment, metallurgy, mining, mineral processing, dredging, de-watering, water treatment, coal washing, mill, cyclone feed, tailing, power, building material...etc. various industrial sites. For different duties, pump is named as High head pump, High pressure pump, Mineral processing pump, Mill discharge slurry Pump, Booster pump, Feeding pump, Tailing pump,Transfer pump Thickner Underflow Pump, De-watering screen pump, Pressure pump, Concentrate pump

Features:
1. Metal or rubber lined wet parts
2. Double suction semi-open impeller
3. Agitator option keeps solids in suspension
4. Recessed impeller option passes over-sized material

Specification:
D: 40-200 mm
Q: 17-891m³/h
H: 4-37 m

Performance Sheet:

Pump Model	Allowable Max. Power	Clear Water Performance
		Capacity Q		Head H(m)	Speed n(r/min)	Max.Eff. η%	Impeller Dia.
		m3/h	l/s	Head H(m)	Speed n(r/min)	Max.Eff. η%	Impeller Dia.
40PV-SV(R)	15	17-43.2	4.7-12	4-28.5	1000-2200	40	188
65QV-SV(R)	30	18-114	5-32	5-31.5	750-1500	60	280
100RV-SV(R)	75	54-289	15-80	5-36	500-1200	62	370
150SV-SV(R)	110	108-479	30-133	8.5-40	500-1000	52	450
200SV-SV(R)	110	189-891	52.5-247.5	6.5-37	400-850	64	520
250TV-SV(R)	200	360-1152	100-320	7-33	400-750	60	575
300TV-SV(R)	200	540-1548	150-430	5.5-26	350-700	60	580
