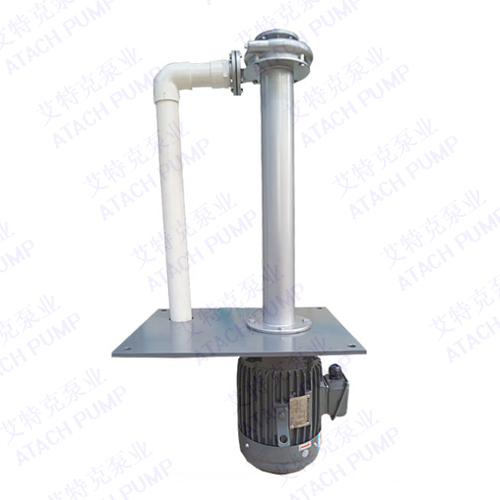

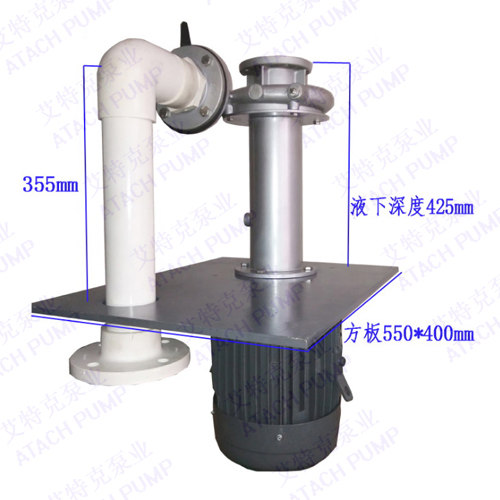

Vertical Centrifugal Chemical Sewage Pump Tsv -B-0565
- Name of pump:Vertical centrifugal chemical sewage pump- Pump Type: Centrifugal Pump- Pump model:TSV-B-0565- Pump brand: ATACH-Installation Type: vertical- Impeller Quantity: 1 pcs- Rated pump capacity: 26 m3/h- Rated pump head: 30 m- Power/speed: 5 HP/2900 r.p.m- Power supply: 3 phase/380V/50HZ(al......
Send Inquiry
Product Description
- Name of pump:Vertical centrifugal chemical sewage pump
- Pump Type: Centrifugal Pump
- Pump model:TSV-B-0565
- Pump brand: ATACH
-Installation Type: vertical
- Impeller Quantity: 1 pcs
- Rated pump capacity: 26 m3/h
- Rated pump head: 30 m
- Power/speed: 5 HP/2900 r.p.m
- Power supply: 3 phase/380V/50HZ
(also supply special voltage,special frequency, explosion-proof motor, High efficiency and energy saving motor )
- Material Supply: SUS304,SUS316,SUS316L
- Shaft Seal: /
- Inlet / outlet : 65mm*65mm

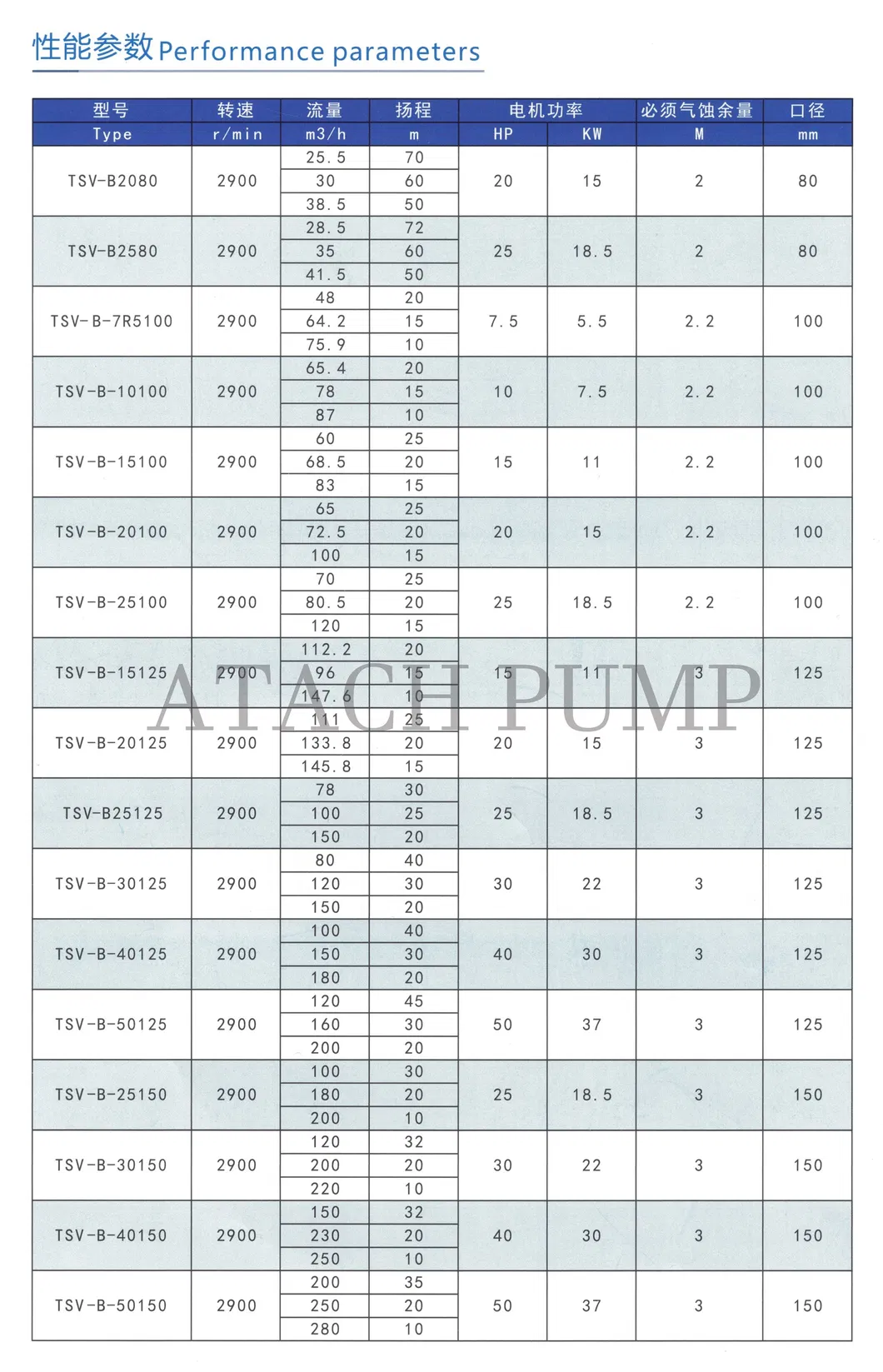

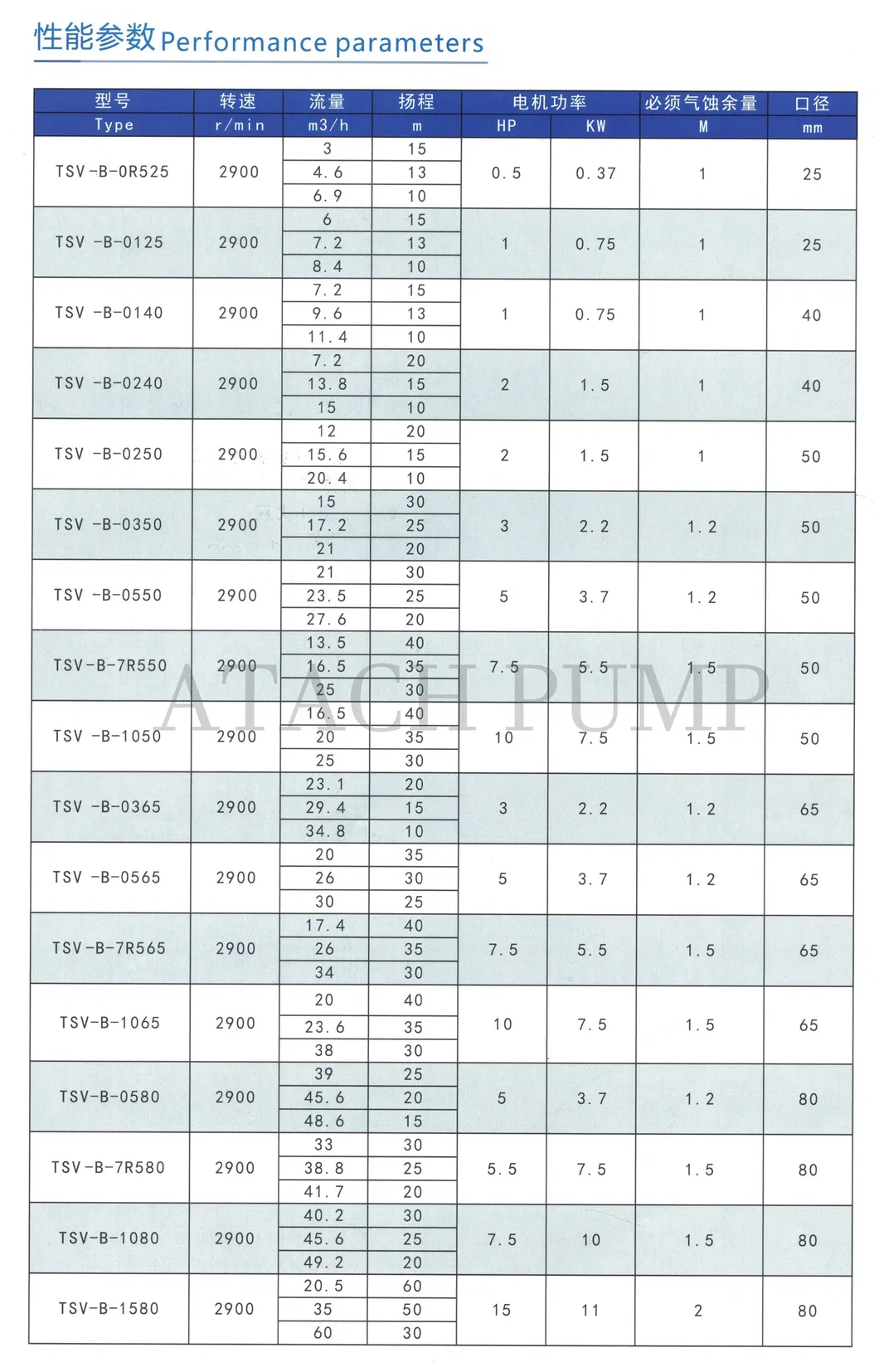

If you need other specifications or parameters of TSV series submerged pump, please contact us in detail.
