Sv Series Spindle Vertical Centrifugal Sump Pump for Pit Sewage Water

Product Description

SV Series Spindle Vertical Centrifugal Sump Pump for Pit Sewage Water

SV Series Gravel Pump SV vertical slurry pump for slurry

The vertical centrifugal slurry pumps are designed to be immersed in liquid for conveying abrasive, coarse particles, dirty water and particle contaminated water.

Due to the design of the pump assembly, a shaft seal is not required and the pump can be operated in conditions that most pumps would have a low service life and their seal arrangement would not be effective.

Features:
1. Metal or rubber lined wet parts
2. Double suction semi-open impeller
3. Agitator option keeps solids in suspension
4. Recessed impeller option passes over-sized material

Specification:
D: 40-200 mm
Q: 17-891m³/h
H: 4-37 m

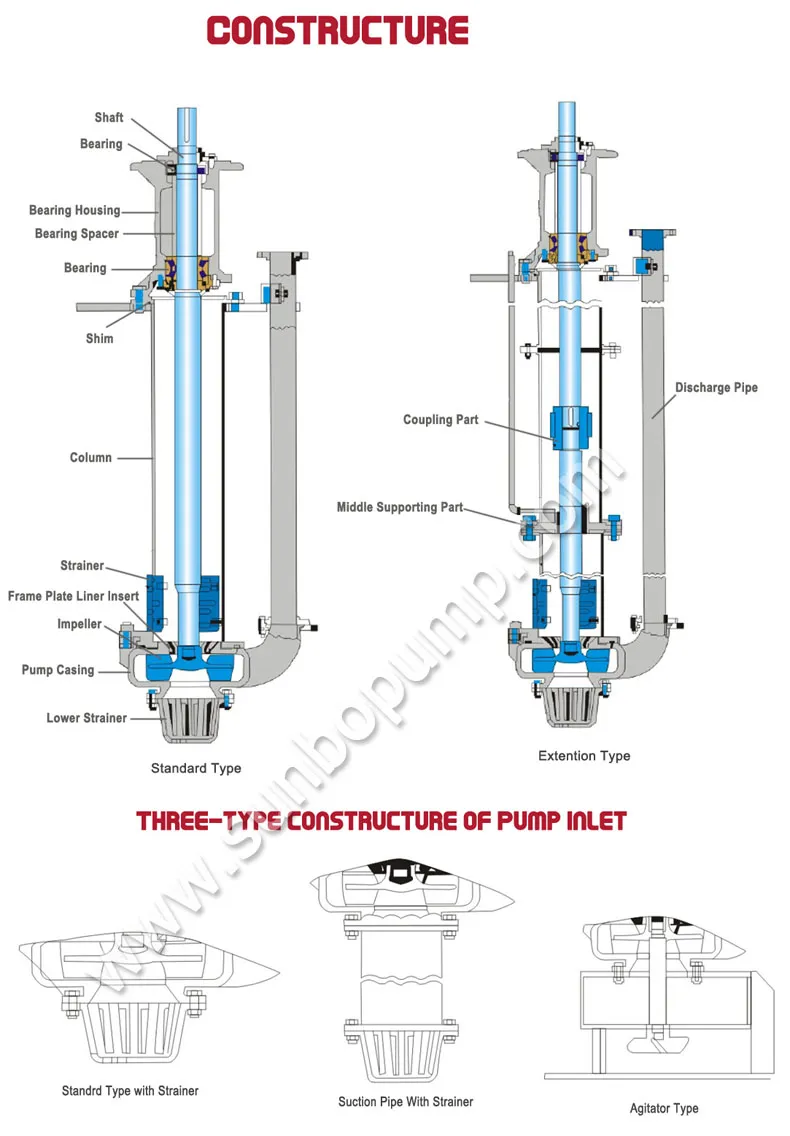

Pump Structure:
100RV Centrifugal Vertical Sump Slurry Pump for Mining & Mineral Processing

100RV Centrifugal Vertical Sump Slurry Pump for Mining & Mineral Processing

Performance Sheet:

Pump Model	Allowable Max. Power	Clear Water Performance
		Capacity Q		Head H(m)	Speed n(r/min)	Max.Eff. η%	Impeller Dia.
		m3/h	l/s	Head H(m)	Speed n(r/min)	Max.Eff. η%	Impeller Dia.
40PV-SV(R)	15	17-43.2	4.7-12	4-28.5	1000-2200	40	188
65QV-SV(R)	30	18-114	5-32	5-31.5	750-1500	60	280
100RV-SV(R)	75	54-289	15-80	5-36	500-1200	62	370
150SV-SV(R)	110	108-479	30-133	8.5-40	500-1000	52	450
200SV-SV(R)	110	189-891	52.5-247.5	6.5-37	400-850	64	520
250TV-SV(R)	200	360-1152	100-320	7-33	400-750	60	575
300TV-SV(R)	200	540-1548	150-430	5.5-26	350-700	60	580

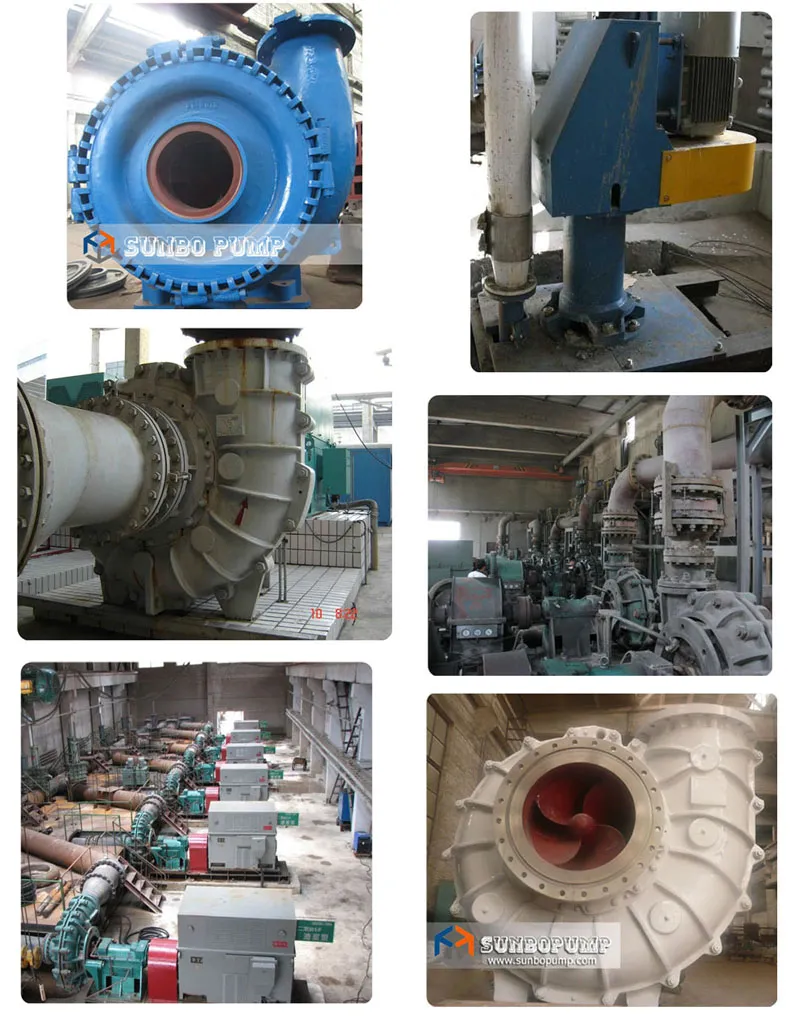

Application:
SV(R) slurry pumps are mainly used for handing corrosive, coarse particles and high density slurries , and are widely used in sewage treatment, metallurgy, mining, mineral processing, dredging, de-watering, water treatment, coal washing, mill, cyclone feed, tailing, power, building material...etc. various industrial sites. For different duties, pump is named as High head pump, High pressure pump, Mineral processing pump, Mill discharge slurry Pump, Booster pump, Feeding pump, Tailing pump,Transfer pump Thickner Underflow Pump, De-watering screen pump, Pressure pump, Concentrate pump
