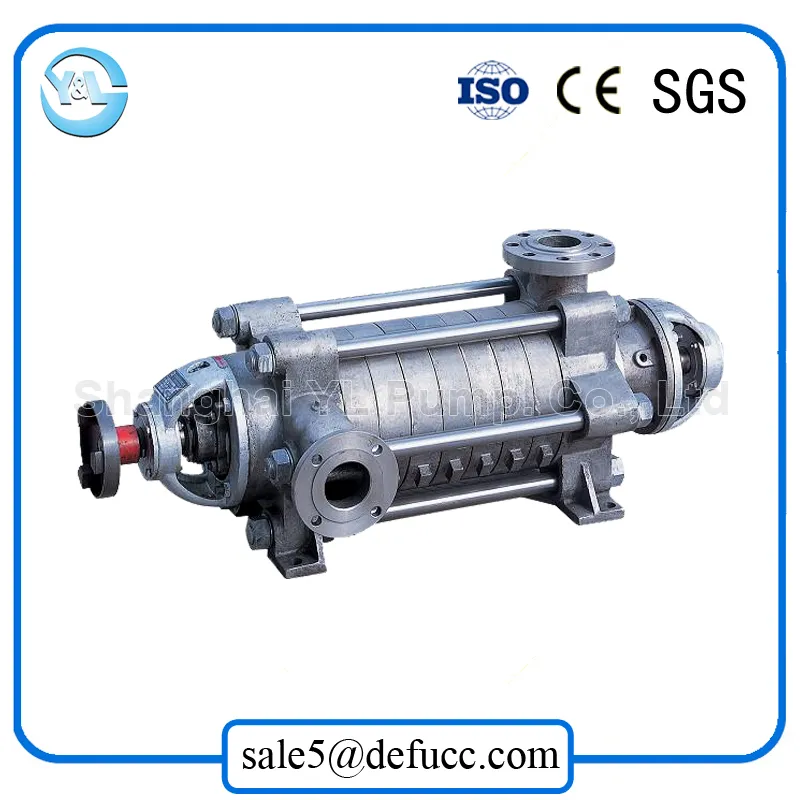

China Ss316 Multi-Stage Electric Motor Corrosive Liquid Pump

Product Description

SS316 Multi-stage Electric Motor Corrosive Liquid Pump

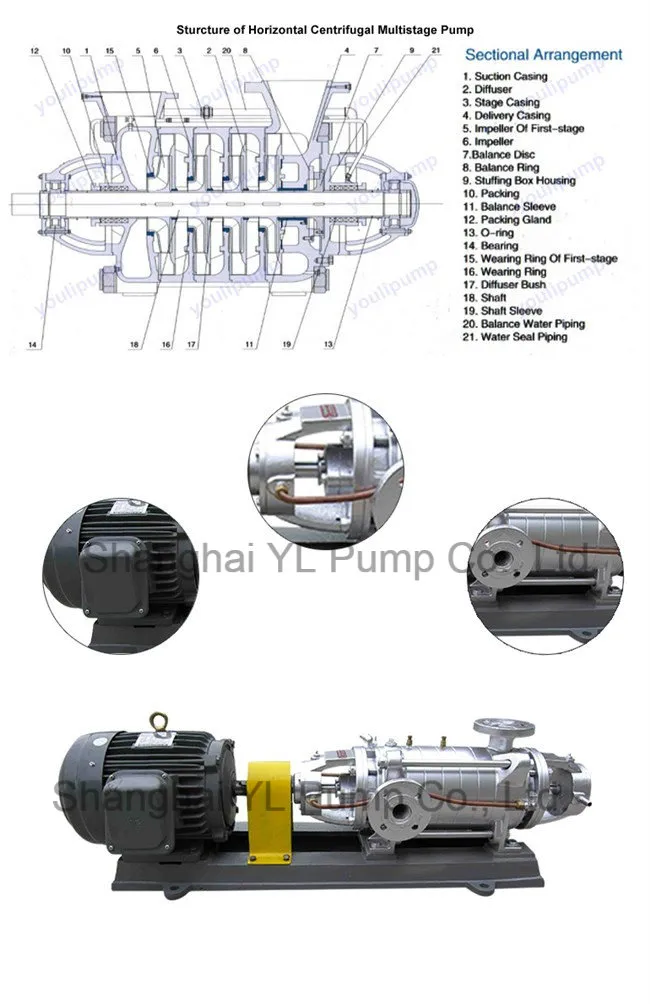

Structure
Ss316 Multi-Stage Electric Motor Corrosive Liquid Pump

The multistage centrifugal pump is driven by electric motor. The head of pump will higher because of the stage added. Our pump is applicable to deliver those fluid without solid, particles or any other suspended stuff, water for instance.

Specification

D(DF,DY,MD)155-67×(2-9)
Stage	Capacity		Head	Rating Speed	Efficiency	Shaft power	NPSHr	Impeller Dia	Pump Weight
	Capacity		Head	Rating Speed	Efficiency	Shaft power	NPSHr	Impeller Dia	Pump Weight
	m3/h	L/s	m	r/min	%	KW	m	mm	kg
2	100	27.8	152	2950	64	64.7	3.2	φ235	432
	155	43.1	134		74	76.5	5.0
	185	51.4	118		72	82.6	6.6
3	100	27.8	228	2950	64	97.0	3.2	φ235	502
	155	43.1	201		74	114.7	5.0
	185	51.4	177		72	123.9	6.6
4	100	27.8	304	2950	64	129.4	3.2	φ235	572
	155	43.1	268		74	152.9	5.0
	185	51.4	236		72	165.1	6.6
5	100	27.8	380	2950	64	161.7	3.2	φ235	642
	155	43.1	335		74	191.2	5.0
	185	51.4	295		72	206.4	6.6
6	100	27.8	456	2950	64	194.0	3.2	φ235	712
	155	43.1	402		74	229.5	5.0
	185	51.4	354		72	247.7	6.6
7	100	27.8	532	2950	64	226.4	3.2	φ235	782
	155	43.1	469		74	267.7	5.0
	185	51.4	413		72	288.9	6.6
8	100	27.8	608	2950	64	258.8	3.2	φ235	852
	155	43.1	536		74	305.9	5.0
	185	51.4	472		72	330.2	6.6
9	100	27.8	684	2950	64	291.1	3.2	φ235	922
	155	43.1	603		74	344.2	5.0
	185	51.4	531		72	371.5	6.6

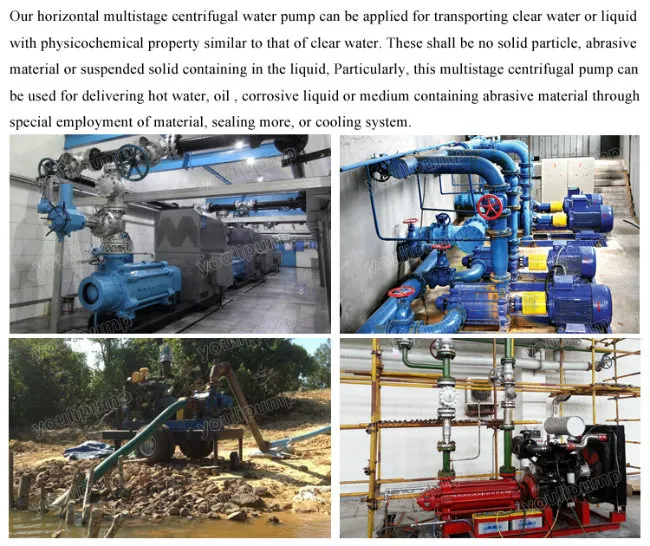

Application Ss316 Multi-Stage Electric Motor Corrosive Liquid Pump

Our Client
Ss316 Multi-Stage Electric Motor Corrosive Liquid Pump

Our Service
1.Delivery: Delivery time will be on time as the contact. Usually, the delivery time is of centrifugal pump is for 15-25 working days.
2.Warranty: 1 year for the pump body, 3 months for the main working parts.
3.Package:According to your quantity, we use plywood case which is durable for ocean transport.
4.Shipping: By Sea and By Air
5.Payment: We are accept T/T,L/C,West Union and so on.
6.Pre-sales Service:According to your requirement, we will give your our profession advice of pump solution.
7.On-sales Service:We will clearly show you everything in fact when you place an order with us. We will takes photos or videos to show you order production situation.
8.After-sales Service: We will full report you the production progress and plan. Meanwhile, we will follow up the pump working conditions per three months when the pumps put into use, and can send the spare parts to you within one week if you need.

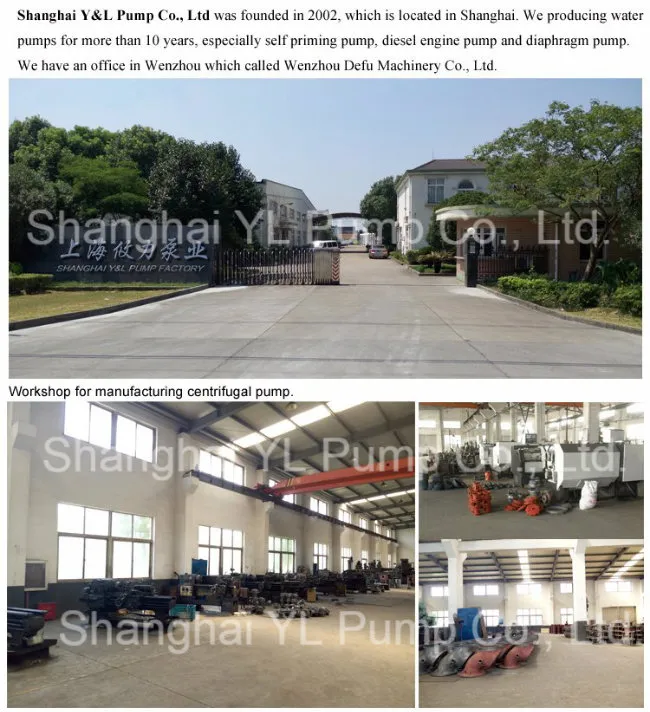

About Us
Ss316 Multi-Stage Electric Motor Corrosive Liquid Pump
