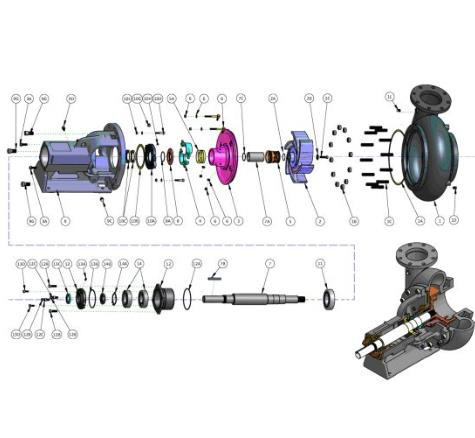

Structure Chart of Mission Centrifugal PumpSpare Parts of Mission Centrifugal PumpItemDescriptionP/NQtyMaterial1*Pump shellSee below table1Hard Iron1ASeal washer for pump shell10399-46-11Vellumoid1BTightening nut for pump shell 3/43932-6112Stl1CTightening nut for pump shell 3/4×853862-7612......
Send Inquiry
Product Description
Structure Chart of Mission Centrifugal Pump
Spare Parts of Mission Centrifugal Pump
Why Choose Us
1) Experience in casting for over 15 years and served customers all around the world.
2) Standard material according to technical drawing
3)Stable quality
4) On-time delivery
5) Competitive price and good service
6) Positive customer feedback from domestic and international market
7) International advanced-level equipment
8) OEM service, your demand is our pursued.
9) ISO9001:2008 and TS16949 quality control
10) Standard: ASTM BS DIN etc
FAQ
1. What are the main materials of your products?
We are focused on casting and processing of grey iron and ductile iron products.
2. What is your MOQ?
We will arrange production based on your drawings and deliver your products as per your requirements. We will do our best to meet your demands.
3. What is your main equipment?
Our casting equipment is brought from Japan. They mainly include: FBO auto molding lines, sand lines, cleaning lines, vertical and horizontal machining centers and CNC machining center.
4. Do you make the molds by yourself?
We are facilitated with advanced mold making equipment and CNC processing machining center. Therefore, we can make molds independently.
5. What are your advantages?
1) Professional staff
2) 24 years of casting experience
3) Rigorous quality control system
4) On-time delivery rate is over 98%

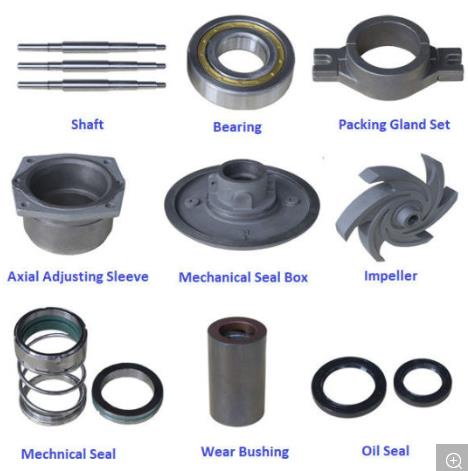

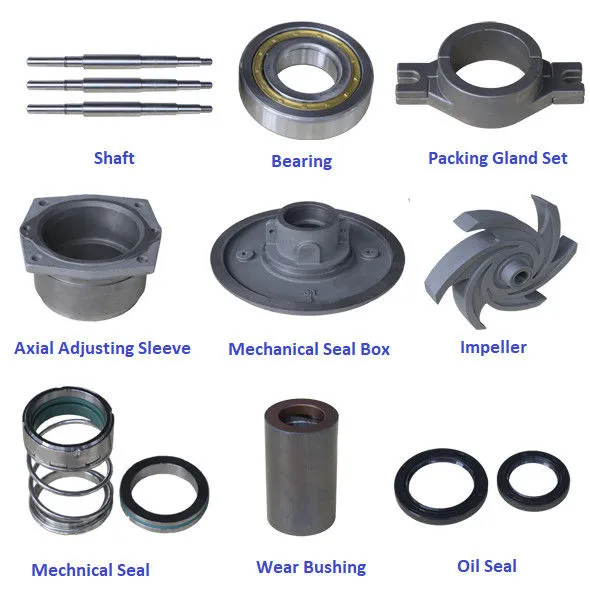

Spare Parts of Mission Centrifugal Pump
| Item | Description | P/N | Qty | Material |
| 1* | Pump shell | See below table | 1 | Hard Iron |

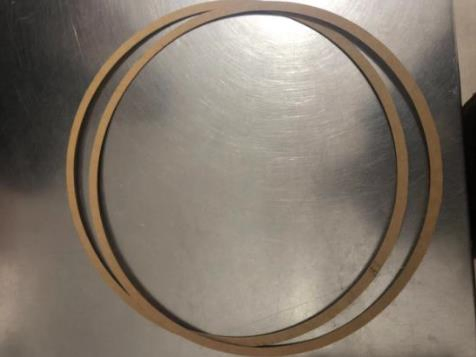

| 1A | Seal washer for pump shell | 10399-46-1 | 1 | Vellumoid |
| 1B | Tightening nut for pump shell 3/4 | 3932-61 | 12 | Stl |
| 1C | Tightening nut for pump shell 3/4×85 | 3862-76 | 12 | Stl |
| 1D | Square head plug 3/8 | 8505-04-01 | 1 | Stl |
| 1E | Square head plug 1/2 | 8505-04-01 | 1 | Iron |

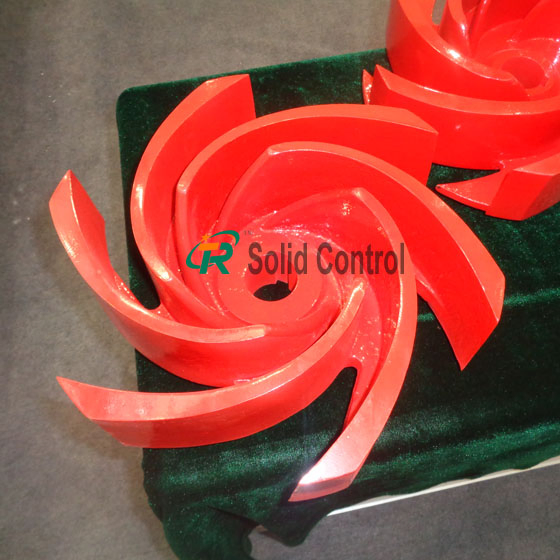

| 2* | Impeller | See below table | 1 | Iron |
| 2A | O-ring 46.2×1.8 | 19110-72 | 1 | Viton |
| 2B | Lock washer for impeller | 1 | Stl | |
| 2C | Lock wahser for impeller | 1 | Stl | |
| 3* | Mechanical seal box | 22223-01-30 | 1 | Hard Iron |
| 3* | Packing seal box | 20614-01-30 | 1 | Hard Iron |
| 3A | Tightening nut for mechanical seal box | 3861-117 | 2 | Stl |
| 4 | Packing pressing bush | 20622A | 1 | Bronze |
| 5 | Mechanical seal | 22451-1 | 1 | Tungsten Carbide |
| 5A | Packing 12×12 | 25014-04M-B | 3 | Kevlar |
| 6 | L bolt assembly | B3701A | 2 | Stl |
| 7 | Shaft | 20612-02-33 | 1 | AISI 4140 |
| 7A | Wear bushing(Mechanical seal) | 20943-21 | 1 | AISI E7140 |
| 7A | Wear bushung (Packing seal) | 20613-21G-7A | 1 | AISI E7140 |
| 7B | Key | 4372-5-21 | 1 | 416SS |
| 7C | O-ring 51.5×2.65 | 23444-01-72 | 1 | |
| 8 | Water retaining ring | 22210-1A | 1 | Bronze |
| 8A | O-ring 63×2.65 | 1 | ||
| 9 | Bearing base | 20618-12-1 | 1 | Cast Iron |
| 9A | ||||
| 9B | ||||
| 9C | Square head plug 1/2 | 8505-05 | 1 | Iron |
| 9D | Breathing mouth | 8267-01 | 1 | Stl |
| 9E | ||||
| 9F | ||||
| 9G | Detrusion bolt for pump shell | 2538-1A | 3 | Stl |
| 10A | Inside bearing cover | 20626 | 1 | Iron |
| 10B | Seal washer for inside bearing cover | 20625 | 1 | Vefetable Fiber |
| 10C | Oil seal | 20619-01 | 2 | Buna-n |
| 10D | Bolt for inside bearing cover | 3861-1 | 2 | Stl |
| 10E | Nut for inside bearing cover | 3932-2 | 2 | Stl |
| 10F | ||||
| 10G | Alemite fitting NPT1/8 | 21641-01 | 1 | Stl |
| 11 | Inside bearing NUP313E | N/A | 1 | Vendor |
| 12 | Axial adjustment collar | 20624-01-01 | 1 | Iron |
| 12A | O-ring 140×3.55 | 7496-253 | 1 | Buna-n |
| 12B | Nut for axial adjustment collar | 3861-138 | 4 | Stl |
| 12C | Detrusion nut for axial adjustment collar | 3932-62 | 2 | Stl |
| 13 | Outside bearing | 20617-01-01 | 1 | Stl |
| 13A | Alemite fitting NPT1/8 | 1 | Stl | |
| 13B | O-ring 120×3.55 | 7496-26 | 1 | Buna-n |
| 13C | Oil seal 47.63×69.85×9.525 | 20619-02 | 1 | Buna-n |
| 13D | Bolt for outside bearing cover | 3861-139 | 2 | Stl |
| 14 | Bearing 7311B/DB | N/A | 1 | Vendor |
| 14A | Lock wahser | 6124-4 | 1 | Stl |
| 14B | Lock nut | 6123-4 | 1 | Stl |
| 1* | Pump case,3×2×13 | 19203-01-30A | 1 | Hard Iron |
| 1* | Pump case,4×3×13 | 19205-01-30A | 1 | Hard Iron |
| 1* | Pump case,5×4×11 | 19222-01-30A | 1 | Hard Iron |
| 1* | Pump case,6×5×11 | 19122-01-30A | 1 | Hard Iron |
| 1* | Pump case,6×5×14 | 19123-01-30A | 1 | Hard Iron |
| 1* | Pump case,8×6×11 | 19763-01-30A | 1 | Hard Iron |
| 1* | Pump case,8×6×14 | 19117-01-30A | 1 | Hard Iron |
| 1* | Pump case,10×8×14 | 20937-01-30A | 1 | Hard Iron |
| 2* | Impeller for pump,3×2×13 | 19204-XX-30 | 1 | Hard Iron |
| 2* | Impeller for pump,4×3×13 | 19206-XX-30 | 1 | Hard Iron |
| 2* | Impeller for pump,5×4×11 | 19224-XX-30 | 1 | Hard Iron |
| 2* | Impeller for pump,6×5×11 | 19121-XX-30 | 1 | Hard Iron |
| 2* | Impeller for pump,6×5×14 | 19121-XX-30 | 1 | Hard Iron |
| 2* | Impeller for pump,8×6×11 | 19121-XX-30 | 1 | Hard Iron |
| 2* | Impeller for pump,8×6×14 | 19116-XX-30 | 1 | Hard Iron |
| 2* | Impeller for pump,10×8×14 | 21867-XX-30 | 1 | Hard Iron |
| xx or A0 - Impeller code - First is equal to the integer of impeller diameter(inch) - 4. Thus 10 =6,9=5,8=4,etc...14 Use alphabet A. | ||||
| Second X is the magnification of 1/8.Thus 1/8=1,1/4=2,1/2=4,etc...thus a impeller code of 10.5 is 64,impeller code of 12 is 80, impeller code of 13.25 is 92 etc. | ||||
