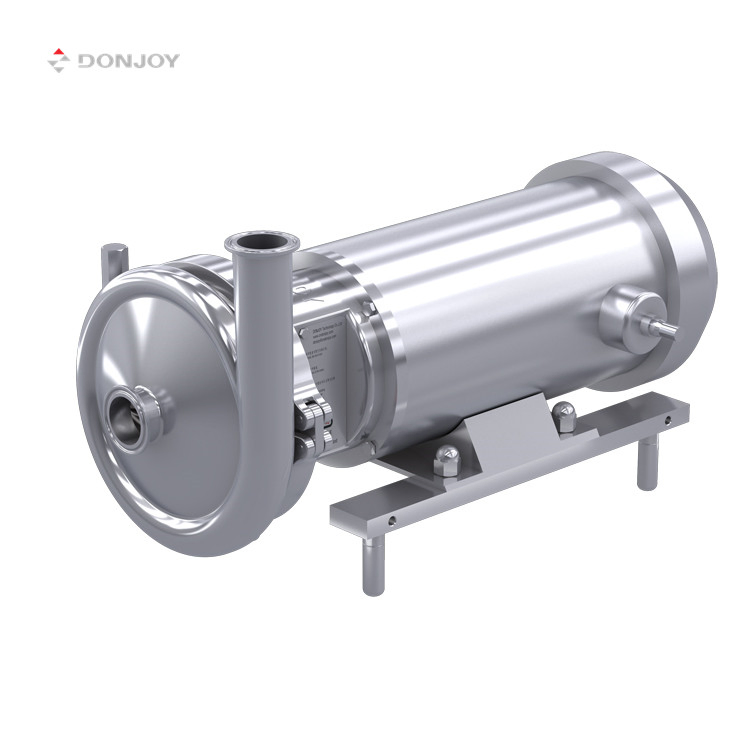

Slx Series Single Mechanical Seal Open Impeller Pump Whole Stainless Steel

SLX Series Single Mechanical Seal Open Impeller Pump Whole Stainless Steel

The pump is foraged and with stainless steel motor cover. With sanitary and cost-effective design,
it is ideal for dairy, beverage, food processing, pharmaceutical and fine chemical industries.

Impeller Type
Open impeller and Close impeller

Parameter
Max. Flow: 150 m3/h
Max. Lift: 70H(m)
Max. Pessure: 7bar/99PSI
Max. Temperature: 150C/248. F
Max. Speed: 3600 min-1

Configuration

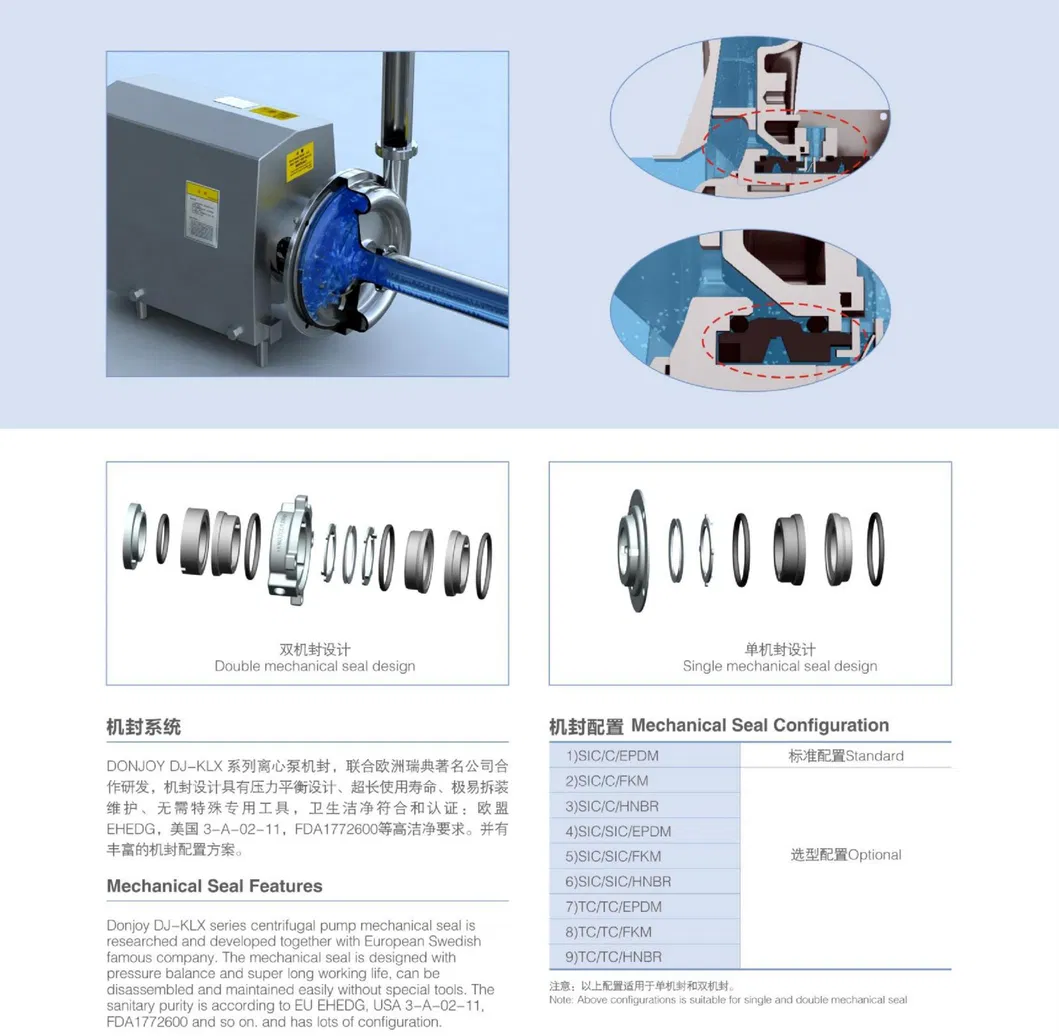

Mechanical seal in C/SIC and SIC/SIC single or double
Gaskets (standard): EPDM (FDA approval)

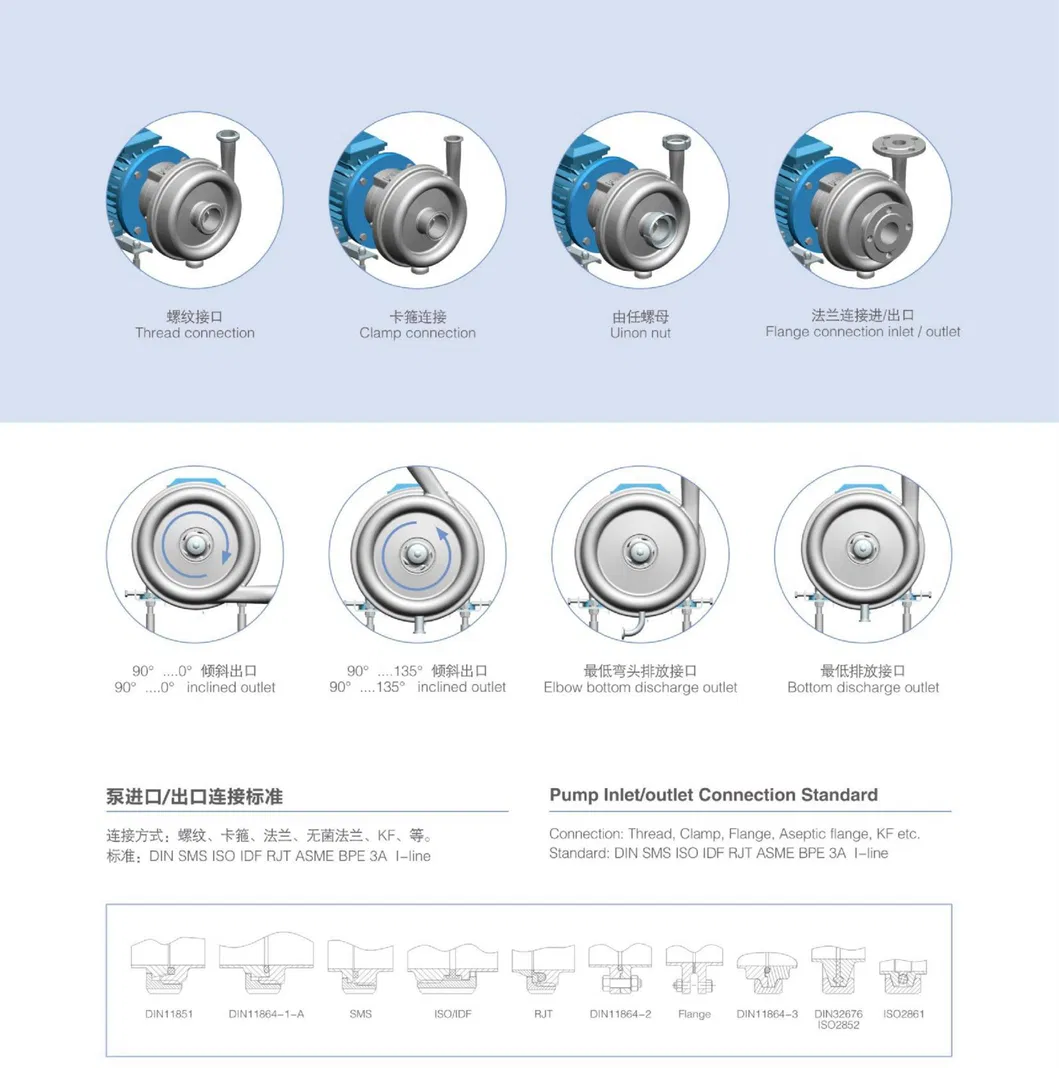

Connections: Clamped, male, flanged, DIN, SMS, RJT, IDF
Motor: 2900, 1450, 3600 rev. /min., 50HZ, 60HZ
Parts in contact with media: AISI 316L/AISI304 (Other parts AISI 304)

Surface Treatment
Inside surface finishing: Ra≤ 0.8 um
Outside surface finishing: Sandblast or Mirror polished

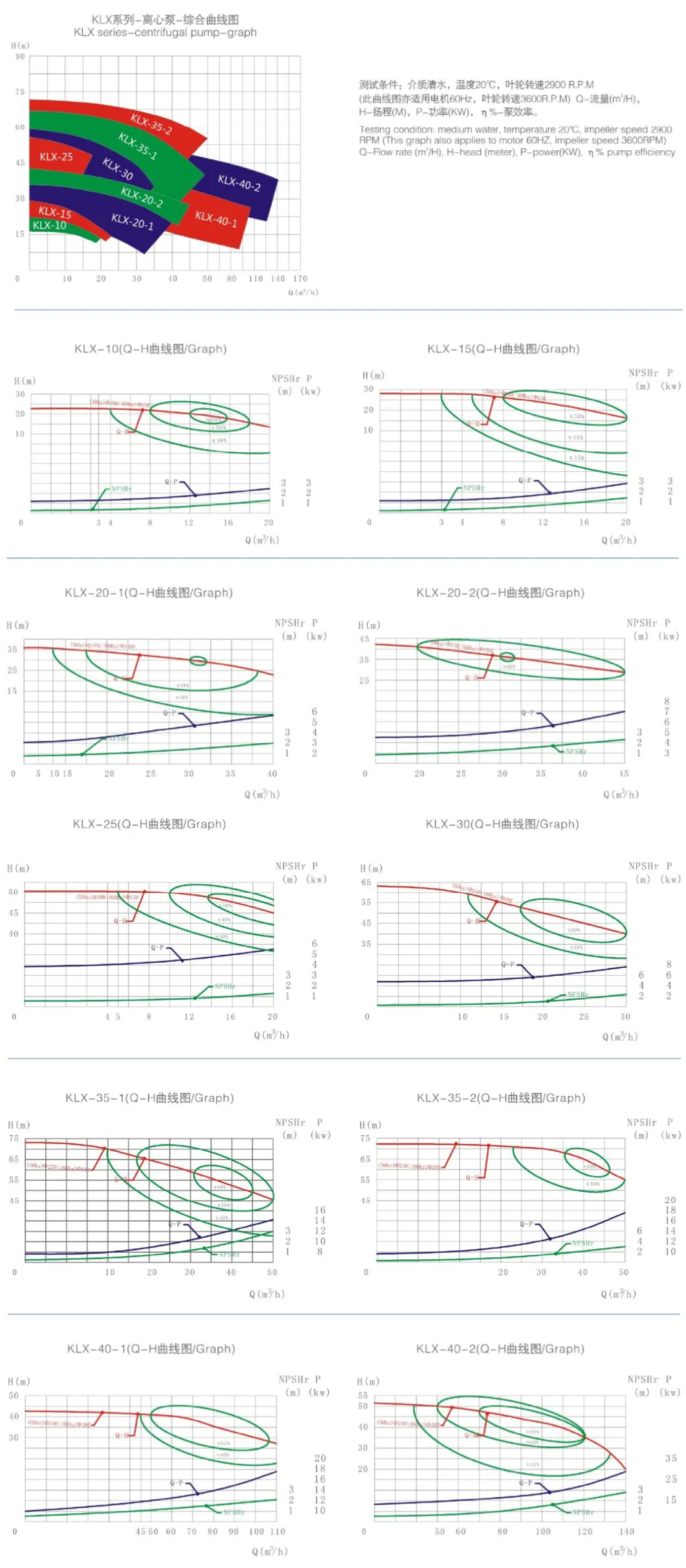

Model Selection
