Product Description

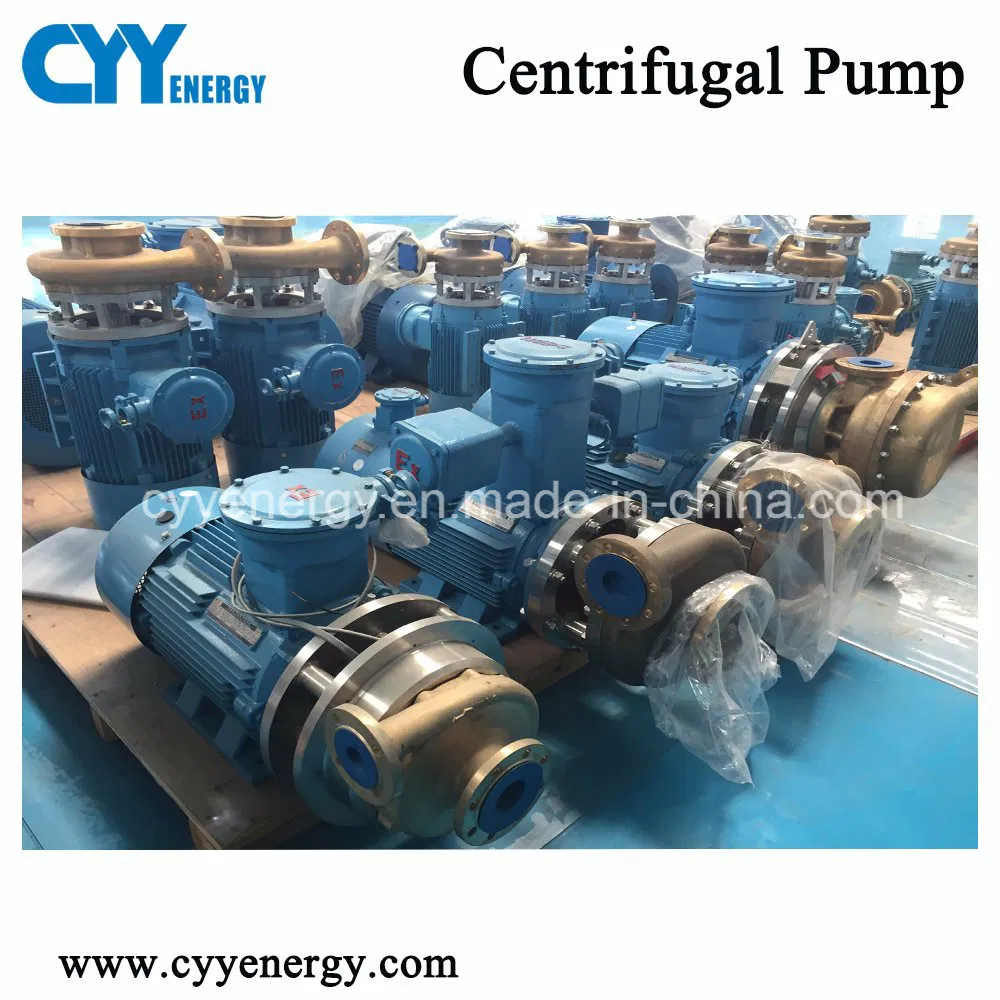

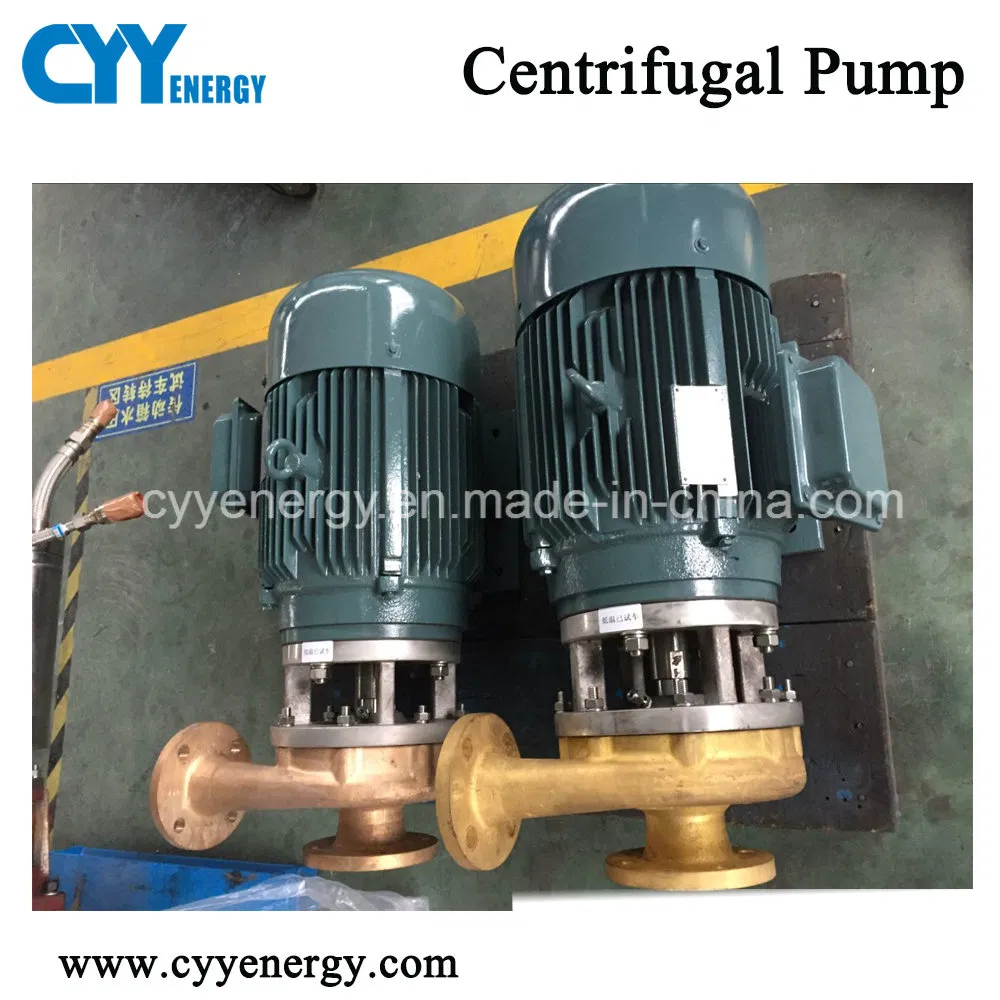

SLP-120/135 Model Cryogenic Liquid Oxygen Nitrogen Argon Centrifugal Pump

Product Description:
1.All electrical components are of anti-explosion configuration
2.The whole pump head is packed with high vacuum jacket, minimizing cold loss
3.Special material of piston seal, piston seal life for 4000 h
4.Lower pressure pulsation of outlet, the load of motor is stable
5.Transmission box adopts self lubricating system, stable operation, and equipped with interlock oil temperature, the temperature monitoring of transmission case, and interlocking control, to ensure the safety of units.

Optional Configuration:
1.Fixed speed motor/frequency conversion motor
2.Overpressure interlocking device Safety valve/Cryogenic check valve
3.Pressure interlocking device of outlet liquid

Featuring:
1.Compact structure, simple
2.Worm wheel and impeller adopts high strength bronze alloy to secure safety under liquid oxygen medium
3.Reliable mechanical seal, cavitation resistance is strong, long life, easy installation and replacement
4.High strength hollow stainless steel shaft
5.Impeller with low dynamic unbalance
6.Motor with frequency converter makes the pump applied more widely
7.Flexible connection is provided for inlet and outlet liquid, filter is provided for inlet liquid, Stable operation with small vibration.

Model	Flow	Head	Speed	Power				Efficiency	NPSHr	(DN)
	Flow	Head	Speed	LN2	LO2	LAr	LNG	Efficiency	NPSHr
	m³/h	m	r/min	kW				%	m	mm

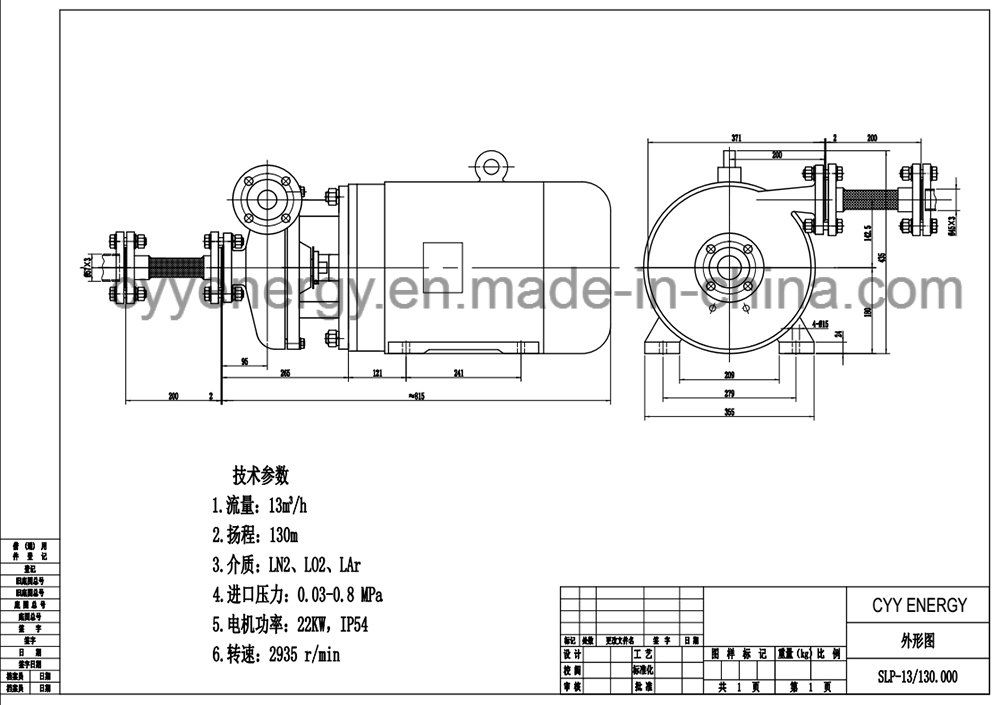

SLP-13/130	13	130	2940	22				38	2.0	50	40
SLP-24/60	24	60	2935	11				60	2.3	65	50
SLP-24/90	24	70	2935	18.5			11	60	2.3	65	50
	24	90	2935	18.5			11	54	2.0	65	50
	24	110	3150	22			11	54	2.2	65	50
	24	134	3350					55	2.8	65	50
	24	189	3950					55	3.6	65	50
	27.5	235	4450	30	37	45	15	55	4.2	65	50
	37.5	235	4750	45	55	75	22	56	4.5	65	50
SLP-40/90	40	70	2940	22				57	1.5	80	50
	40	90		22		30	22	57	1.5	80	50
	60	85		22	30	37	22	61	1.7	80	50
SLP-80/120	60	129	2950	37	55	75	22	50.5	1.3	100	50
	80	120		55	75	75	30	54.5	1.9	100	50
	100	105		55	75	90	37	53	2.7	100	50
SLP-120/135	90	145	2950	55	75	90	30	60	2.8	100	80
	120	135		75	90	110	37	66	3.4	100	80
	150	127		75	90	132	37	68	4.2	100	80
SLP-50/250	40	270	2950	55	75	90	30	45	1.4	100	50
	50	250		75	90	110	30	47	1.8	100	50
	60	240		75	110	132	37	48	1.9	100	50
