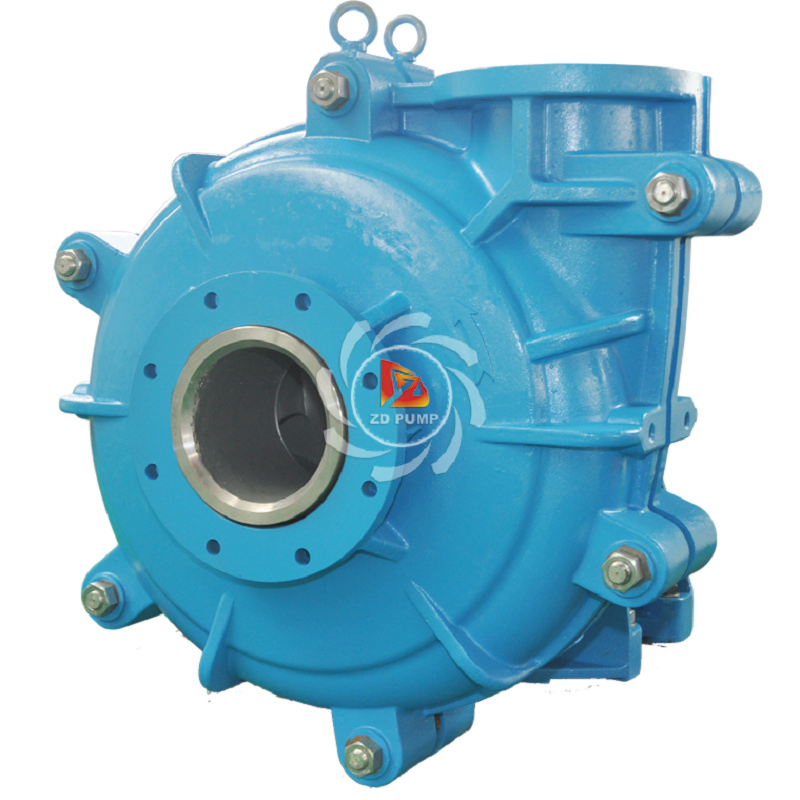

Sand and Gravel Slurry Pump

Product Description

ZiDong Slurry Pump Introduction

Slurry pump is one kind of centrifugal pump used for convey water and solid mixture medium, It is suitable to
conveystrong abrasive and hard solid medium ,such as mining slurry, ash slurry, cement slurry, gravel etc.

MODEL	MAX POWER (KW)	CLEAR WATER PERFORMANCE
		CAPACITY	HEAD	SPEED	MAX.Eff η%	NPSH
		(m 3 /h)	H(m)	n(r/min)	MAX.Eff η%	(m)
ZM-1B	15	12.6~28.8	6~68	1200~3800	40	2~4
ZM-1.5B	15	32.4~72	6~58	1200~3200	45	3.5~8
ZM-2C	30	39.6~86.4	12~64	1300~2700	55	4~6
ZM-3C	30	86.4~198	9~52	1000~2200	71	4~6
ZM-3D	60	86.4~198	9~52	1000~2200	71	4~6
ZM-4D	60	162~360	12~56	800~1550	65	5~8
ZM-4E	120	162~360	12~56	800~1550	65	5~8
ZM-6E	120	360~828	10~61	500~1140	72	2~9
ZM-8ST	560	612~1368	11~61	400~850	71	4~10
ZM-10ST	560	936~1980	7~68	300~800	82	6
ZM-12ST	560	1260~2772	13~63	300~600	77	3~10
ZM-14ST	560	1368~3060	11~63	250~550	79	4~10
ZM-14TU	1200	1368~3060	11~63	250~550	79	4~10
ZM-16ST	560	2160~5040	8~66	200~500	80	4.5~9
ZM-16TU	1200	2160~5040	8~66	200~500	80	4.5~9
ZM-18TU	1200	2520~5400	13~57	200~400	85	5~10

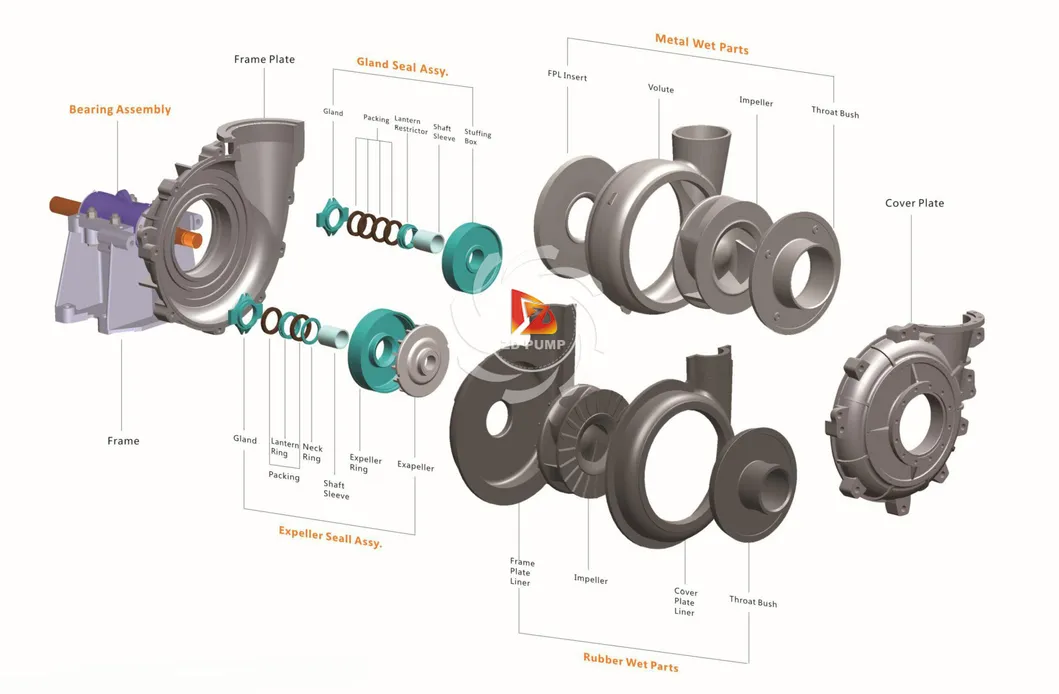

ZiDong Slurry Pump Structure

ZiDong Slurry Pump Feature

Abrasive & corrosive resistant

Cr. 28 alloy material liners with high hardness and abrasive resistant;Nature rubber liners with high
corrosive resistant.

High efficiency

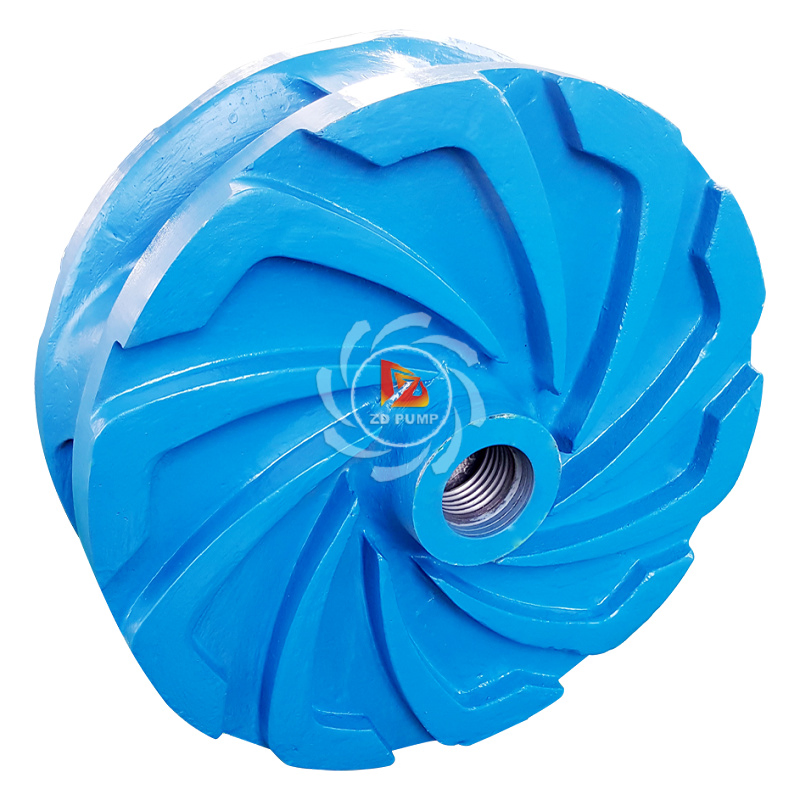

Advanced international design, the impeller shape let the pump with high efficiency and high capacity.

International Standard

ZH Slurry pump with the same international design, the pumps and parts can replace the international
brand slurry pumps and parts with lower cost.
