Product Description

>>> Product Overview

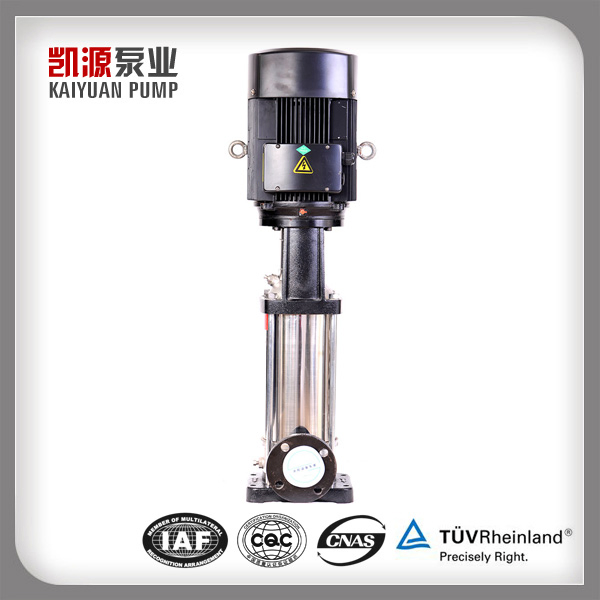

QDL/QDLF is a kind of multifunctional products. It can be used to convey various medium from tap water to industrial liquid at different temperature and with different flow rate and pressure. QDL is applicable to conveying non-corrosive liquid, while QDLF is suitable for slightly corrosive liquid.

>>> Application

* Water supply: water filter and transport in waterworks, boosting of main pipeline, boosting in high-rise buildings.
* Industrial boosting: process flow water system, fire fighting system.
* Industrial liquid conveying: cooling and air-conditioning system, boiler water supply and condensing system, machine-associated purpose, acids and alkali.
* Water treatment: ultrafiltration system, reverse osmosis (RO) system, distillation system, separator, swimming pool.
* Irrigation: farmland irrigation, spray irrigation, dripping irrigation.

>>> Standard material:

All the parts contact with liquid made of 304 stainless steel on request. The pump head and suction & discharge can be made of cast iron on request too.

>>> E-motor

totally enclosed fan-cooled standard motor
protection class: IP55
insulation class: F
standard voltage: 50Hz
1 x 220-230 / 240V
3 x 200-220 / 346-380V
3 x 220-240 / 380-415V
3 x 380-415V

>>> Working Conditions

Thin, clean, non-flammable and non-explosive liquid containing no solid granules and fibers.
Liquid temperature: -15~+120
Ambient temperature: up to +40
Altitude: up to 1000m

>>> Performance range:

		QDL1	QDL2	QDL4	QDL8	QDL16	QDL20
Rated Capacity	(m3/h)	1	2	4	8	16	20
Rated Capacity	(L/s)	0.28	0.56	1.1	2.2	4.4	5.6
Capacity Range	(m3/h)	0.4-2	0.8-3.4	1.5-7	4-12	8-22	10-28
Capacity Range	(L/s)	0.11-0.56	0.22-0.94	0.42-1.9	1.1-3.3	2.2-6.1	2.8-7.8
Max. Pressure (bar)		21	23	21	21	22	23
Motor Power (kW)		0.37-2.2	0.37-3	0.37-4	0.75-7.5	2.2-15	1.1-18.5
Liquid Temperature (ºC)		-15~+120ºC
DN Flange		DN25	DN25	DN32	DN40	DN50	DN50

		QDL32	QDL45	QDL64	QDL90	QDL120	QDL150
Rated Capacity	(m3/h)	32	45	64	90	120	150
Rated Capacity	(L/s)	9	12	18	25	33	42
Capacity Range	(m3/h)	16-40	22-58	30-80	50-110	60-150	80-180
Capacity Range	(L/s)	4.4-11	6-16	8-22	14-30	17-42	22-50
Max. Pressure (bar)		26	30	22	17	16	16
Motor Power (kW)		1.5-30	3-45	4-45	5.5-45	11-75	11-75
Liquid Temperature (ºC)		-15~+120ºC
DN Flange		DN65	DN80	DN100	DN100	DN125	DN125
