Powerful Horizontal Single Stage Agriculture Irrigation Electric Driven Centrifugal Water Supply Pump for Food and Chemical Industry
MIS End suction water pump MIS series single stage end suction centrifugal water pump is designed according to the capabilityand size stipulated in the international Standard ISO2858, it is composed of pump body, pump cover,impeller, shaft, ring seal, sleeve and suspended bearing units etc. Pump is ......
Send Inquiry
Product Description

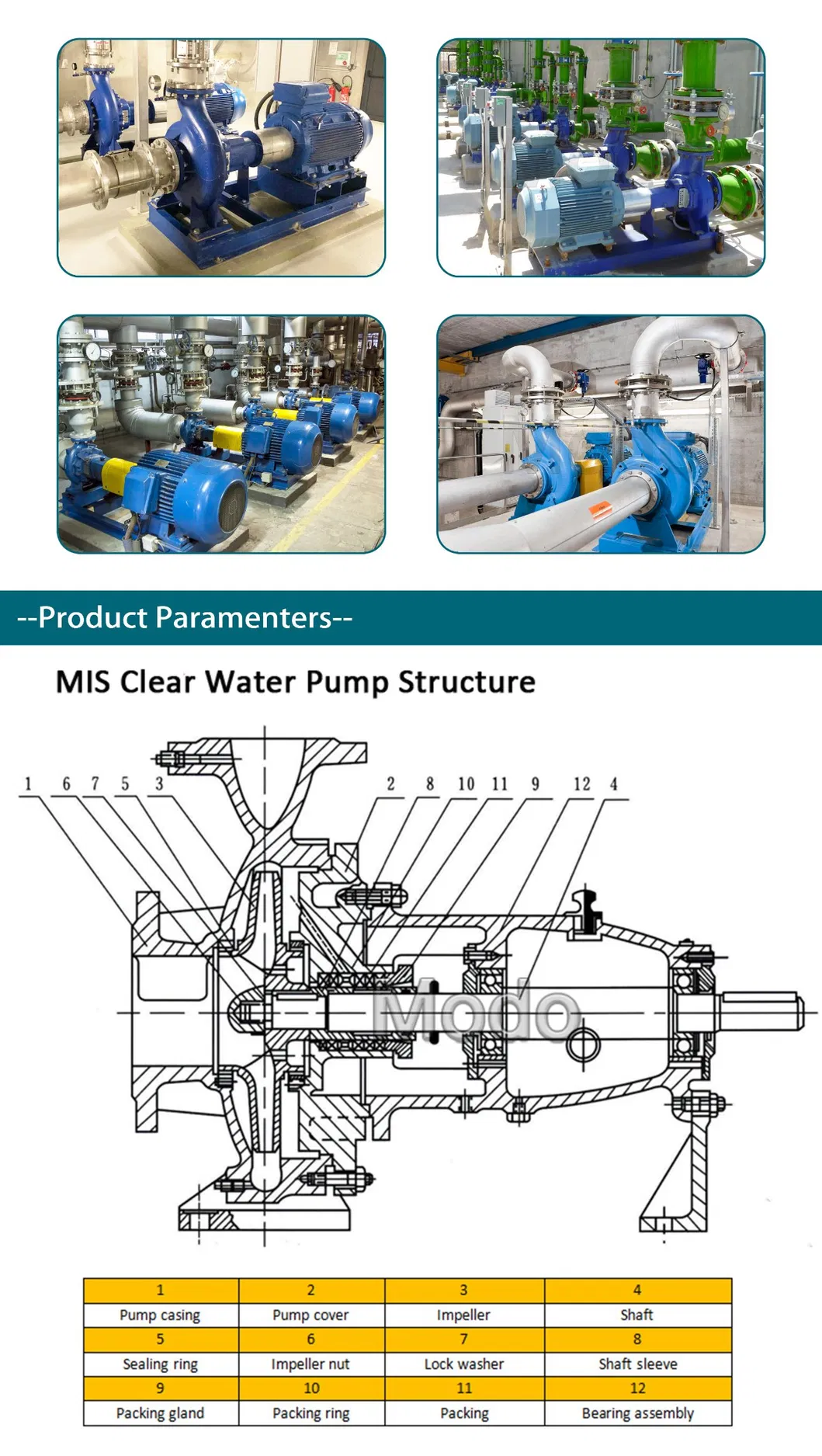

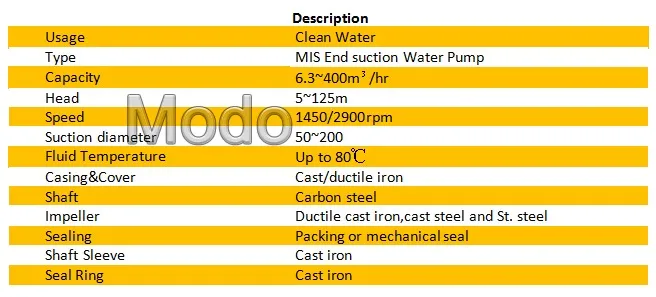

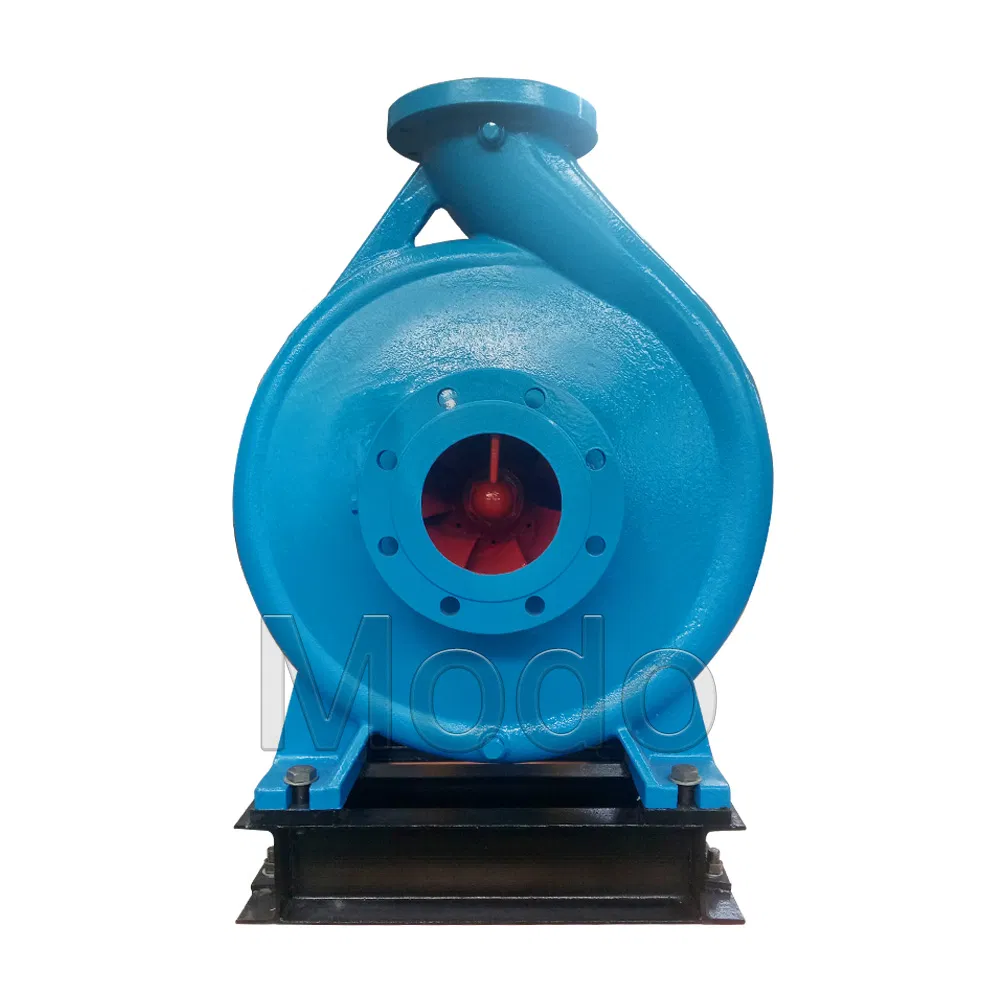

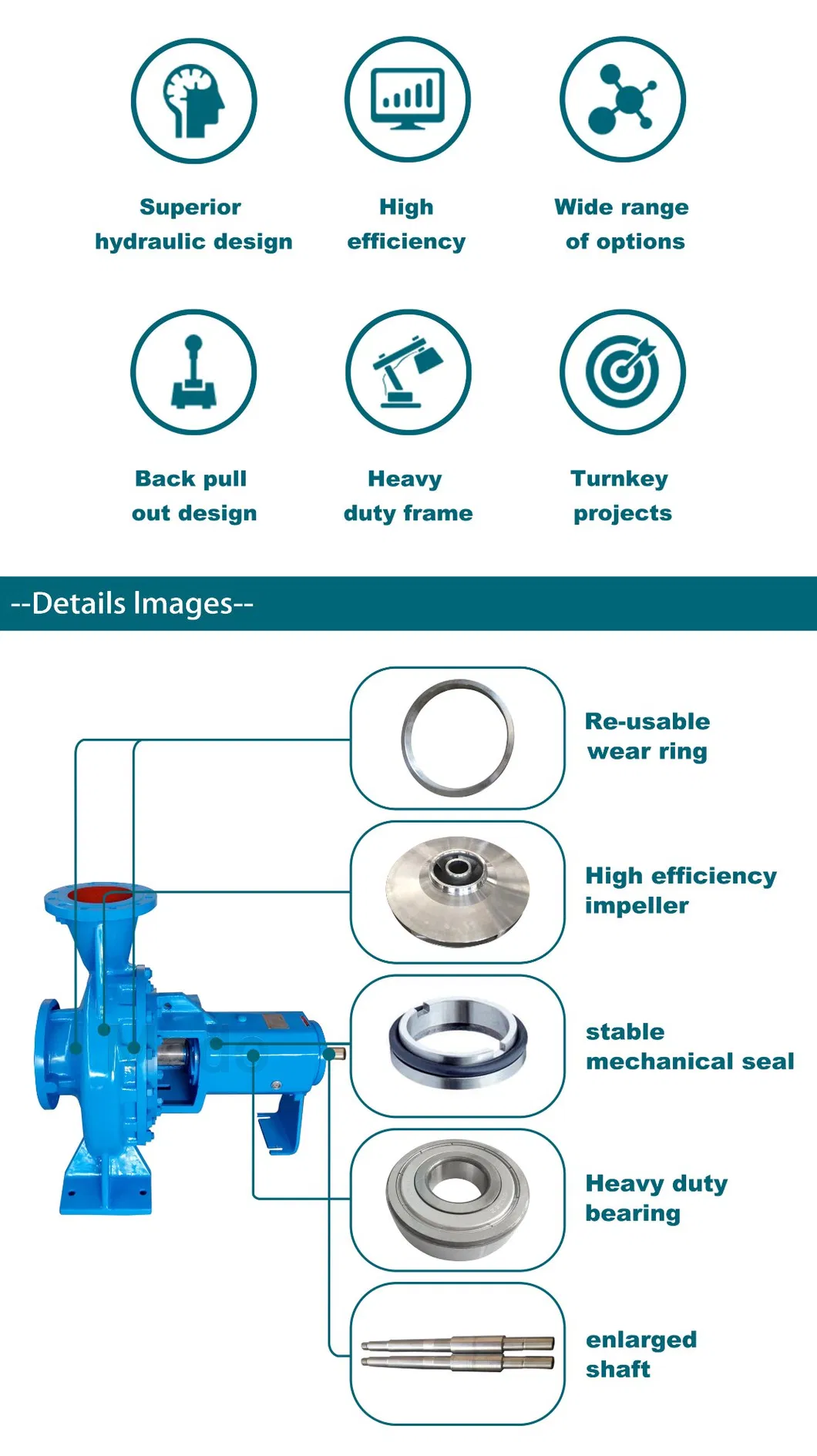

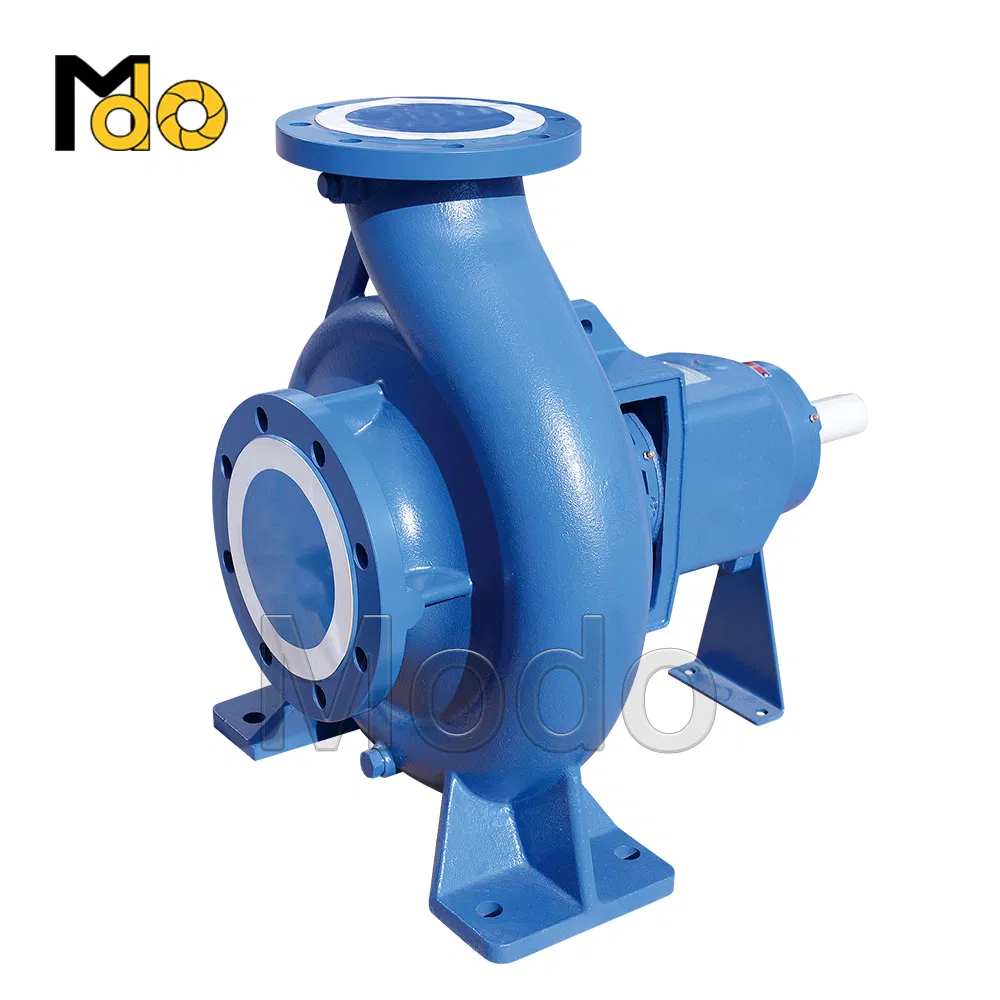

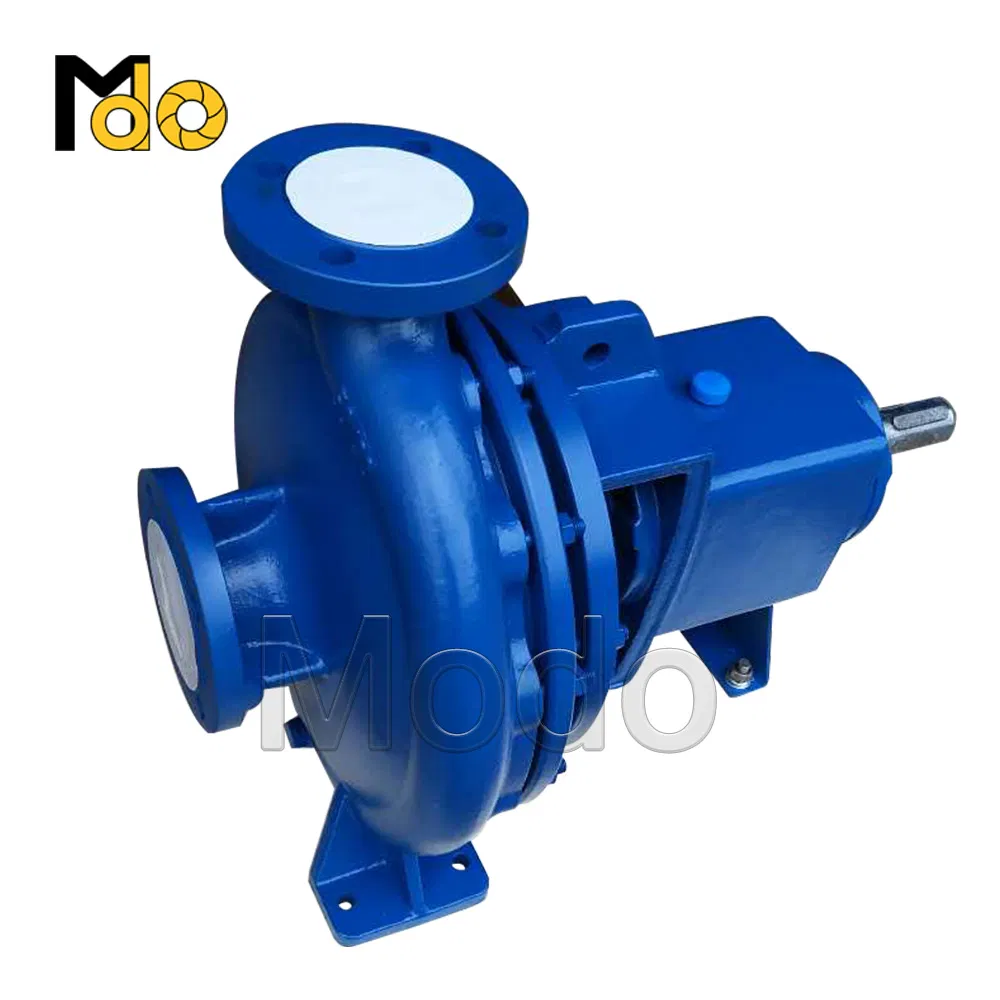

MIS series single stage end suction centrifugal water pump is designed according to the capability
and size stipulated in the international Standard ISO2858, it is composed of pump body, pump cover,
impeller, shaft, ring seal, sleeve and suspended bearing units etc. Pump is for water or liquid similar to
water, with high temperature mechanical seal. It also could be used to transfer hot water.
The water pump is simple, reliable, small, light, and with good anti-cavitation performance, little
power consumption and easy to maintain.
Model | Speed | Capacity Q | Head | Efficiency | Power(N)(kW) | NPSHr | Weight | ||
n(r/min) | m3/h | L/S | H (m) | η (%) | Shaft power | Motor power | r(m) | w(Kg) | |
IS50-32-125 ISR50-32-125
| 2900
| 7.5 | 2.08 | 22 | 47 | 0.96 | 1.5 | 2.0 | 32.5 |
12.5 | 3.47 | 20 | 60 | 1.13 | 2.0 | ||||
15 | 4.17 | 18.5 | 60 | 1.26 | 2.5 | ||||
1450 | 3.75 | 1.04 | 5.4 | 43 | 0.13 | 0.55 | 2.0 | ||
6.3 | 1.74 | 5 | 54 | 0.16 | 2.0 | ||||
7.5 | 2.08 | 4.6 | 55 | 0.17 | 2.5 | ||||
IS100-80-160 ISR100-80-160 | 2900 | 60 | 16.7 | 36 | 70 | 8.42 | 15 | 3.5 | 63 |
100 | 27.8 | 32 | 78 | 11.17 | 4.0 | ||||
120 | 33.3 | 28 | 75 | 12.2 | 5.0 | ||||
1450 | 30 | 8.33 | 9.2 | 67 | 1.12 | 2.2 | 2.0 | ||
50 | 13.9 | 8.0 | 75 | 1.45 | 2.5 | ||||
60 | 16.7 | 6.8 | 71 | 1.57 | 3.5 | ||||
IS125-100-315 ISR125-100-315 | 2900 | 120 | 33.3 | 132.5 | 60 | 72.1 | 110 | 4.0 | 178 |
200 | 55.6 | 125 | 75 | 90.8 | 4.5 | ||||
240 | 66.4 | 120 | 77 | 101.9 | 5.0 | ||||
1450 | 60 | 16.7 | 33.5 | 58 | 9.4 | 15 | 2.5 | ||
100 | 27.8 | 32 | 73 | 11.9 | 2.5 | ||||
120 | 33.3 | 30.5 | 74 | 13.5 | 3.0 | ||||
IS200-150-250 ISR200-150-250 | 1450 | 240 | 66.7 | 21.5 | 71 | 19.8 | 37 | 3.5 | 180 |
400 | 111.1 | 20 | 82 | 26.58 | 4.3 | ||||
460 | 127.8 | 17.5 | 80 | 27.4 | 5.0 | ||||
IS250-200-315 ISR250-200-315 | 1480 | 380 | 105.6 | 35.5 | 71 | 51.8 | 75 | 5.5 | 380 |
630 | 175 | 32 | 84.5 | 65.0 | |||||
760 | 211.1 | 29 | 84 | 71.5 | |||||

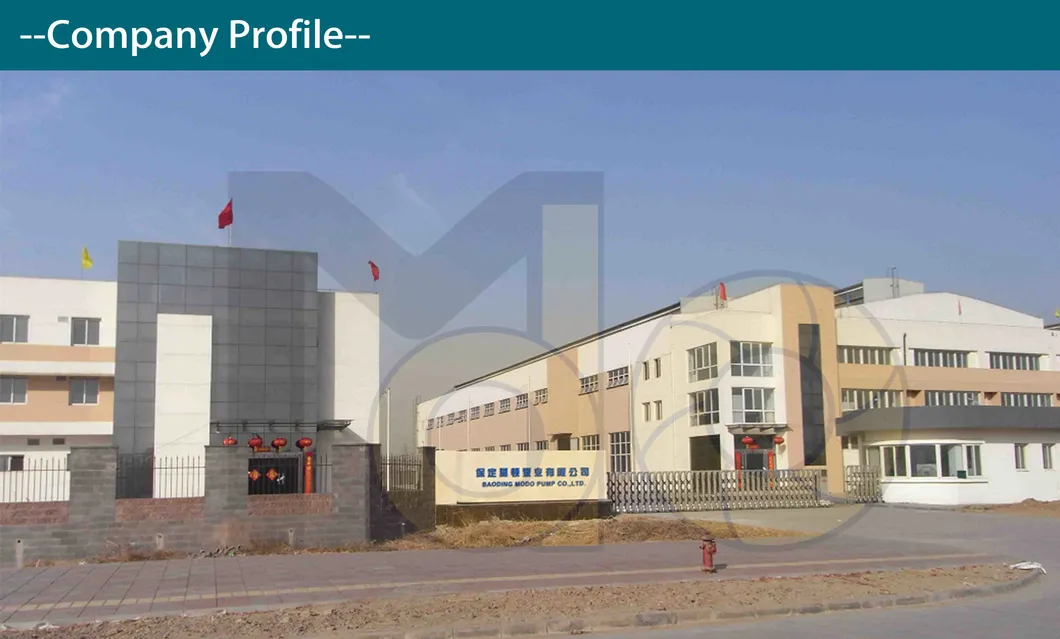

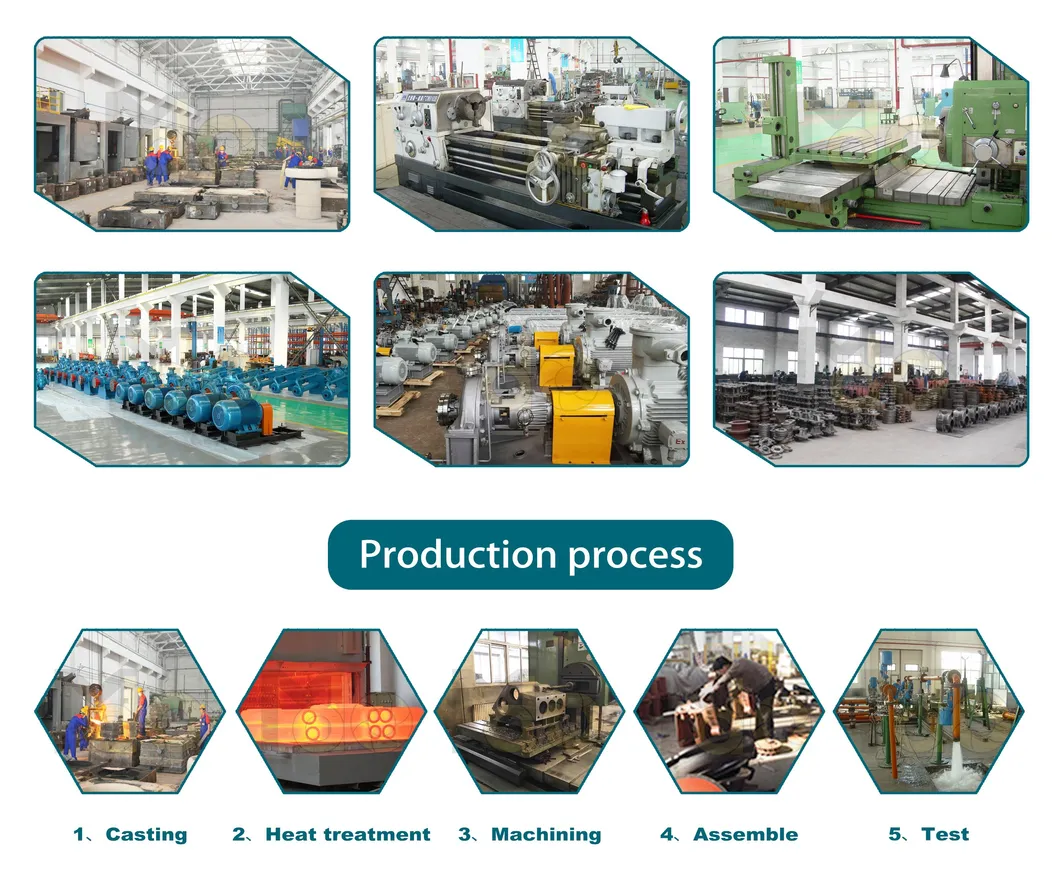

Modo Pump Co.,Ltd. is one over 30 years experienced pump manufacturer (establishedat 1986) in
mining and mineral, power plant, dredging and dredge, hydraulic, irrigation,pulp transfer, chemical,
construction, sea water and oil & gas transfer etc.; Modo Pump Co.,Ltd. is the pump factory has its
own pump selection & design, research and development team to assure provide you efficient,
energy saving slurry pump, water pump, diesel water pump, chemical pump and irrigation pump in
selection & design,use and maintenance program.
Our products include slurry pump, sewage pump, water pump, acid resistant or chemical pump,
irrigation pumps, fire pumps and other products exported to over 90 countries all over the world. The
application covers many fields, such as mining and mineral processing, dredger, tailings transportation,
mining, steel, desulfurization pump,boiler feed water, construction, irrigation, water conservancy facilities,
sewage treatment,drainage and water supply.
1, What information is needed to offer a suitable water pump?
Liquid:___
Capacity:___ m3/hr
Head: ___ m
Voltage:___V, Frequency:___hz
2, How could I do if I cannot supply the above information?
Please send us your requirements as detailed as possible. We will recommend pumps to you.
3, Can you send the pump to our country?
Yes, of course. Please advise the destination port or your address.
4, Do you have 1750rpm pump?
Yes. We have 4 kinds of speed pumps:
l 2900rpm
l 1450rpm
l 3600rpm
l 1750rpm
5, How long is your warranty?
12 months.
