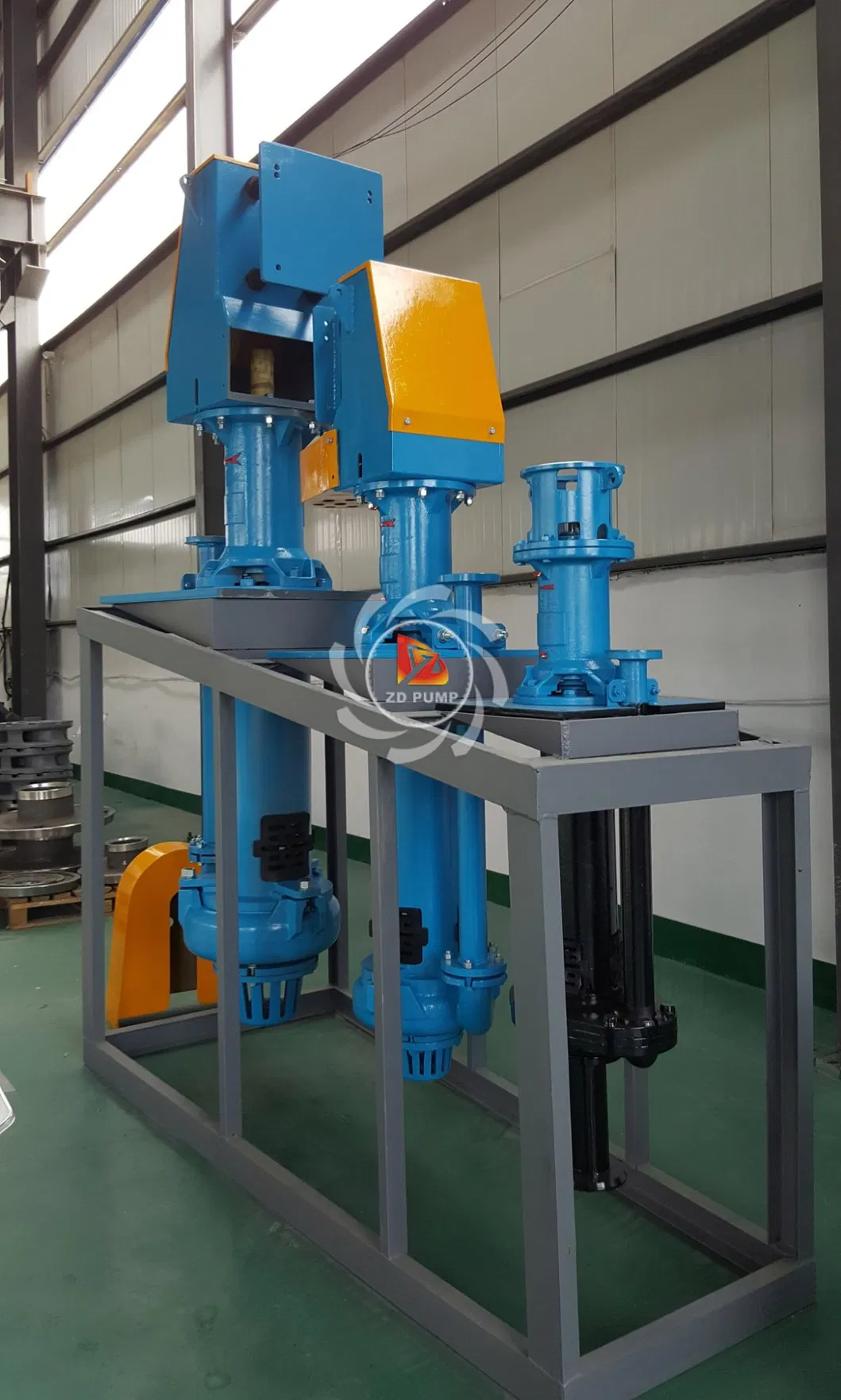

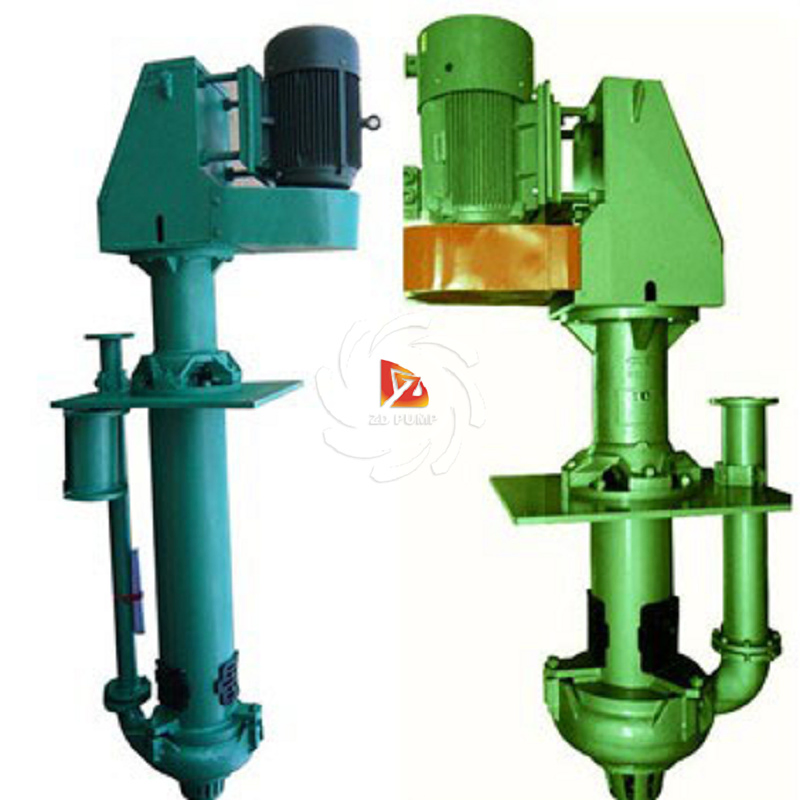

No Shaft Seal Vertical Centrifugal Sump Spindle Slurry Pump for Pit Pond Pool Discharge
Product descriptionPump size: 40 ~ 300 mmCapacity: 17 ~ 1267 m3/hHead: 4 ~ 40 metersMaterials: Cr27, Cr28, Nature rubber coatedThe ZV(R) series sump pump are vertical, centrifugal slurry pumps submerged in sump during operation. They are designed for delivering highly abrasive, large particles and h......
Send Inquiry
Product Description
Product description
Pump size: 40 ~ 300 mm
Capacity: 17 ~ 1267 m3/h
Head: 4 ~ 40 meters
Materials: Cr27, Cr28, Nature rubber coated
The ZV(R) series sump pump are vertical, centrifugal slurry pumps submerged in sump during operation. They are designed for delivering highly abrasive, large particles and high density slurry. These sump pump have no need of any shaft seal and sealing water.

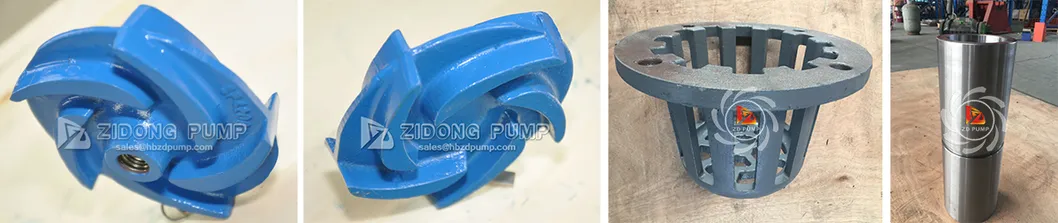

The wear parts are made of high chromium for the ZV series pumps & nature rubber coated for the ZVR series pumps.

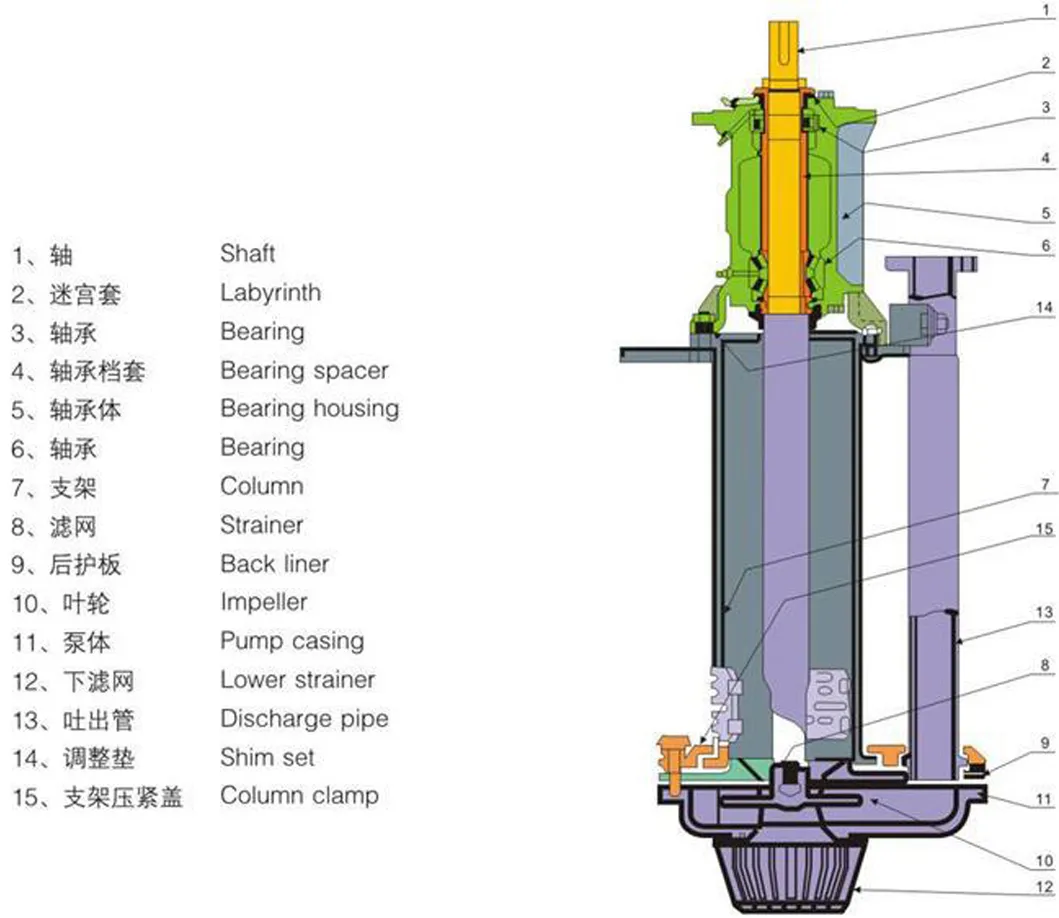

Pump Structure Drawing

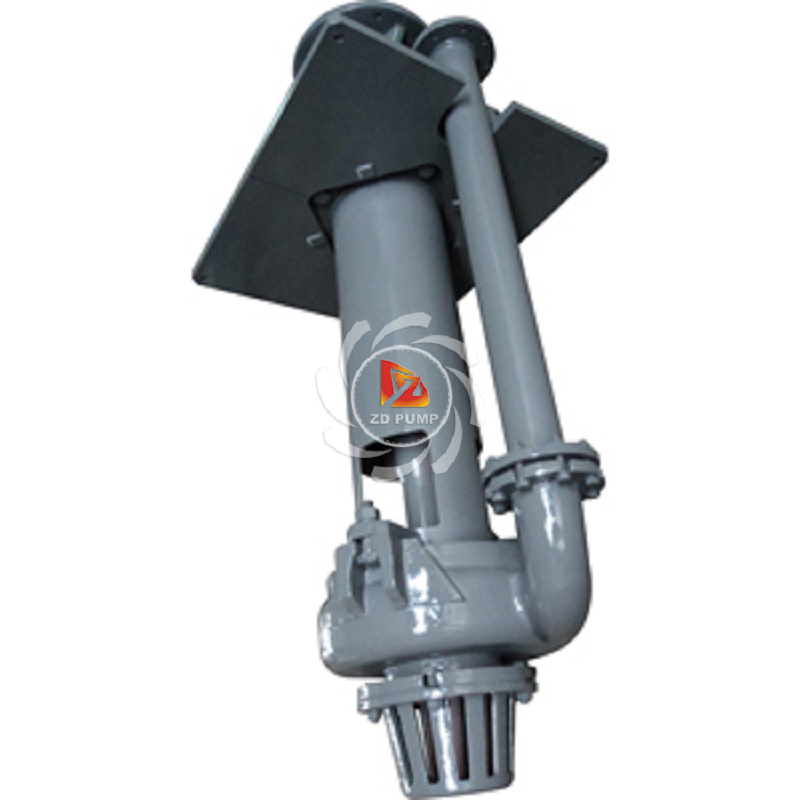

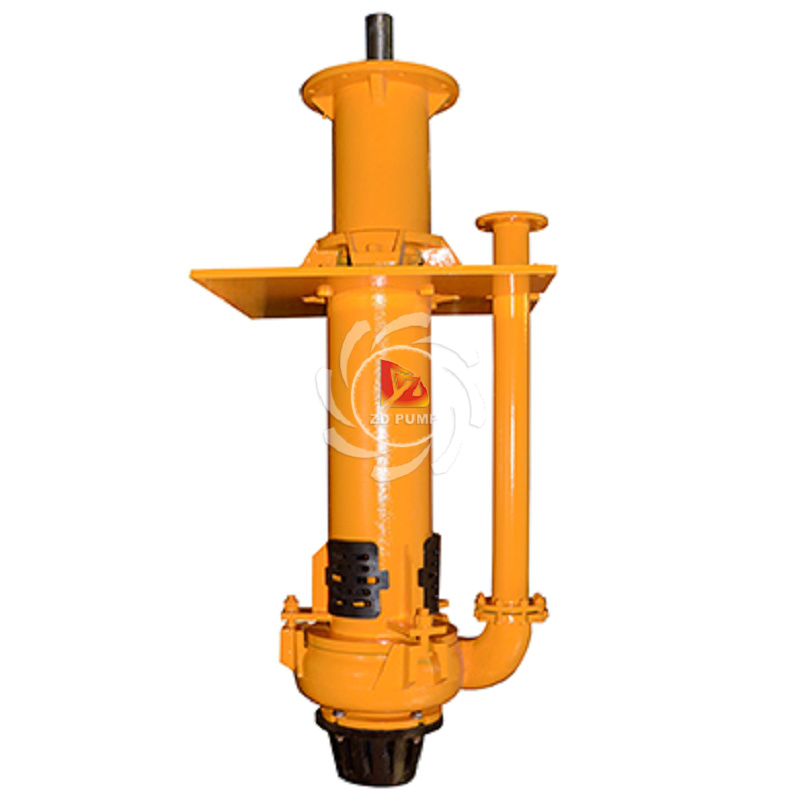

ZV series pumps with hard metal material wear parts,
ZVR series pumps with corrosive-resistant rubber coated wet parts,
Don't need any shaft seal.
Slurry Pump Applications

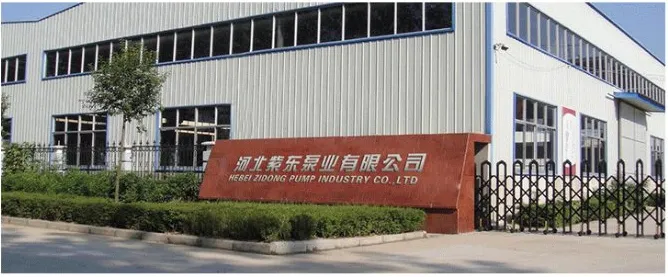

Company Profile

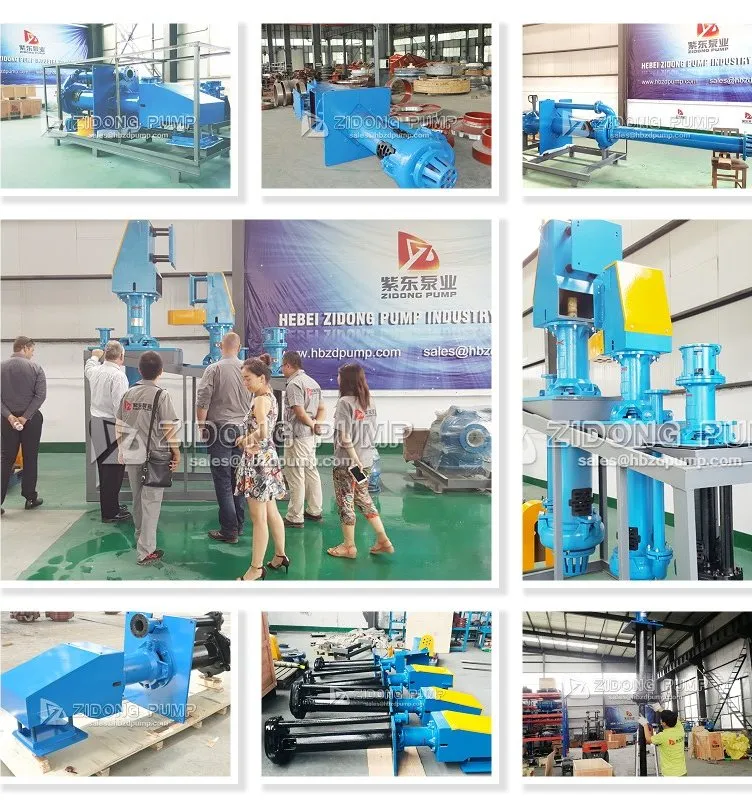

Hebei Zidong Pump Industry Co., ltd is is a experienced centrifugal pump factory, which specialized in manufacturing of centrifugal pump for many years, our main products is centrifugal slurry pumps and water pumps, our pumps are widely-used in different mining industry, energy, chemical industry, dredging and agriculture irrigation, for conveying both slurry and water.
Zidong Pump focus on international high standard pumps and effective project design solutions, we have passed ISO CE, and UL certifications, we owned modern standard workshops, CNC equipment, advanced testing lab, spray-baking booth, strictly QC team, large performance testing center to guarantee each spare parts and pumps in 100% top international quality.
Packing & Delivery
Market Worldwide
Zidong products are sold all across China and exported to over 70 other countries and regions. Our pumps have high reputation in the international market. Till now, we have provided more than 10000 sets of pumps for the projects in U.S.A., U.K., Germany, Canada, Russia, Vietnam, Pakistan, Kazakhstan, Indonesia, Malaysia, lran, Brazil, Chile, Argentina, Bulgaria, Zambia, etc.
Ralated Products
FAQ
Q. What is your product range?
Centrifugal pump, slurry pump, gravel pump, dredge pump, clean water pump, sewage pump, chemical pump, etc.
Q. How can I select a suitable pump?
To select a suitable pump,
Firstly, confirm the medium: clean water or slurry.
Secondly, confirm the pumping parameters: flow, head pressure, specific gravity, density, etc.
Q. What are the power types of slurry pumps?
Electric motor or diesel engine,
Depend on customer's request. If motor, please kindly confirm your local industry voltage/ hertz/ phase.
Q. What should we know if you want to get a quotation?
Pump capacity, pump head, medium type, pump material, quantity.
If possible, please provide the pump model you are using now, that is helpful to choose the most suitable pump model for you.
If not, we will recommend relevant product for reference.
Q. What are your advantages about pumps?
Passed CE&ISO, international standard design, easy maintenance, perfect looking, high performance accepted by current clients;
Q. How to control the quality?
Each pump will be tested before delivery;
Third party inspection-such as SGS, etc.;
Strict material inspection, performance test available before delivery.
100% return your payment if our pump not qualified due to our fault.
Q. What's your MOQ and payment terms?
MOQ 1 set, we can start business with you from a trail order.
Payment Term: T/T, L/C, Western Union, PayPal.
Pump size: 40 ~ 300 mm
Capacity: 17 ~ 1267 m3/h
Head: 4 ~ 40 meters
Materials: Cr27, Cr28, Nature rubber coated
The ZV(R) series sump pump are vertical, centrifugal slurry pumps submerged in sump during operation. They are designed for delivering highly abrasive, large particles and high density slurry. These sump pump have no need of any shaft seal and sealing water.
The wear parts are made of high chromium for the ZV series pumps & nature rubber coated for the ZVR series pumps.
| Model | Outlet diameter mm | Speed r/min | Capacity m3/h | Head m | Eff % | Power kW | Impeller diameter mm |
| 40PV-ZV(R) | 40 | 1000-2200 | 17-43.2 | 4-28.5 | 40 | 15 | 188 |
| 65QV-ZV(R) | 65 | 700-1500 | 17-114 | 5-31.5 | 60 | 30 | 280 |
| 100RV-ZV(R) | 100 | 500-1200 | 54-289 | 5-36 | 62 | 75 | 370 |
| 150SV-ZV | 150 | 500-1000 | 108-479 | 8.5-40 | 52 | 110 | 450 |
| 200SV-ZV | 200 | 400-850 | 189-891 | 6.5-37 | 64 | 110 | 520 |
| 250SV-ZV | 250 | 400-750 | 261-1089 | 7-33.5 | 60 | 200 | 575 |
| 300TV-ZV | 300 | 350-700 | 288-1267 | 6-33 | 50 | 200 | 610 |
Pump Structure Drawing
ZV series pumps with hard metal material wear parts,
ZVR series pumps with corrosive-resistant rubber coated wet parts,
Don't need any shaft seal.
Slurry Pump Applications
• Mining • Mineral processing • Mineral sands • Chemical and Fertilization • Power generation/power plant • Clay and sand slurry • Kaolin clay • Ball mill discharge • Pulp and paper |  |
Company Profile
Hebei Zidong Pump Industry Co., ltd is is a experienced centrifugal pump factory, which specialized in manufacturing of centrifugal pump for many years, our main products is centrifugal slurry pumps and water pumps, our pumps are widely-used in different mining industry, energy, chemical industry, dredging and agriculture irrigation, for conveying both slurry and water.
Zidong Pump focus on international high standard pumps and effective project design solutions, we have passed ISO CE, and UL certifications, we owned modern standard workshops, CNC equipment, advanced testing lab, spray-baking booth, strictly QC team, large performance testing center to guarantee each spare parts and pumps in 100% top international quality.
Packing & Delivery
Market Worldwide
Zidong products are sold all across China and exported to over 70 other countries and regions. Our pumps have high reputation in the international market. Till now, we have provided more than 10000 sets of pumps for the projects in U.S.A., U.K., Germany, Canada, Russia, Vietnam, Pakistan, Kazakhstan, Indonesia, Malaysia, lran, Brazil, Chile, Argentina, Bulgaria, Zambia, etc.
Ralated Products
FAQ
Q. What is your product range?
Centrifugal pump, slurry pump, gravel pump, dredge pump, clean water pump, sewage pump, chemical pump, etc.
Q. How can I select a suitable pump?
To select a suitable pump,
Firstly, confirm the medium: clean water or slurry.
Secondly, confirm the pumping parameters: flow, head pressure, specific gravity, density, etc.
Q. What are the power types of slurry pumps?
Electric motor or diesel engine,
Depend on customer's request. If motor, please kindly confirm your local industry voltage/ hertz/ phase.
Q. What should we know if you want to get a quotation?
Pump capacity, pump head, medium type, pump material, quantity.
If possible, please provide the pump model you are using now, that is helpful to choose the most suitable pump model for you.
If not, we will recommend relevant product for reference.
Q. What are your advantages about pumps?
Passed CE&ISO, international standard design, easy maintenance, perfect looking, high performance accepted by current clients;
Q. How to control the quality?
Each pump will be tested before delivery;
Third party inspection-such as SGS, etc.;
Strict material inspection, performance test available before delivery.
100% return your payment if our pump not qualified due to our fault.
Q. What's your MOQ and payment terms?
MOQ 1 set, we can start business with you from a trail order.
Payment Term: T/T, L/C, Western Union, PayPal.
