China Nfpa20 Listed High Pressure Building Fire Fighting Equipment Diesel Water Centrifugal Double Suction Pump

Product Description

1.Product Description

TPOW series double suction centrifugal pump is mainly used for transporting water or liquid which has the similar physical and chemical properties to water, It has large flow because there are two suction inlets on the impeller, so our centrifugal pump can be applied to urban flood drainage, power station, water supply, farm irrigation, water plant, pumping station, water circulation for air conditioner, heating water circulation, industrial water supply system, fire water supply and other fields.

2.Pump Technical Parameters

1.Flow:0-36000m3/h;
2.Head:0-220m;
3.Power:7.5-355kw;
4.Rotary speed:1450rpm,1750rpm,2900rpm,3500rpm
5..Temperature:-15-150°C.

3.Partial Models Specifications (More Specifications Pls Feel Free To Contact Us)

Pump Model	Capacity		Head (m)	Speed (r/min)	Power		Efficiency (%)	NPSHr (m)	Impeller's Dia(mm)	Net Pump Weight(kg)
Pump Model	m3/h	L/S	Head (m)	Speed (r/min)	Shaft Power (kw)	Motor Power (kw)	Efficiency (%)	NPSHr (m)	Impeller's Dia(mm)	Net Pump Weight(kg)
TPOW80-220	17	4.7	16	1480	1.9	4	39	1.7	215	181
	66.5	18.5	12.8		2.9		81
	108	30	7.8		3.3		69
TPOW80-220A	16	4.4	13.9		1.6	3	38		200
	71	17	10.8		2.6		80
	98	27.2	7		2.7		68
TPOW80-220B	15	4.2	11.8		1.3	3	36		185
	55	15.5	9		1.7		78
	85	23.6	6.2		2.2		66
TPOW80-220C	14.5	4	10		1.2	2.2	32		170
	57	14.3	7.6		1.6		74
	72	20	6.1		1.9		62
TPOW80-220	60	16.6	58	2950	24.3	37	39	3.5	215	181
	134.5	37.4	51		23.1		81
	162	45	46		29.4		69
TPOW80-220A	58	16.1	49		20.4	30	38		200
	124.2	34.5	43.5		18.4		80
	144	40	39		22.5		68
TPOW80-220B	57	15.8	41		17.6	22	36.2		185
	113	31.4	36		14.2		78.2
	129.6	36	33		17.6		66.2
TPOW80-220C	55	15.2	35		16.4	18.5	32		170
	105	29.2	31		12		74
	126	35	28		15.5		62

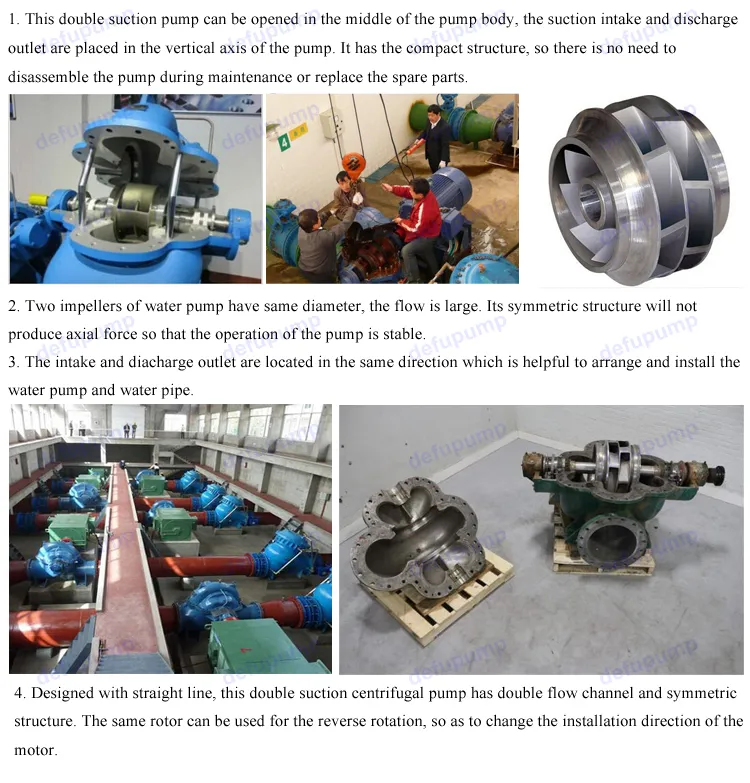

4.Pump Features

Nfpa20 Listed High Pressure Building Fire Fighting Equipment Diesel Water Centrifugal Double Suction Pump

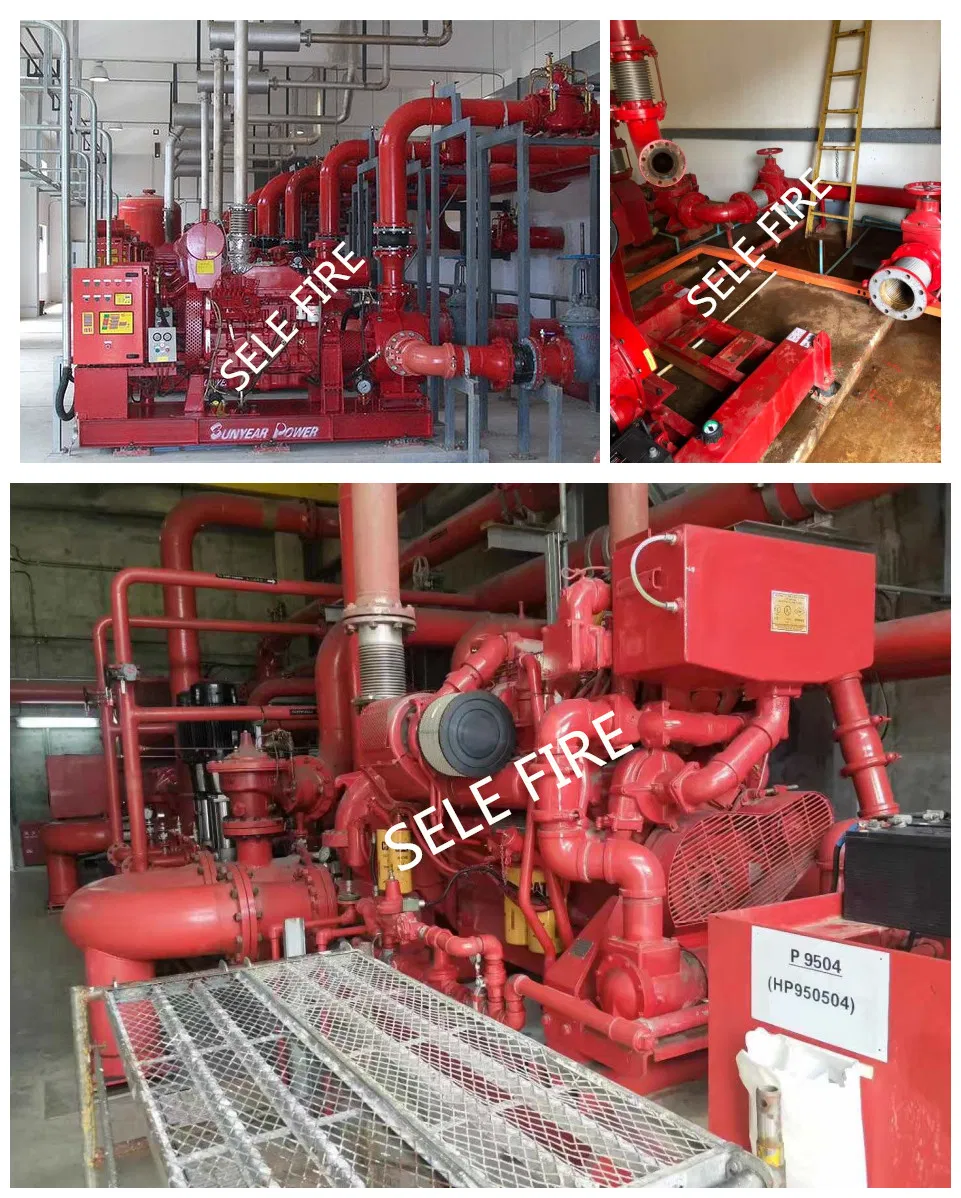

5.Applications
Nfpa20 Listed High Pressure Building Fire Fighting Equipment Diesel Water Centrifugal Double Suction Pump

6.Our Services

1. Delivery: Delivery time will be on time as the contract. Usually, our company need 35 working days for diesel engine pump, and for bare shaft pump, it takes 25 working days,

2. Warranty: 12 month for the pump body, 3 month for the main working parts.

3. Package: We use plywood case to pack our pump, which is durable for ocean transport.

4. On-sales Service: we will clear show you everything in fact when you place an order with us. We will
take photos or videos to show you our production situation, and report the production situation to you.

5. Quality: we will test our pump before delivery, and we will follow up the pump working conditions per three months when the pump put into use. If you need spare parts, we can send to you in 1 or 2 weeks.

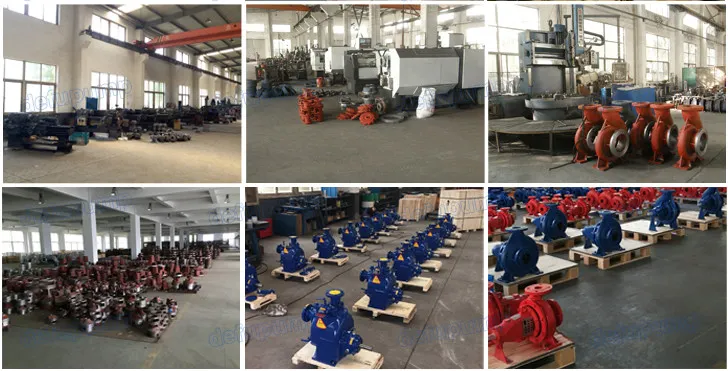

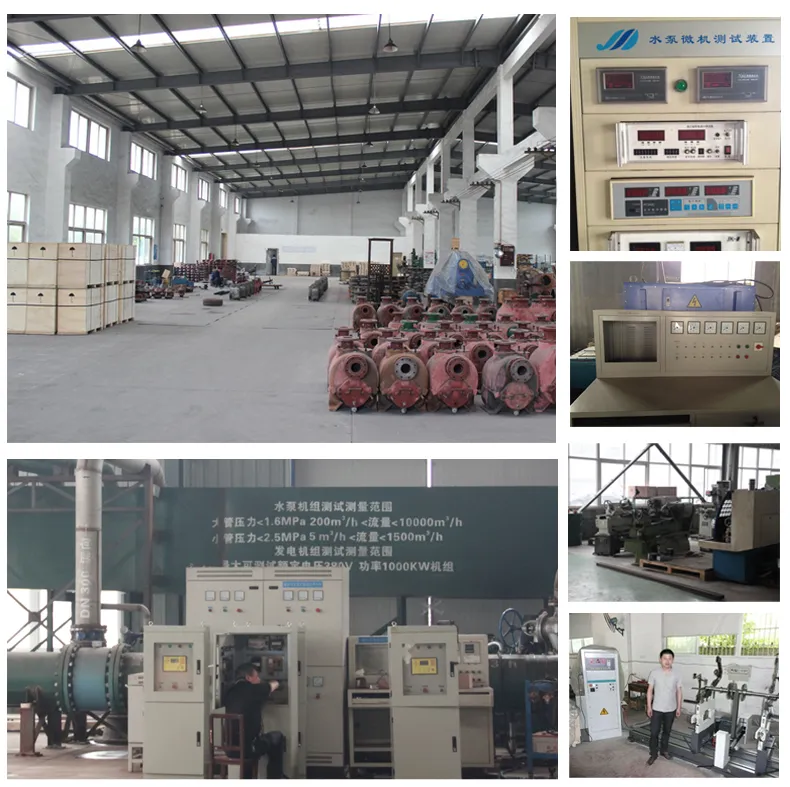

7.Our Factory
Nfpa20 Listed High Pressure Building Fire Fighting Equipment Diesel Water Centrifugal Double Suction Pump

Welcome to visit our factory!
