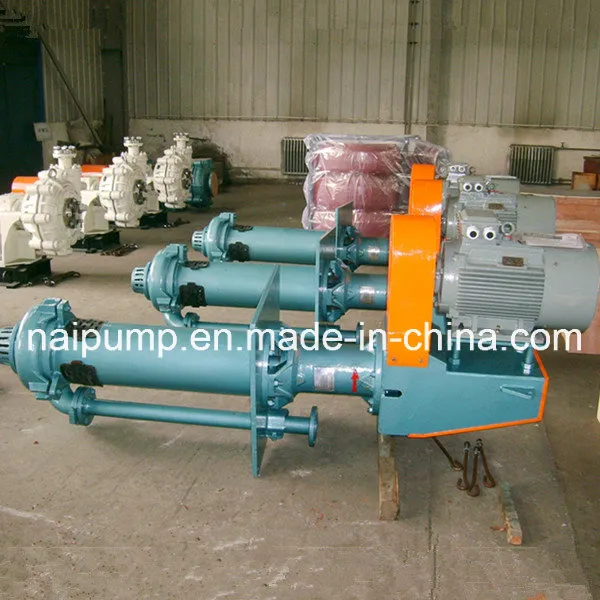

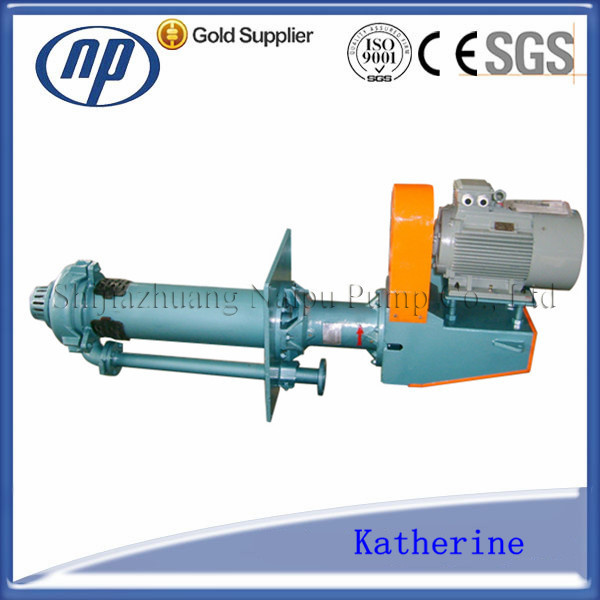

Mining Filed Metal Lined Bd Drive Electric Vertical Pump (150SV-SP)

Product Description

1. SP(R) series Vertical slurry pump

Naipu® NP-SP(R) pumps are vertical, centrifugal slurry pumps submerged in sump to work.They are designed for delivering abrasive,large particle and high density slurries.These pumps have no need of any shaft seal and sealing water. They can also be operated normally for insufficient suction duties.Wet parts of type NP-SP pump are made of abrasion-resistant metal. All parts of type NP-SP(R) pump immersed in liquid are lined with rubber outer liner. They are suited to transport non-edge angle abrasive slurry.

1). Vertical type centrifugal slurry pumps
2). Application for sump pumping, Single stage pump
SP(R) centrifugal slurry pumps are mainly used to pump high-hardness, strong-corrosion and high-concentration liquids that contain suspended solid particles, such as finished ores, refuse ores, ashes, cinders, cements, mud, mineral stones and etc.

2. Specification

D: 40-200 mm
Q: 17-891 mm
H: 4-37 m

3. Function

1). Wear-resistant metal, the impeller selection of wear-resistant metal or rubber material.
2). PV-SP (R) type sump pump parts, immersed in liquid rubber lining.
3). Different length of the pump drive shaft or inhaled could be selected
4). V-belt drive, direct drive, and flexible coupling.
5). Bearing to lubricate oils.
6). use of variable-speed, the best condition in the pump operation, long service life, run- effective,meet many bad transportation conditions.

4. Pump Performance Parameters

Type	Allowable Max. Power (Kw)	Range Of Performance					Impeller
		Capacity		Head m	Speed rpm	Max Efficiency %	No. of Vanes	Diameter mm
		m³/hr	L/S	Head m	Speed rpm	Max Efficiency %	No. of Vanes	Diameter mm
40 PV-SP	15	19.44-43.2	5.4-12	4.5-28.5	1000-2200	40	5	188
65 QV-SP	30	23.4-111	6.5-30.8	5-29.5	700-1500	50	5	280
100 RV-SP	75	54-289	15-80.3	5-35	500-1200	56	5	370
150 SV-SP	110	108-479.16	30-133.1	8.5-40	500-1000	52	5	450
200 SV-SP	110	189-891	152.5-247.5	6.5-37	400-850	64	5	520
250 TV-SP	200	261-1089	72.5-302.5	7.5-33.5	400-750	60	5	575
300 TV-SP	200	288-1267	80-352	6.5-33	350-700	50	5	610
40 PV-SPR	15	17.28-39.6	4.8-11	4-26	1000-2200	40	5	188
65 QV-SPR	30	22.5-105	6.25-29.15	5.5-30.5	700-1500	51	5	280
100 RV-SPR	75	64.8-285	18-79.2	7.5-36	600-1200	62	5	370

5.Pump Main Part Number At The Drawing and material

1.Discharge Pipe
2.Column
3.Strainer
4.Back Liner

5.Impeller
6.Pump Casing
7.Lower Pipe

	IMPELLERS	CASING	COLUMN	DISCHARGE	SEALS
Standard	High Chrome Alloy Rubber	High Chrome Alloy Rubber	Mild Steel Mild Steel Rubber Lined	Mild Steel Mild Steel Rubber Lined	Natural Rubber Rubber
Options	Butyl EPDM Hypalon Polyurethane 316 SS W 151	Neoprene Butyl EPDM Hypalon Nitrile 316 SS W 151	Neoprene Butyl Nitrile 316 SS	Neoprene Butyl Nitrile 316 SS	Nordel Neoprene Viton Hypalon Butyl EPDM

6. Slurry Pump Spare Parts

Code	40 PV-SP(R)	65 QV-SP(R)	100 RV-SP(R)	150 SV-SP(R)	200 SV-SP(R)
004	PV 004	QV 004-1	RV 004-1	SV 004-1	SV 004-1
008	PV 008	QV 008	QV 008	SV 008	SV 008
019	PV 4019	QVR 65019	QV 10019-1	SV 15019-1	SV 20019
	PVR 4019		RVR 10019	SVR 15019-1
024	PV 024	QV 024	RV 024	SV 024	SV 024
024L	PV 024 L	QV 024 L-1	RV 024 L-1	SV 024 L-1	SV 024 L-1
025	PV 025	QV 025	RV 025	SV 025
041	SP 4041	SP 65041	SP 10041	SP 15041	SP 20041
	SPR 4041	SPR 65041	SPR 10041
060	SP 4060	SP 65060	SP 10060	SP 15060
			E 4060
062	PV 062	QV 062	RV 062	SV 062	SV 062
064	PV 064		RV 064
			E 064	F 064
073	PV 4073 E	QV 65073 E	RV 10073 G	SV 15073 J	SV 15073 J
	PV 4073 G	QV 65073 G	RV 10073 J	SV 15073 L	SV 15073 L
		QV 65073 J	RV 10073 L	SV 15073 N	SV 15073 N
			RV 10073 M
			RV 10073 Q
	PVR 4073 E	QVR 65073 E	RVR 10073 G	SVR 15073 J
	PVR 4073 G	QVR 65073 G	RVR 10073 J	SVR 15073 L
	PVR 4073 J	QVR 65073 J	RVR 10073 L	SVR 15073 N
	PVR 4073 L
077	PV 077	QV 077	RV 077	SV 077	SV 077
089	PV 089	QV 089	RV 089	SV 089
092	SP 4092	SP 65092	SP 10092	SP 15092	SP 20092
	SPR 4092	SPR 65092	SPR 10092
102	PV 4102 E	QV 65102 E	RV 10102 G	SV 15102 J	SV 20102
	PV 4102 G	QV 65102 G	RV 10102 J	SV 15102 L
		QV 65102 J	RV 10102 L	SV 15102 N
			RV 10102 M
			RV 10102 Q
	PVR 4102 E	QVR 65102 E	RVR 10102 G	SVR 15102 J
	PVR 4102 G	QVR 65102 G	RVR 10102 J	SVR 15102 L
	PVR 4102 J	QVR 65102 J	RVR 10102 L	SVR 15102 N
	PVR 4102 L
108	C 108	D 108	D 108	S 108
			R 108
109		BSC 109
116	SP 4116	SP 65116-1	SP 10116-1	SP 15116-1	SP 15116 L
	SP 4116 L	SP 65116 L	SP 10116 L	SP 15116 L
	SPR 4116 L	SPR 65116		SPR 15116 L
		SPR 65116 L	SPR 10116 L
124			E 4124	F 8124
125	SP 4125	D 3125	D 3125	DH 2125
			E 4132 XLP
153	SPR 4153	SPR 65153
154	PV 4154 E	QV 65154 E	RV 10154 G	SV 15154 J	SV 20154 J
	PV 4154 G	QV 65154 G	RV 10154 J	SV 15154 L	SV 20154 L
		QV 65154 J	RV 10154 L	SV 15154 N	SV 20154 N
			RV 10154 M
			RV 10154 Q
	PVR 4154 E	QVR 65154 E	PVR 10154 G	SVR 15154 J
	PVR 4154 G	QVR 65154 G	PVR 10154 J	SVR 15154 L
	PVR 4154 J	QVR 65154 J	PVR 10154 L	SVR 15154 N
	PVR 4154 L
184	PV 184	QV 184-1	RV 184-1	SV 184-1
	PVR 184	QVR 184	RVR 184	SVR 184
204	SP 4204	SP 65204	SP 10204	SP 15204	SP 20204
				SP 20204
206	SP 4206	SP 65206-1	SP 10206	SP 15206 A	SP 20206
	SPR 4206	SPR 65206 A	SPR 10206 A
217	PV 217	QV 217	RV 217	SV 217


221	SP 4221	SP 65221		SP 15221
290	PV 290	QV 290	RV 290	SV 290
315	PV 315	QV 315	QV 315	SV 315

322	SP 4322 A	SP 65322 A	SP 10322 A	SP 15322 A
	SP 4322 C	SP 65322 C	SP 10322 C	SP 15322 C
	SP 4322 E	SP 65322 E	SP 10322 E	SP 15322 E
	SP 4322 G	SP 65322 G	SP 10322 G	SP 15322 G
	SP 4322 J	SP 65322 J	SP 10322 J	SP 15322 J
	SP 4322 L	SP 65322 L	SP 10322 L	SP 15322 L
	SPR 4322 A	SPR 65322 A	SPR 10322 A	SPR 15322 A
	SPR 4322 C	SPR 65322 C	SPR 10322 C	SPR 15322 C
	SPR 4322 E	SPR 65322 E	SPR 10322 E	SPR 15322 E
	SPR 4322 G	SPR 65322 G	SPR 10322 G	SPR 15322 G
	SPR 4322 J	SPR 65322 J	SPR 10322 J	SPR 15322 J
	SPR 4322 L	SPR 65322 L	SPR 10322 L	SPR 15322 L

Mining Filed Metal Lined Bd Drive Electric Vertical Pump (150SV-SP)

Our products are widely used in mining, power, metallurgy, coal, dredging building material and other industril lineds to pump concentrate, tailings, sludge, and other abrasive, high density slurries.

OUr pump can totally exchange with slurry pump AH(R), HH, M, L(R), SP(R), G, AF(R) Series.

We Also can accept OEM Order, produce as the sample or your drawing.
