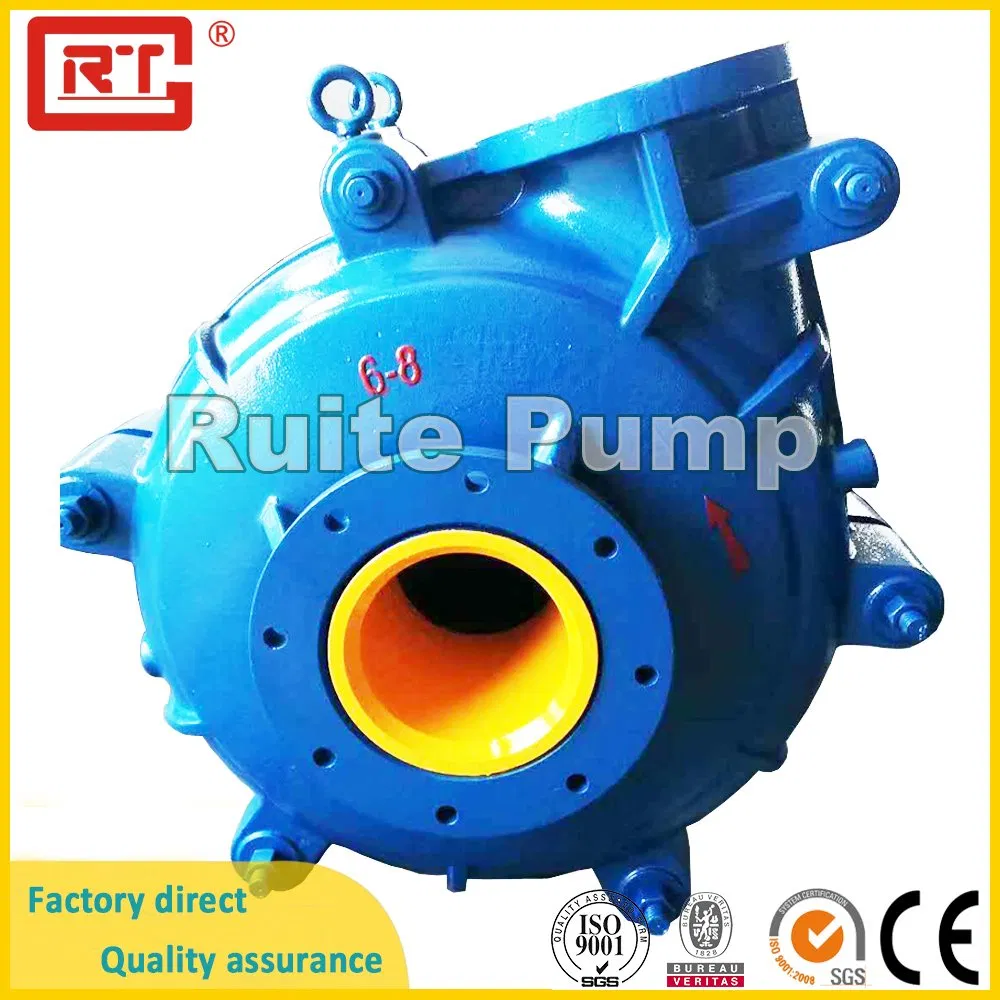

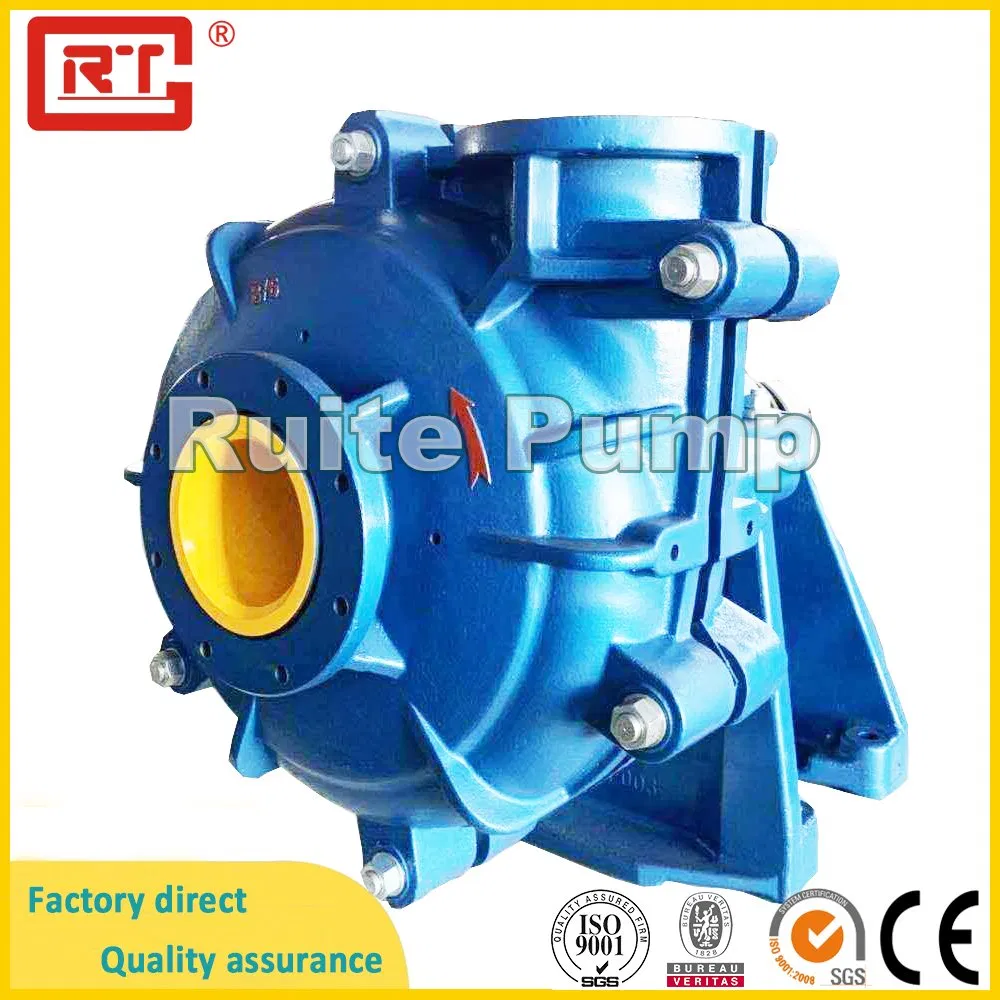

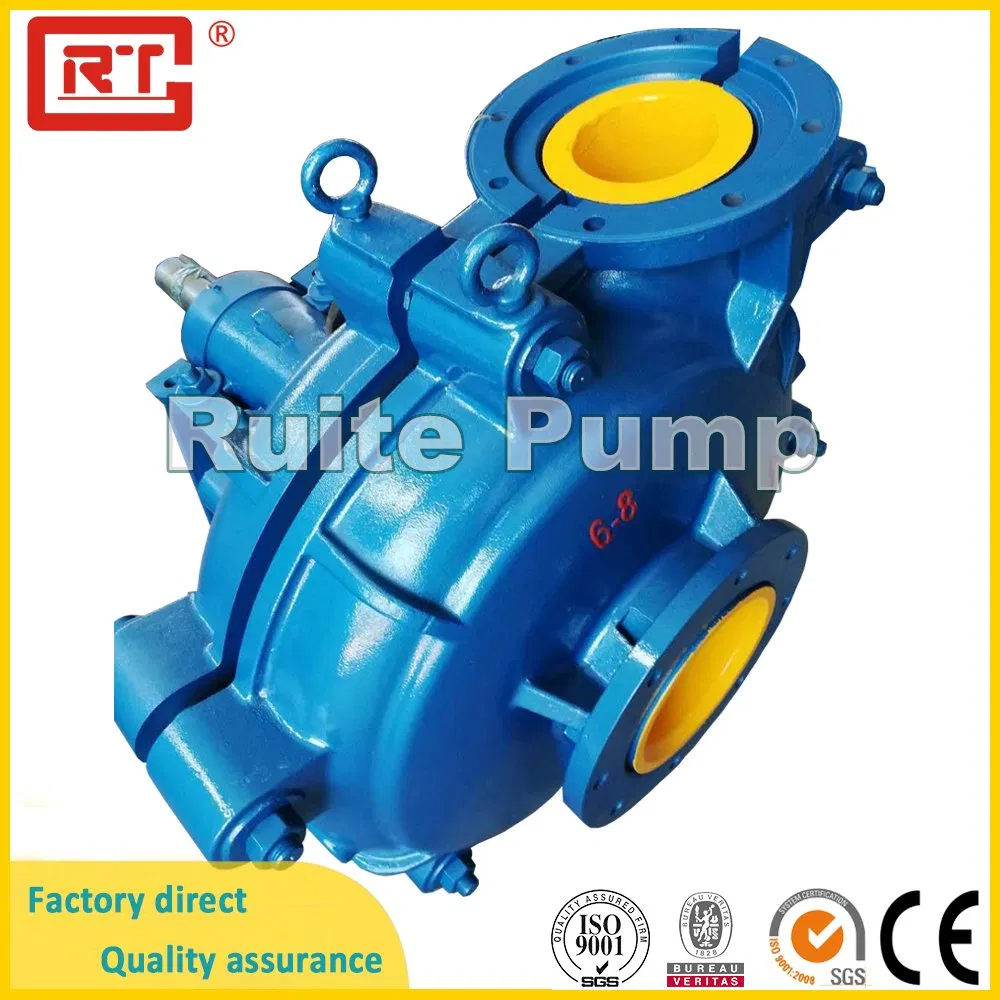

Mining 8/ 6e -Ah Series Horizontal Slurry Pump

[ Mining 8/6E-AH Series Horizontal Slurry Pump ]
Shijiazhuang Ruite Pump Co.,LTD.


* TH series pumps are contain cantilever and horizontal centrifugal pumps, which apply to transport slurry with strong corrosion proof and high concentration for such industries as Metallurgy, mine, coal, power, buliding etc.This kind of pump can be used in multi stages.

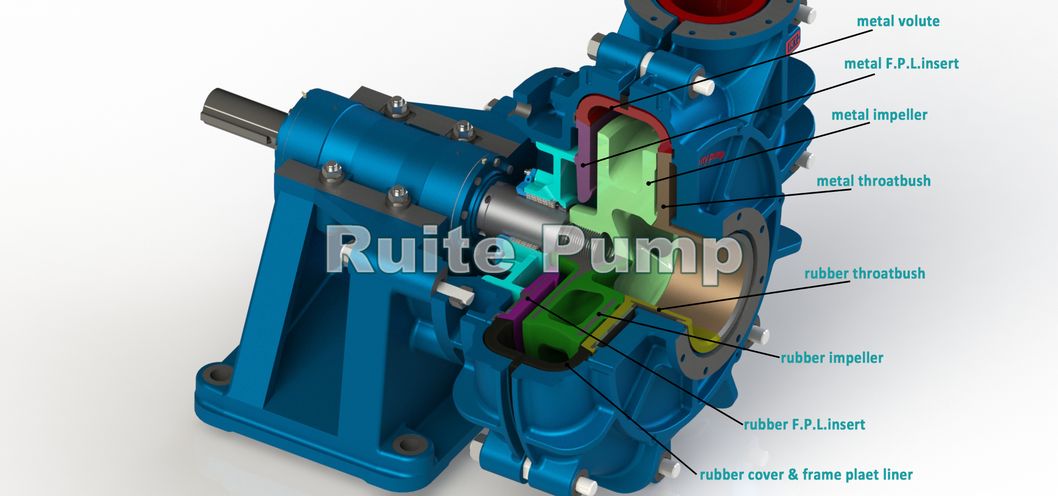

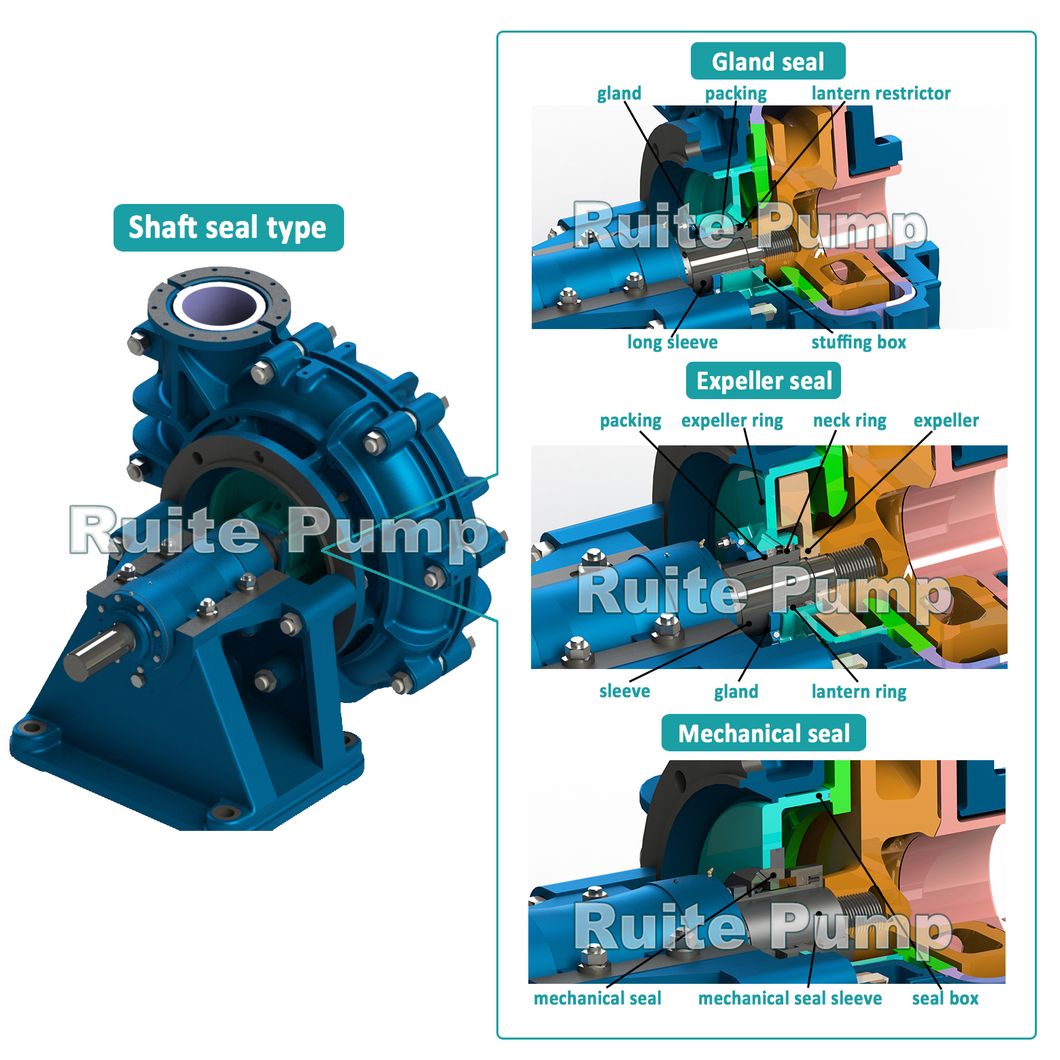

* TH pump body consist of replaceable metal or rubber lining and its impeller is made of wear resistant metal or rubber. The shaft seal of TH series pump may adopt packing seal or centrifugal.

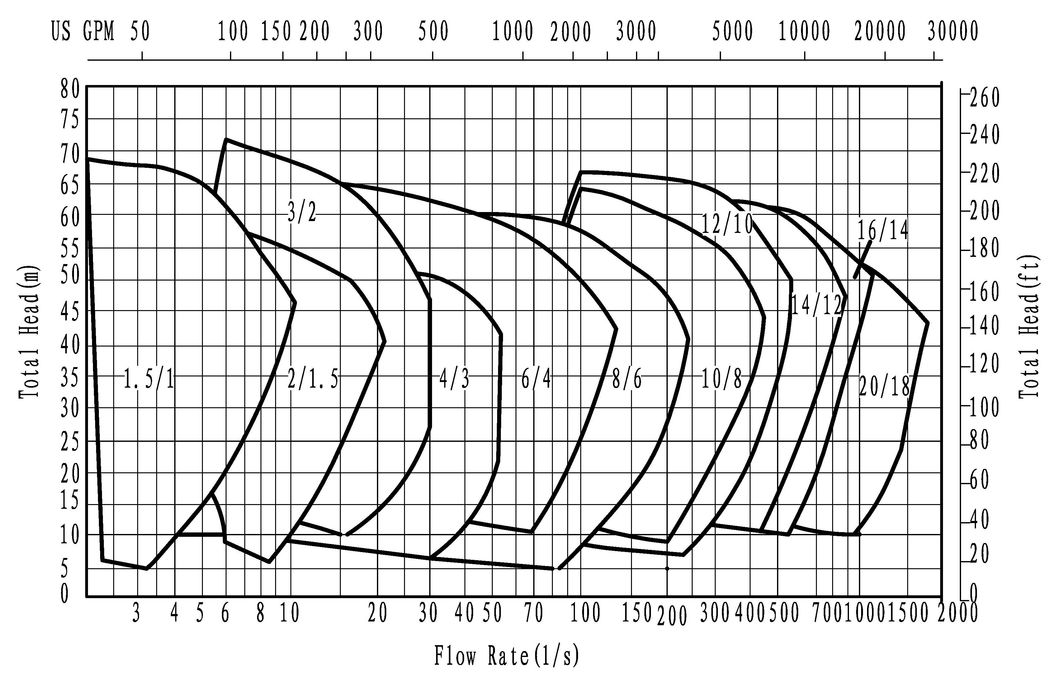

TH SLURRY PUMP CLEAR WATER PERFORMANCE DATASHEET
MODEL	MAX	MATERIAL		CAPACITY		HEAD	SPEED	MAX	NPSH
	POWER	LINER	IMPELLER	m³/h	l/s	H(m)	n(r/min)	η%	m
	KW
1.5/1B-TH	15	M	M	12~28	3.5~8	6~68	1200~3800	40	2~4
		RU	RU	10~25	3~7	7~52	1400~3400	35	2~4
2/1.5B-TH	15	M	M	32~12	9~20	6~58	1200~3200	45	3.5~8
		RU	RU	25~54	7~15	5~41	1000~2600	50	2.5~5
3/2C-TH	30	M	M	39~86	11~24	12~64	1300~2700	55	4~6
		RU	RU	36~75	10~21	13~39	1300~2100	55	2~4
4/3C-TH	30	M	M	86~198	24~25	9~52	1000~2200	71	4~6
4/3D-TH	60
4/3C-TH	30	RU	RU	79~180	22~50	5~34	800~1800	59	3~5
4/3D-TH	60
6/4D-TH	60	M	M	162~360	45~100	12~56	800~1550	65	5~8
6/4E-TH	120
6/4D-TH	60	RU	RU	144~324	40~90	12~45	800~1350	65	3~5
6/4E-TH	120
8/6E-TH	120	M	M	360~828	100~230	10~61	500~1140	72	2~9
8/6R-TH	300
8/6E-TH	120	RU	RU	324~720	90~200	7~49	400~1000	65	5~10
8/6R-TH	300
10/8ST-TH	560	M	M	612~1368	170~380	11~61	400~850	71	4~10
		RU	RU	540~1188	150~330	12~50	400~750	75	4~12
12/10ST-TH	560	M	M	936~1980	260~550	7~68	300~800	82	6
		M	RU	720~1620	200~450	7~45	300~650	80	2.5~7.5
14/12ST-TH	560	M	M	1260~2772	350~770	13~63	300~600	77	3~10
		RU	RU	1152~2520	320~700	13~44	300~500	79	3~8
16/14TU-TH	1200	M	M	1368~3060	380~850	11~63	250~550	79	4~10
20/18TU-TH	1200	M	M	2520~5400	700~1500	13~57	200~400	85	5~10
