Product Description

China Huanggong Machinery Group Co.,Ltd.
Specialist in marine pump industry for over 40 years.

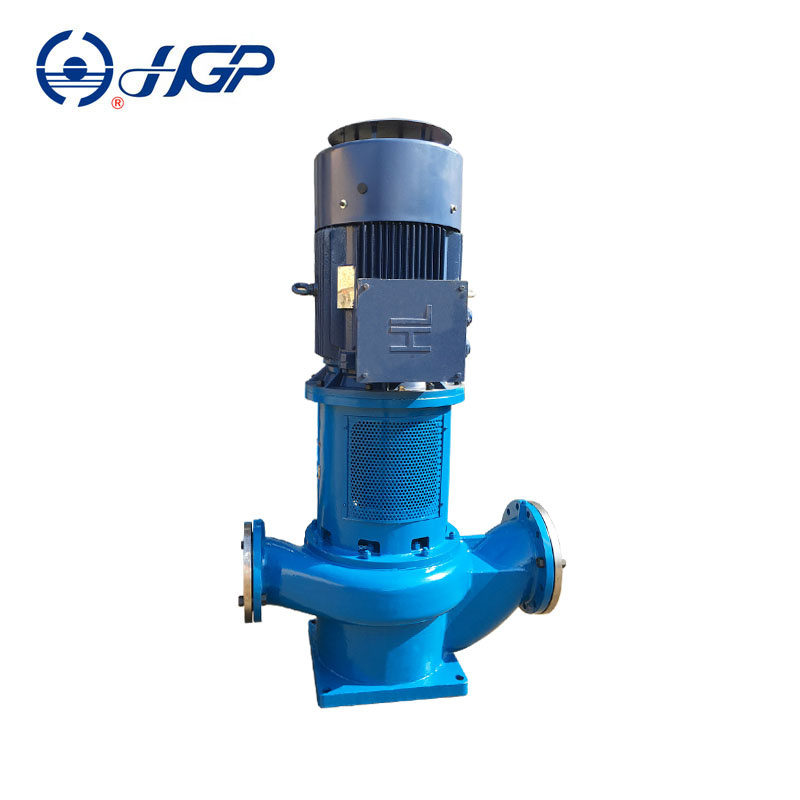

CLZ Series Marine Vertical Self-priming Centrifugal Pump/ Deep Suction Water Pump

Brief introduction

CLZ series marine vertical self-priming centrifugal pumps are used at cabin bottom to cool water and fight fire. It is able to carry sea water under 70 degrees. Fresh water and other non-eroding liquid.

Viewing from the motor end downward, this series pump rotates clockwise.

Model Explanation

For the Model 65CLZ--5A

65 stand for pump inlet nominal diameter mm

CLZ stand for marine-type vertical self-priming pump

5 stand for Intergral value of 1/10 of the specific speed of pump

A stand for impeller for the first time to improve. (B for the second time)

Main Technical parameter:

Type	Capacity m 3 /h	Head m	Speed r/min	Motor power Kw	NPSH m	Weight kg
125CLZ-5/2	51/51	30/65	1450	22	3.5	518
125CLZ-7/2	80/40	25/55		18.5	3.5	524
125CLZ-9/2	116/58	24/61		22	4.1	548
125CLZ-9/2A	141/62	25.5/59		22	4.0	540
125CLZ-9/2B	112/54	15/52		18.5	4.1	526
125CLZ-10/2	110/50	20/35		15	4.2	488
150CLZ-6/2	95/95	36.5/86		55	4.9	806
150CLZ-6/2A	95/70	32/80		37	4.9	724
150CLZ-17/2	149/95	27.5/77		45	5.1	778
150CLZ-17/2A	141/95	16.5/60.5		37	5.1	736
150CLZ-15/2	199/182	33/79		90	5.0	1190
150CLZ-12/2	199/99	23.5/70		45	5.1	772
150CLZ-7/2	124/120	33.5/77		55	4.8	928
150CLZ-7/2A	215/120	23.5/65		45	4.9	840
150CLZ-7/2B	199/108	17/60.5		45	4.9	792
200CLZ-13/2	257/124	24/68.5		55	4.3	936
250CLZ-9/2	348/174	22/71.5		75	4.6	1080
250CLZ-9/2A	265/166	14.5/62		75	5.2	916
250CLZ-19/2	389/182	22/70		75	5.4	1110
