China Large Volume High Pressure Multistage Electric Irrigation Pump

Product Description

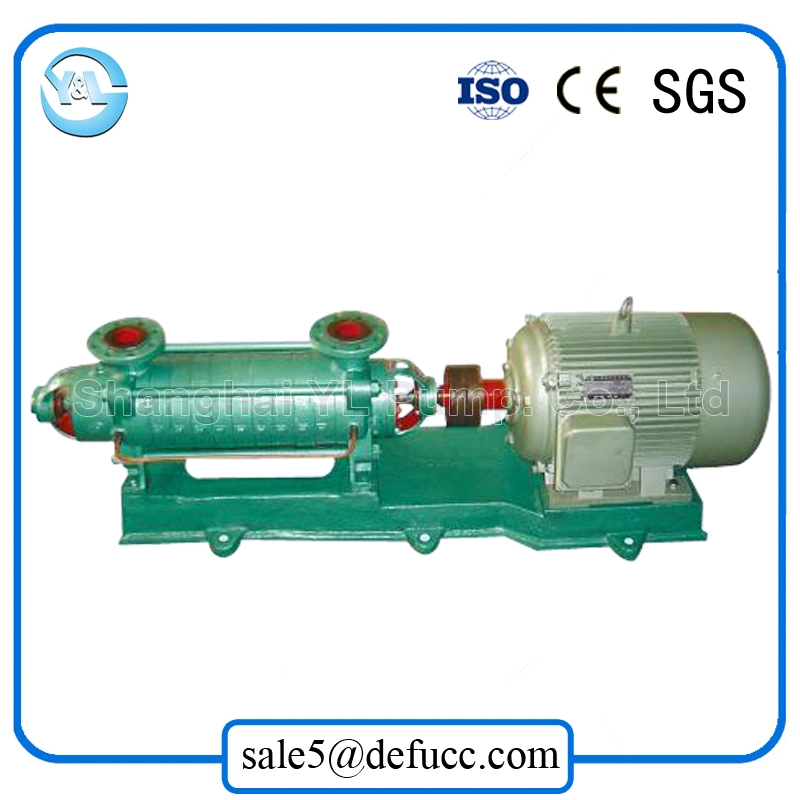

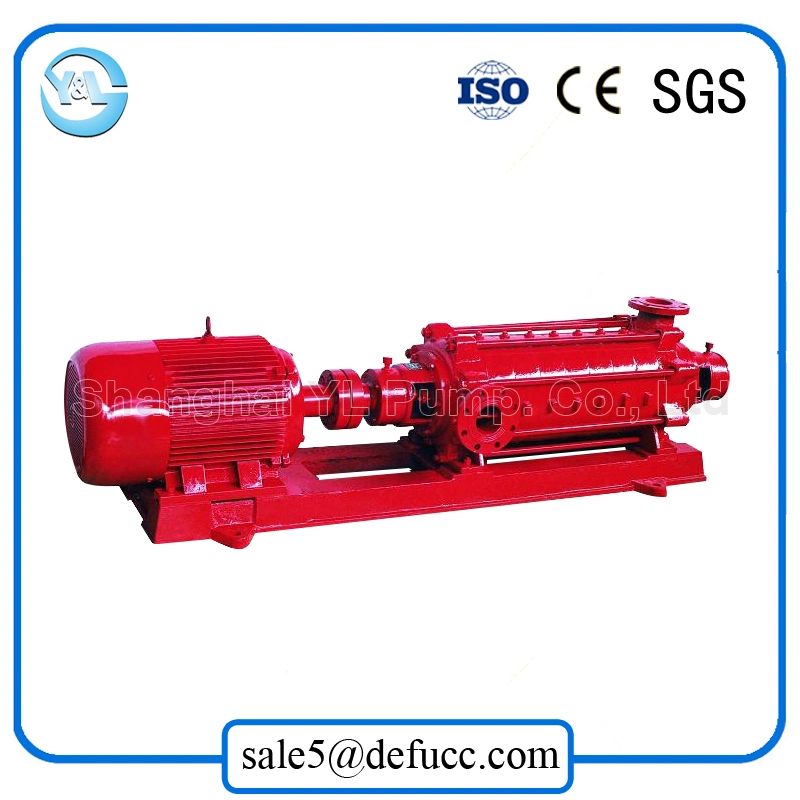

Large Volume High Pressure Multistage Electric Irrigation Pump

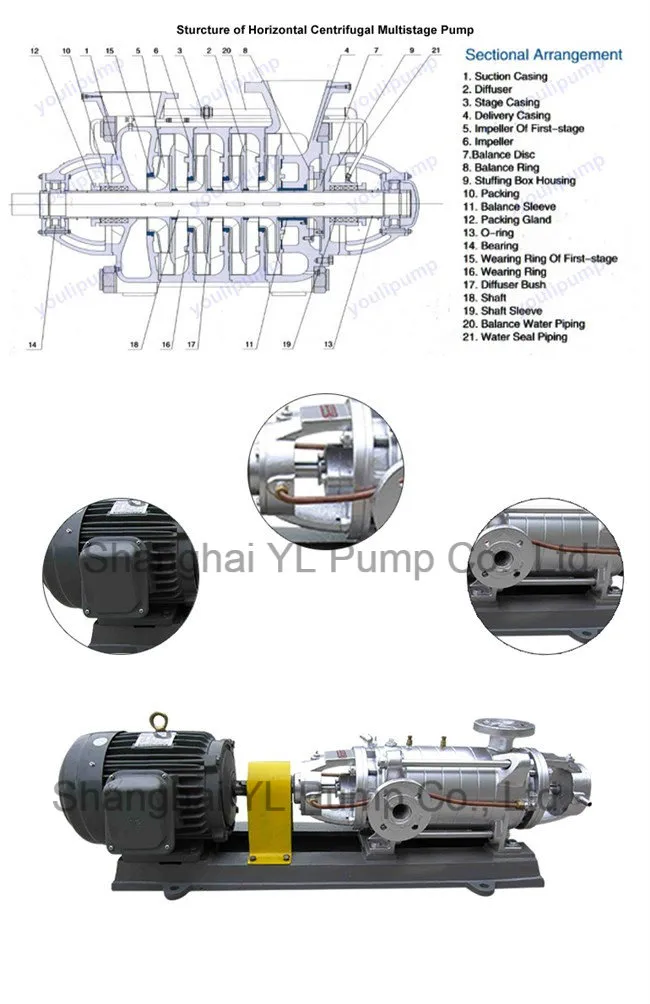

Structure
Large Volume High Pressure Multistage Electric Irrigation Pump

The multistage centrifugal pump is driven by electric motor. The head of pump will higher because of the stage added. Our pump is applicable to deliver those fluid without solid, particles or any other suspended stuff, water for instance.

Specification

D(DF,DY,MD)580-60×(2-10)
Stage	Capacity		Head	Rating Speed	Efficiency	Shaft power	NPSHr	Impeller Dia	Pump Weight
	Capacity		Head	Rating Speed	Efficiency	Shaft power	NPSHr	Impeller Dia	Pump Weight
	m3/h	L/s	m	r/min	%	KW	m	mm	kg
2	450	125	130	1480	79	202	3.16	φ455	1750
	580	161.1	120		82	231	4.84
	638	177.2	110		80	239	5.16
3	450	125	195	1480	79	302	3.16	φ455	1950
	580	161.1	180		82	346	4.84
	638	177.2	165		80	359	5.16
4	450	125	260	1480	79	403	3.16	φ455	2260
	580	161.1	240		82	462	4.84
	638	177.2	220		80	479	5.16
5	450	125	325	1480	79	504	3.16	φ455	2570
	580	161.1	300		82	578	4.84
	638	177.2	275		80	599	5.16
6	450	125	390	1480	79	605	3.16	φ455	2880
	580	161.1	360		82	694	4.84
	638	177.2	330		80	718	5.16
7	450	125	455	1480	79	706	3.16	φ455	3190
	580	161.1	420		82	809	4.84
	638	177.2	385		80	838	5.16
8	450	125	520	1480	79	806	3.16	φ455	3500
	580	161.1	480		82	924	4.84
	638	177.2	440		80	958	5.16
9	450	125	585	1480	79	907	3.16	φ455	3810
	580	161.1	540		82	1040	4.84
	638	177.2	495		80	1077	5.16
10	450	125	650	1480	79	1008	3.16	φ455	4120
	580	161.1	600		82	1155	4.84
	638	177.2	550		80	1197	5.16

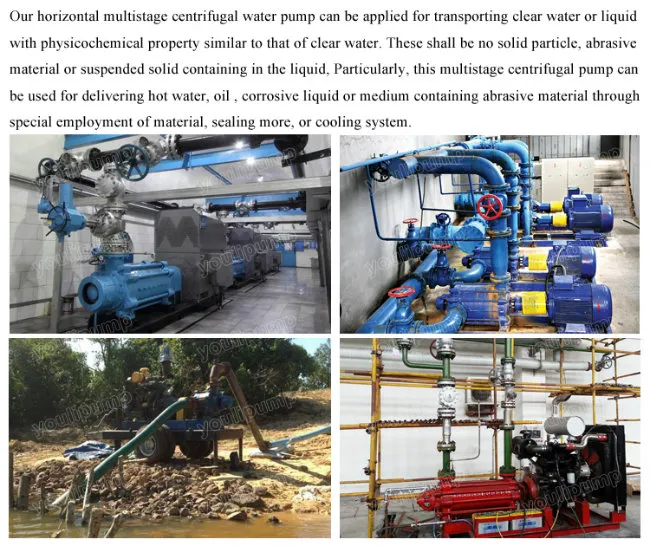

Application Large Volume High Pressure Multistage Electric Irrigation Pump

Our Client
Large Volume High Pressure Multistage Electric Irrigation Pump

Our Service
1.Delivery: Delivery time will be on time as the contact. Usually, the delivery time is of centrifugal pump is for 15-25 working days.
2.Warranty: 1 year for the pump body, 3 months for the main working parts.
3.Package:According to your quantity, we use plywood case which is durable for ocean transport.
4.Shipping: By Sea and By Air
5.Payment: We are accept T/T,L/C,West Union and so on.
6.Pre-sales Service:According to your requirement, we will give your our profession advice of pump solution.
7.On-sales Service:We will clearly show you everything in fact when you place an order with us. We will takes photos or videos to show you order production situation.
8.After-sales Service: We will full report you the production progress and plan. Meanwhile, we will follow up the pump working conditions per three months when the pumps put into use, and can send the spare parts to you within one week if you need.

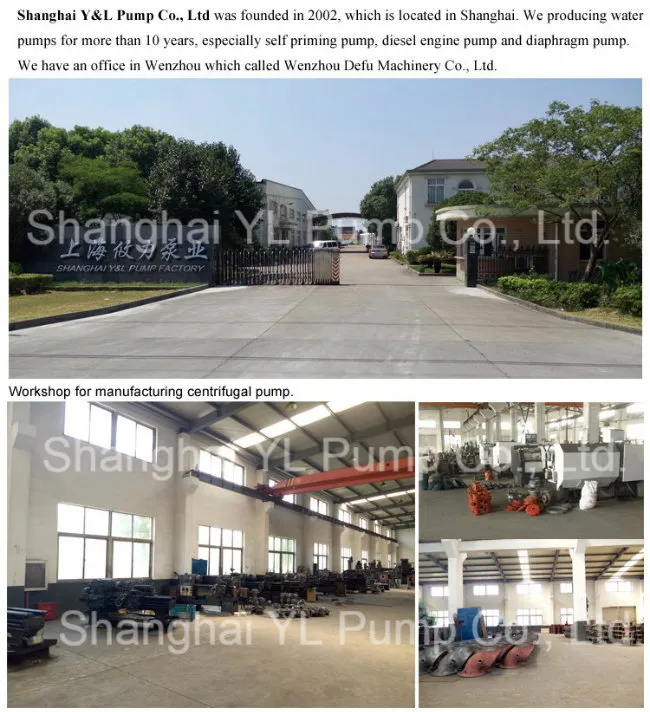

About Us
Large Volume High Pressure Multistage Electric Irrigation Pump
